Seasonic sell both black and white versions of these power supplies. Leo was sent a white one for video content, I received a black version. This power supply is classified by Seasonic internally as a ‘small footprint' model, with a depth of 140mm. The PRIME, PRIME Fanless and VERTEX are longer.

The large fan is hidden behind a very fancy grill design. We will take a closer look at the fan when we open the chassis.

The modular bay is split across two rows with clearly labelled sections highlighting the sections.

The other side of the chassis has a power connection, a power switch and a hybrid fan mode button.

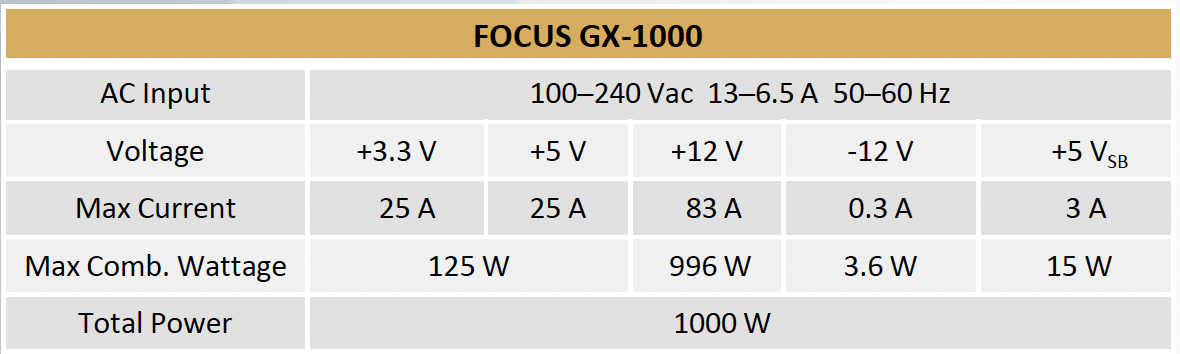

This 1000 Watt unit is able to deliver 83A via the +12V rail for 996W of the total power output. Seasonic have set the minor +3.3V and +5V rails at 25A.
