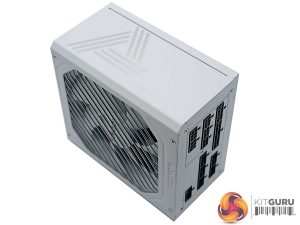

The Montech Titan PLA 1000W PSU is very attractive with the logo being engraved in an almost silver colour – this works in a very subtle way against the white paintwork. Build quality on the outside is very good. The unit measures 160 x 150 x 86 (L x B x H).

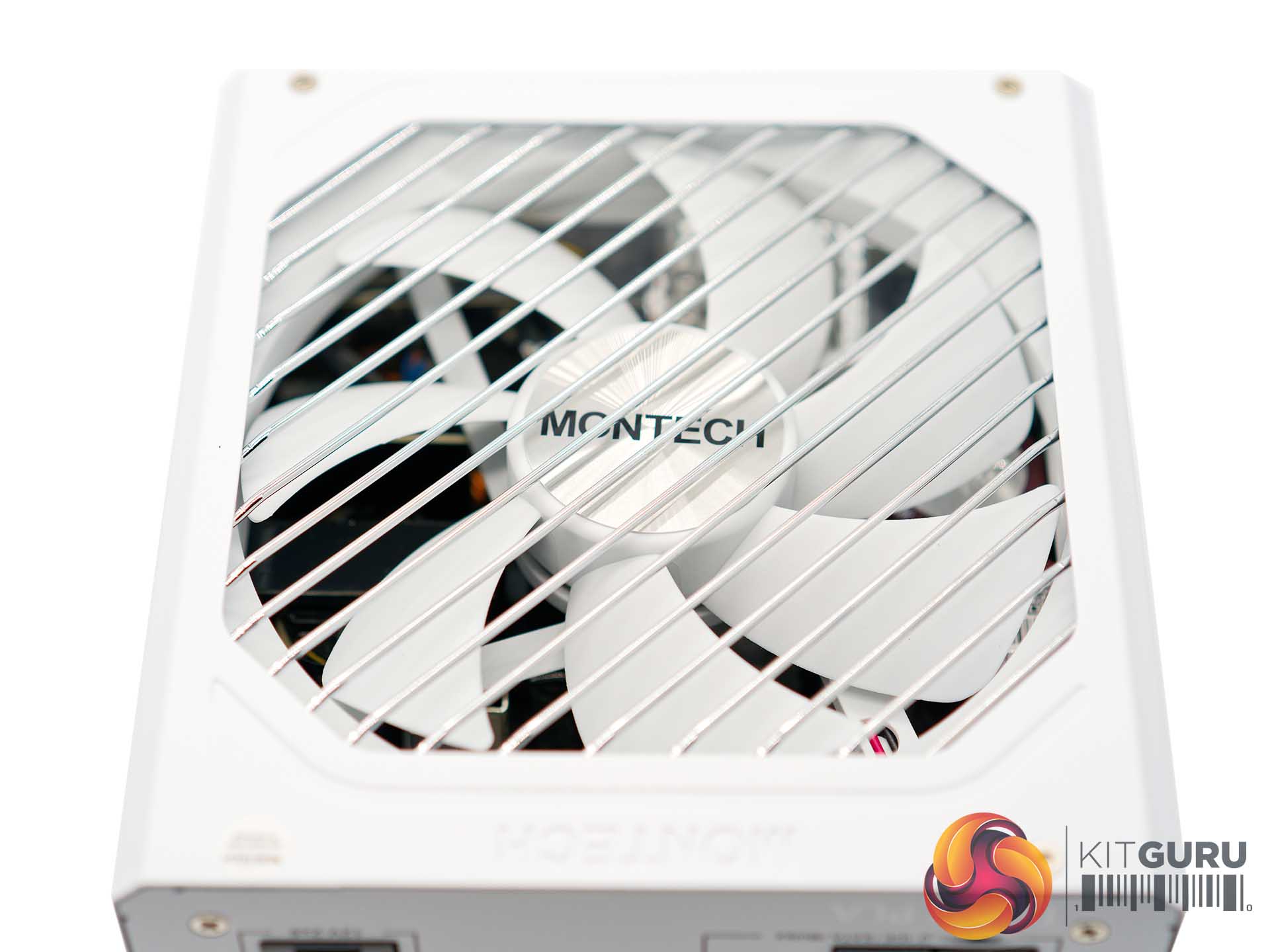

A large white fan can be seen behind a very heavily vented panel on the top – we will take a look at this fan when we open the unit, but we can already guess it will be a Hong Hua Fluid Dynamic Bearing model. This is Seasonics favourite fan to use.

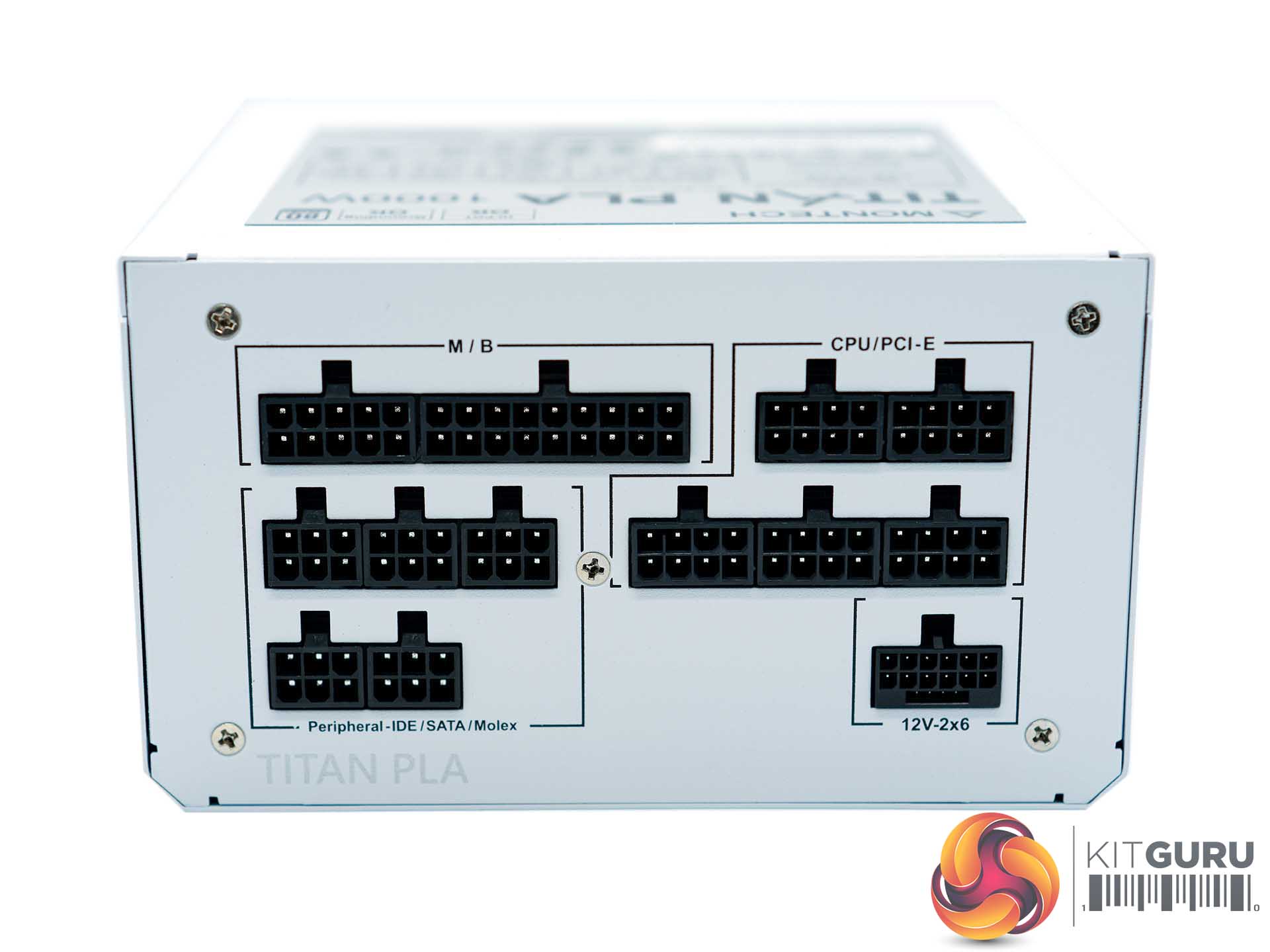

One side of the power supply is home to the modular bay – split into three rows, clearly labelled for ease of use during the build phase.

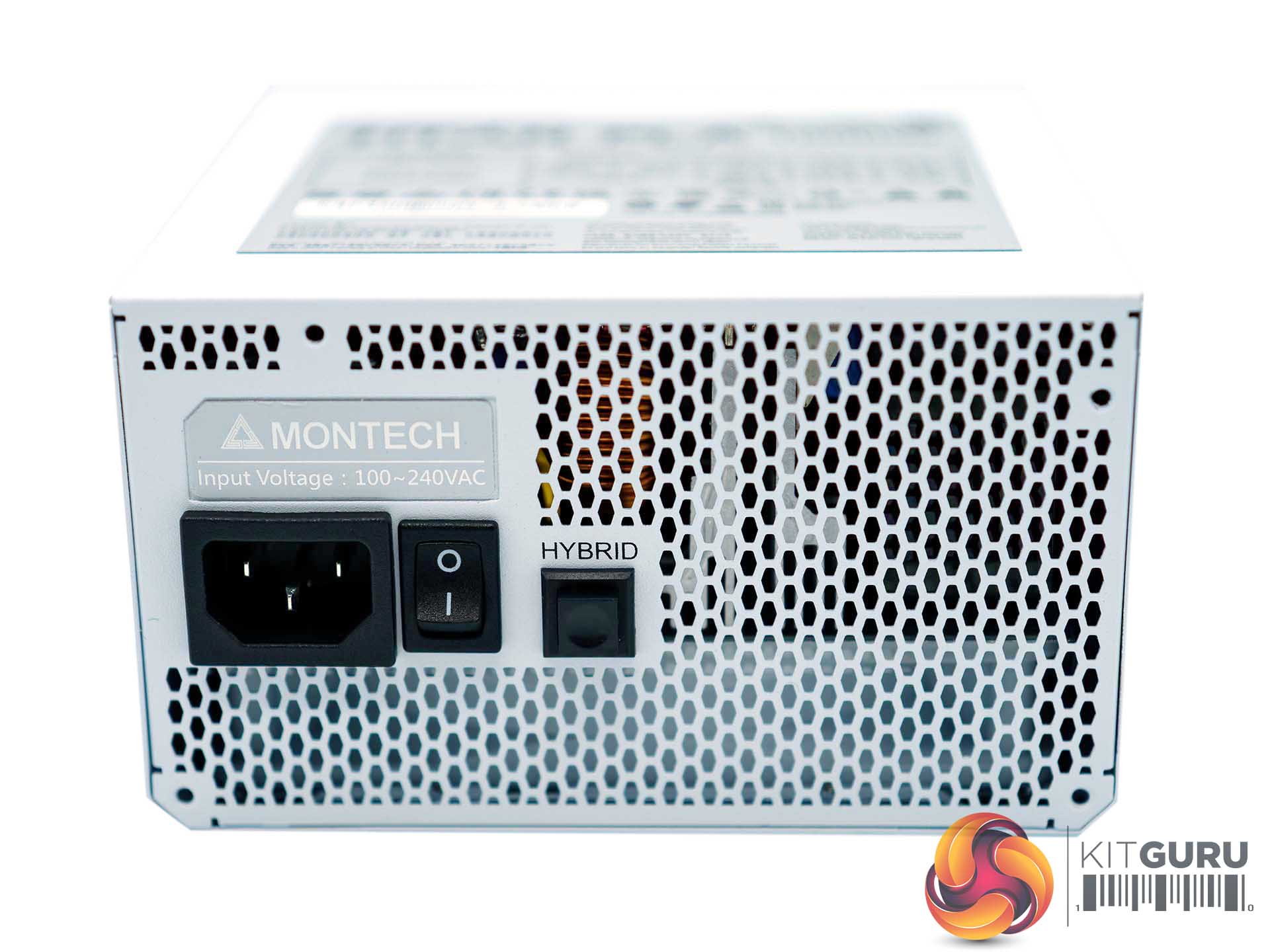

The other side of the power supply is home to the power panel – comprising a switch, connector and hybrid fan control. We have obviously seen this on many Seasonic power supplies in the past – this enables the semi active mode – meaning the fan will be disabled at lower power demands and will only activate when the power load ramps up. Usually the fan will remain off until at least 20% is demanded.

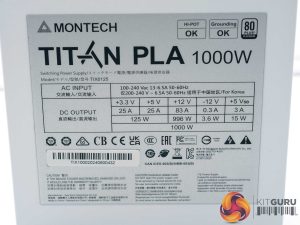

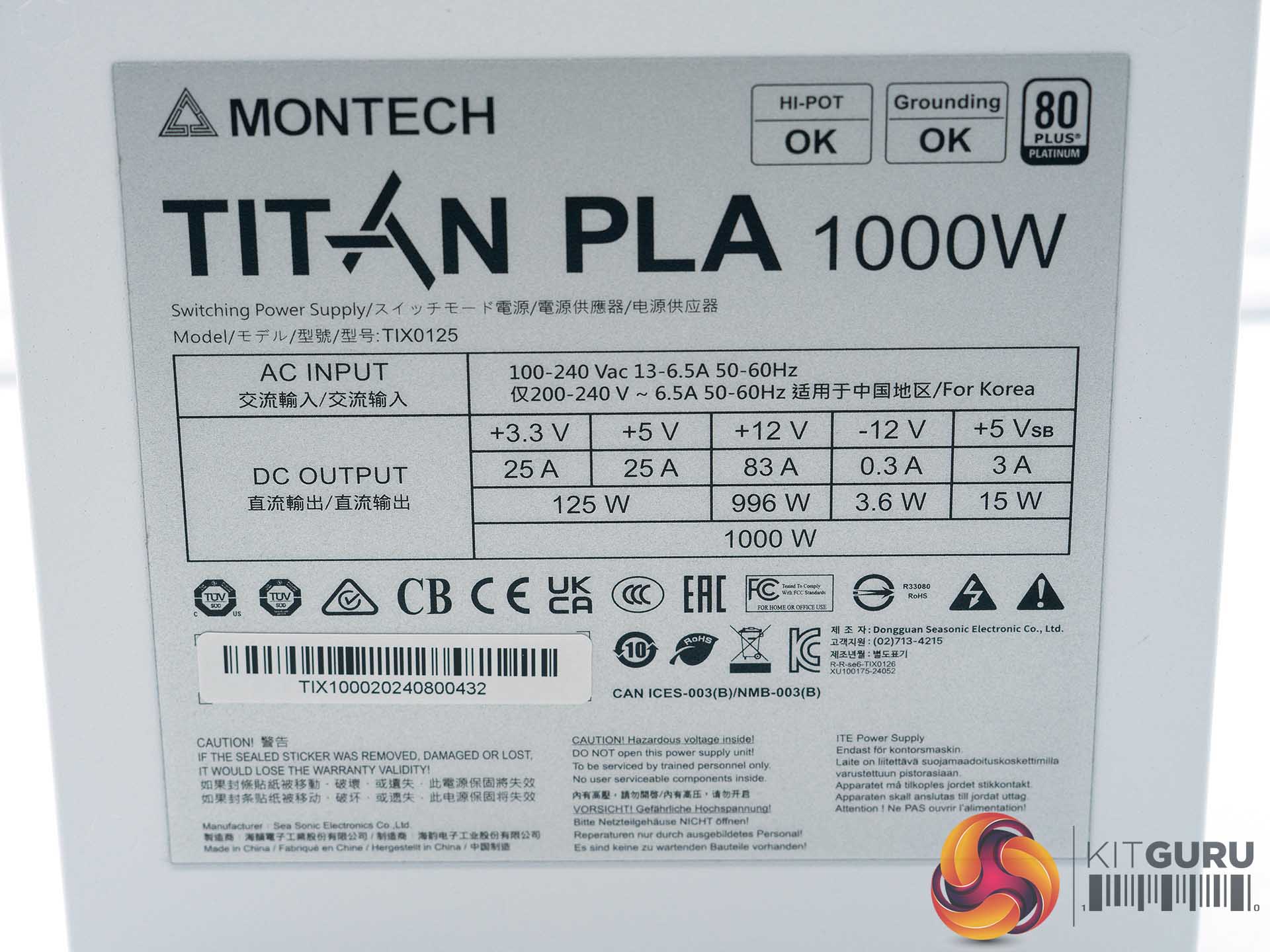

The power supply can deliver 83A via the +12V rail. 25A can be delivered across the +3.3V and +5V rails for a total of 25A per rail. Identical to the Seasonic Focus GX1000 V4 we reviewed back in September 2024.
