LEPA G1600 MA EU 1600W PSU Review

1. Introduction2. LEPA G1600 (Bundle/Cabling)3. LEPA G1600 (External)4. LEPA G1600 (Internal)5. LEPA G1600 (High Res Gallery)6. Testing Methodology & Results7. Closing Thoughts8. View All Pages

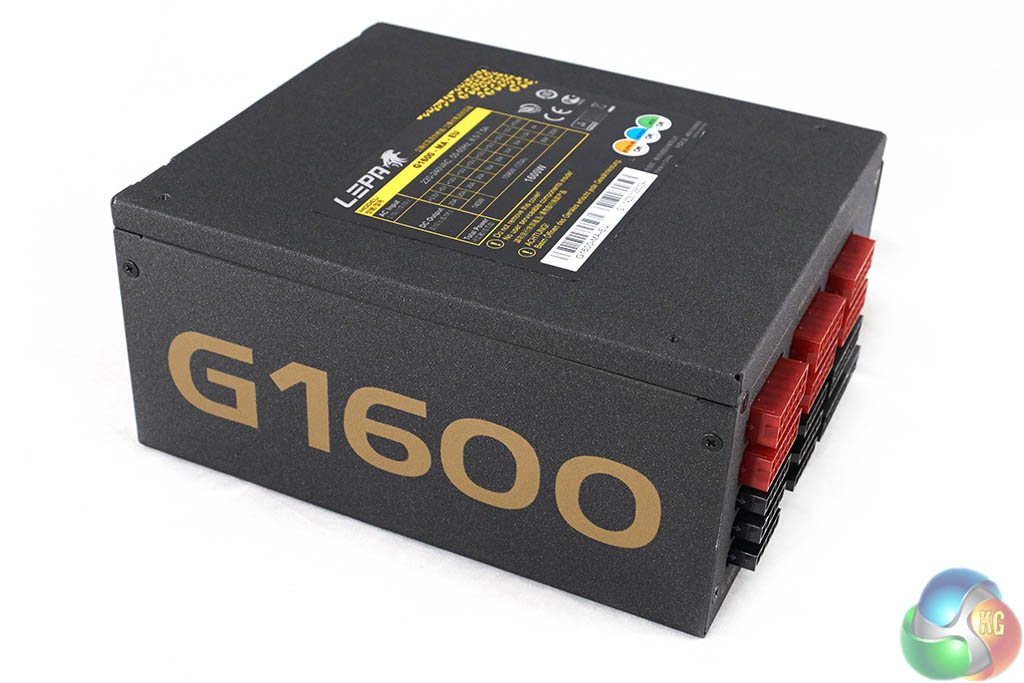

The LEPA G1600 power supply has a great matt finish – the rough surface is very resilient against scratching and fingerprints.

This unit passed our screwdriver test without a hitch. We run the head of a Philips screwdriver down the side of the chassis with light to moderate force. How many times have you accidentally ‘connected’ with a power supply during a system build?

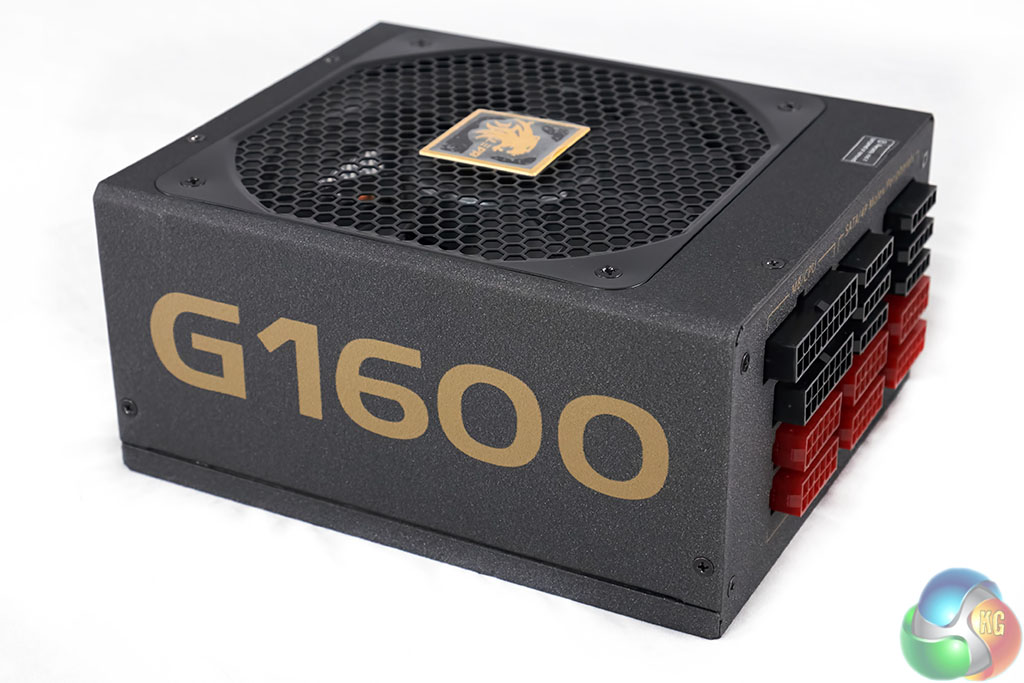

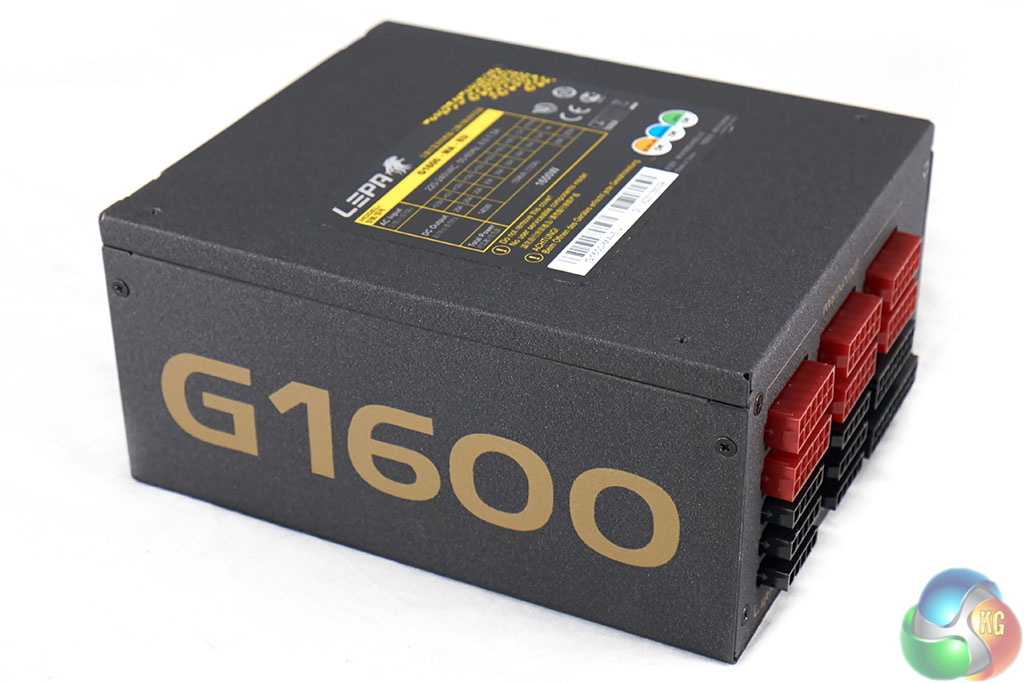

The slate grey finish holds up well from all angles. If I was being pedantic, I would prefer to see the G1600 product naming in a smaller font.

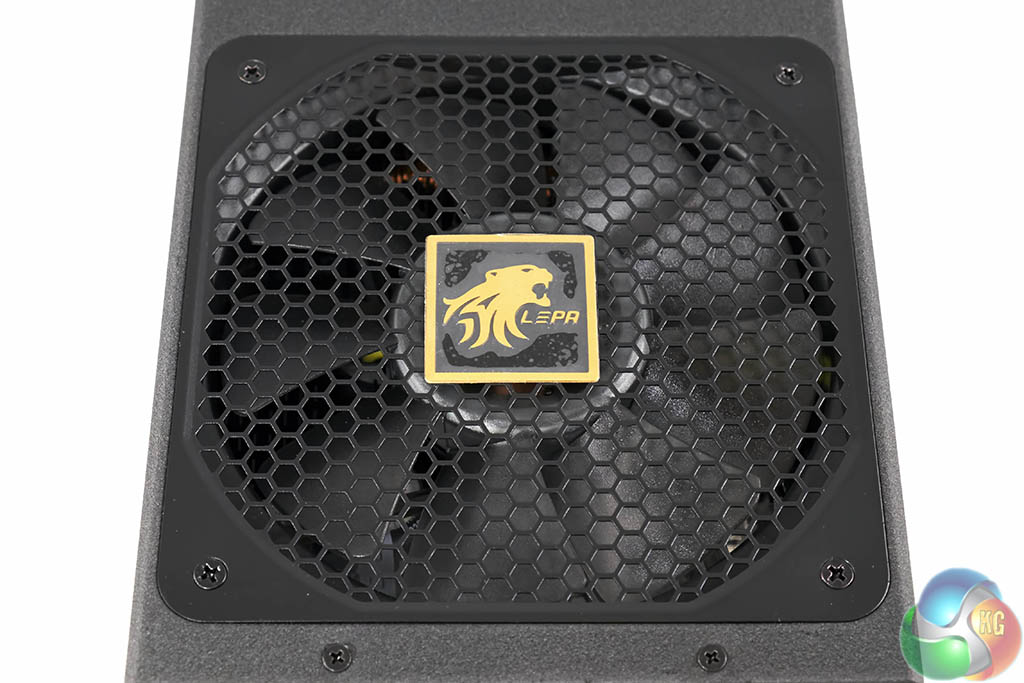

A large fan is hidden behind the LEPA logo.

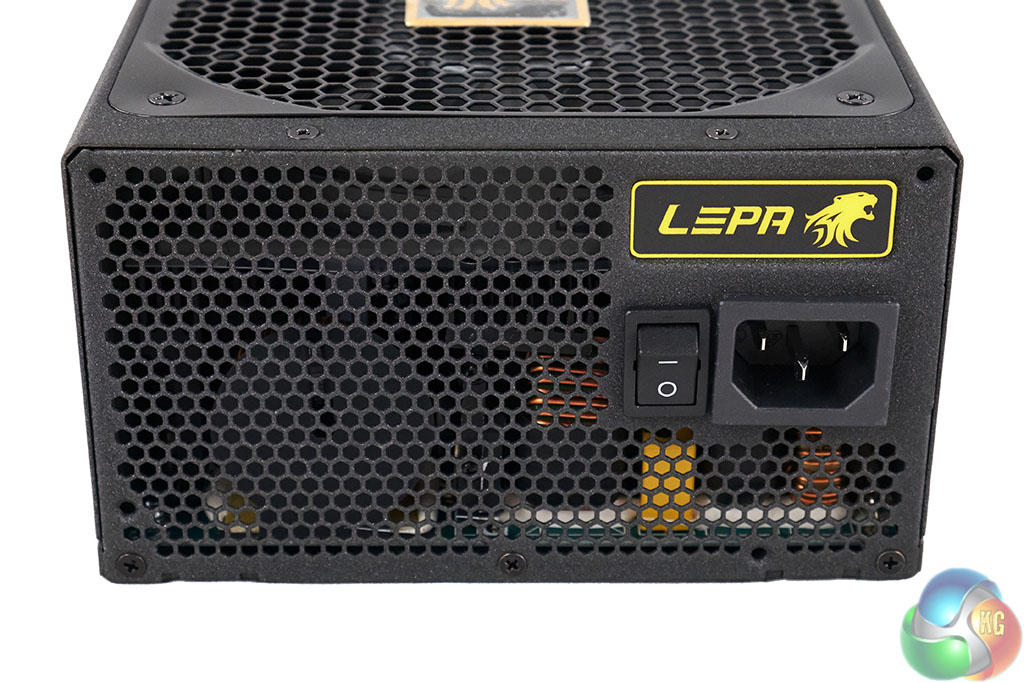

One side of the unit is vented to aid air flow. At the side, below the LEPA logo is a power switch and connector.

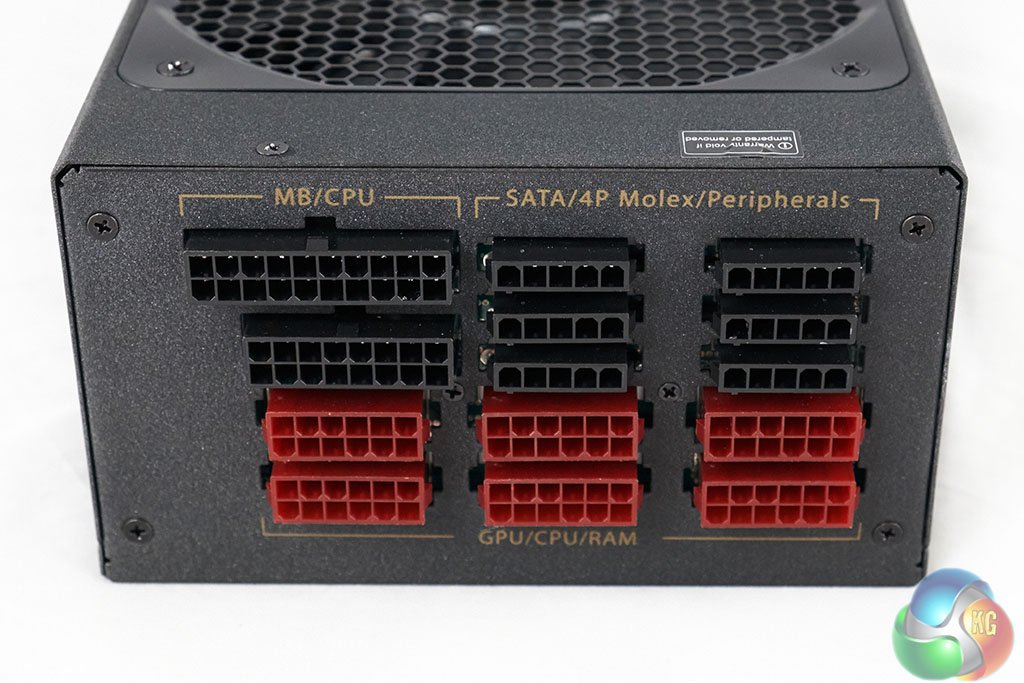

The modular panel is densely packed and colour coordinated and labeled to aid with the install phase.

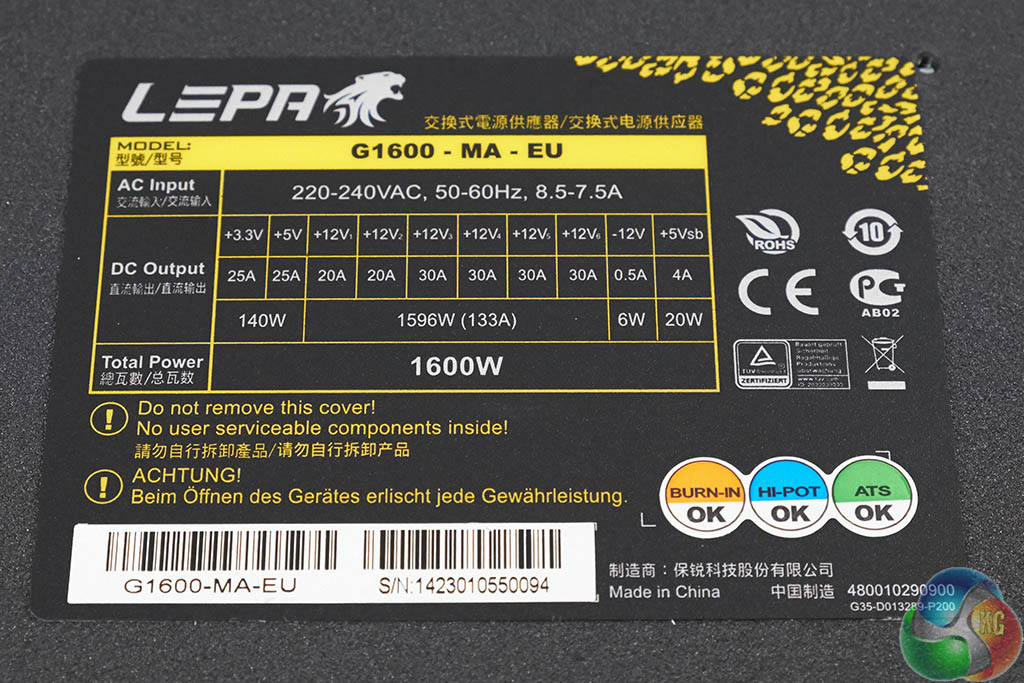

LEPA G1600
DC Output	+3.3V	+5V	+12V1	+12V2	+12V3	+12V4	+12V5	+12V6	-12V	+5Vsb
Max Output	25A	25A	20A	20A	30A	30A	30A	30A	0.5A	4A
Total Power	140W		1596W (133A)						6W	20W
	1600W

The six +12V rails are able to deliver 133A.
