LEPA G1600 MA EU 1600W PSU Review

1. Introduction2. LEPA G1600 (Bundle/Cabling)3. LEPA G1600 (External)4. LEPA G1600 (Internal)5. LEPA G1600 (High Res Gallery)6. Testing Methodology & Results7. Closing Thoughts8. View All Pages

The LEPA G1600-MA ships in a full colour, heavy box with some details on the front.

The rear of the box is crammed with technical information on the supply and will appeal to experienced users looking to get more information on the build quality when browsing in a retail store (there are some left, right?).

The box opens up to expose three separate trays which hold the power supply, and the accessories. The power supply isn't protected between thick foam pads, just the cardboard panels, and a bubblewrap style bag.

The accessories include a regional specific power cable, a user manual and some technical data.

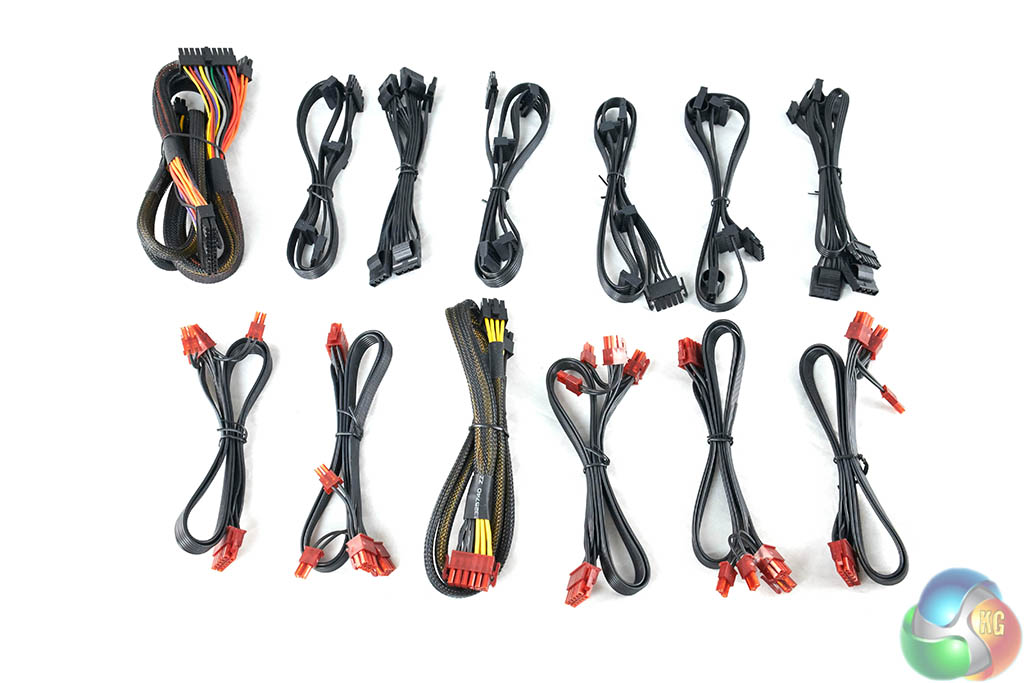

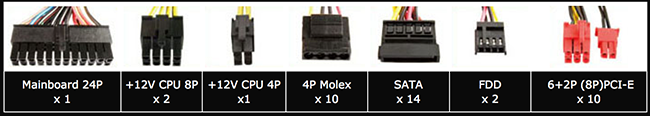

Most of the cables (except main MB and CPU power) are the thin ‘ribbon' style – which prove popular with the enthusiast audience thanks to the advantages when cable routing. There are no less than a staggering ten 6+2 PCI E cables to cater to the most demanding Crossfire and SLI system builds. You could power five high end graphics cards with the LEPA G1600-MA.

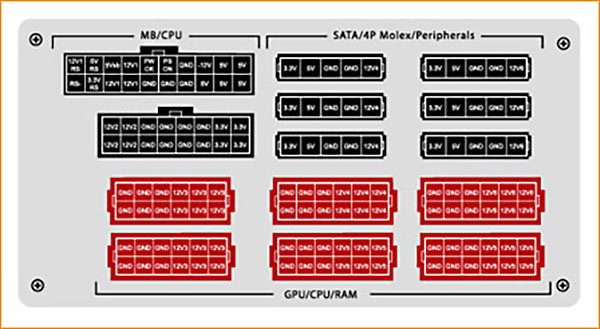

The company have published a breakdown of the power supply configuration which explains the +12V distribution via the modular connectors.
