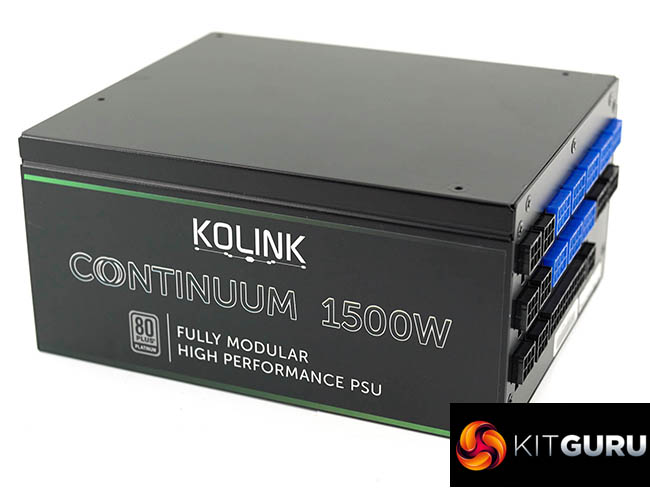

A big sticker with green trimming takes up one side of the unit. Its quite ugly to my eyes, although they say beauty is in the eye of the beholder. Some people for instance find Lady GaGa quite beautiful. The dimensions are: 150 x 86 x 180 mm (W x H x D).

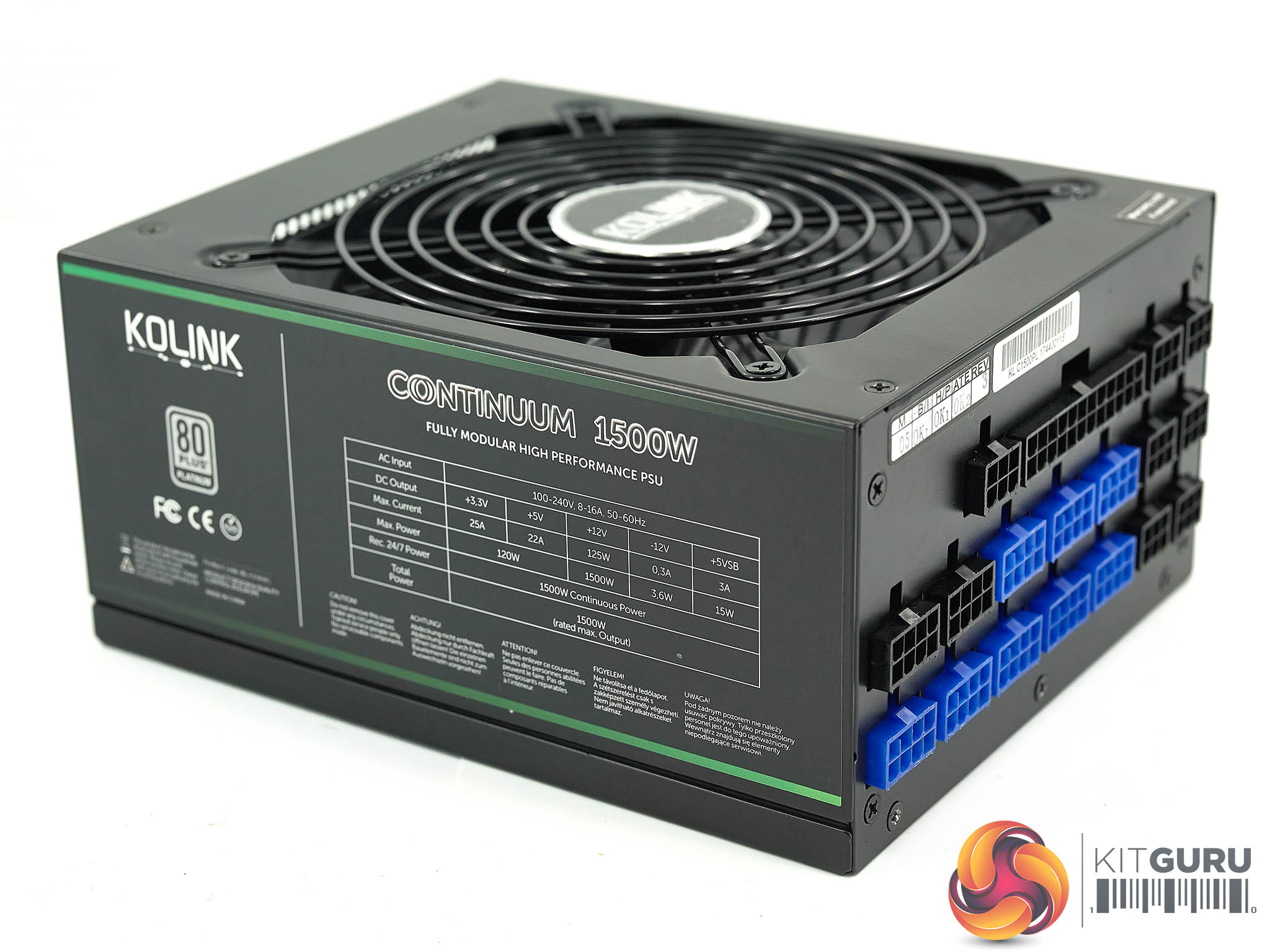

The other side of the unit has a big sticker on it as well with the company name, product name, and ‘fully modular/high performance PSU' written underneath. It wasn't stuck on perfectly straight either. Very unattractive to my eyes but I guess you could remove them with a bit of patience and effort.

The paint work on the power supply is alright, it will scratch fairly easily, which is perhaps why there are stickers all over it. I would expect a little more from a power supply costing almost £300.

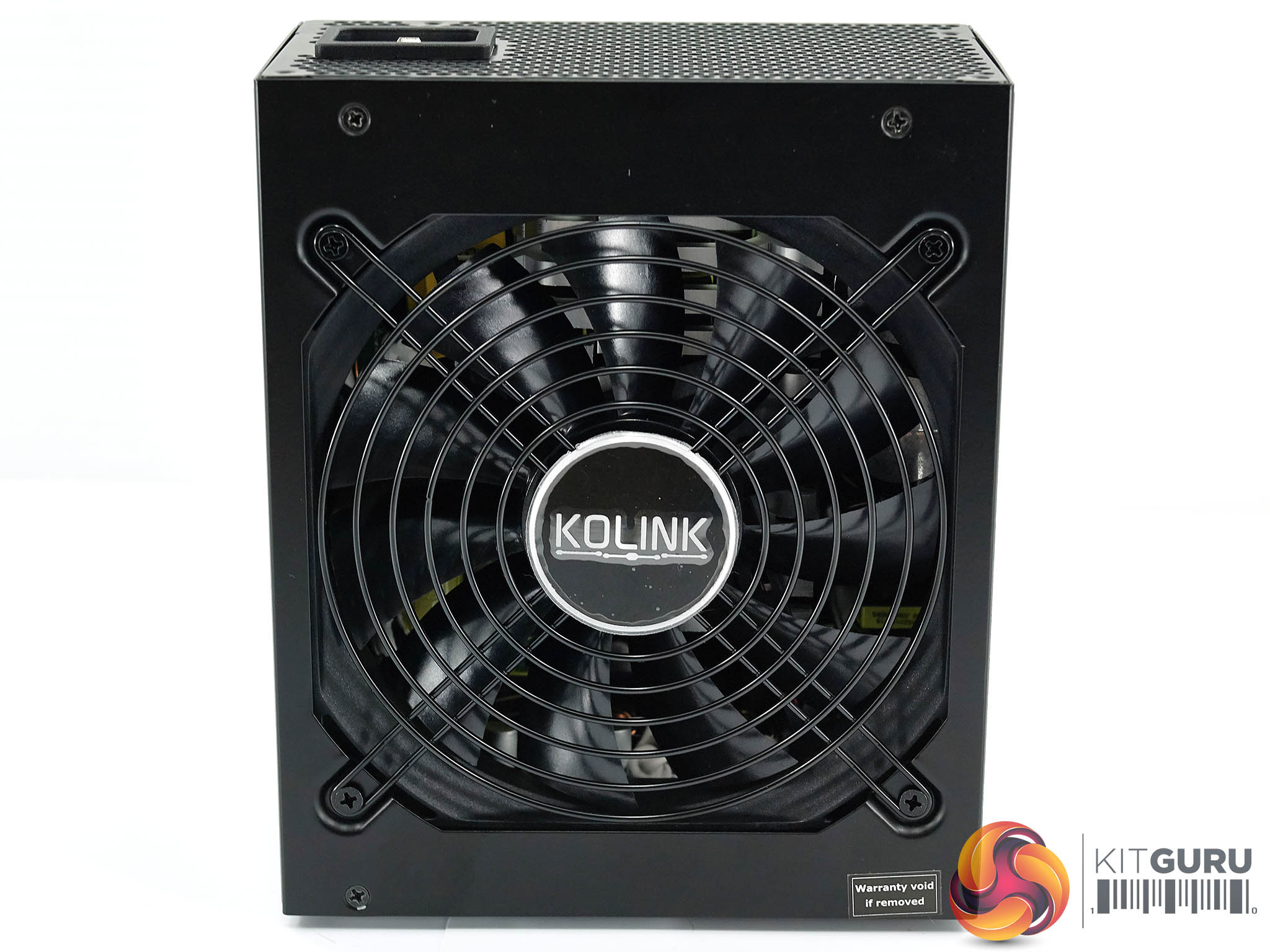

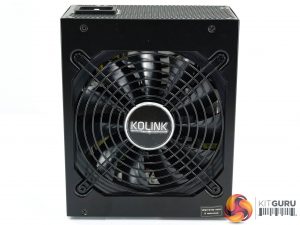

The large fan can be seen behind the black grill with the company sticker in the middle.

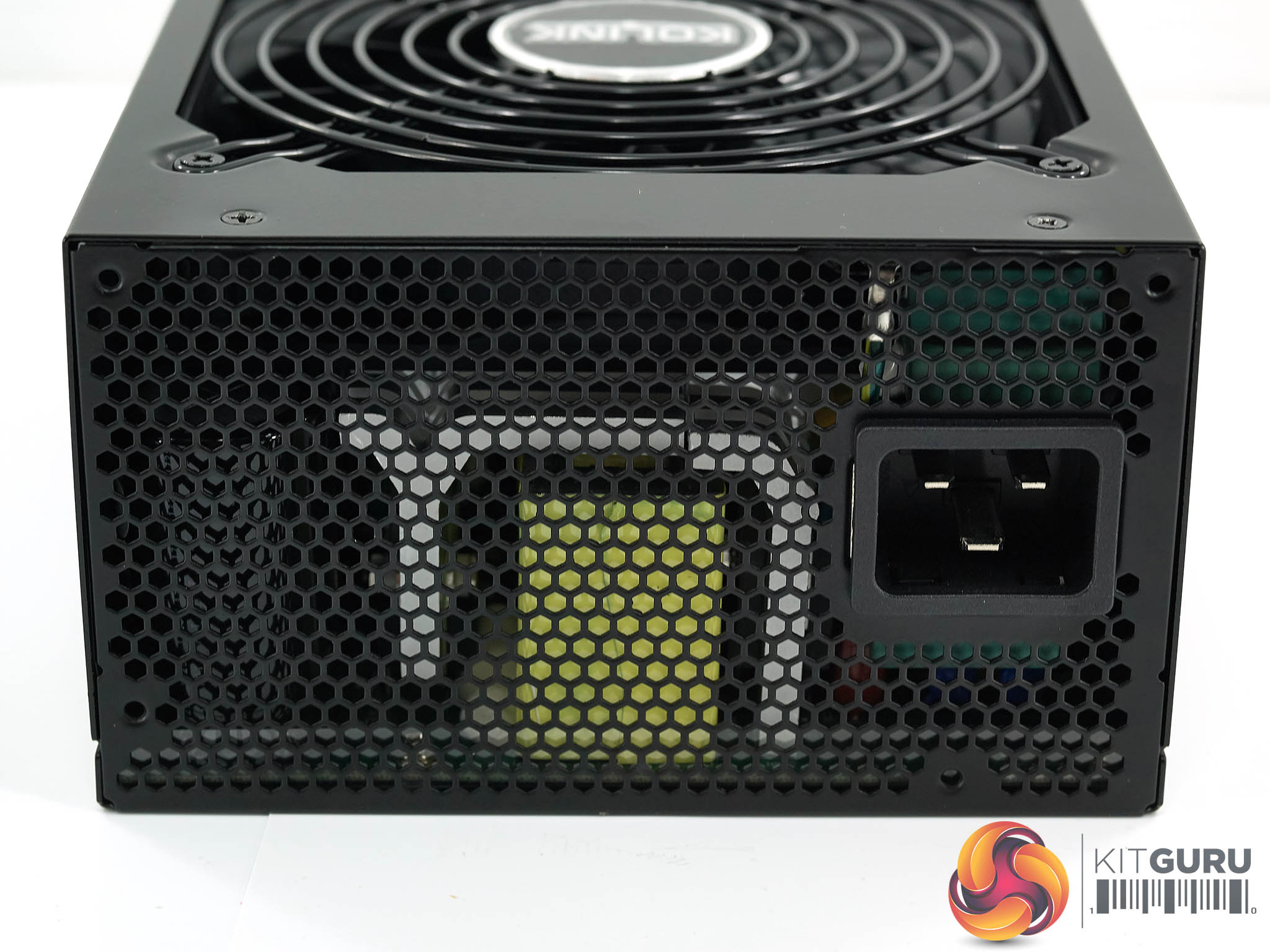

As we mentioned earlier in the review, The designers decided to get rid of the mechanical power switch. This helps improve airflow and also reduces RMA issues. I was told by a Kolink representative that switches can be an RMA concern and miners don't like those switches as they like to remote control their rigs anyway. Some honeycomb vents are beside the connector.

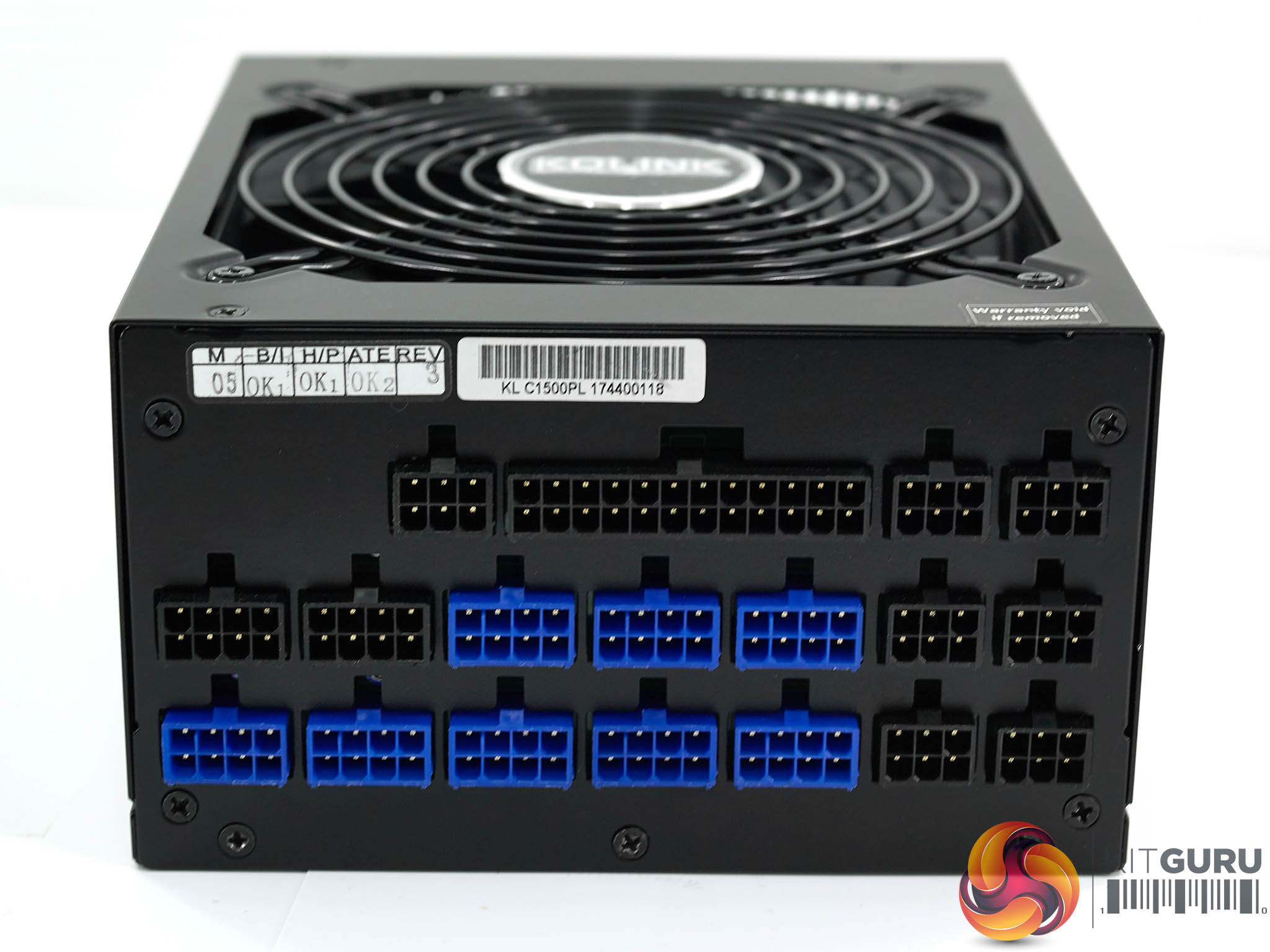

The modular panel is colour coded, but not labelled. If you were paying attention on the last page you would have noticed that some of the cables have blue connectors. These PCIe cables match the power supply – making the install phase very straightforward indeed.

The sticker on this side actually started to peel away in the top corner later in the review. We also noticed an error on the technical sticker – instead of 125A it said 125W. We mentioned this to the company and they said it was going to be fixed on the next batch being made, so all good there.

Kolink Continuum KL-C1500PL PSU
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output	25A	22A	125A	0.3A	3A
Total Power	120W		1500W	3.6W	15W
	1500W Continuous Power

The single +12V rail is able to deliver 125 amps which is monstrous.
