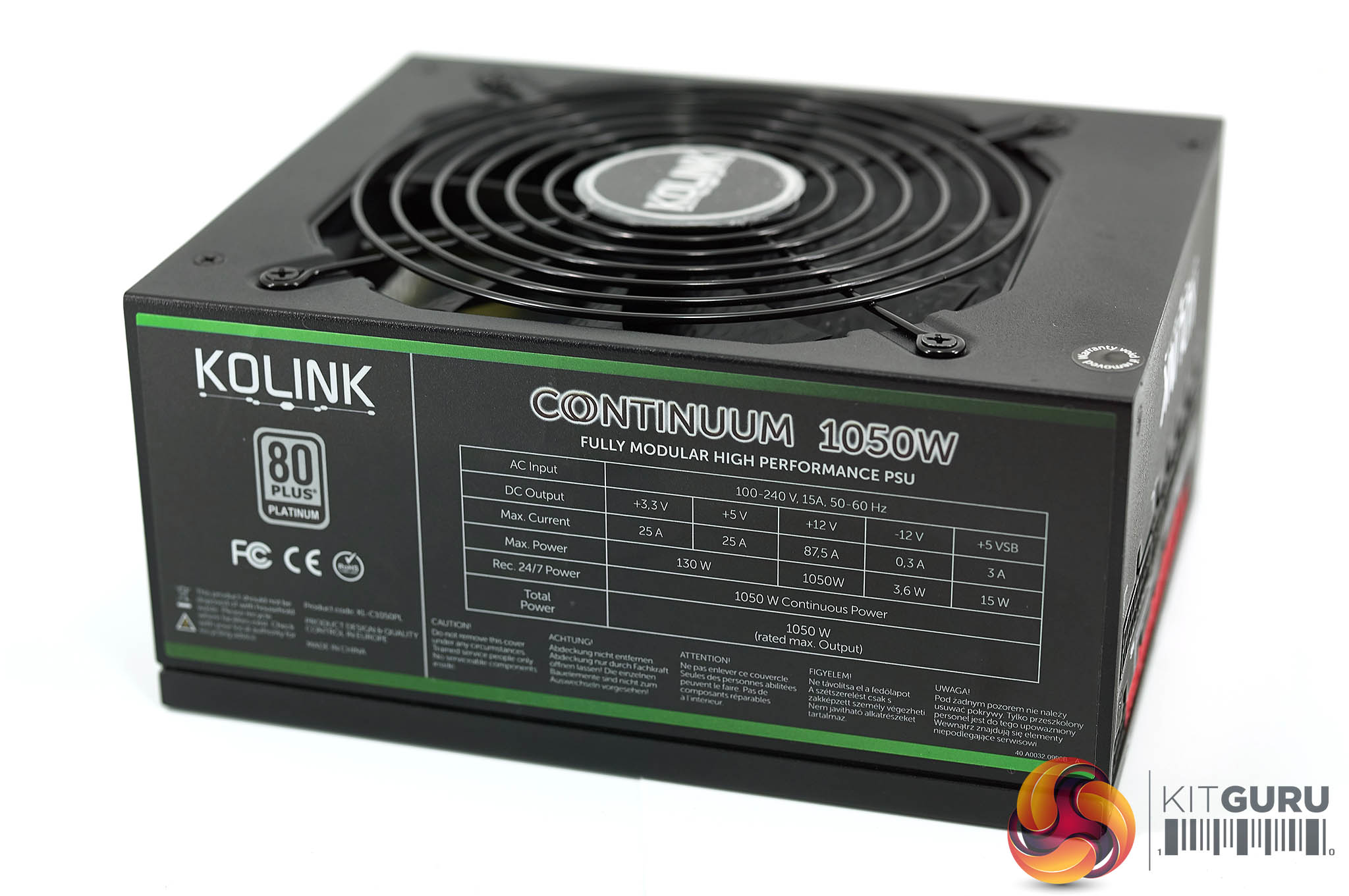

The Kolink Continuum KL-C1050P is finished to a high standard although I do find all the green accented stickers on the panels a little unnecessary. Less is more in this case.

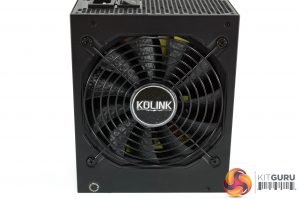

A large 140mm fan takes centerstage behind a black grill. Kolink company branding is shown in the middle. We will take a closer look at the fan when we open the chassis.

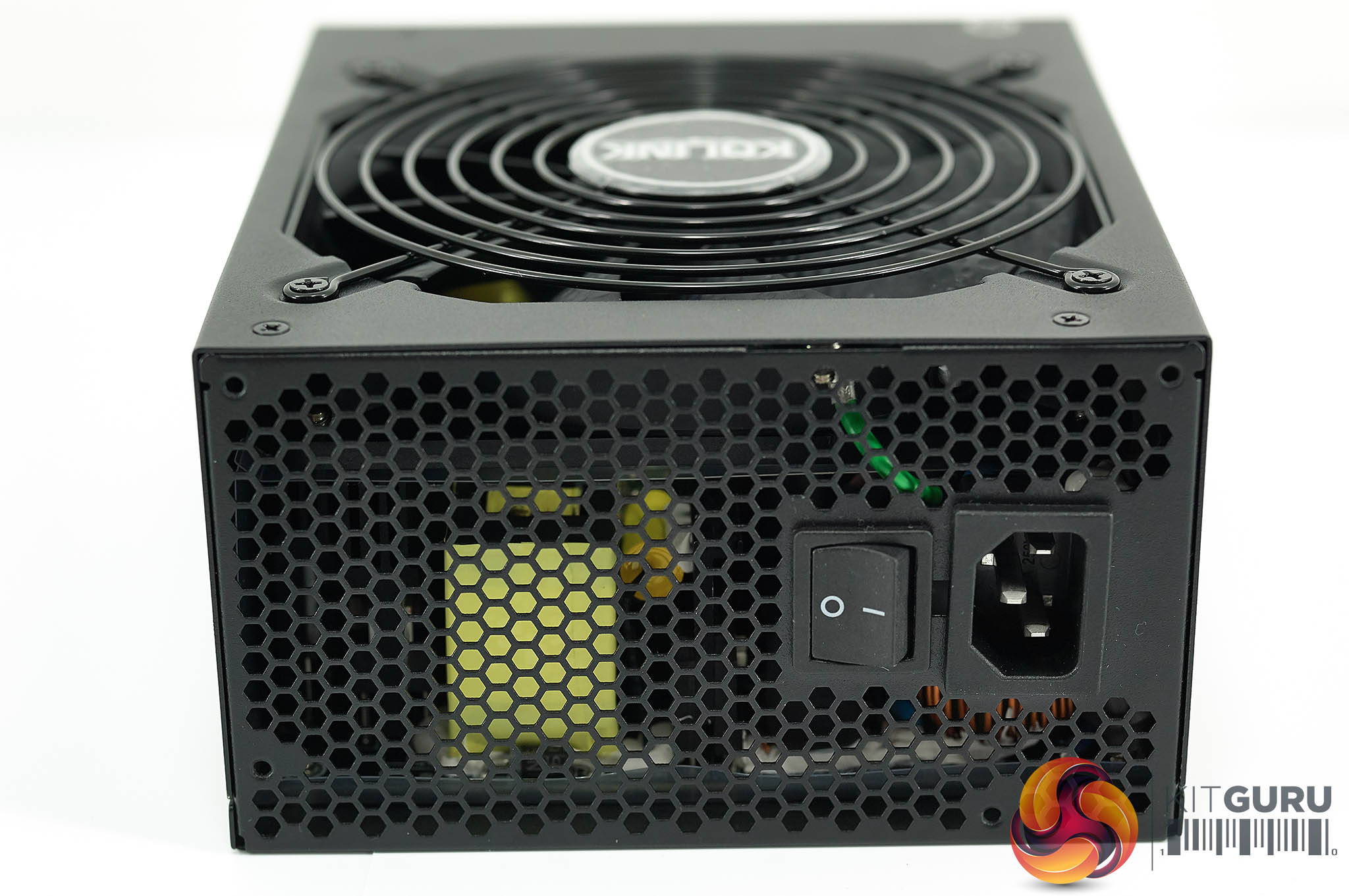

One side of the power supply is vented, with a power connector and switch offset to the side.

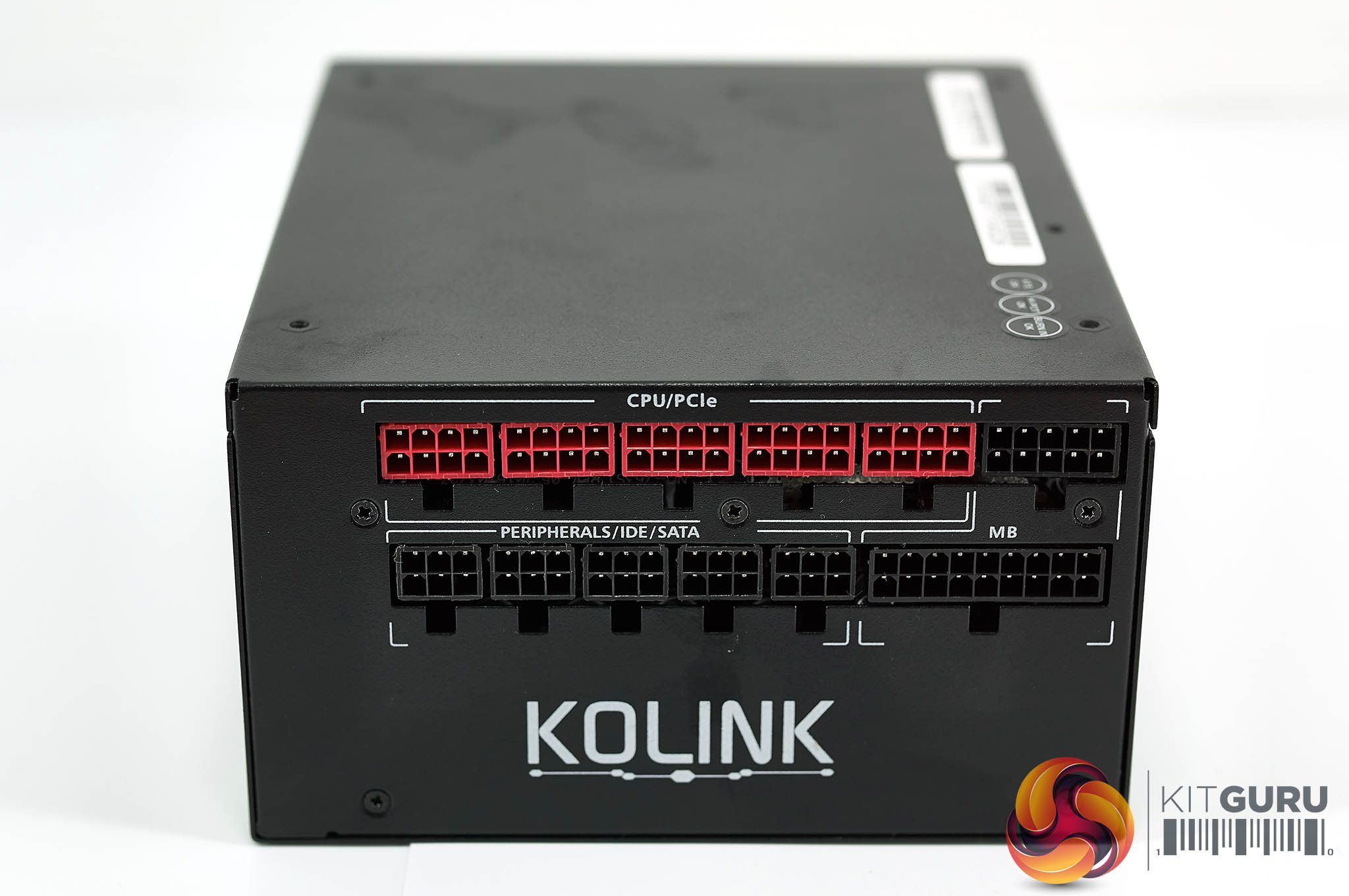

The modular bay is well laid out, and clearly labelled for system builders. I said it in the last review, but the mismatch of red coloured connectors and green labels looks gaudy. Make them all either red, or green.
As we can see, this is a pure modular power supply, with no cables hardwired into the chassis. The 1200W unit power supply has connectors the full width of the chassis, but this 1050W model has a vertical row (of three) removed on the far left. The CPU and PCIe connectors are red, while the peripheral connectors are in a single row of five 3+3 pin.
| Kolink Continuum 1050W PSU | |||||
|
DC Output
|
+3.3V
|
+5V
|
+12V |
-12V
|
+5Vsb
|
|
Max Output
|
25A
|
25A
|
87.5A |
0.3A
|
3A
|
| Total Power | 130W | 1050W | 3.6W | 15W | |
| 1050W | |||||
The single +12V rail is able to deliver 87.5 amps which is plenty for any Crossfire or SLI system build I can imagine. The larger 1200W Continuum model is capable of delivering 100 amps.
