The Enermax box is colourful with some key points listed along the top right corner – including ATX 3.0 Ready, PCIe 5.0 Ready, and 80 Plus Gold certification – alongside the use of Japanese capacitors.

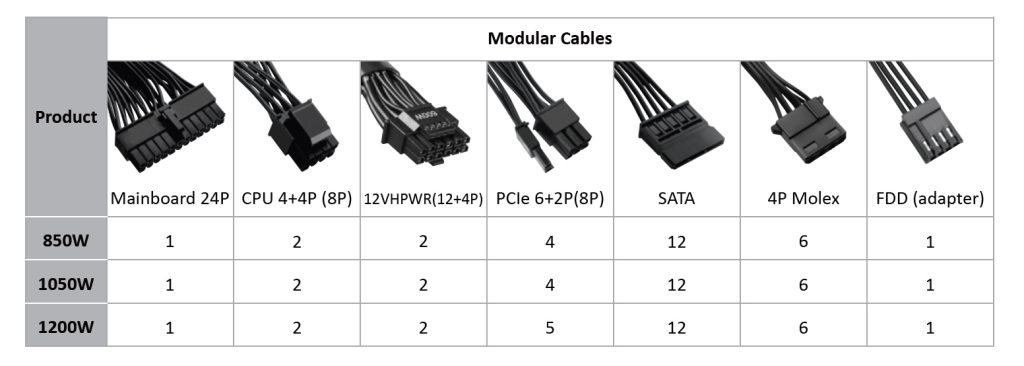

The rear of the box goes over some of the same key points from the front, alongside some diagrams showing the cables, connectors and power delivery figures.

Unfortunately Enermax only wrapped the sample box in plastic so it had a few impact knocks on the side of the box – and the sticker inside took a hit as well. This sticker can be applied to the power supply to add a bit of colour if you aren't interested in the RGB effects.

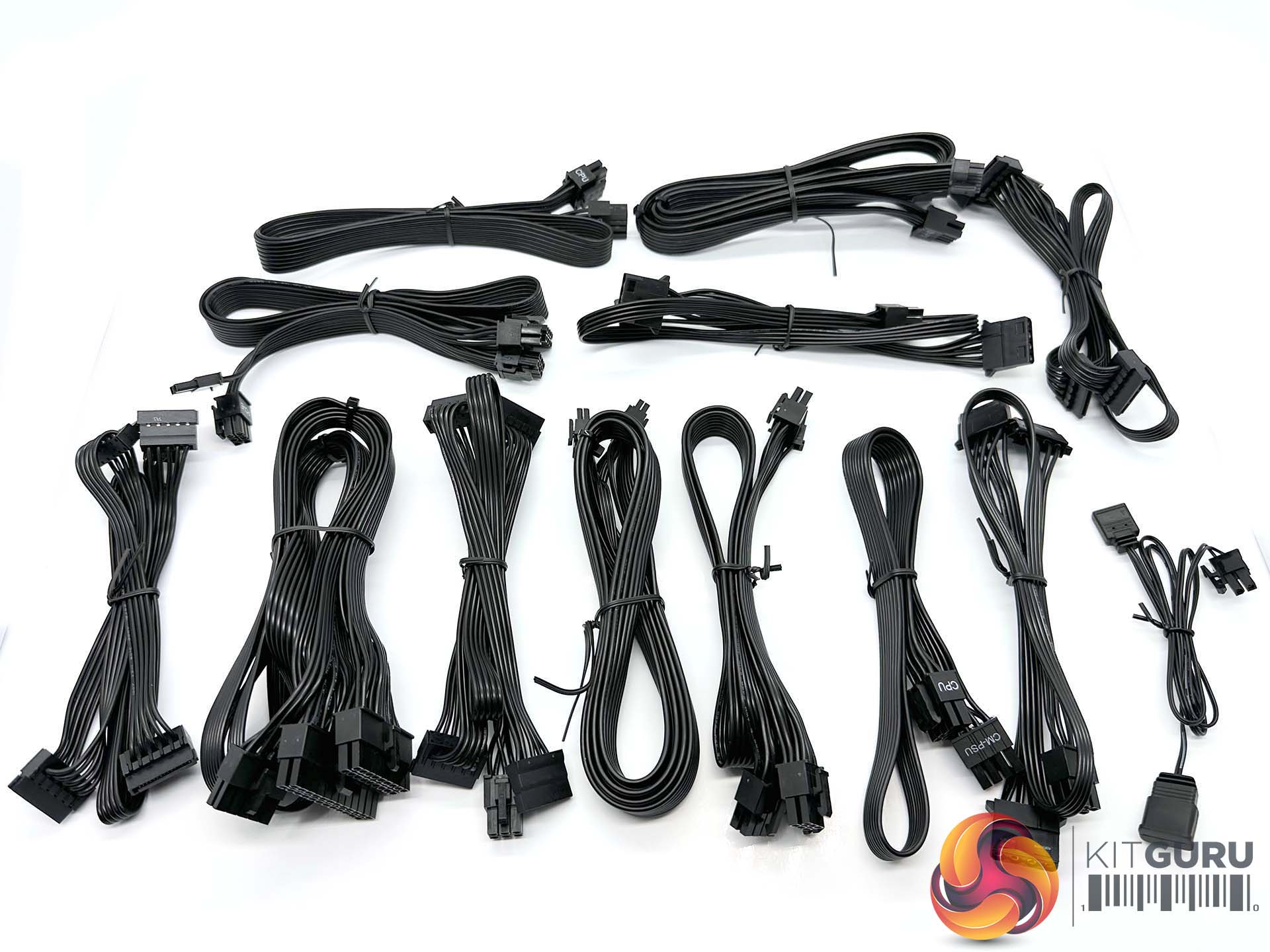

The cables are all sleeved for ease of routing during the build phase. The motherboard cable is 65cm long. The CPU 4+4 connectors are 60cm and 70cm respectively. The 12VHPWR 12+4 pin cable is 60cm long. The PCIe 6+2 pin cable is 2×65/15cm. The 2xPCIe 8 pin – 12VHPWR splitter cable is 60cm. The 12x SATA cables are 4×45/15/15/15cm. The 4P Molex cables are 2×50/15/15cm. The extra dual PCIe 8-pin to 12VHPWR cable may come in useful.
