Cyonic AU-650x Full Modular PSU Review

1. Introduction2. Cyonic AU-650x (Bundle & Cables)3. Cyonic AU-650x (External)4. Cyonic AU-650x (Internal)5. High Res Gallery6. Testing & Methodology7. Closing Thoughts8. View All Pages

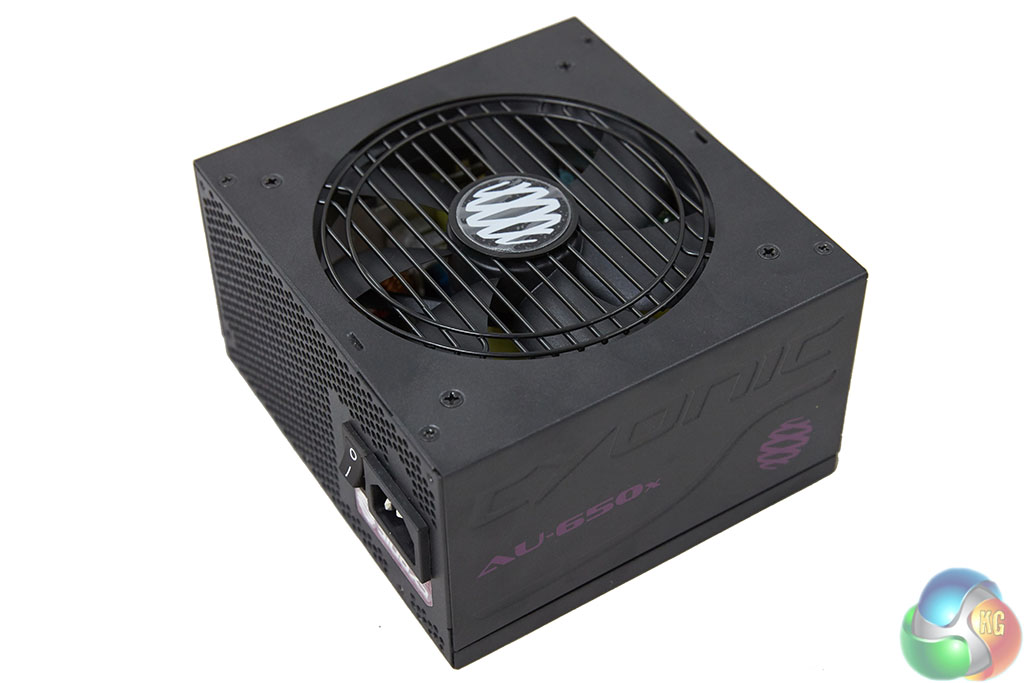

The Cyonic AU-650x isn't really what we would class as a particularly attractive looking product, but the build quality is actually quite good – all the panels feel solid under general handling. I do have to point out however that the finish is a fingerprint magnet – even with freshly washed hands it was almost impossible to keep it pristine looking for the photographs today. This is not really a massive concern as cleaning it carefully with a cloth once it is installed in a system is straightforward enough.

On a more positive note, the unit passed our ‘screwdriver’ stress test, which involves running a Philip’s head driver down the side of the chassis with weak to modest pressure. How often have you accidentally hit a power supply with some tools during a system build phase?

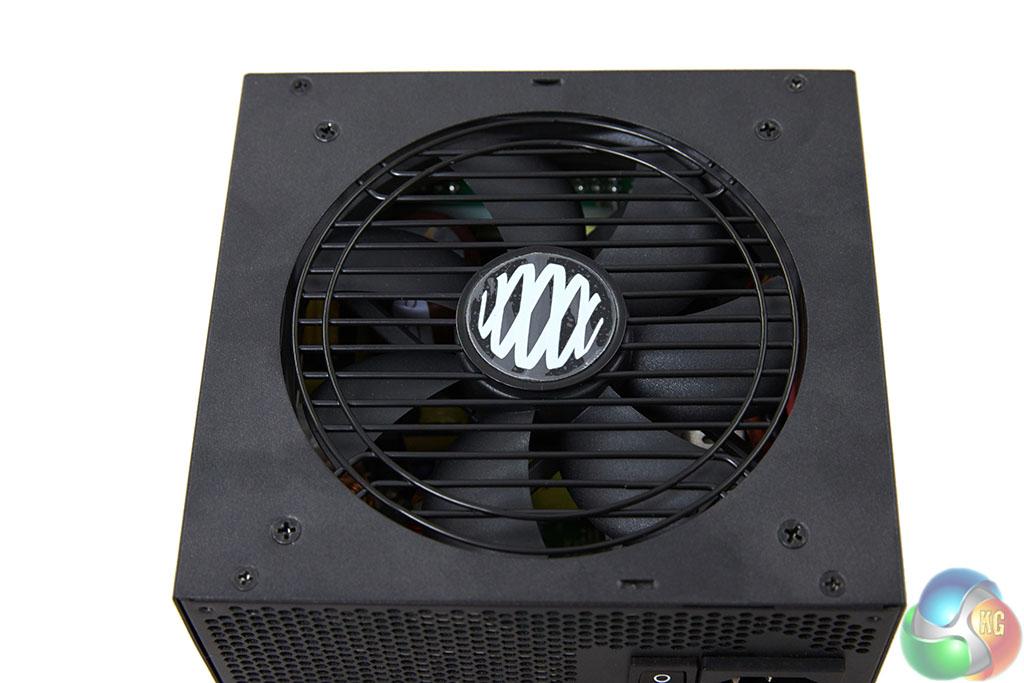

A 120mm fan resides behind the cooling grill – with the Cyonic logo proudly on display in the center. You can see what I mean now about the fingerprints!

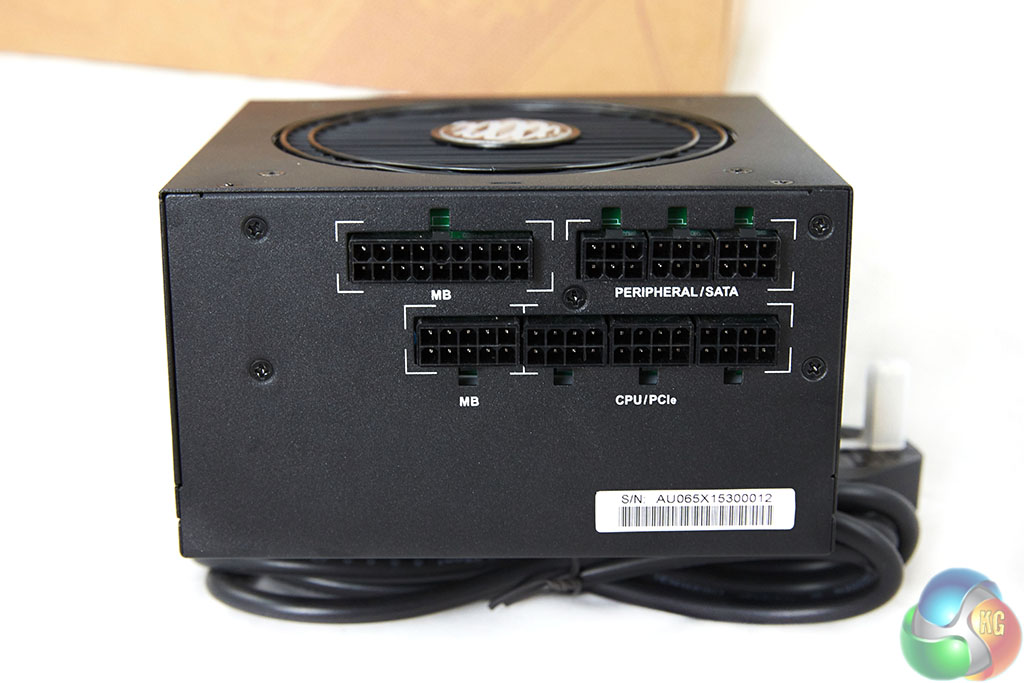

One end of the chassis is home to the modest modular bay – all clearly labeled for ease of use during the build phase.

The other end of the power supply is vented with a power connector and switch at the side.

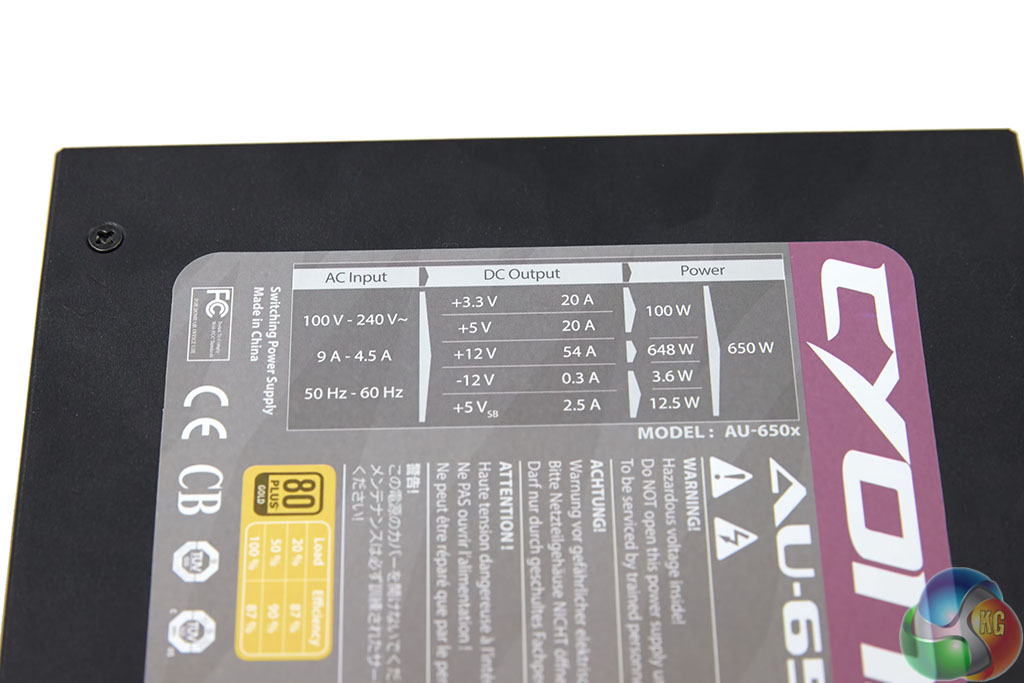

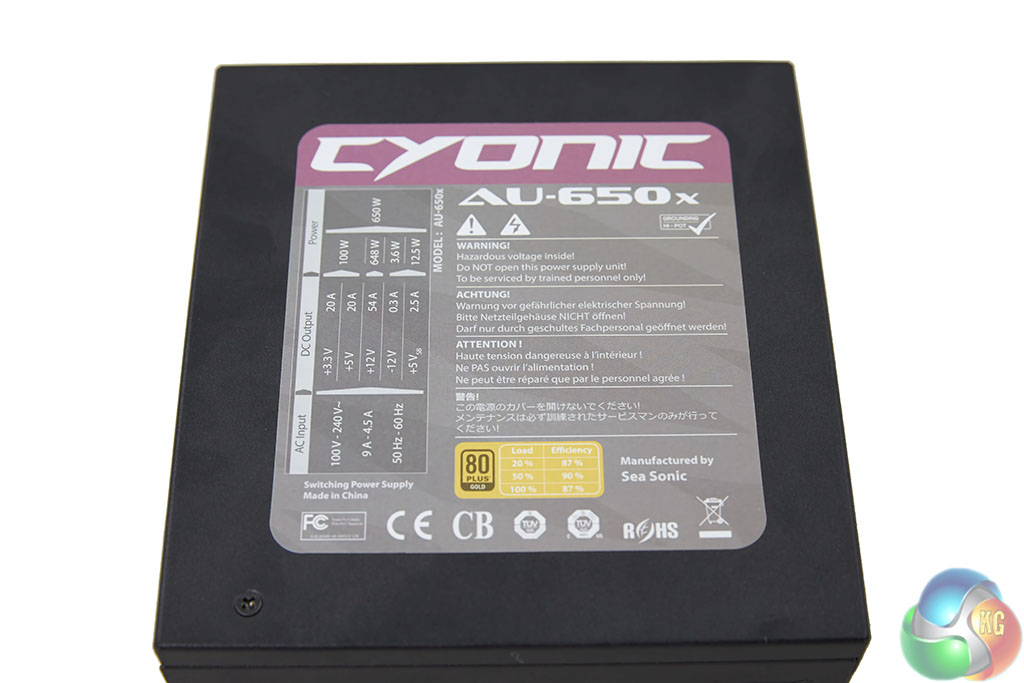

We can see above that the sticker on the unit shows ‘manufactured by Seasonic'. Not a bad thing to see at all.

Cyonic AU-650x
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output	20A	20A	54A	0.3A	2.5A
Total Power	100W		648W	3.6W	12.5W
	650W

The power distribution above is exactly the same as the Seasonic G Series 650W power supply that we reviewed some time ago. 54A available on the +12V rail is good.
