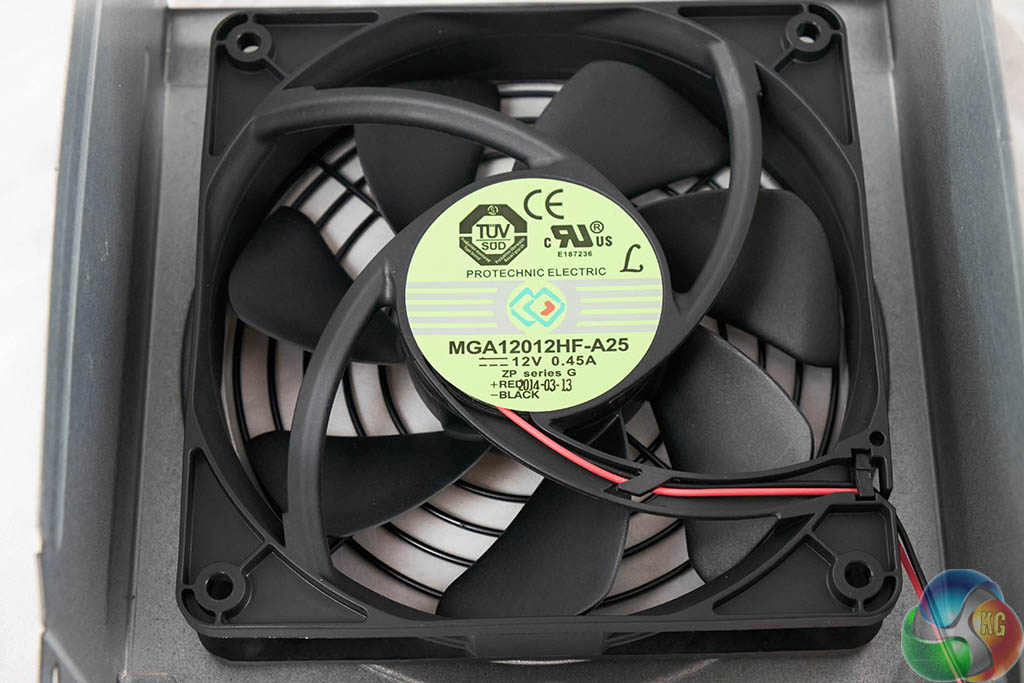

Inside is a Protechnic Electric fan (Model Number: MGA12012HD-A25). This is a quality fluid dynamic bearing fan rated at up to 2,400 rpm, 84.8CFM. This fan should last a long time, based on the high grade bearing technology.

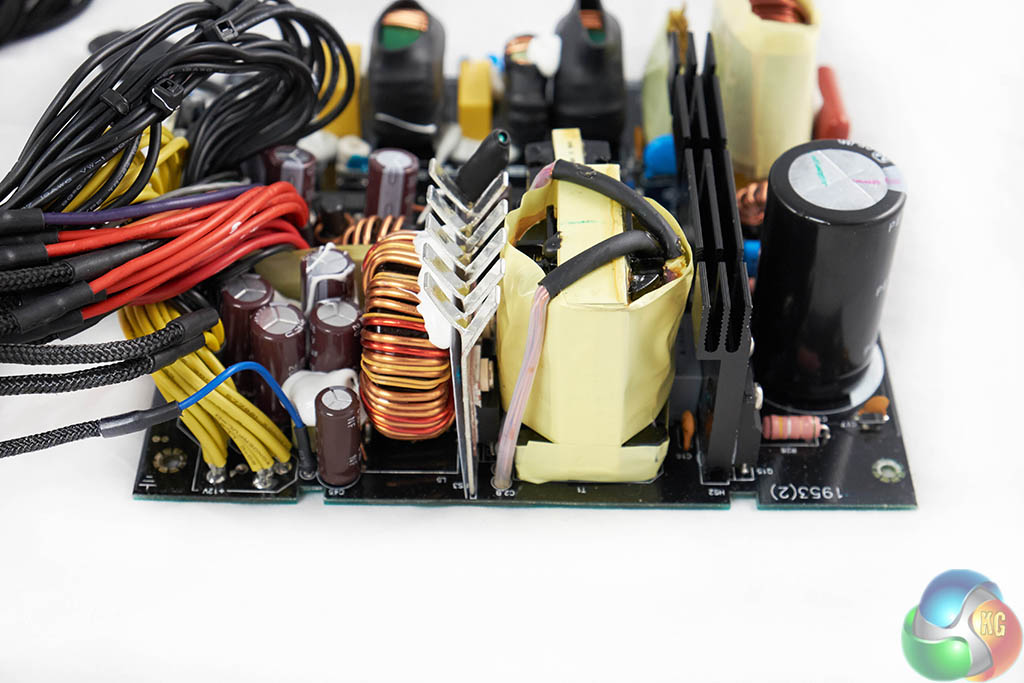

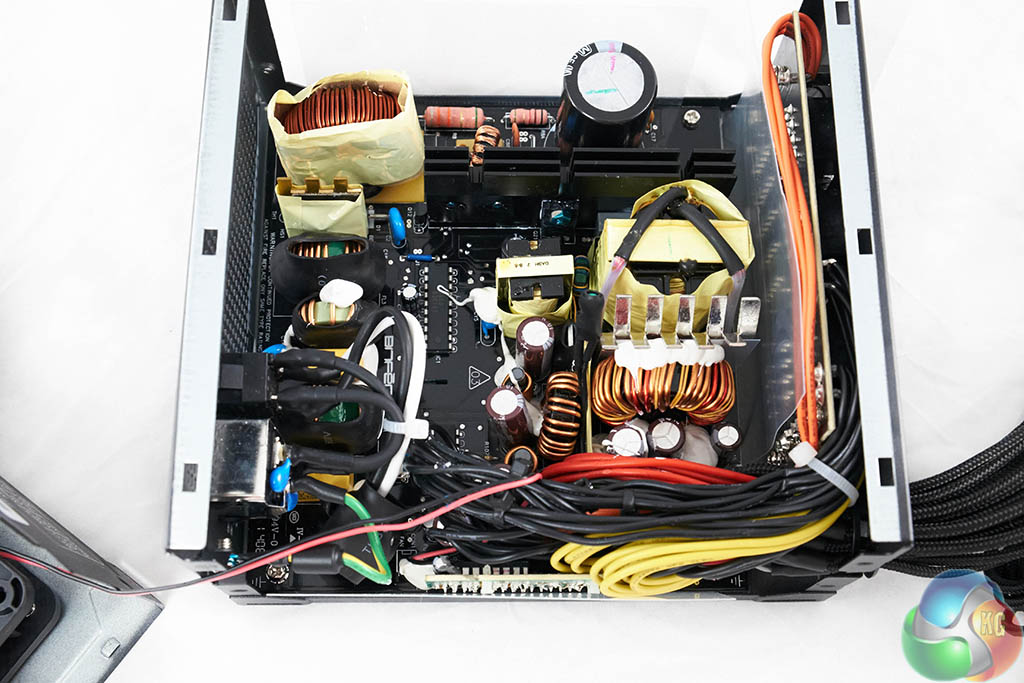

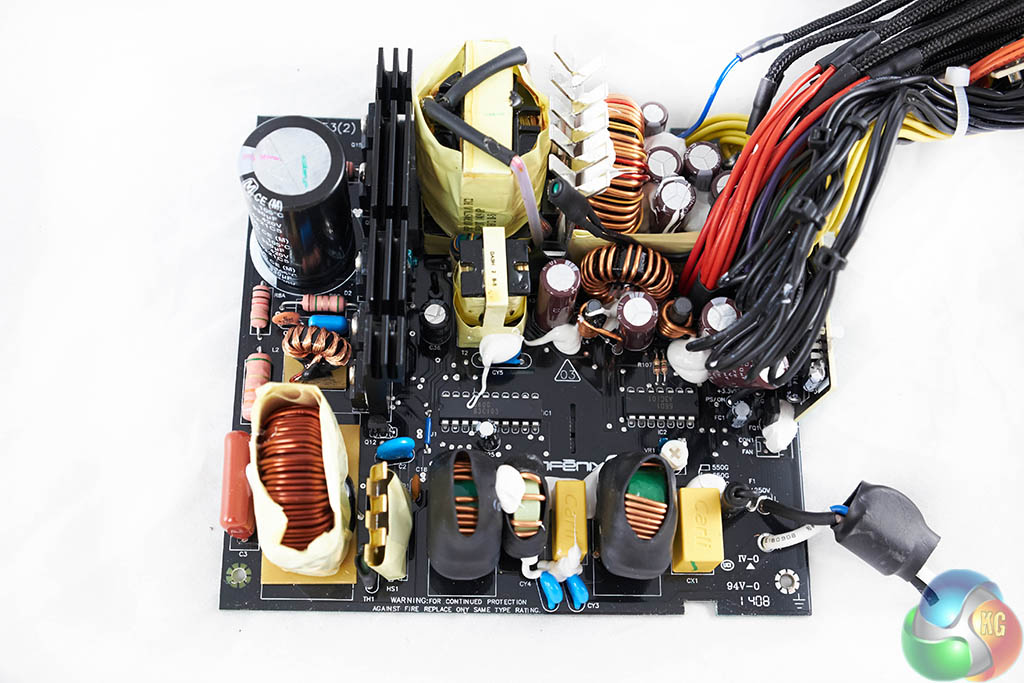

Bitfenix have paired up with FSP for the design of these power supplies (based on the Aurum platform). There are a noticeable lack of heatsinks populating the board, which raised my eyebrow immediately.

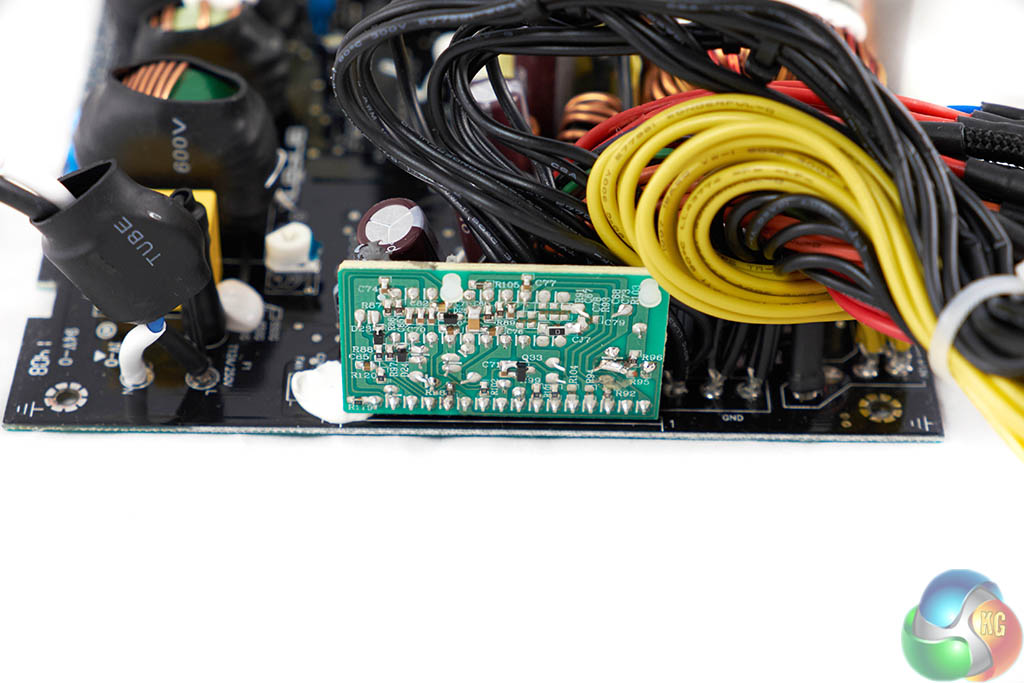

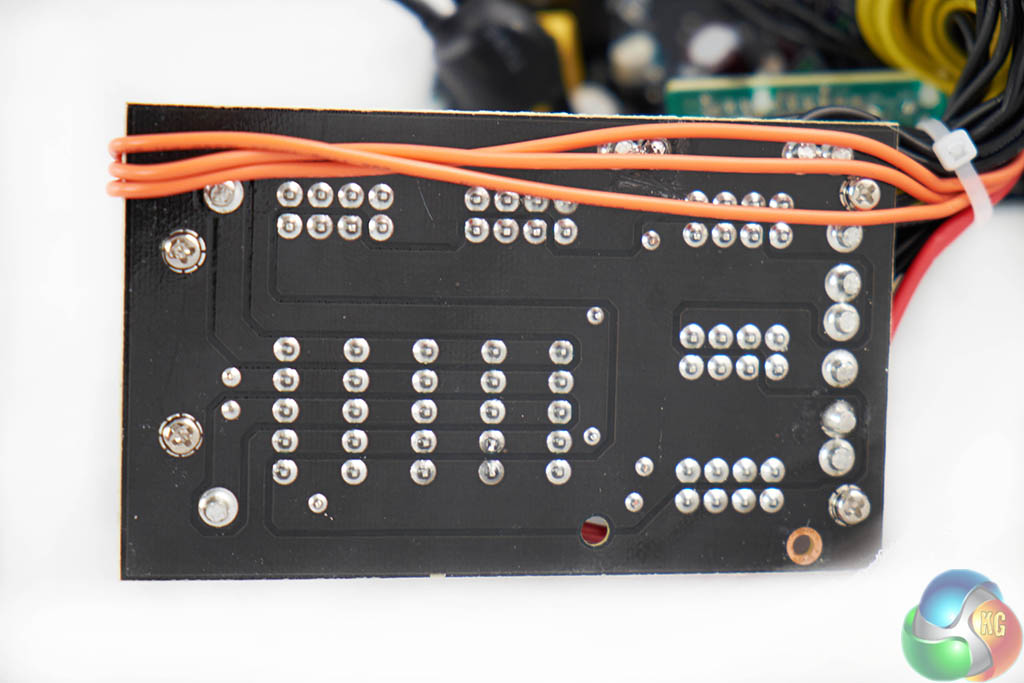

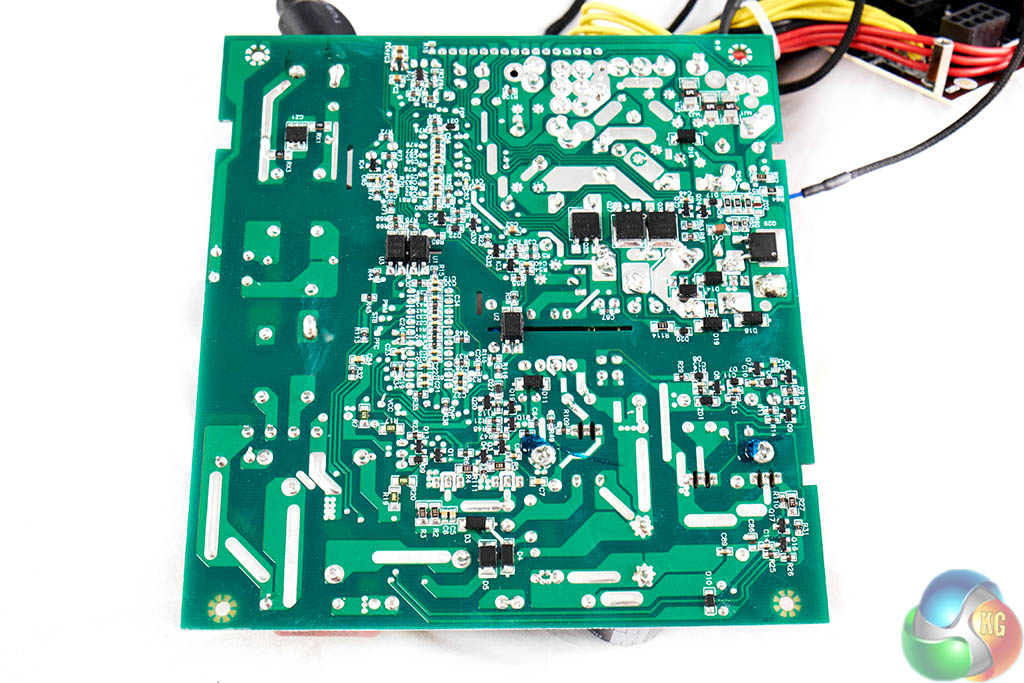

Soldering quality looks to be quite good, although it does fall short of the best work from the likes of Seasonic or Delta.

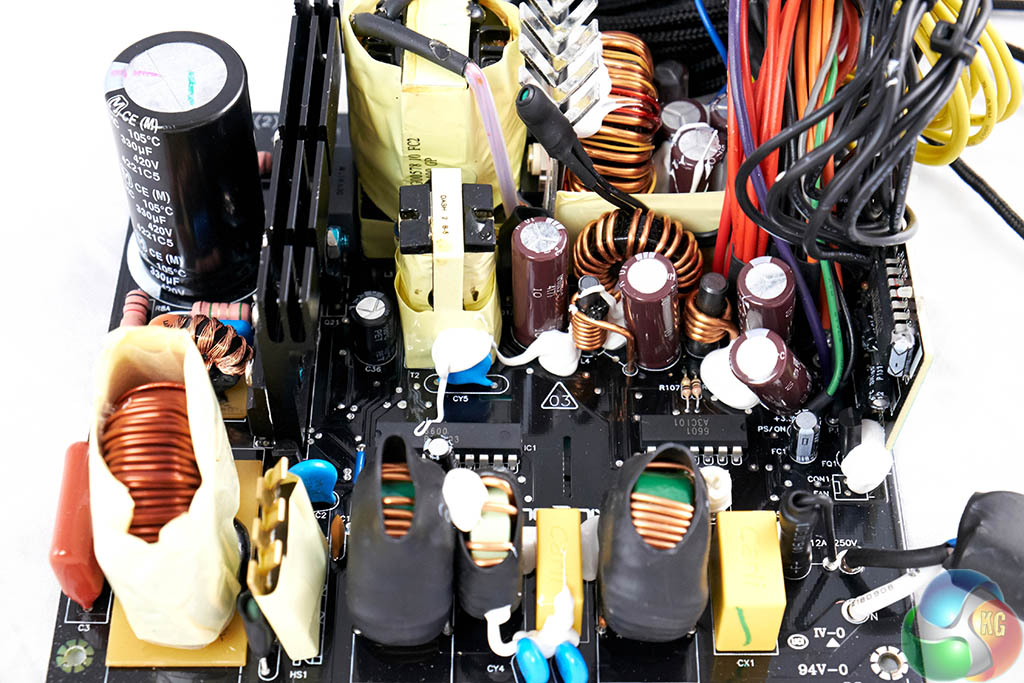

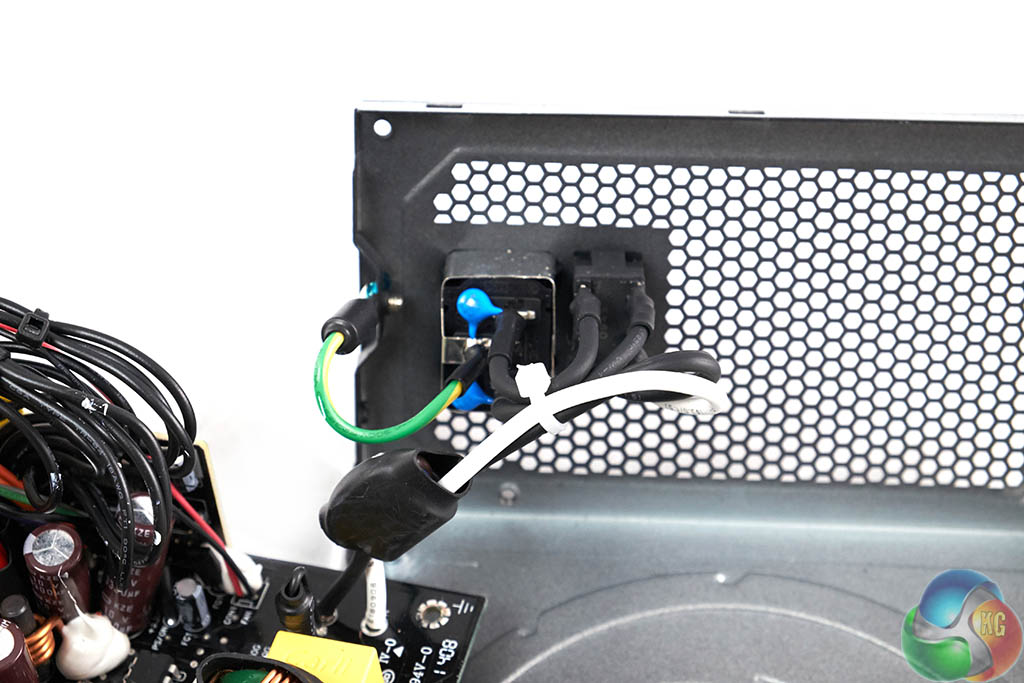

The first section of the transient filter at the AC receptacle includes a couple of Y caps. It moves over to the main PCB, a DM choke, four X and Y caps and two CM chokes. No Metal Oxide Varistor in this unit.

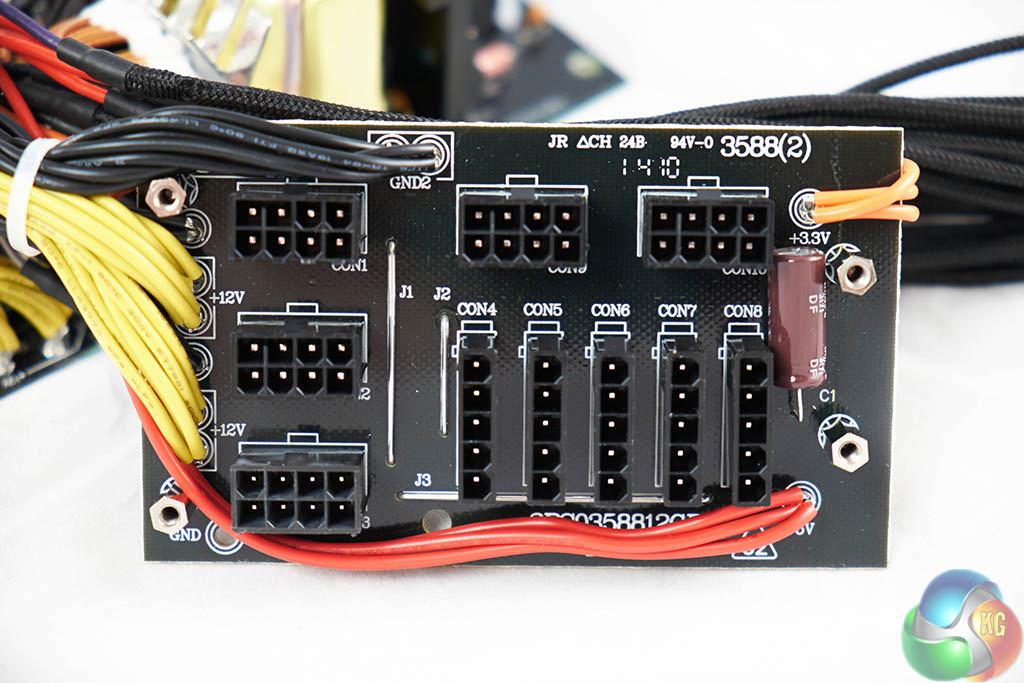

FSP have installed a Chemi Con electrolytic capacitor onto the front part of the modular PCB to help with ripple suppression.

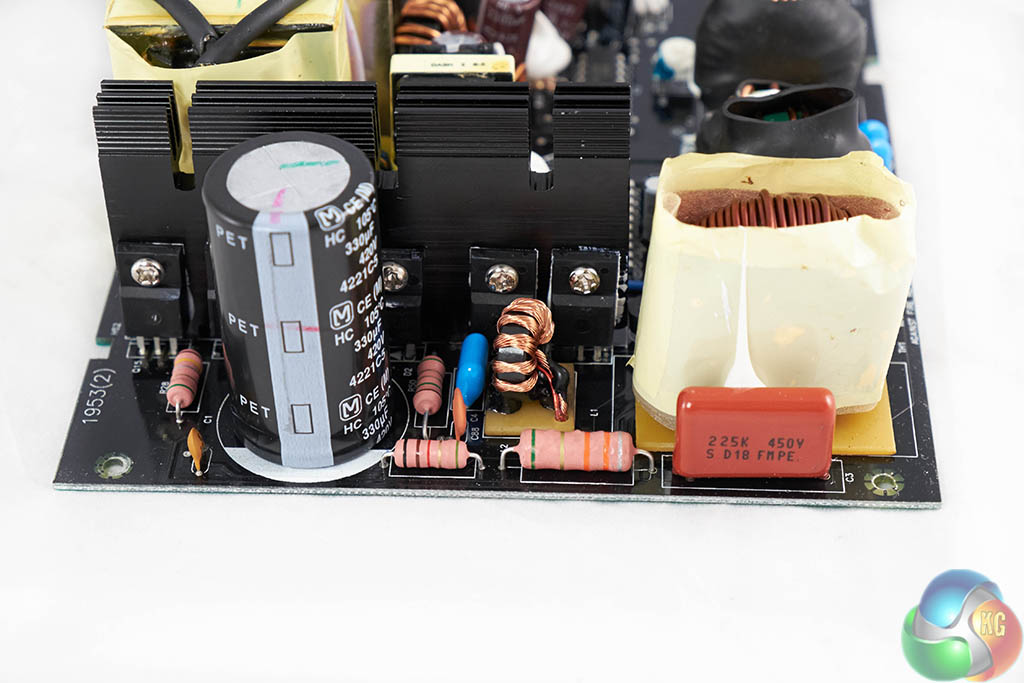

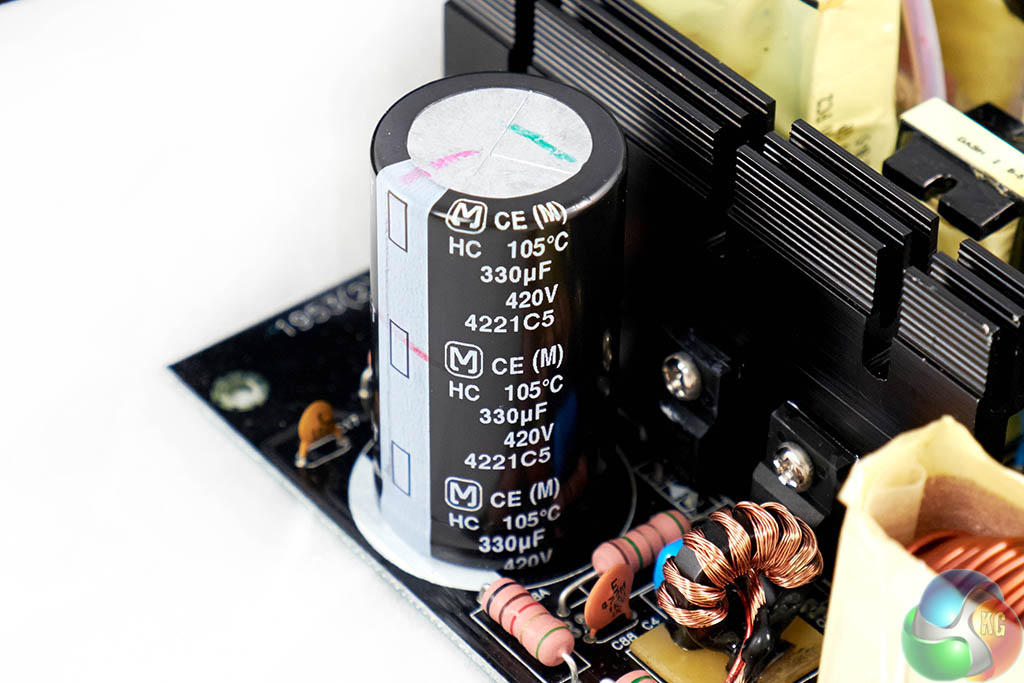

The design uses a high grade Japanese 105c rated capacitor in the primary stage – 330uF, 420V.

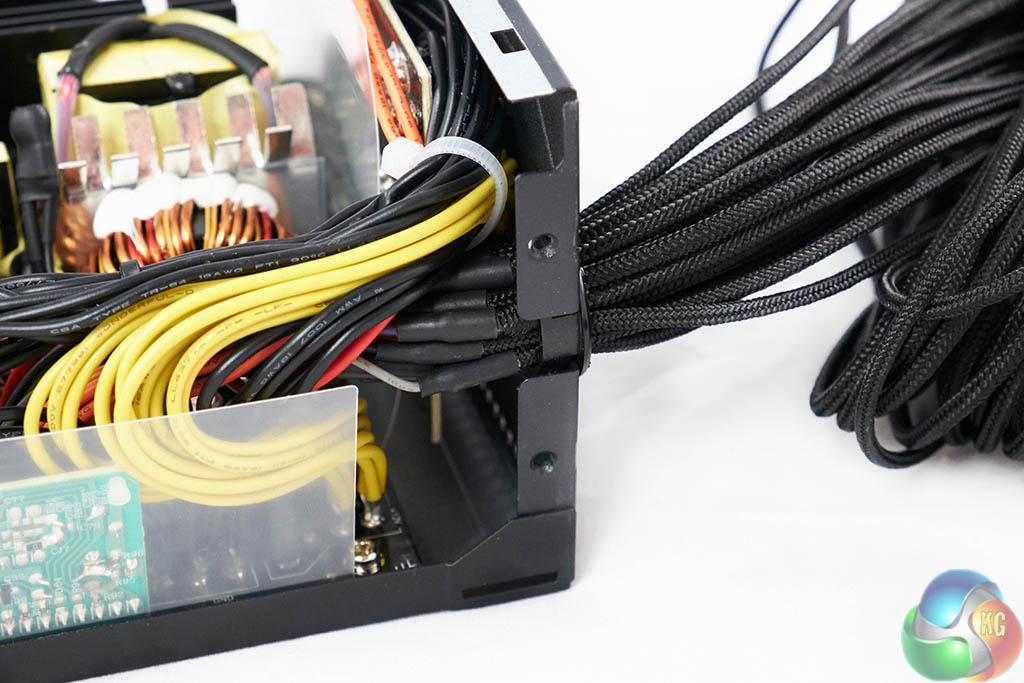

The cables are all sleeved into the chassis and protected with a grommet. Some of the wires are sadly without heat shrinks as they connect to the PCB.
