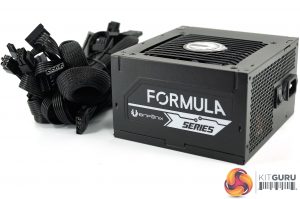

I actually really like the look of the Bitfenix Formula Gold supply. The paint work is surprisingly good quality and they have opted for simple white accenting which means it will work well in a variety of schemed system builds. It rates well against scratching although finger prints will show up.

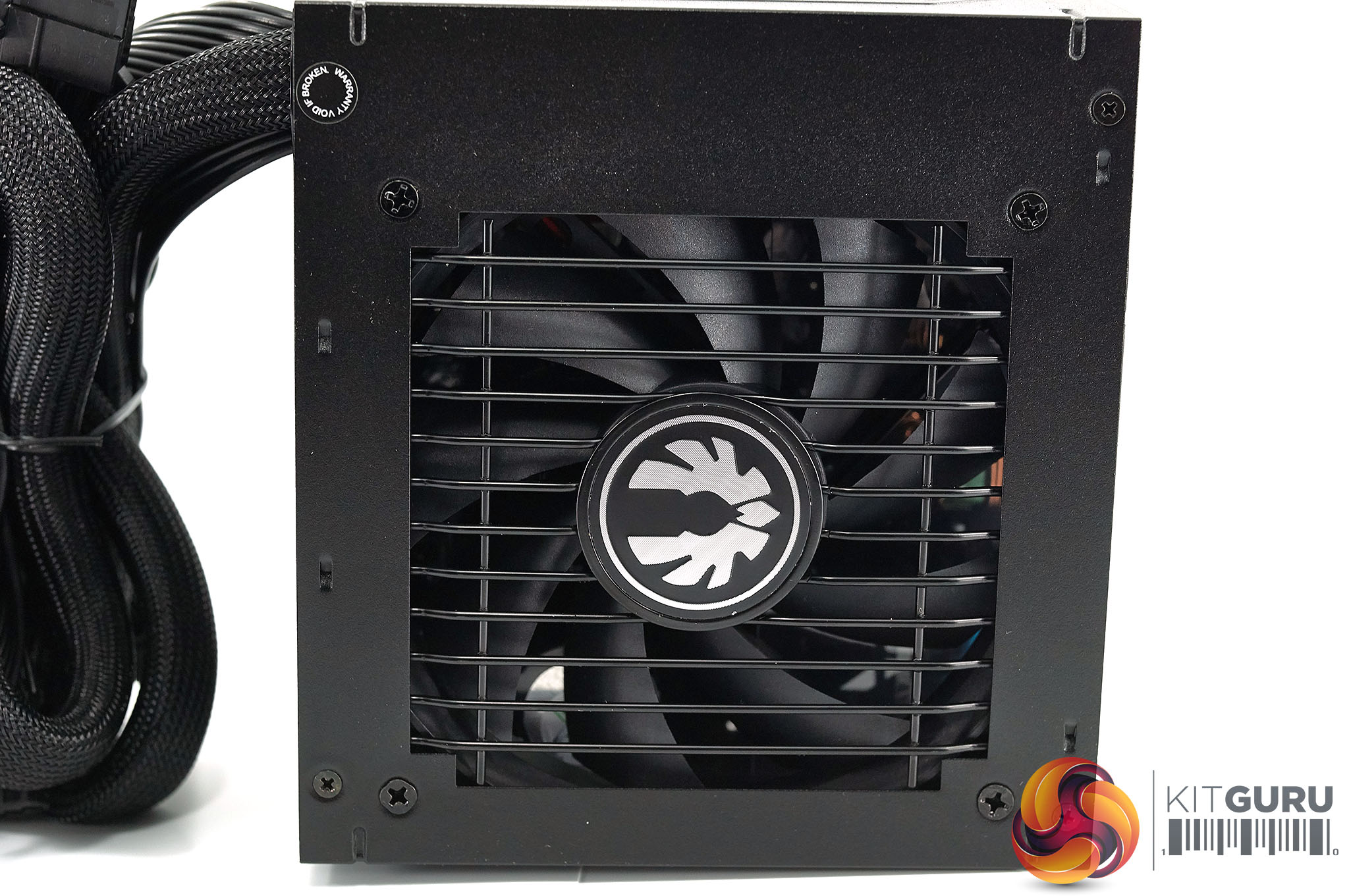

The large fan is hidden behind a black metal shroud with the Bitfenix logo getting pride of place in the centre.

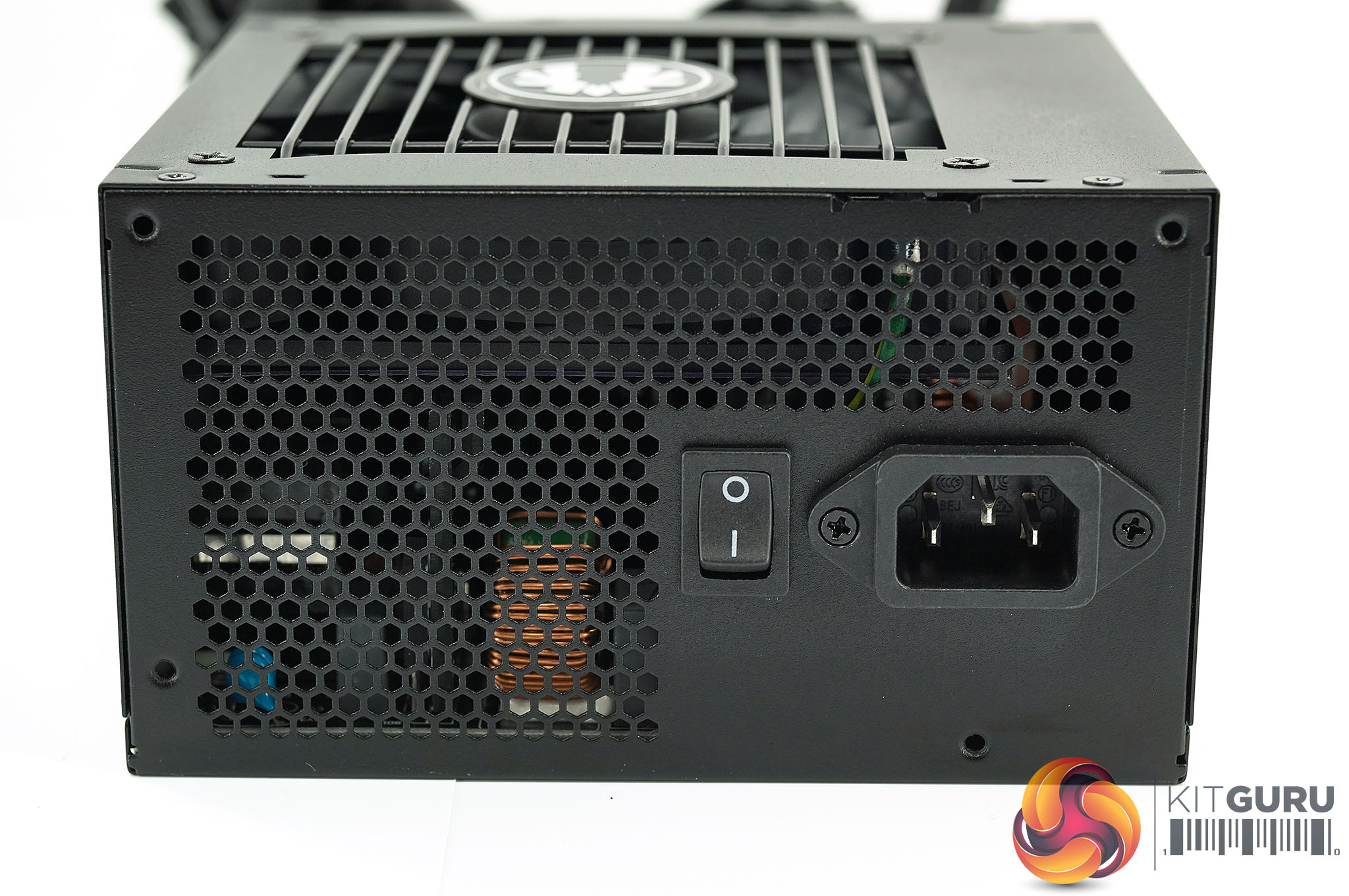

One side of the power supply is home to the power connector and switch along with a vented panel to help ensure there is good airflow inside.

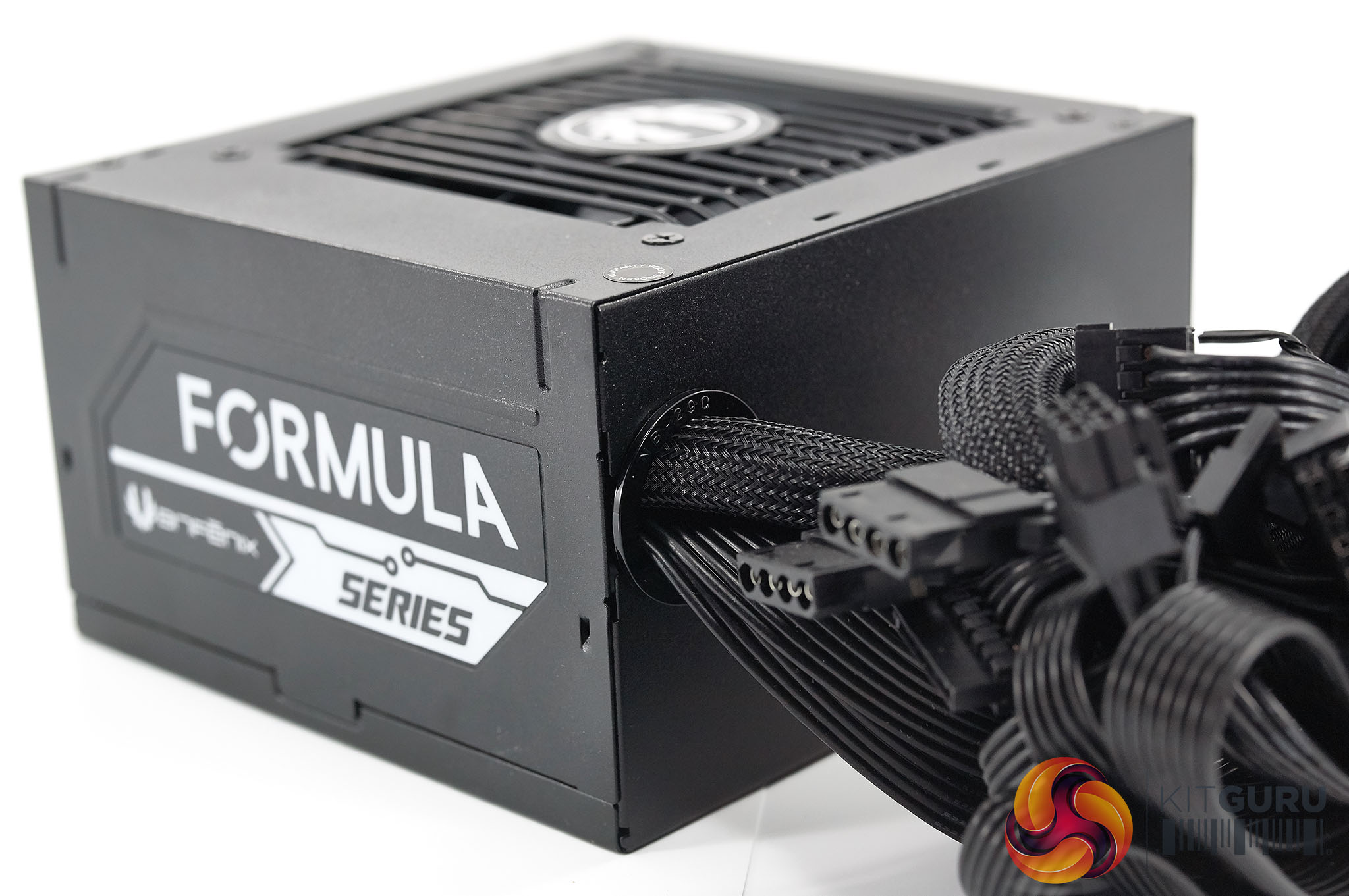

As this is not a modular power supply there is no connector panel on the other side just a set of hardwired cables which emerge from the chassis. We can see a plastic grommet in place to help stop fraying from the cables against the metal chassis.

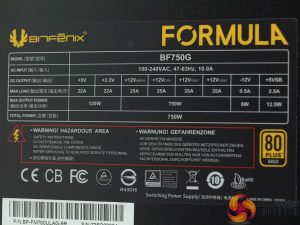

| Bitfenix Formula Gold 750W | ||||||||
|
DC Output
|
+3.3V
|
+5V
|
+12V MBPH | +12V CPU | +12V VGA1 | +12V VGA2 |
-12V
|
+5Vsb
|
|
Max Output
|
22A
|
22A
|
25A | 25A | 35A | 35A |
0.5A
|
2.5A
|
| Total Power | 120W | 750W | 6W | 12.5W | ||||
| 750W | ||||||||
Both +3.3V and +5V rails can deliver 22A and the +12V rails deliver 25A, 25A, 35A and 35A accordingly for a total of 750W.
