The be quiet! power supply is finished to a high standard – very understated in appearance.

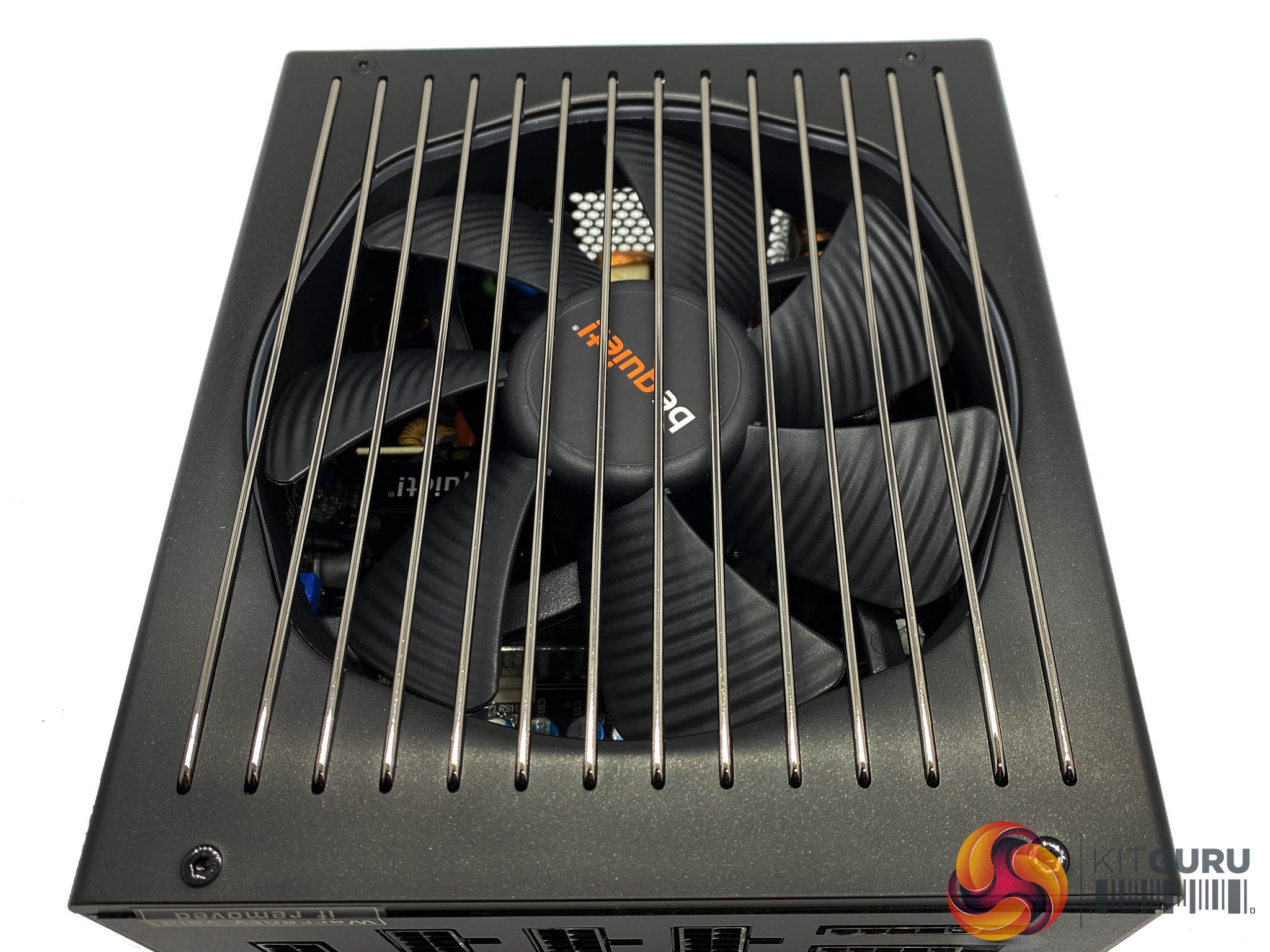

The large fan is hidden behind the metal grille – we will take a look at the fan later when we open the unit.

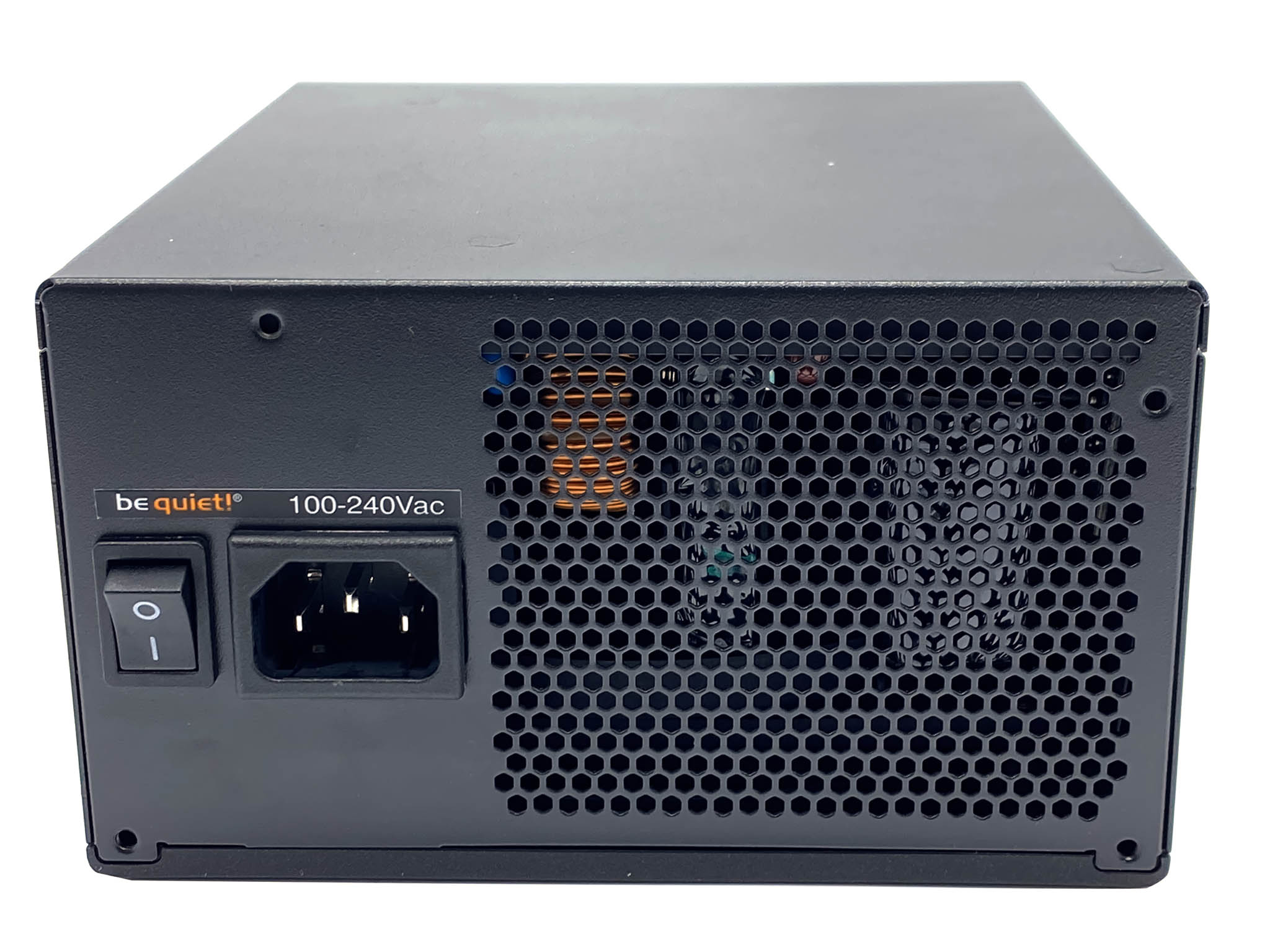

One side of the power supply is vented to allow for air flow. There is a power switch and connector at the side.

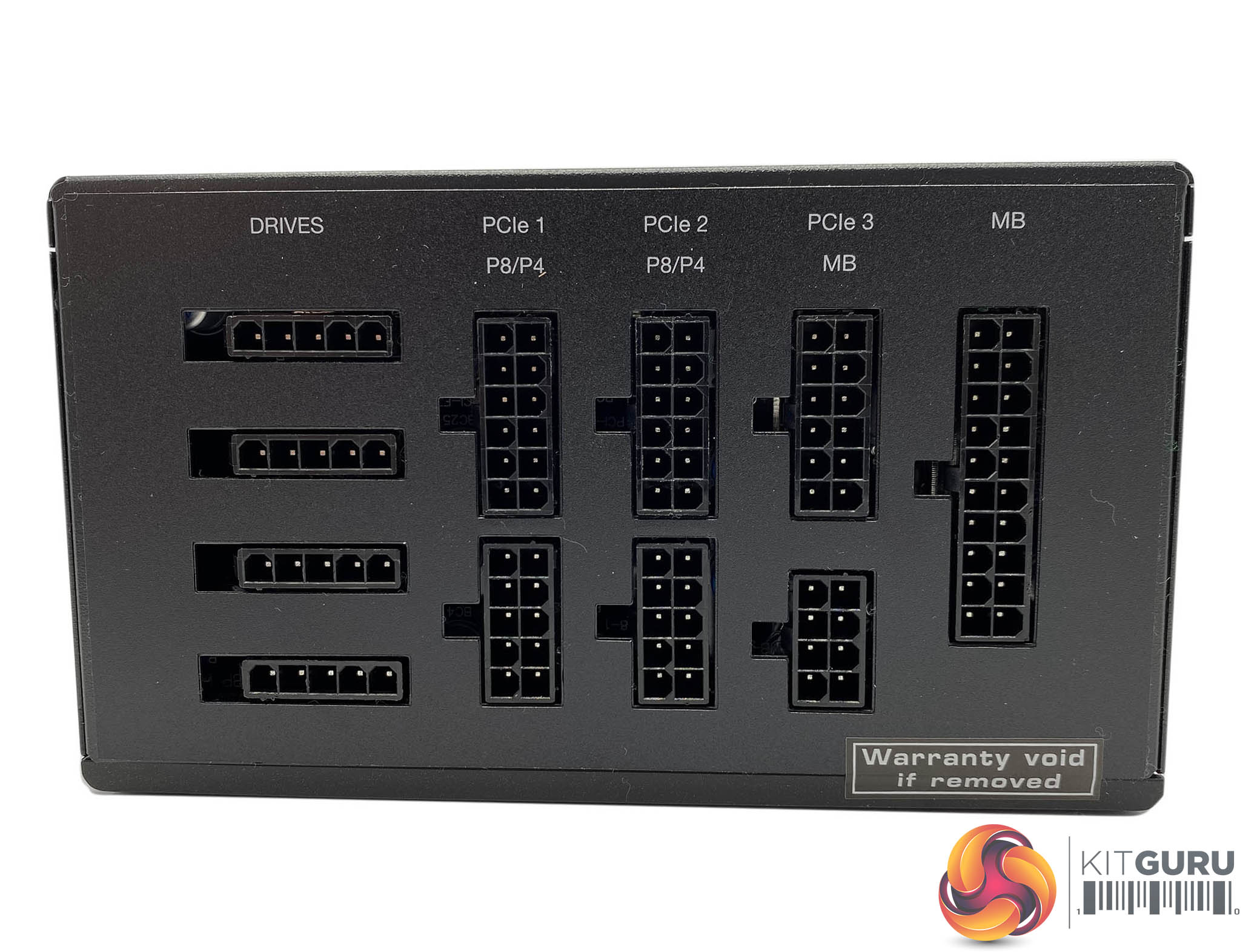

The other side of the power supply is home to the modular bay for the connectors – all in vertical rows and clearly labelled.

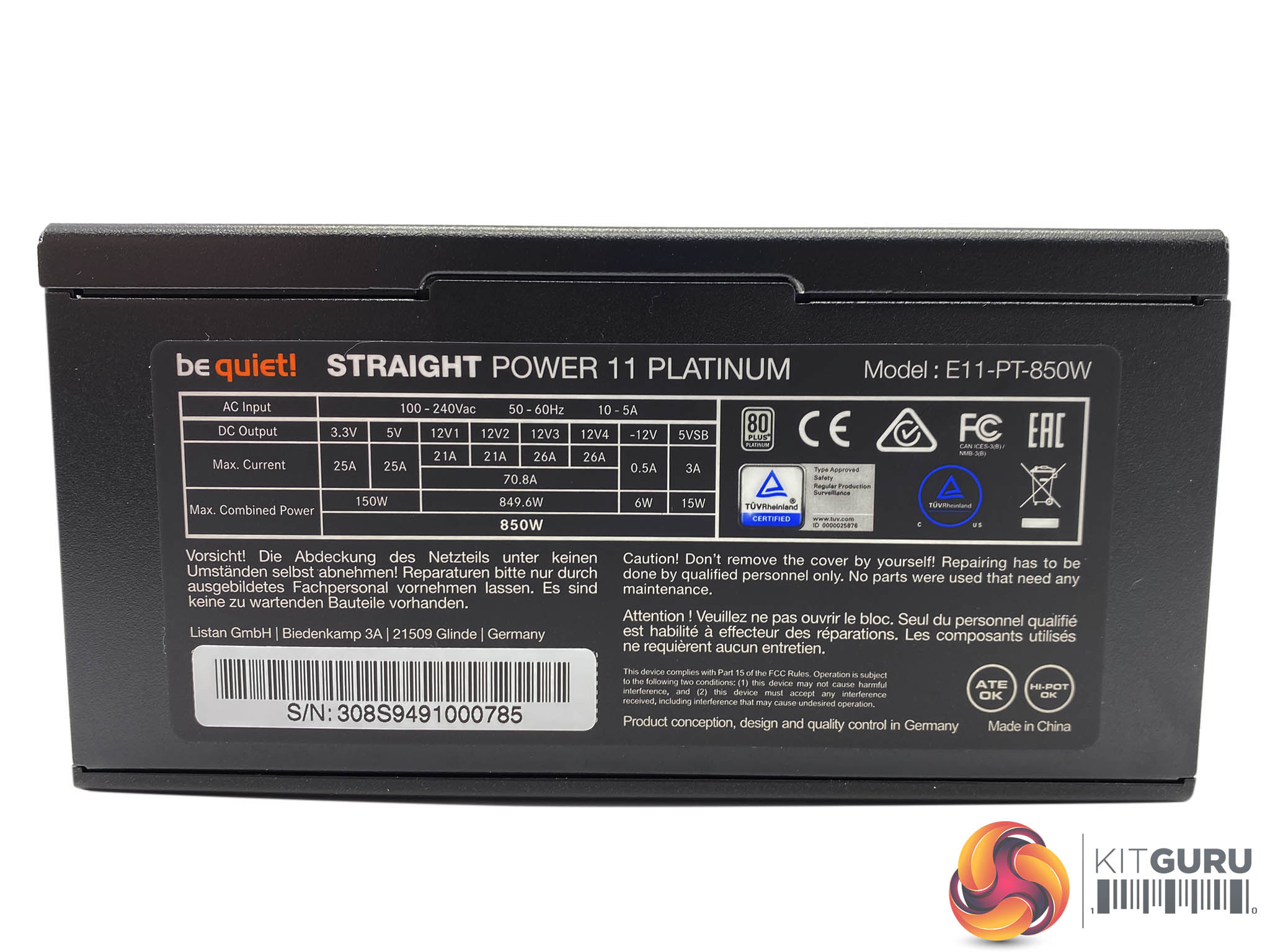

be quiet! Straight Power 11 Platinum 850W
DC Output	+3.3V	+5V	+12V1/2/3/4	-12V	+5Vsb
Max Output	25A	25A	21A/21A/26A/26A	0.5A	3A
Total Power	150W		70.8A/849.6W	6W	15W
	850W

this be quiet! unit has four 12V rails. V1 and V2 both put out 21A, and V3 and V4 deliver 26A each. The maximum output is 70.8A. The core audience like to see single rail power supplies – but in reality, if it is a good design it won't really make much difference in the real world.
