be quiet! Pure Power 9 600W PSU review

AS7V5028

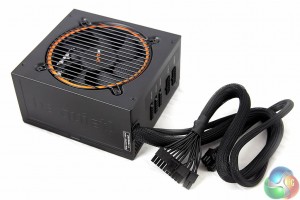

The be quiet! Pure Power 9 follows the traditional company design – high quality paint, with thick metal bars to protect the user from the fan. The orange accents are both subtle and attractive.

AS7V5037

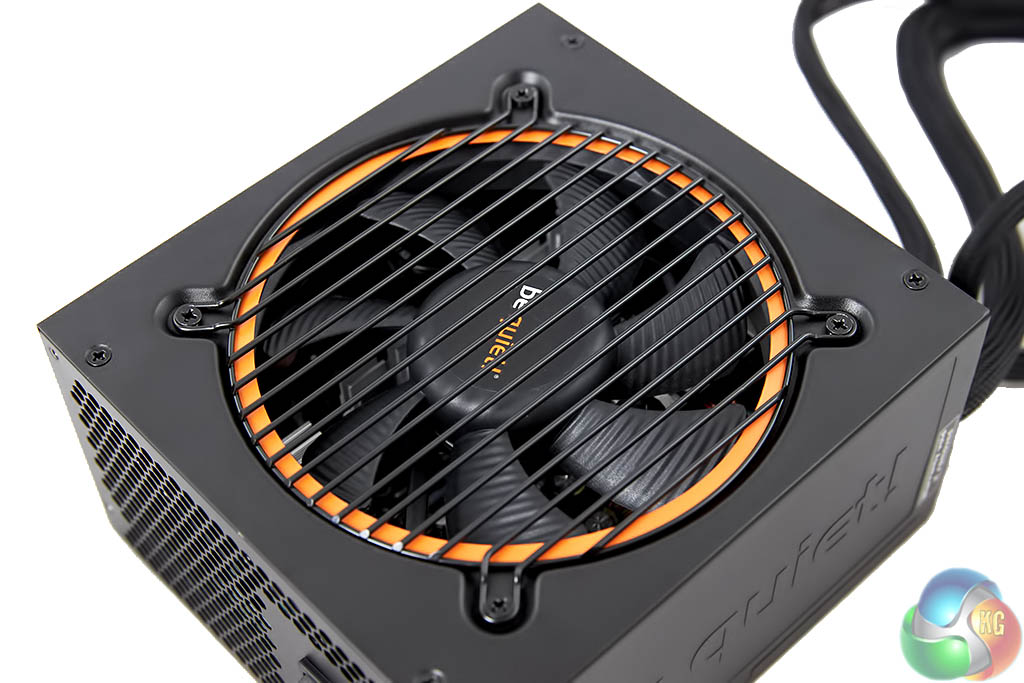

Nice to see the company have adopted an orange surround behind the grill, in front of the fan. We noticed with their Straight Power 10 CM that be quiet! opted for no trim (HERE). Personal opinion, but I love the little touches and the orange trim is very appealing – it always reminds me of KTM motorbikes. Never a bad thing.

AS7V5010

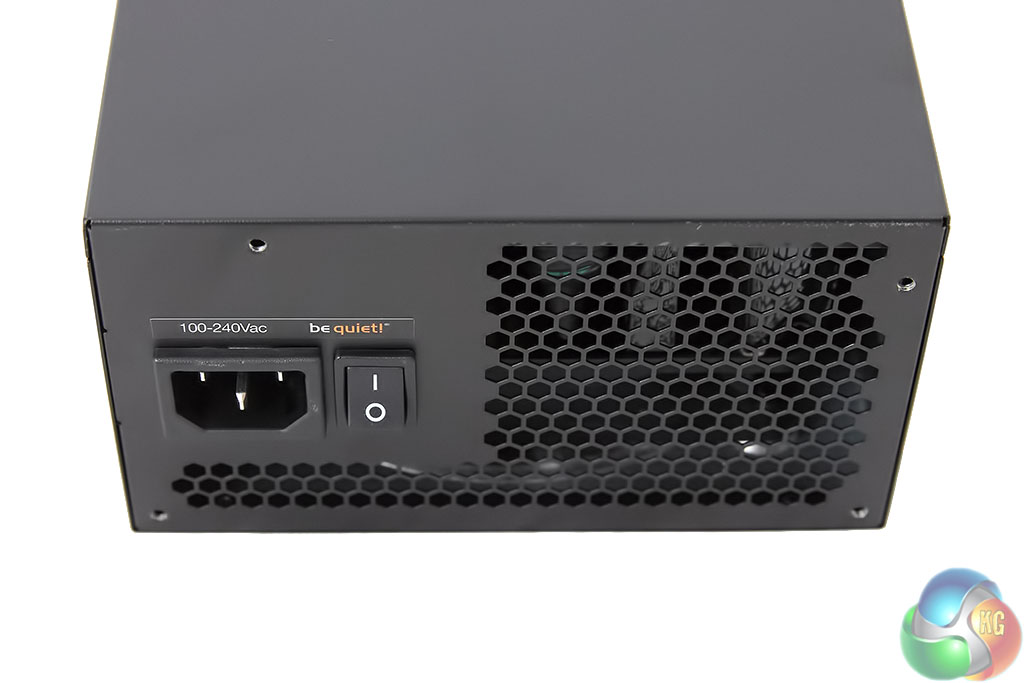

One side of the power supply is vented to help with air flow. Beside the vent is a power switch and connector.

AS7V5008

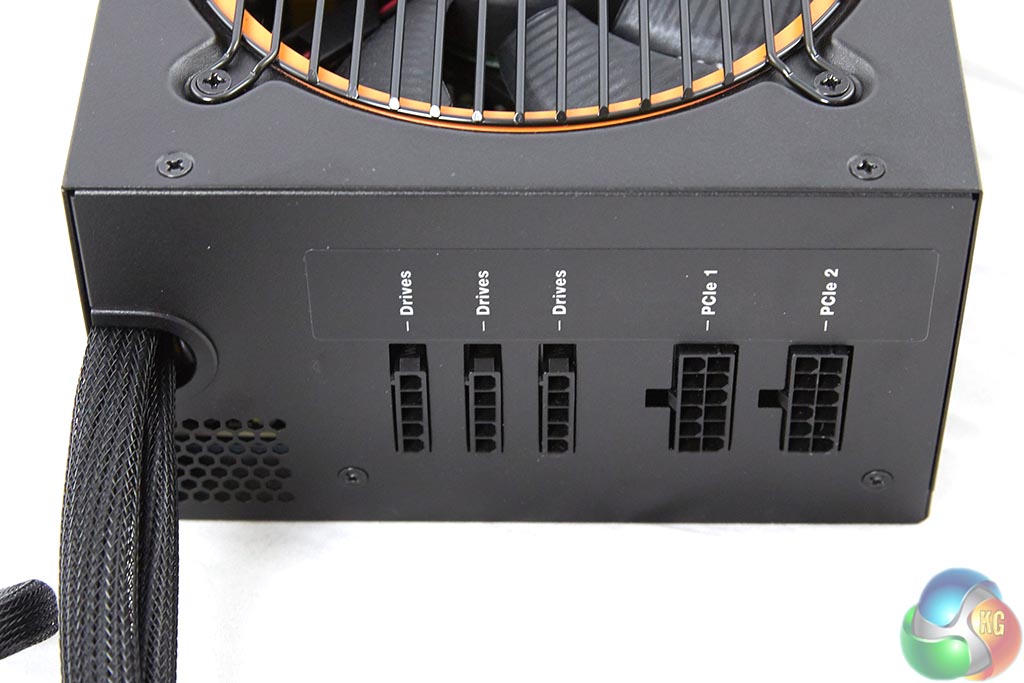

The other side of the power supply is home to the modular connector bay and the hardwired cables. The modular connectors are neatly laid out horizontally with the names above them, in white. The PCI connectors are dual width so impossible to mix up with the peripherial connectors.

AS7V5026

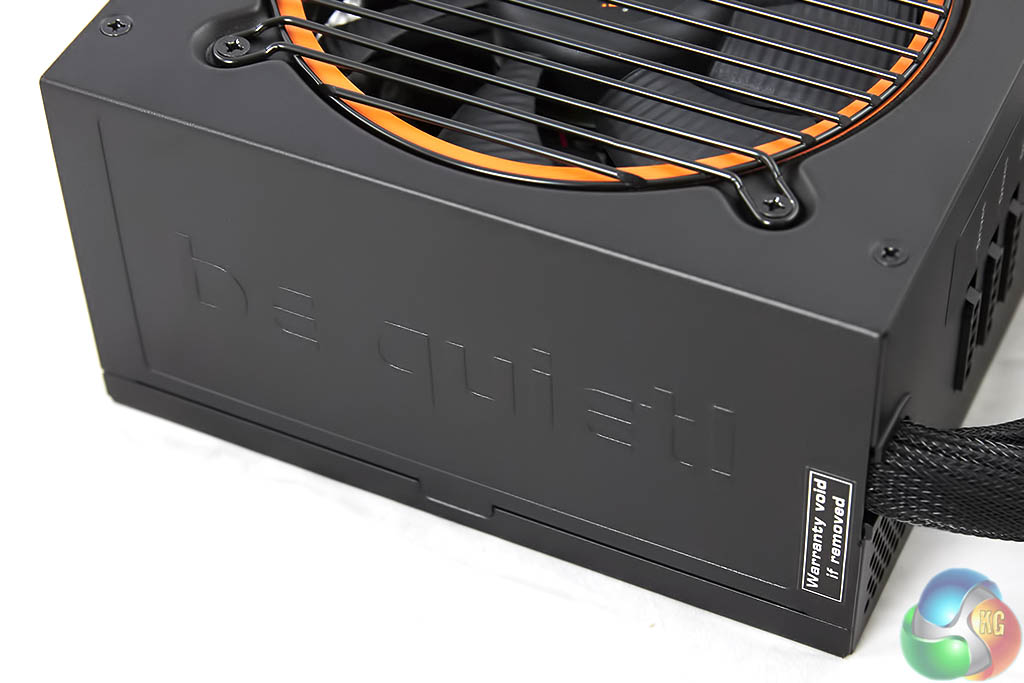

One side of the chassis has the name ‘be quiet!' embossed into the metal work. Another nice touch.

AS7V5032

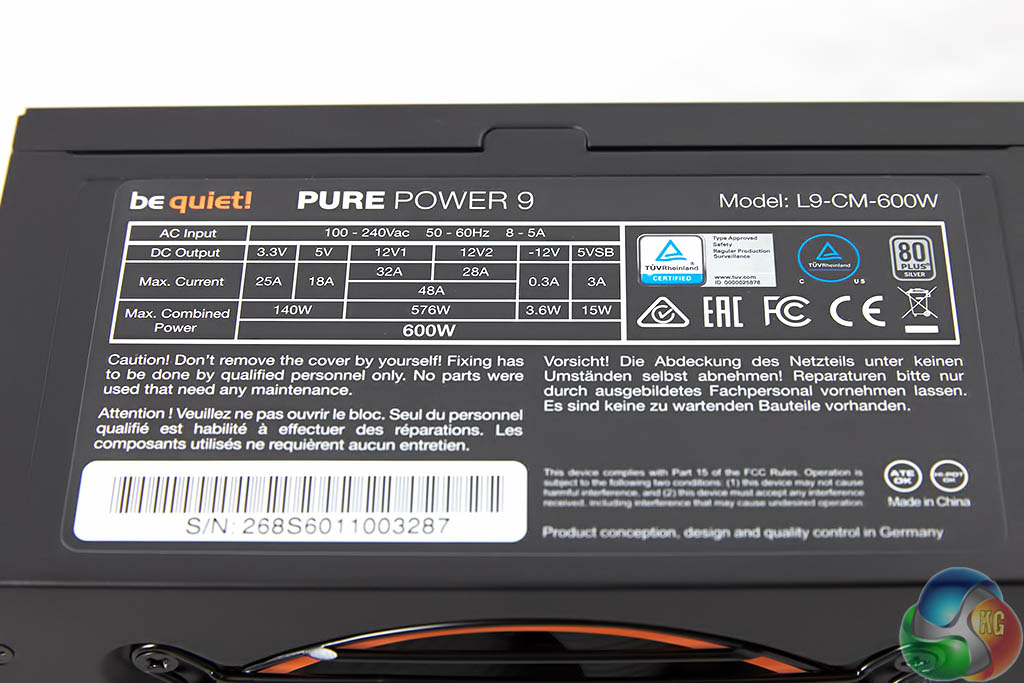

be quiet! Pure Power 9 600W
DC Output
+3.3V
+5V
+12V1 +12V2
-12V
+5Vsb
Max Output
25A
18A
32A 28A
0.3A
3A
Total Power 140W 48A – 576W 3.6W 15W
600W

The be quiet! Pure Power 9 600W can deliver 576w via the +12V rail.

rails

Above, the schematic of the rail distribution for all the power supplies in this range.
