To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the PR-GP1200FM’s rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	7.9 mV	5.7 mV	10.0 mV	6.1 mV	Pass
20% Load	10.4 mV	5.9 mV	11.1 mV	5.9 mV	Pass
30% Load	11.0 mV	6.5 mV	12.3 mV	6.6 mV	Pass
40% Load	11.2 mV	7.1 mV	13.7 mV	7.1 mV	Pass
50% Load	12.1 mV	8.1 mV	15.0 mV	7.8 mV	Pass
60% Load	11.6 mV	9.3 mV	17.2 mV	8.5 mV	Pass
70% Load	12.7 mV	9.5 mV	19.1 mV	8.2 mV	Pass
80% Load	13.6 mV	11.0 mV	22.9 mV	10.0 mV	Pass
90% Load	13.4 mV	11.2 mV	24.8 mV	10.8 mV	Pass
100% Load	23.8 mV	11.0 mV	27.1 mV	11.8 mV	Pass
105% Load	16.6 mV	12.7 mV	24.5 mV	12.1 mV	Pass
Crossload 1	11.2 mV	7.4 mV	21.3 mV	7.6 mV	Pass
Crossload 2	23.2 mV	12.4 mV	23.0 mV	12.2 mV	Pass

The ripple suppression is pretty good on all rails. Please do note that with 105% load we measure less ripple because we conducted this test at a much lower temperature compared to the 100% test. We were forced to do this because the PSU kept shutting down with anything higher than 100% of its max rated capacity, under high operating temperatures.

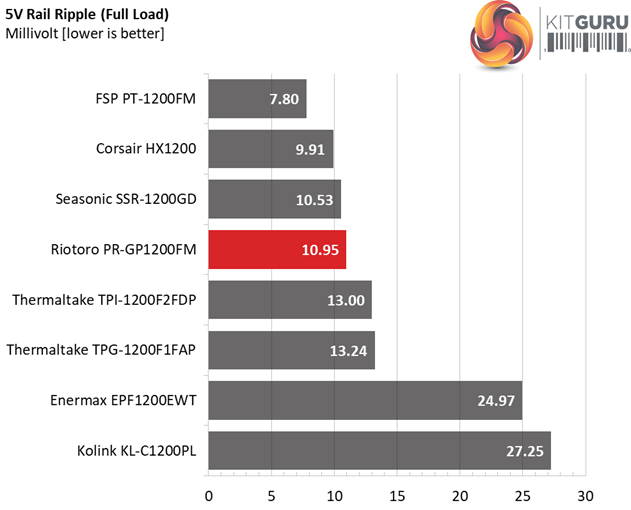

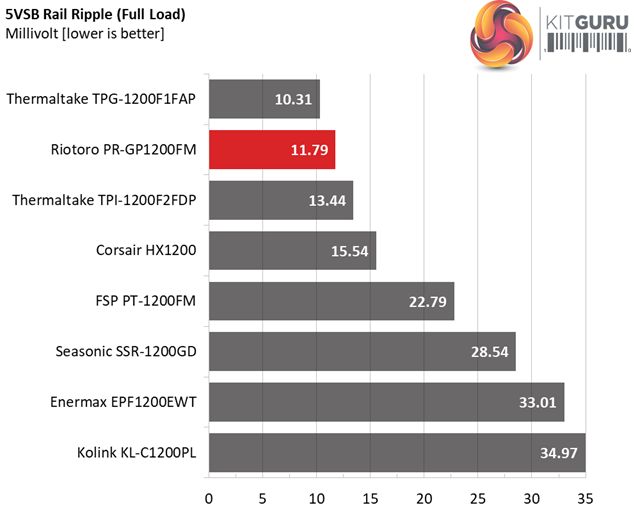

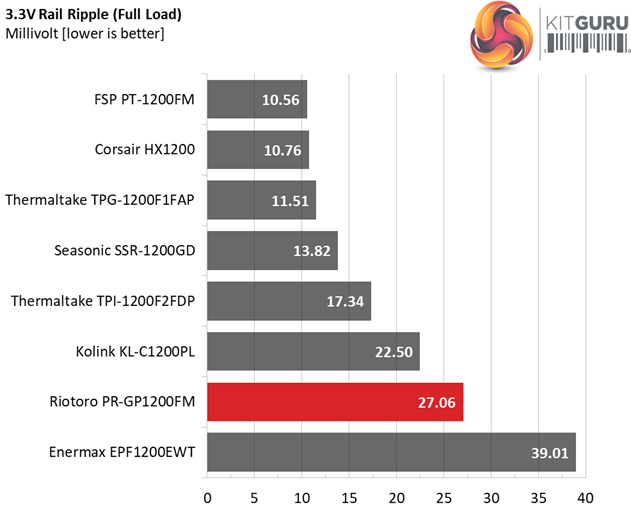

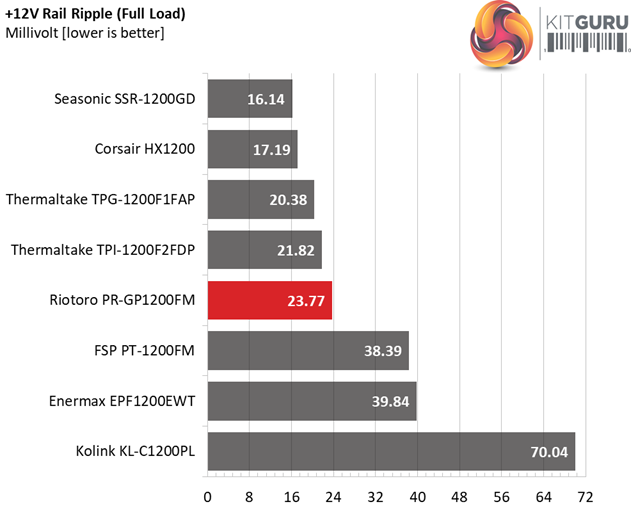

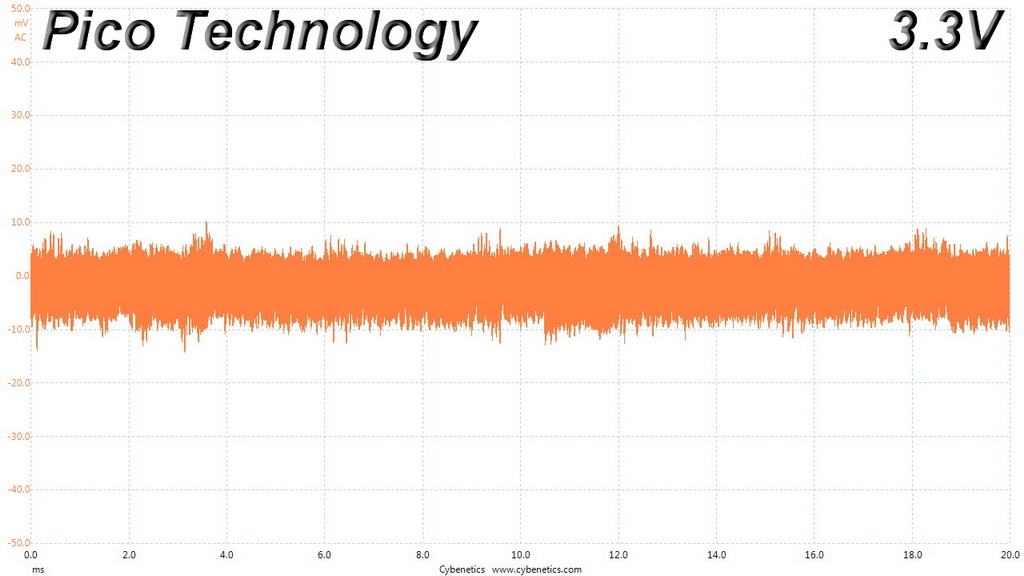

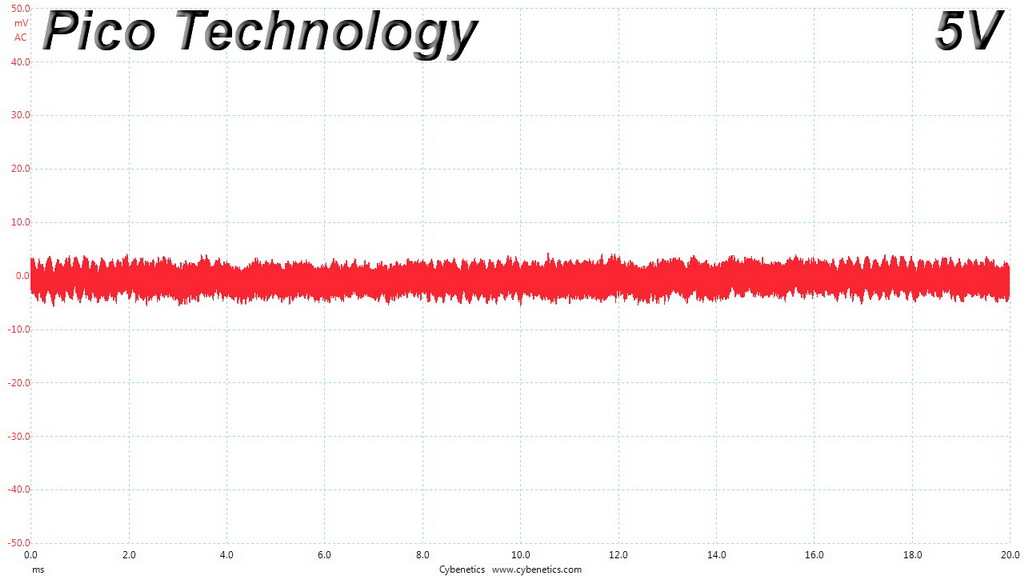

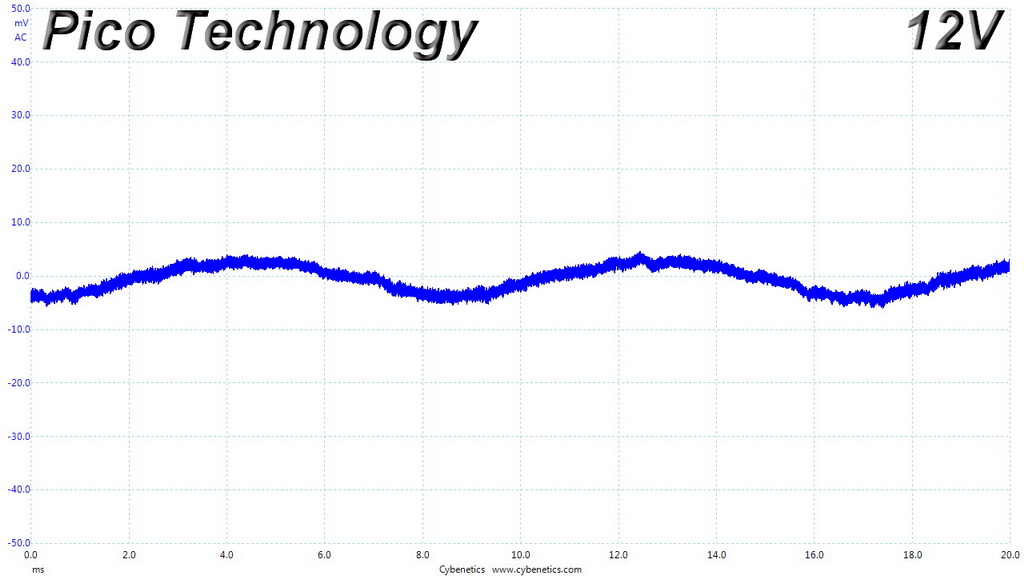

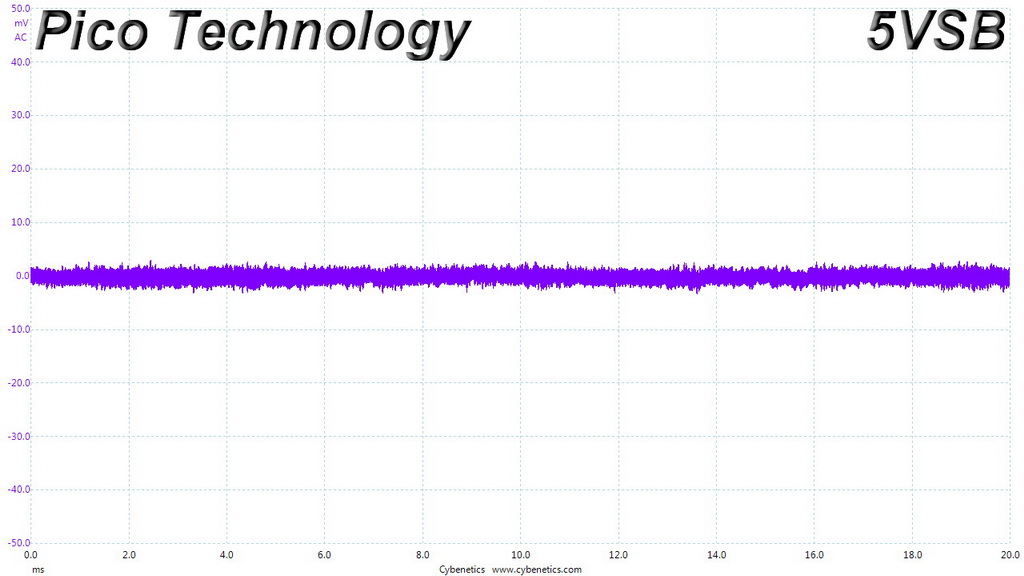

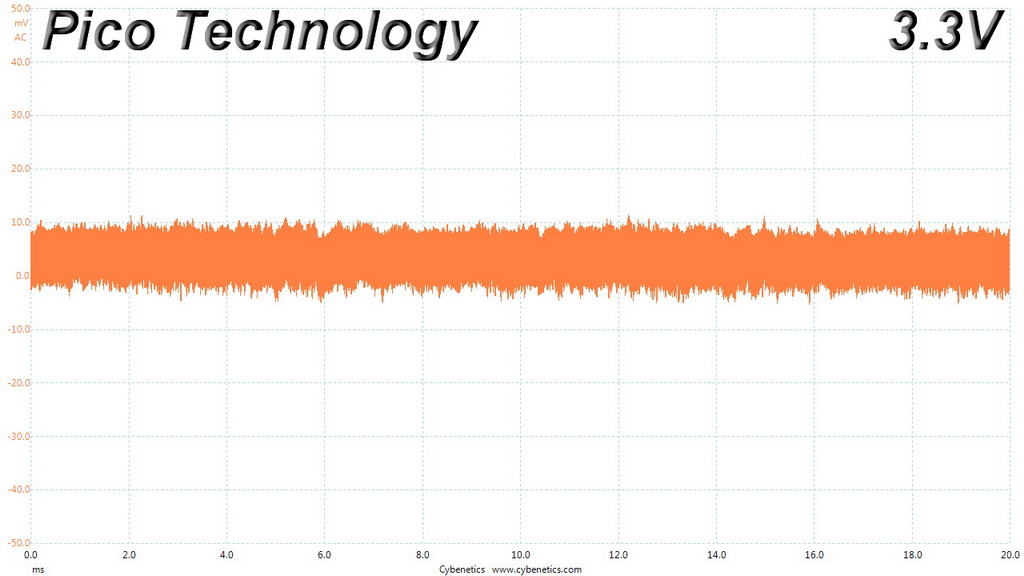

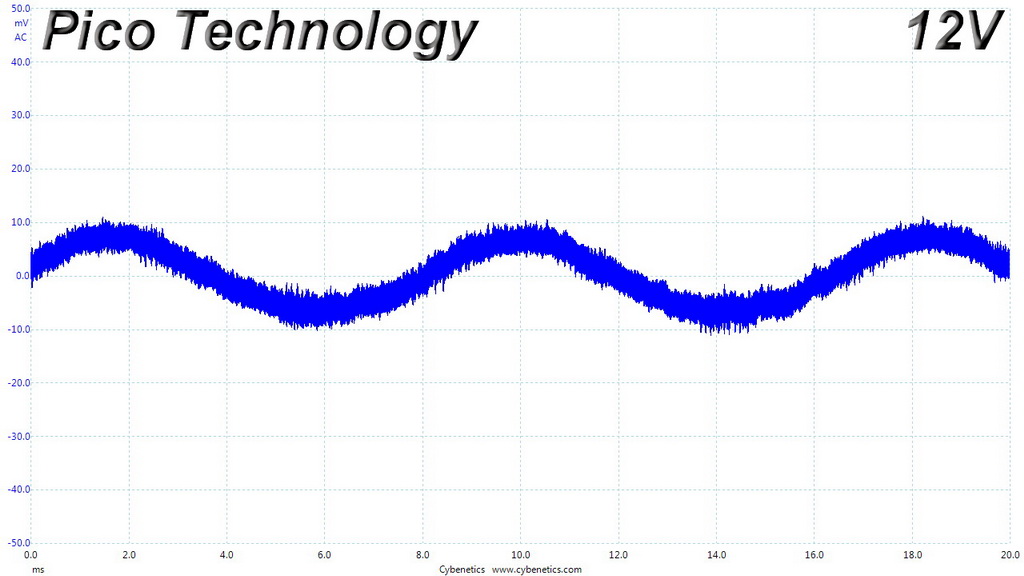

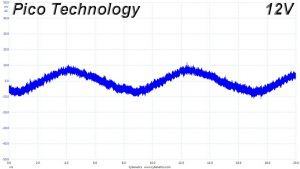

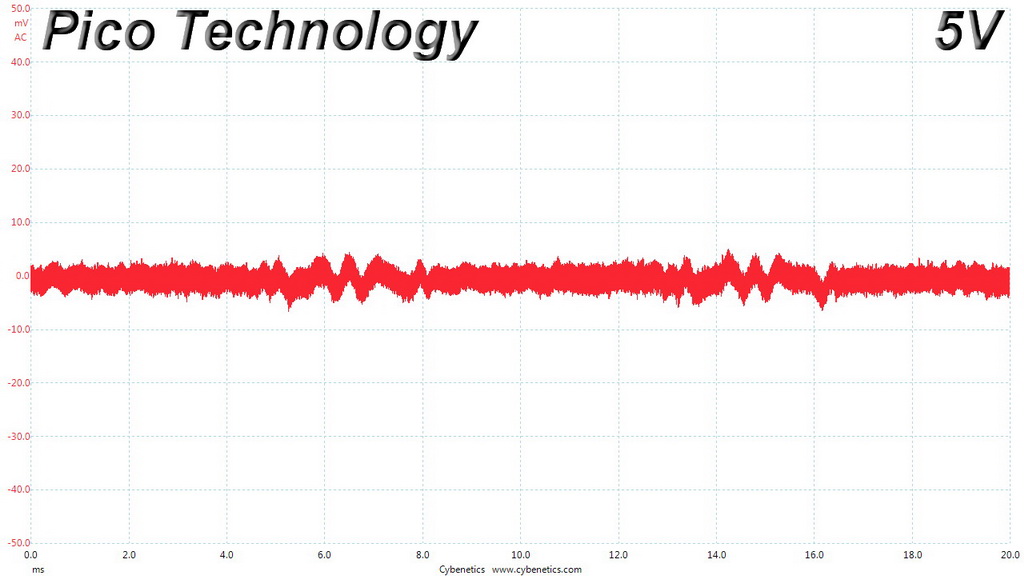

Ripple Oscilloscope Screenshots

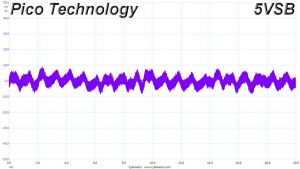

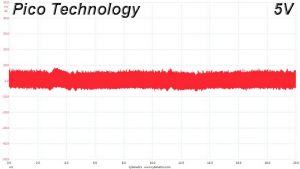

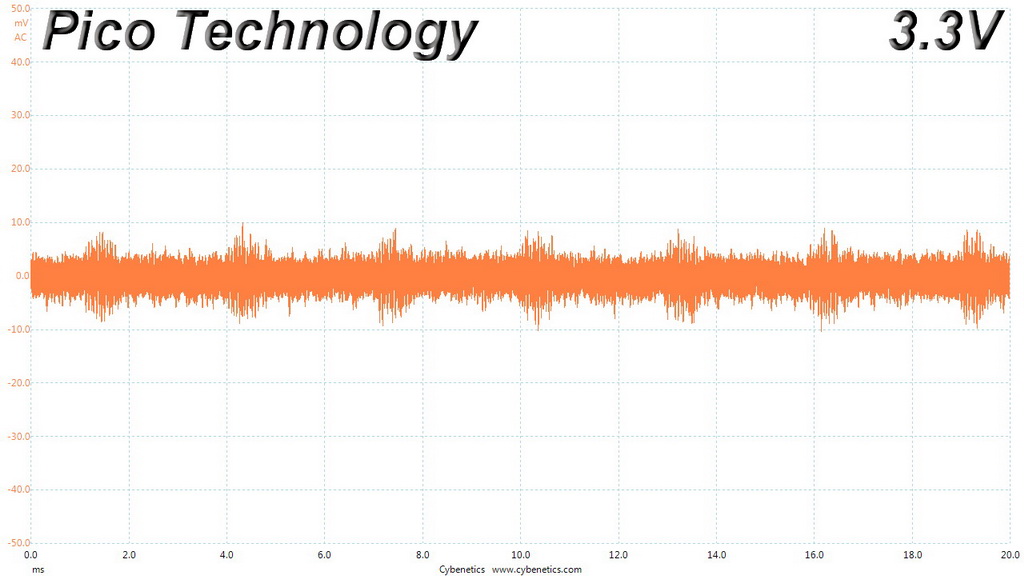

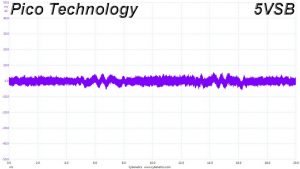

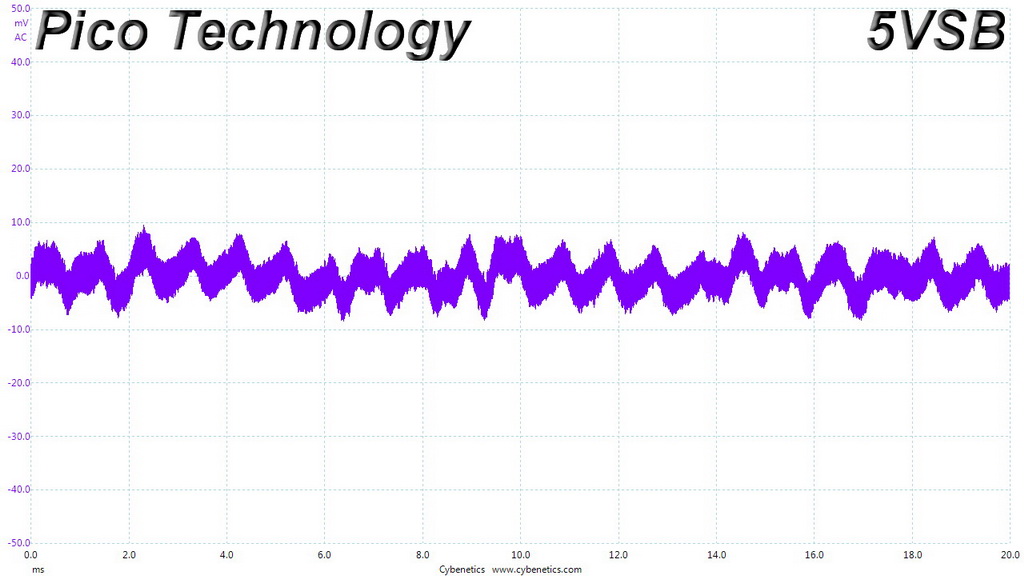

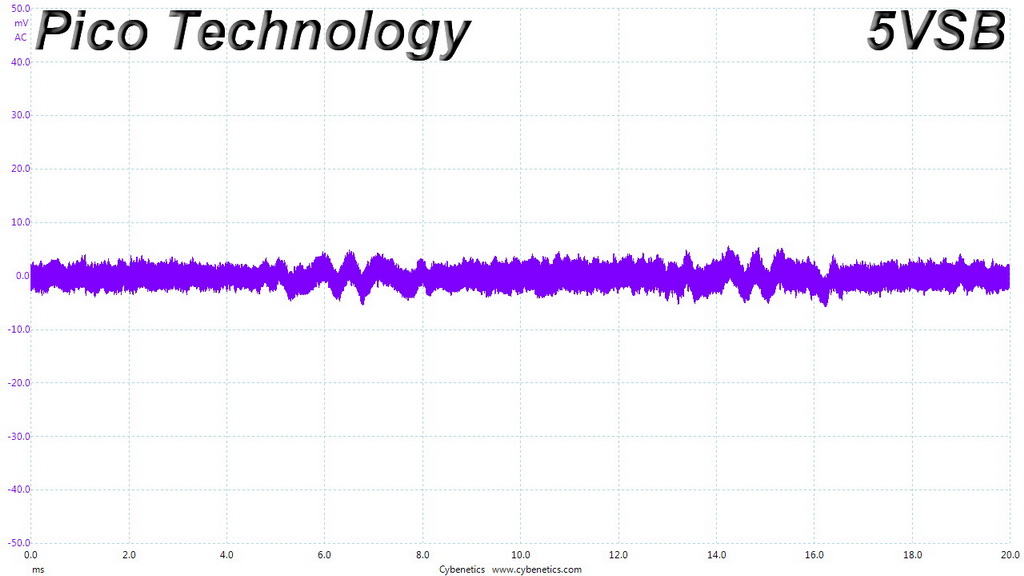

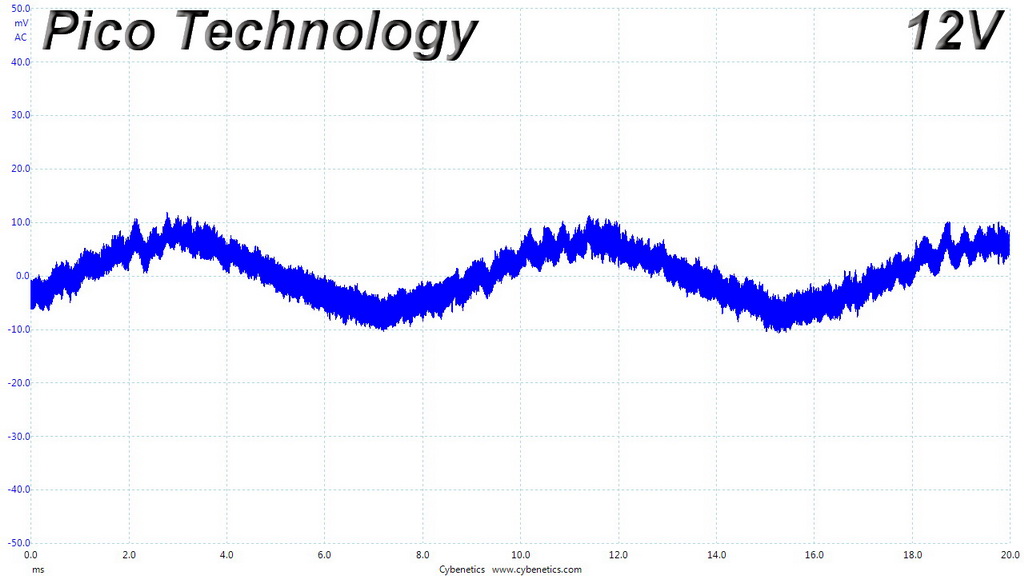

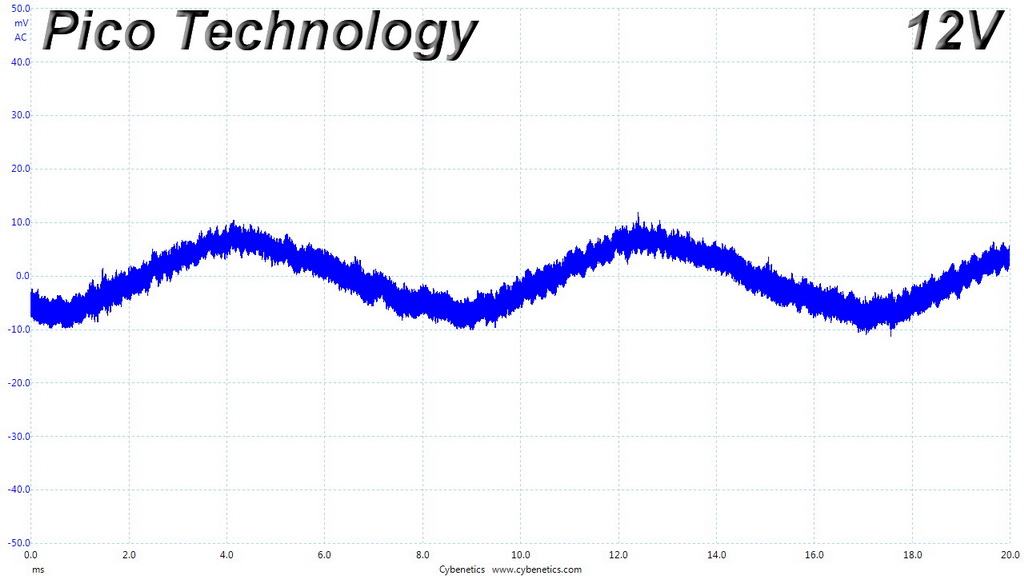

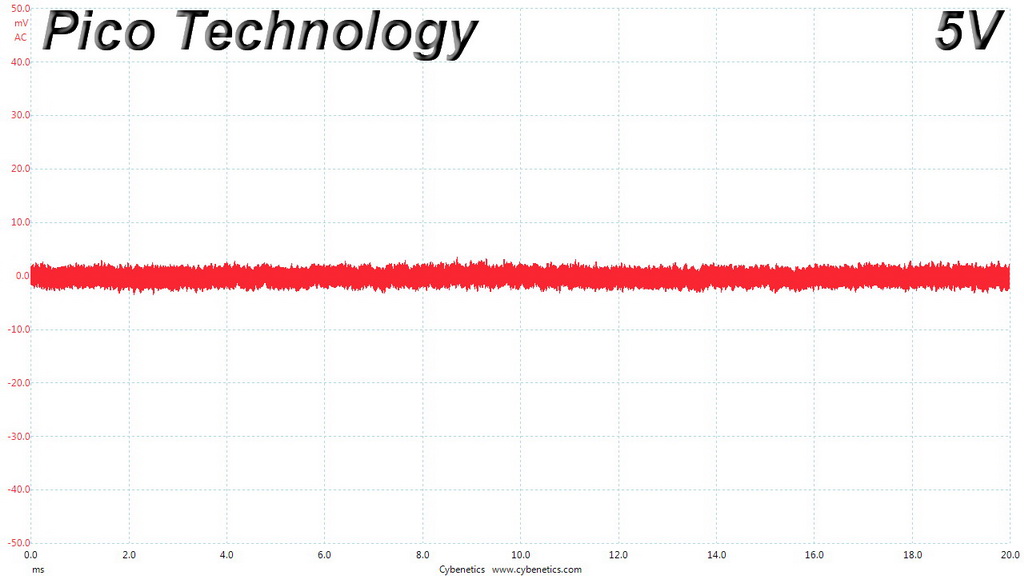

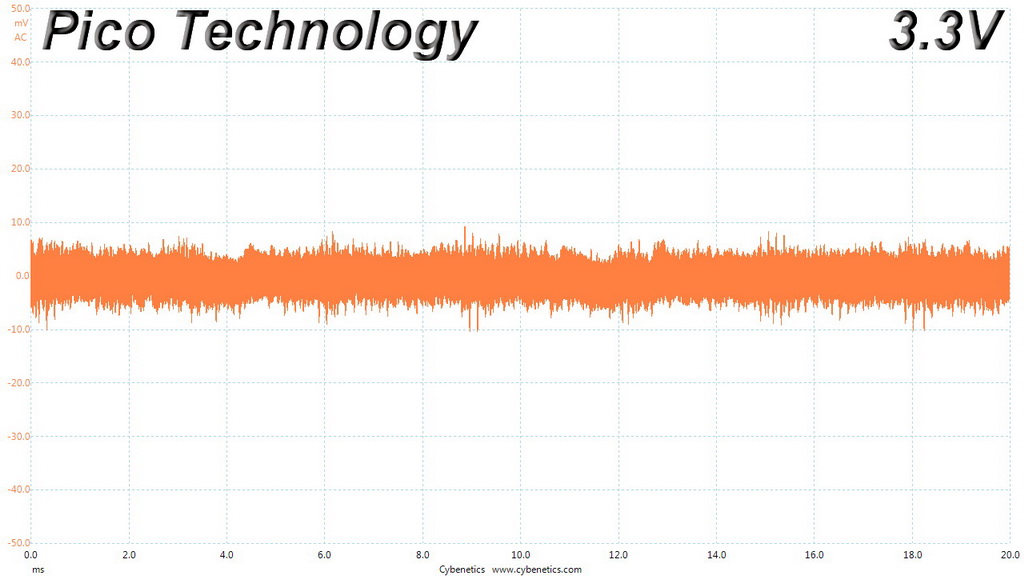

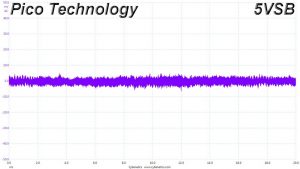

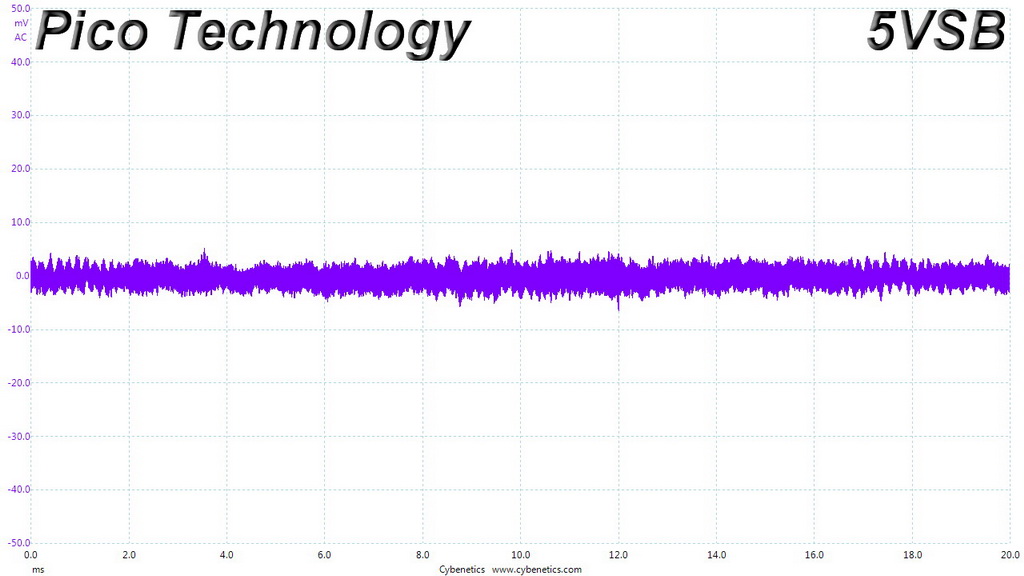

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.
