Our cross-load tests are described in detail here.

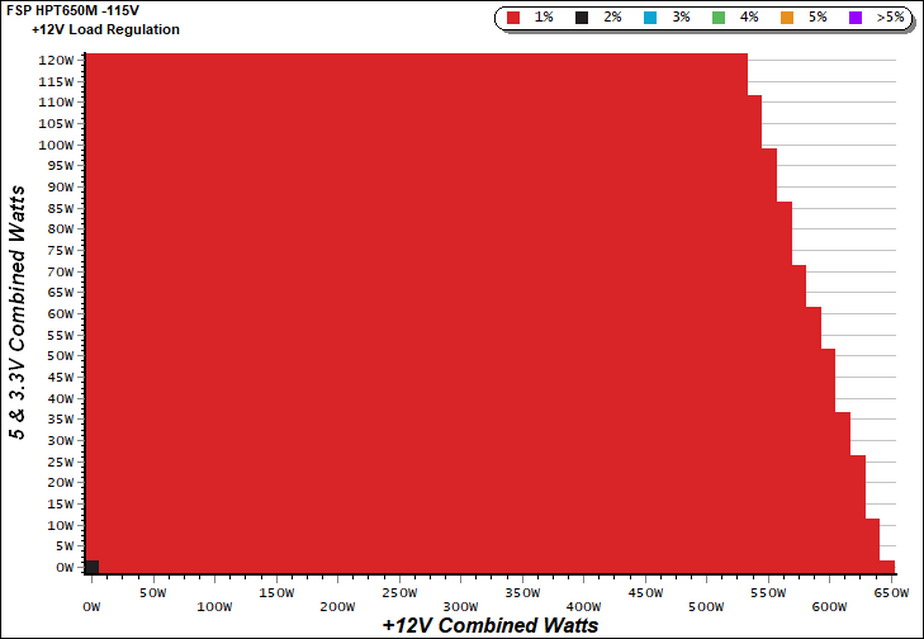

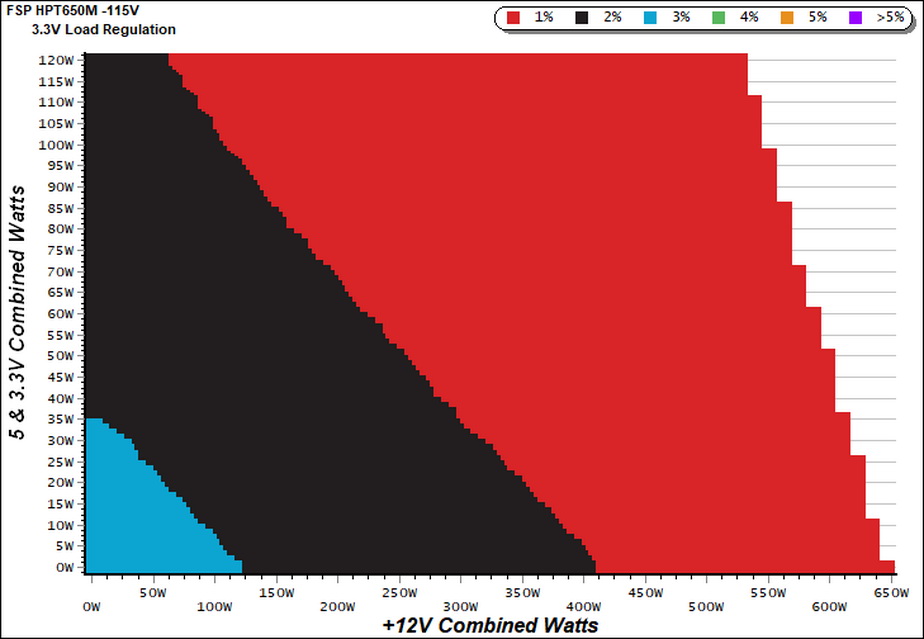

To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 1500 possible load combinations with the +12V, 5V, and 3.3V rails. The load regulation deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature is between at 30°C (86°F) to 32°C (89.6°F).

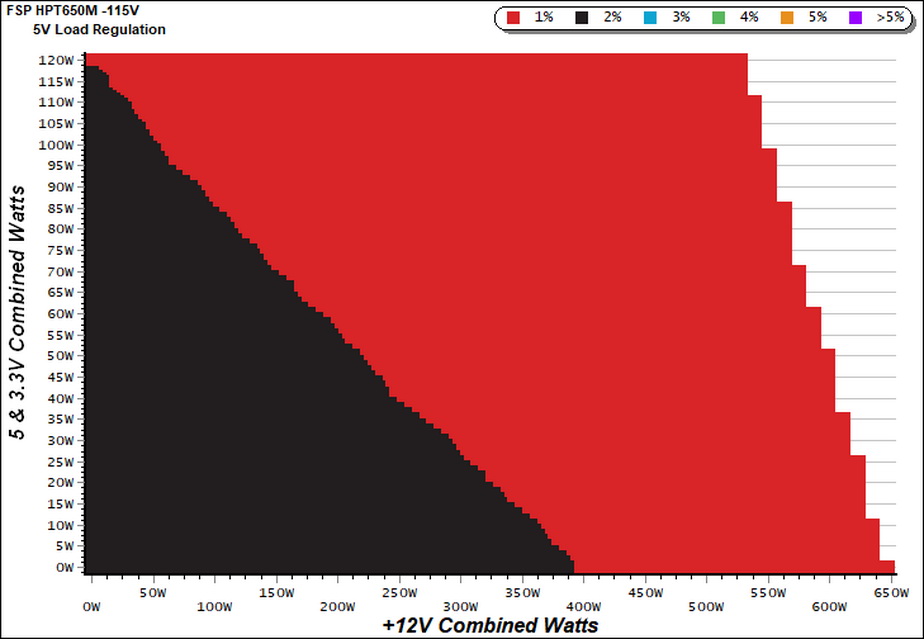

Load Regulation Charts

Efficiency Chart

It is good to see a region where efficiency is higher than 92%. From around 110W to 540W  at +12V and even with very high loads on the minor rails, the PSU's efficiency stays above 90%.

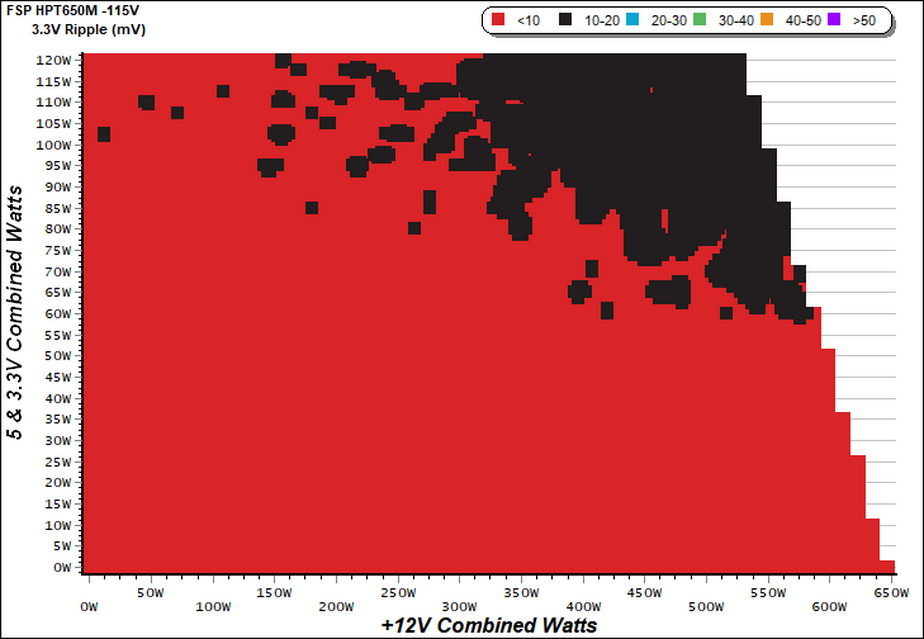

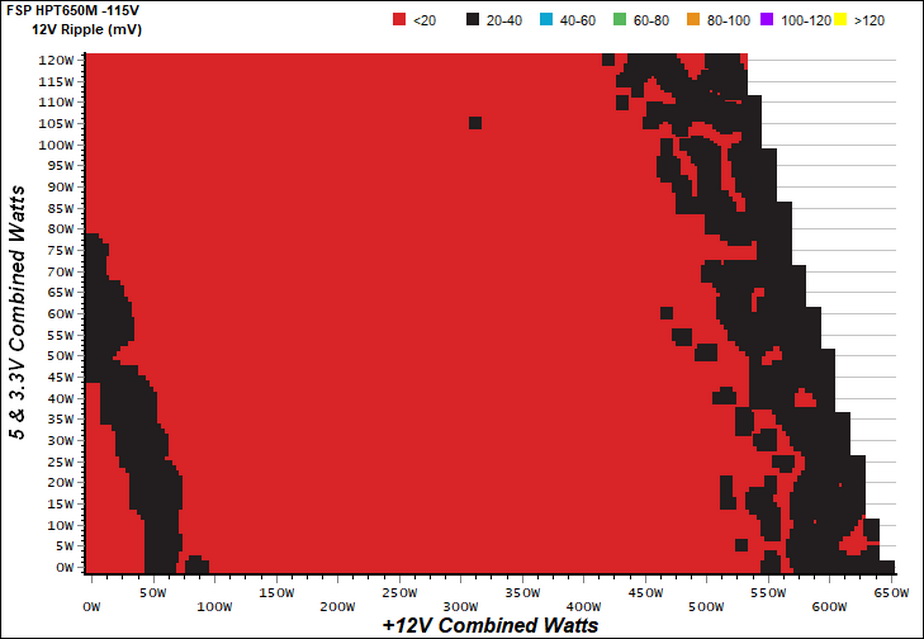

Ripple Charts

Infrared Images

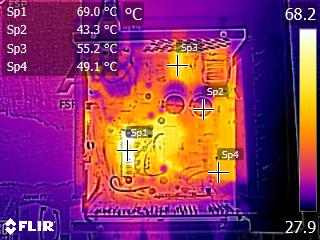

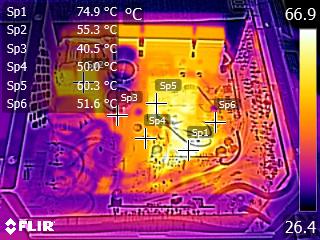

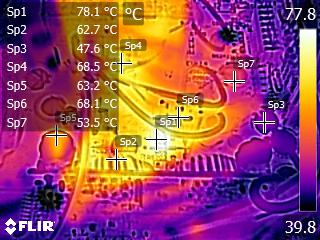

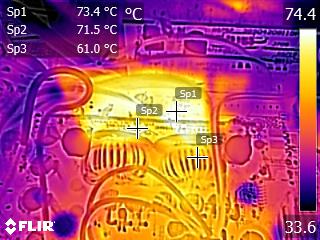

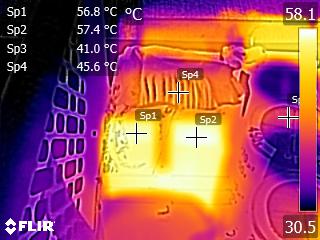

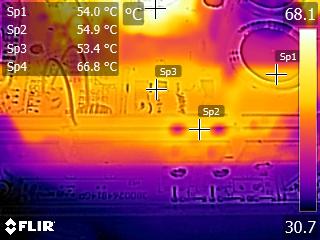

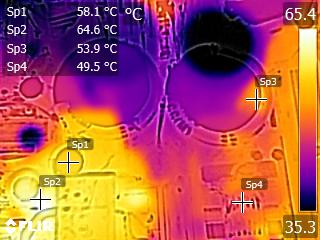

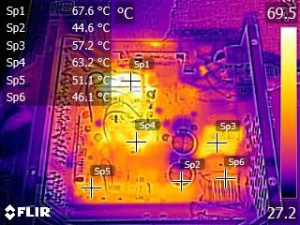

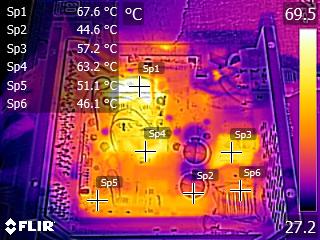

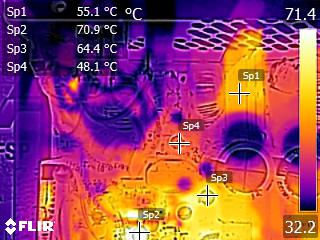

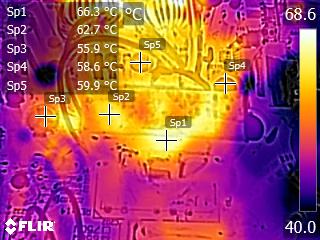

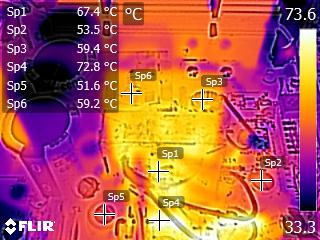

We apply half-load for 10 minutes with the PSU’s top cover and cooling fan removed before taking photos with our modified FLIR E4 camera that delivers 320×240 IR resolution (76,800 pixels).

The temperatures at the internals stay low. This is why FSP opted for a very relaxed fan profile.
