Advanced Transient Response Tests
For details on our transient response testing, please click here.
These tests are crucial because they simulate the transient loads a PSU is likely to handle (such as booting a RAID array or an instant 100 percent load of CPU/GPUs). We call these “Advanced Transient Response Tests” and they are designed to be very tough to master, especially for a PSU with a capacity of less than 500W.
In all of the tests, we use an oscilloscope to measure the voltage drops caused by the transient load. The voltages should remain within the ATX specification's regulation limits.

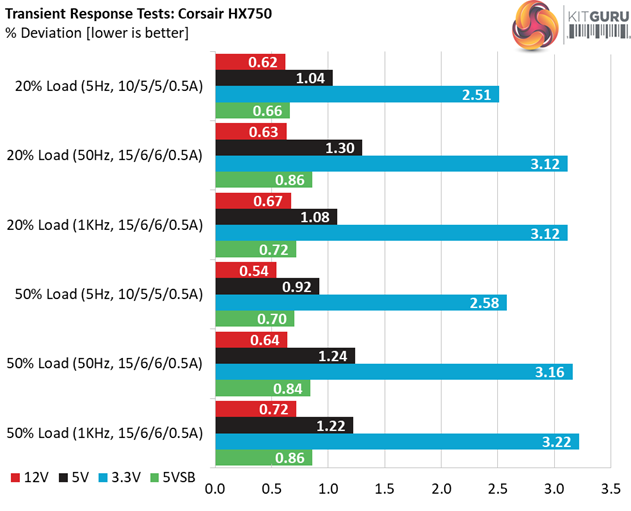

Advanced Transient Response at 20 Percent – 200ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.989V | 11.915V | 0.62% | Pass |
| 5V | 5.013V | 4.961V | 1.04% | Pass |
| 3.3V | 3.303V | 3.220V | 2.51% | Pass |
| 5VSB | 4.995V | 4.962V | 0.66% | Pass |
Advanced Transient Response at 20 Percent – 20ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.991V | 11.915V | 0.63% | Pass |
| 5V | 5.013V | 4.948V | 1.30% | Pass |
| 3.3V | 3.303V | 3.200V | 3.12% | Pass |
| 5VSB | 4.995V | 4.952V | 0.86% | Pass |
Advanced Transient Response at 20 Percent – 1ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.992V | 11.912V | 0.67% | Pass |
| 5V | 5.013V | 4.959V | 1.08% | Pass |
| 3.3V | 3.303V | 3.200V | 3.12% | Pass |
| 5VSB | 4.996V | 4.960V | 0.72% | Pass |
Advanced Transient Response at 50 Percent – 200ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.943V | 11.879V | 0.54% | Pass |
| 5V | 5.000V | 4.954V | 0.92% | Pass |
| 3.3V | 3.296V | 3.211V | 2.58% | Pass |
| 5VSB | 4.976V | 4.941V | 0.70% | Pass |
Advanced Transient Response at 50 Percent – 20ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.945V | 11.869V | 0.64% | Pass |
| 5V | 5.000V | 4.938V | 1.24% | Pass |
| 3.3V | 3.296V | 3.192V | 3.16% | Pass |
| 5VSB | 4.976V | 4.934V | 0.84% | Pass |
Advanced Transient Response at 50 Percent – 1ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.946V | 11.860V | 0.72% | Pass |
| 5V | 5.000V | 4.939V | 1.22% | Pass |
| 3.3V | 3.296V | 3.190V | 3.22% | Pass |
| 5VSB | 4.976V | 4.933V | 0.86% | Pass |

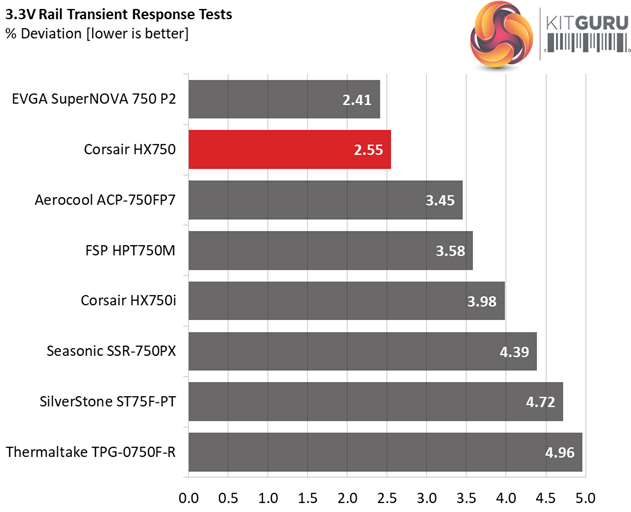

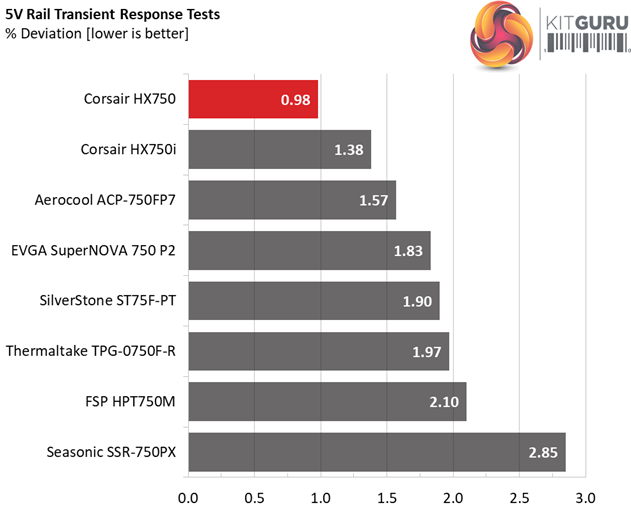

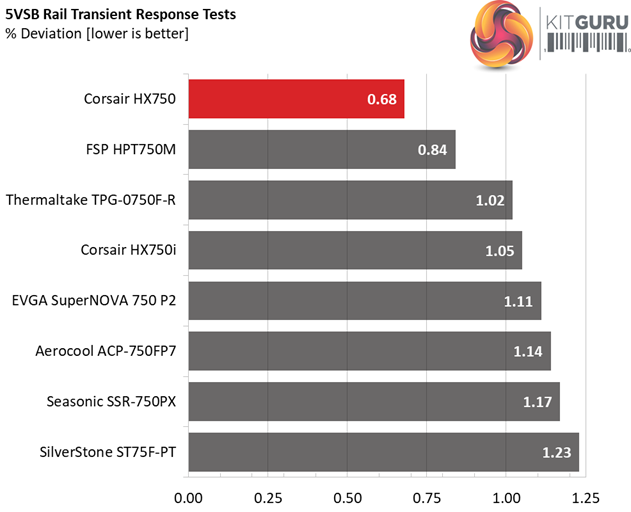

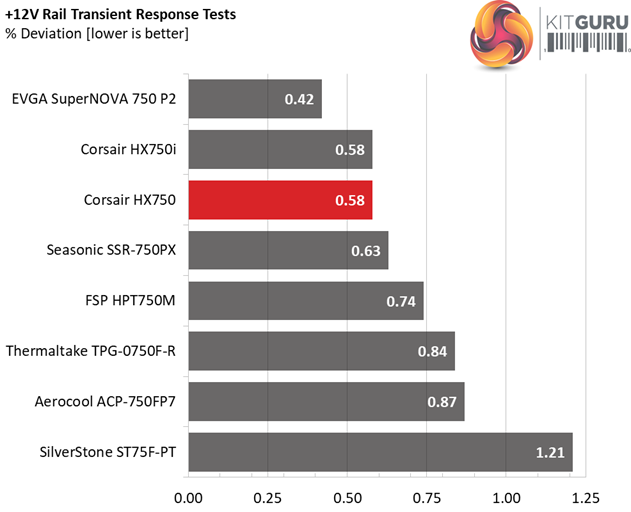

This platform's transient response is really good, on all rails. Only Super Flower's Leadex platform is able to meet the HX750's performance in those tests.
Here are the oscilloscope screenshots we took during Advanced Transient Response Testing:

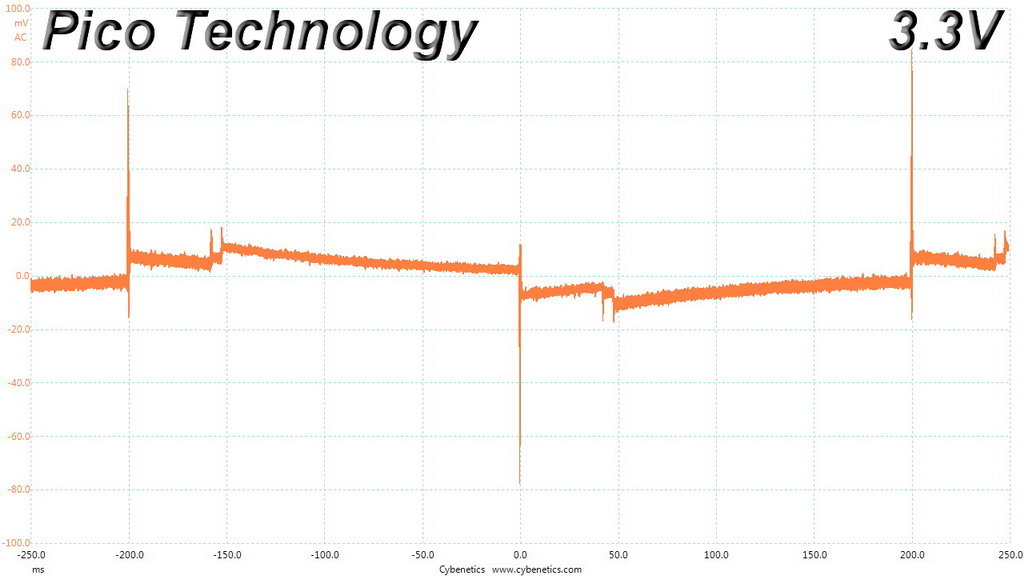

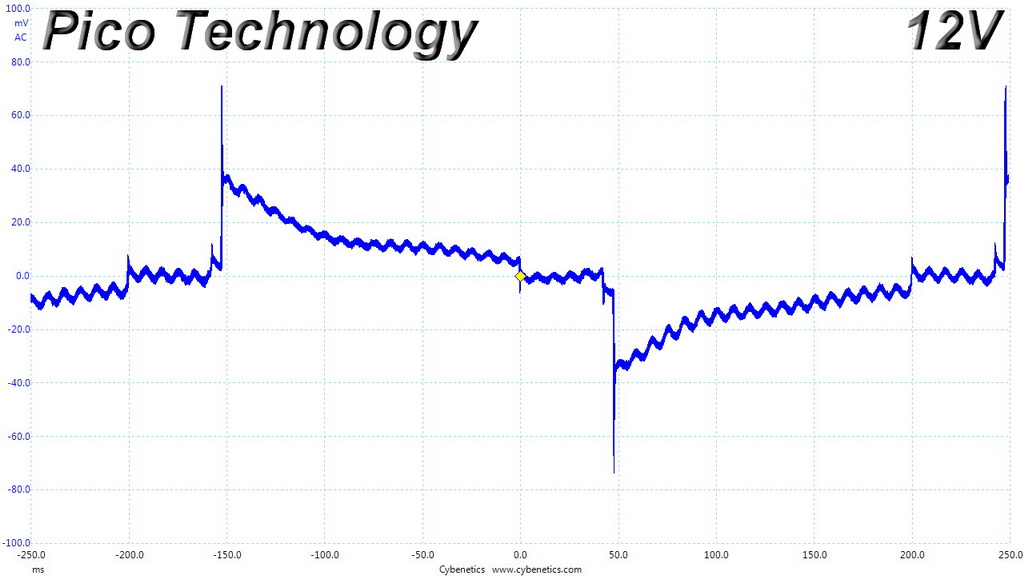

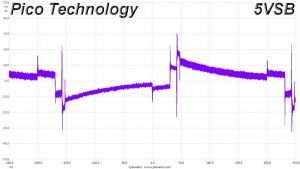

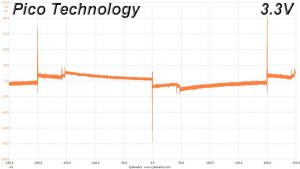

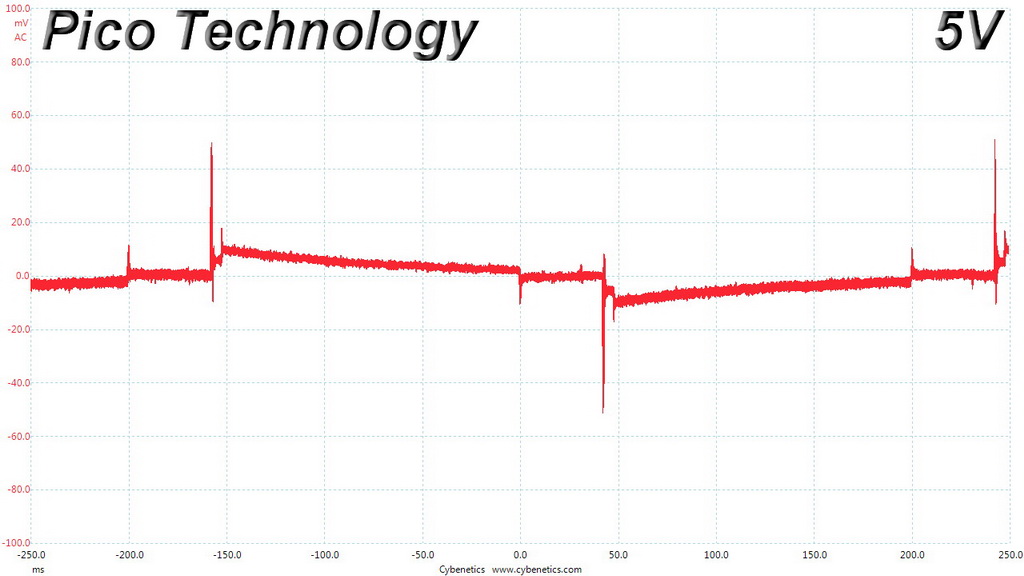

Transient Response At 20 Percent Load – 200ms

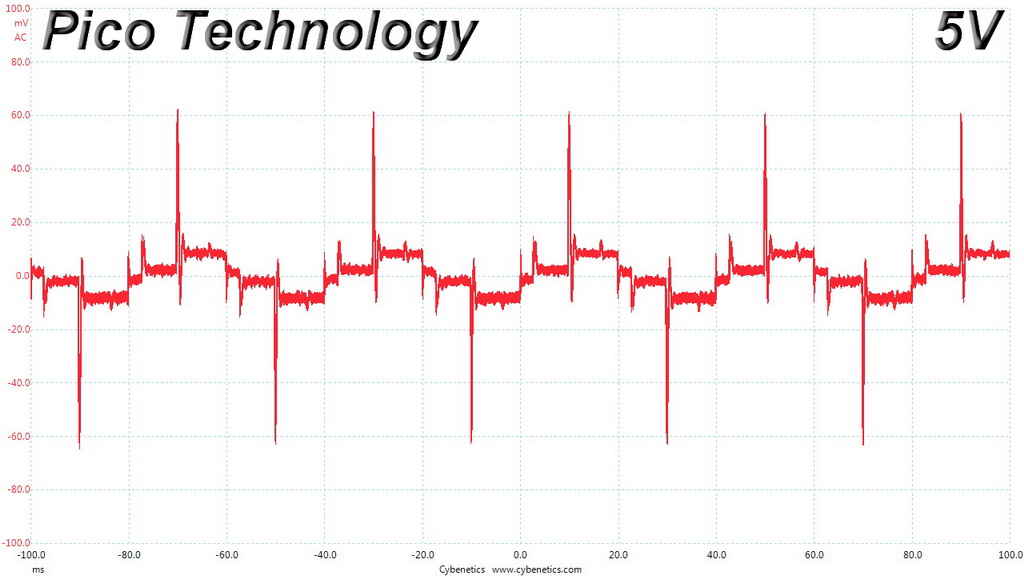

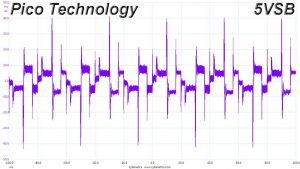

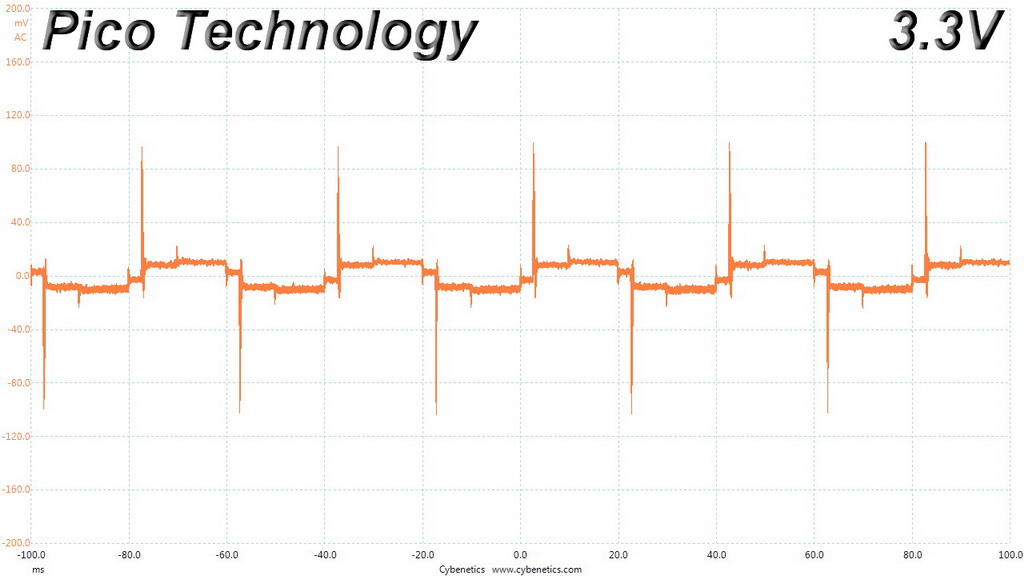

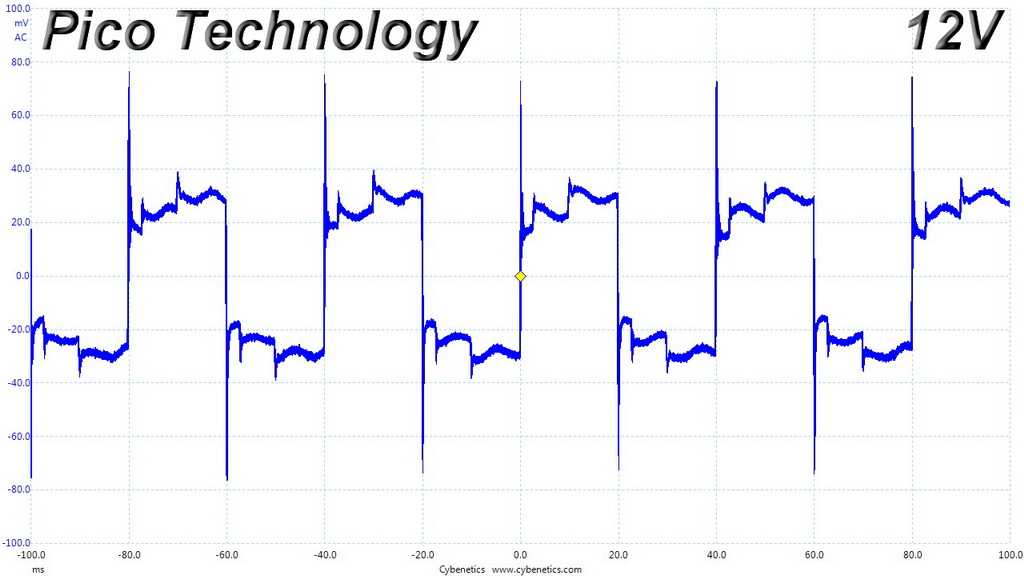

Transient Response At 20 Percent Load – 20ms

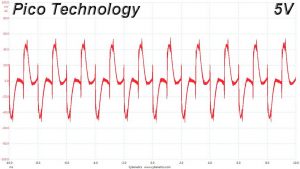

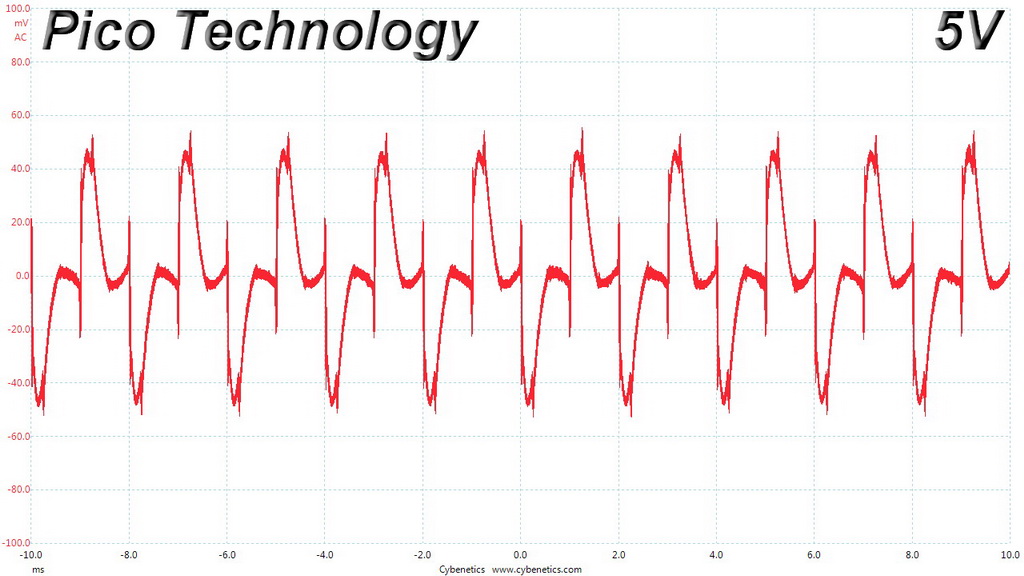

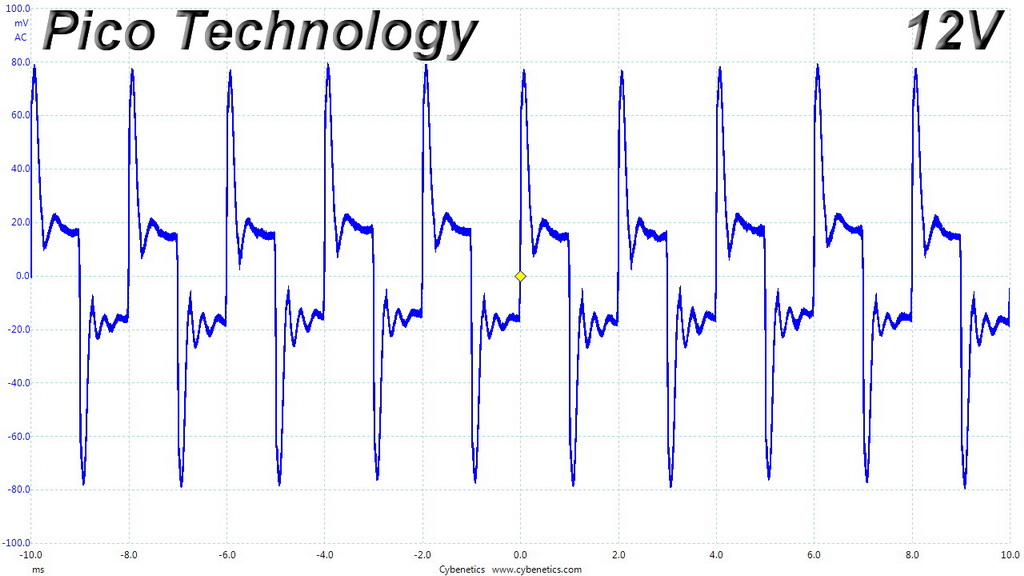

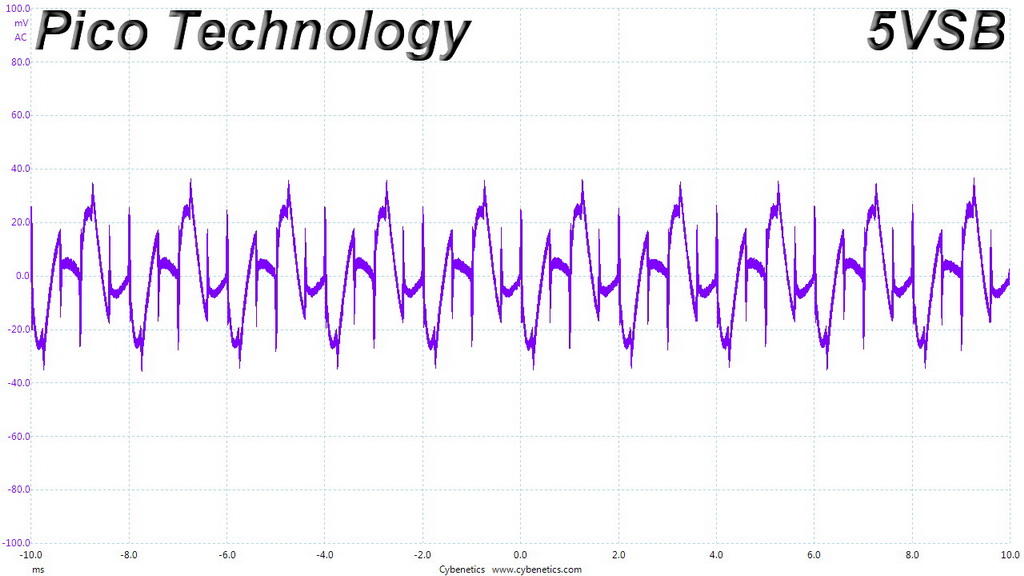

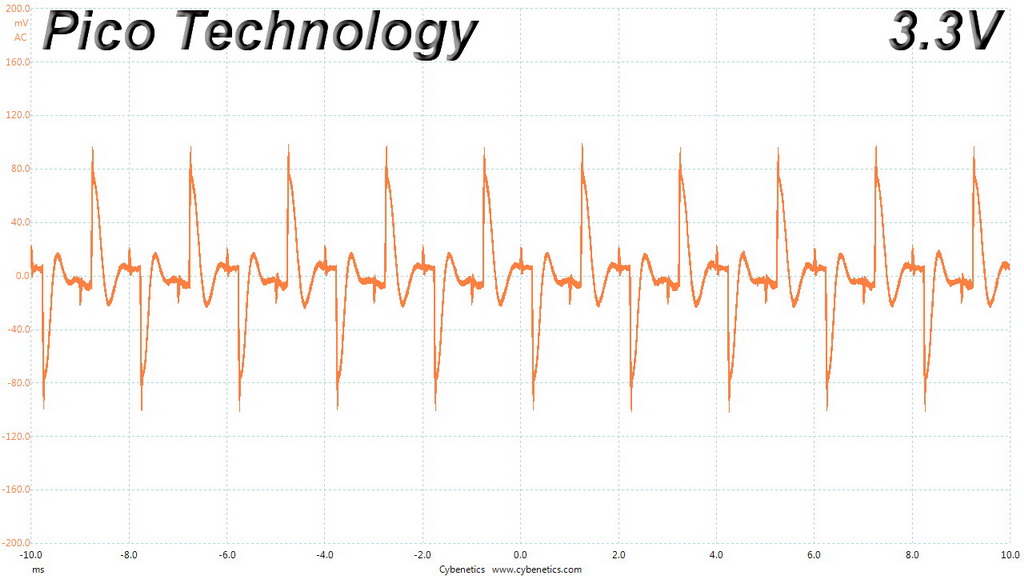

Transient Response At 20 Percent Load – 1ms

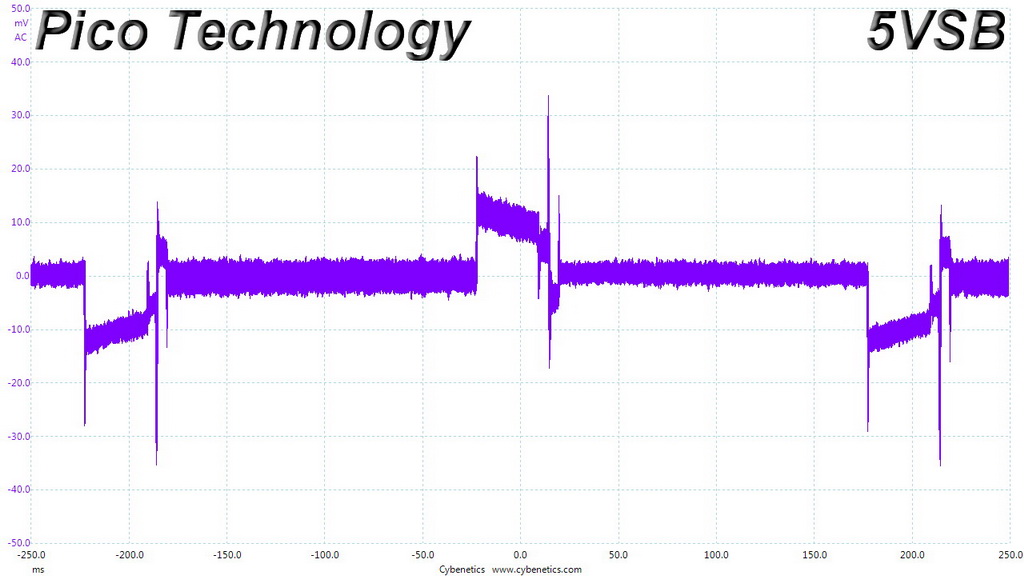

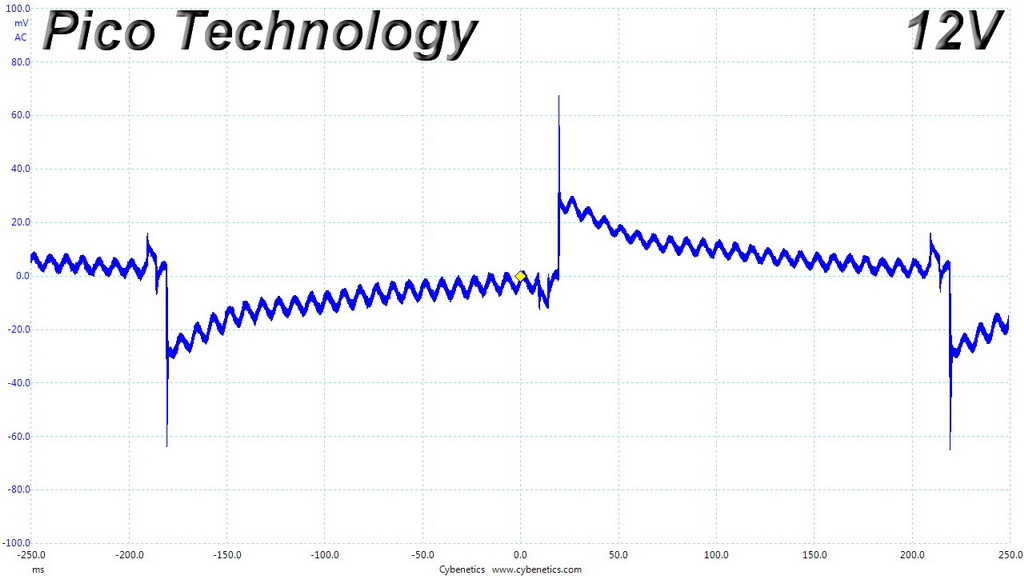

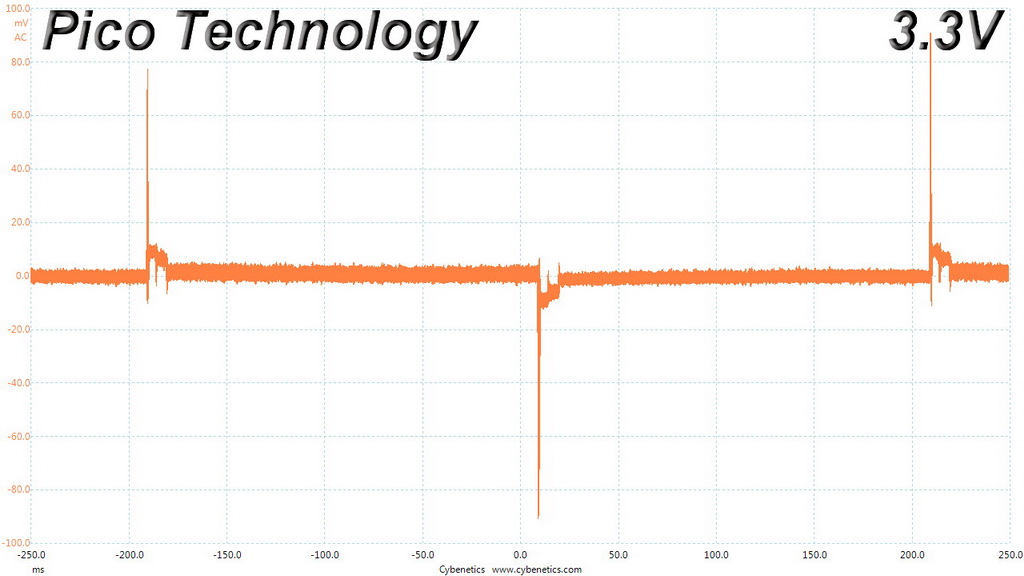

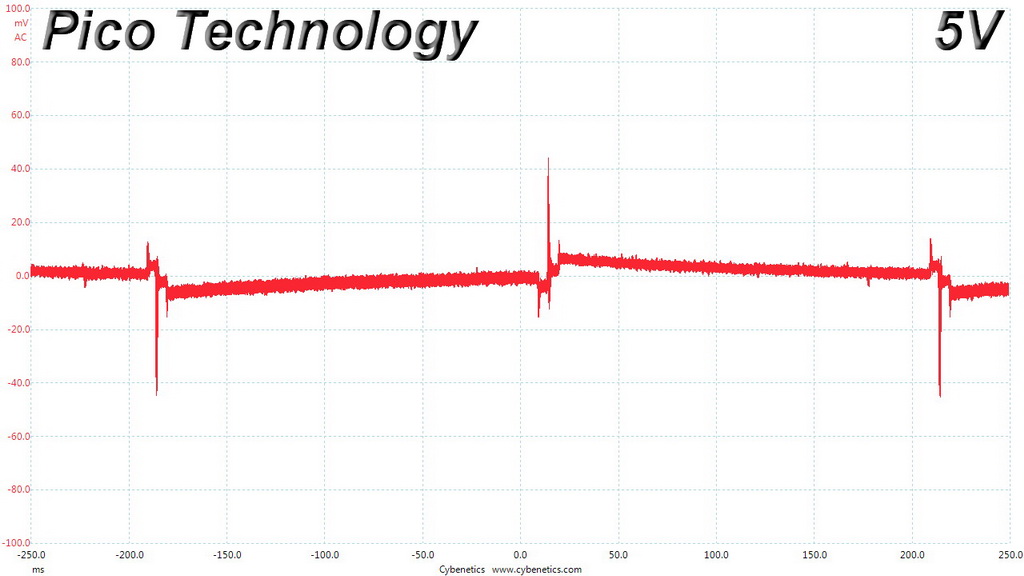

Transient Response At 50 Percent Load – 200ms

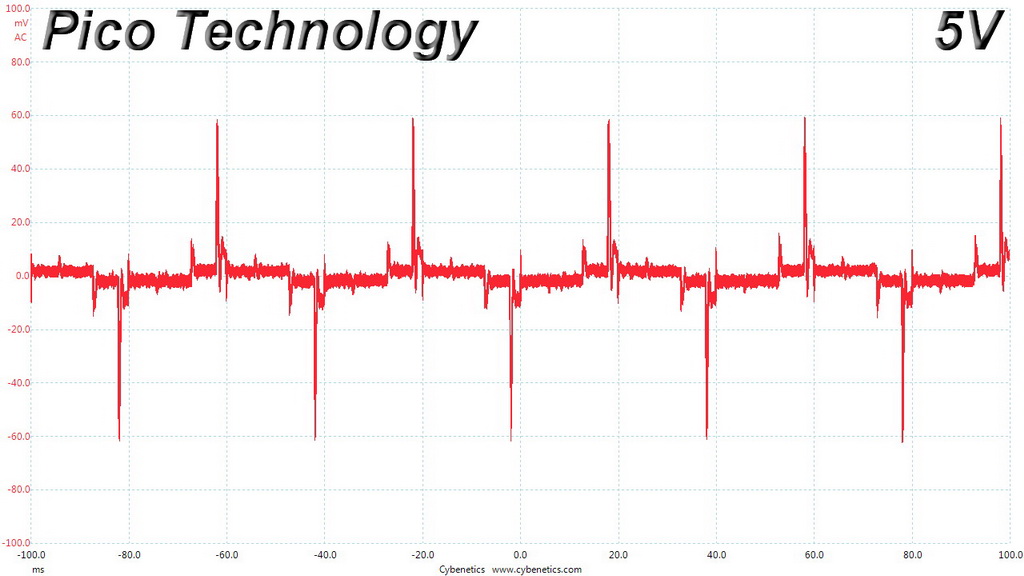

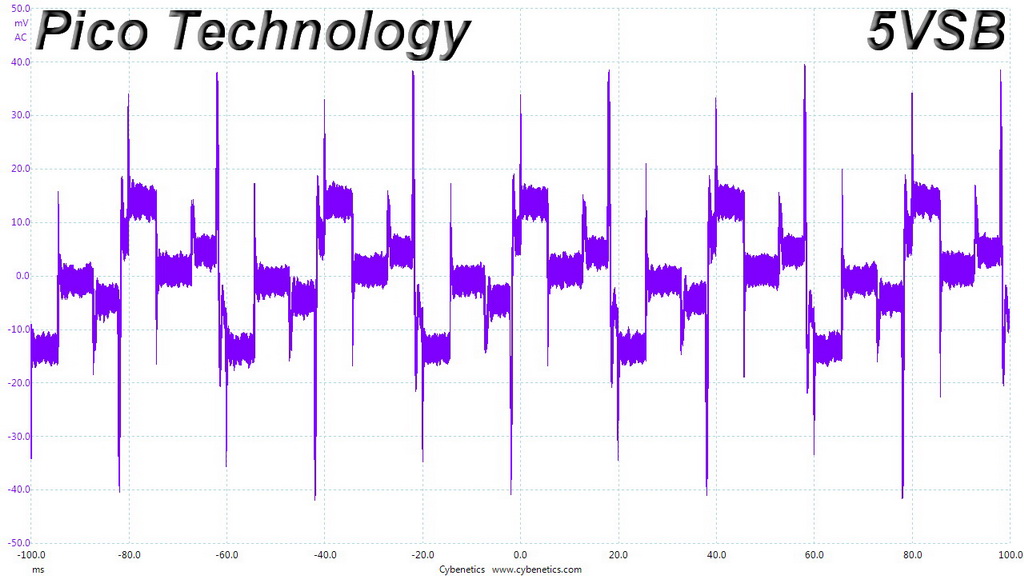

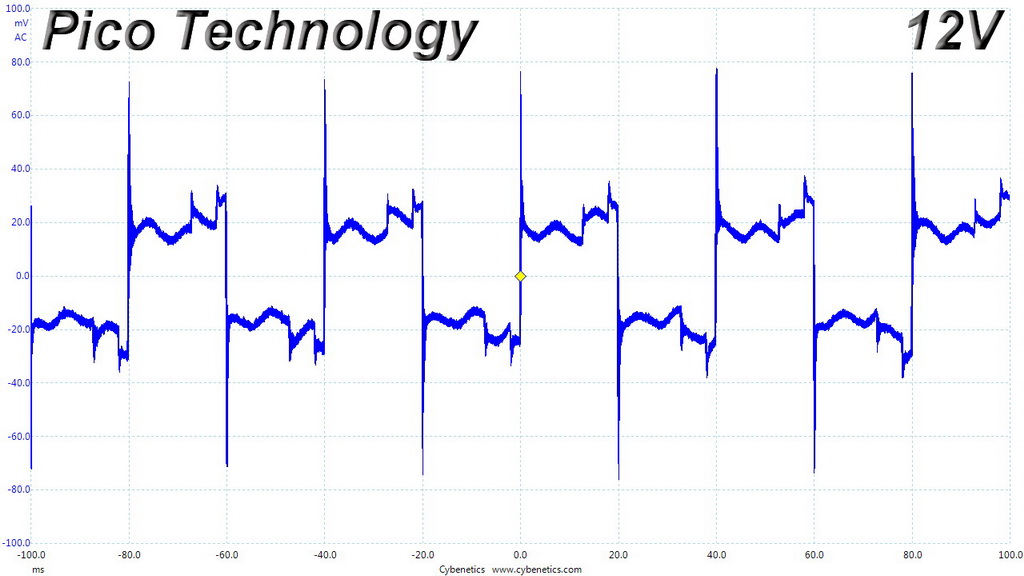

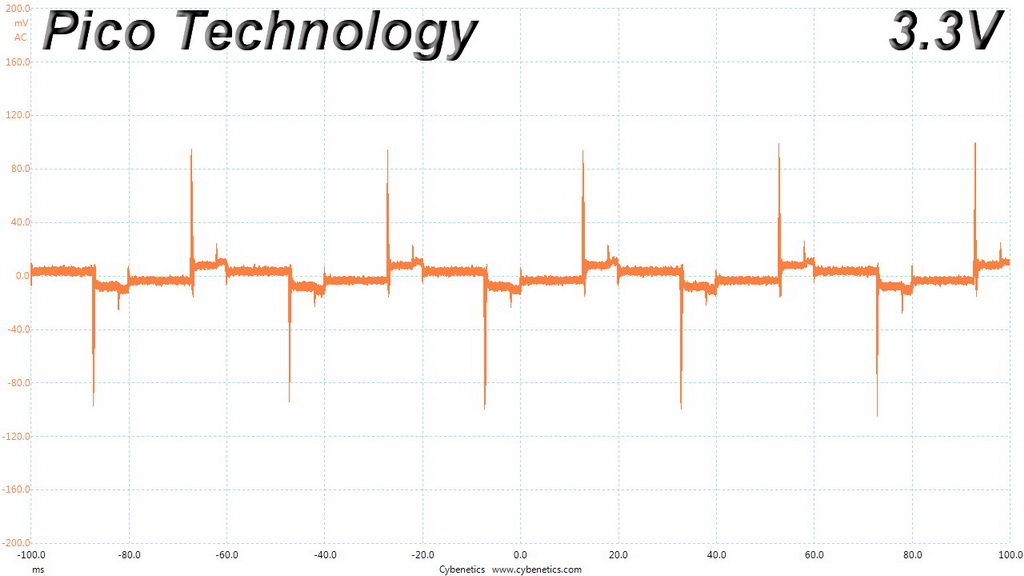

Transient Response At 50 Percent Load – 20ms

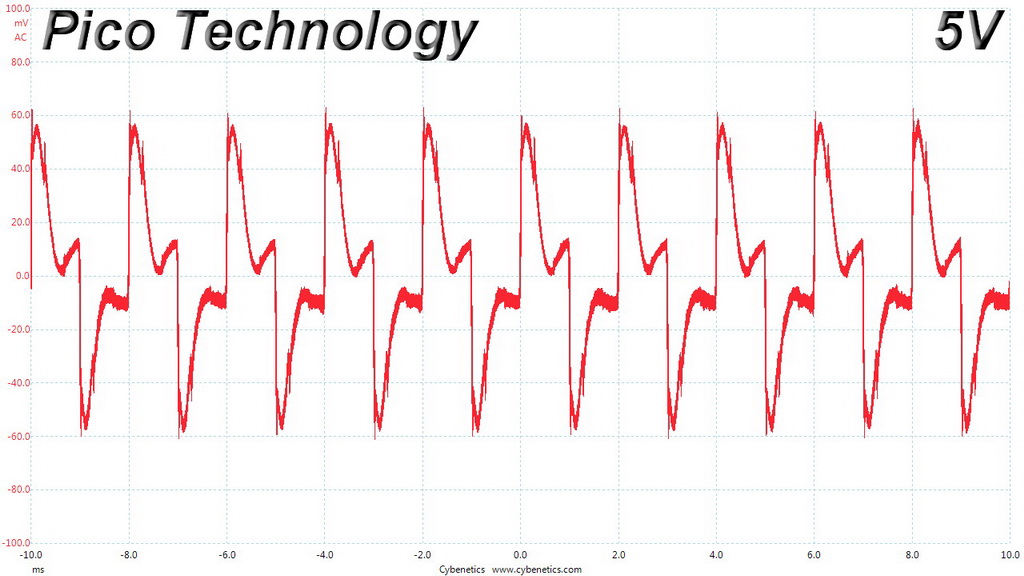

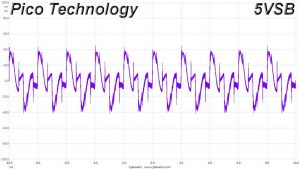

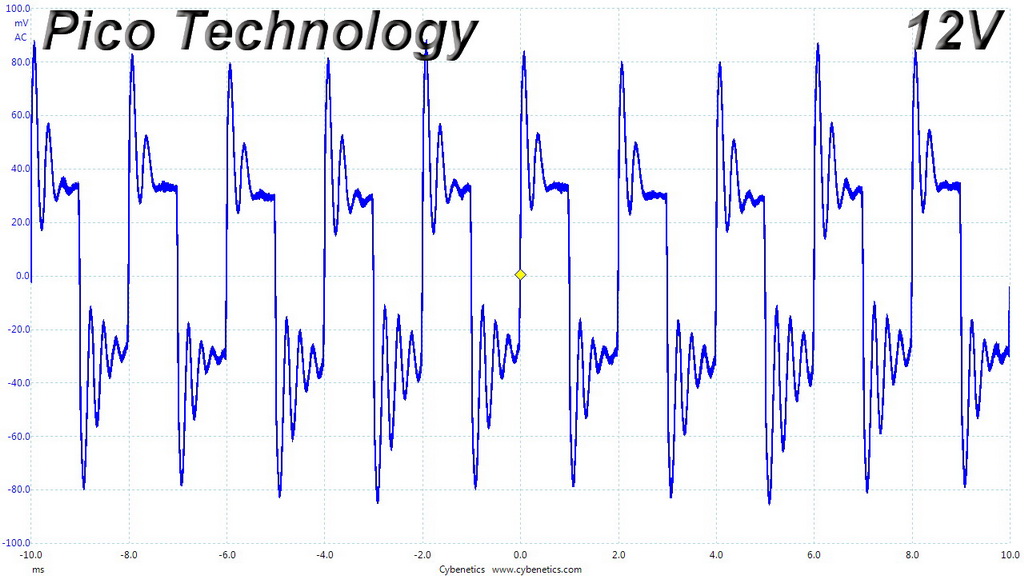

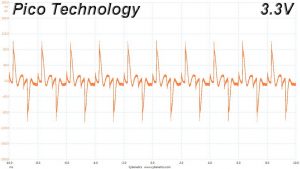

Transient Response At 50 Percent Load – 1ms
Turn-On Transient Tests
In the next set of tests, we measure the HX750’s response in simpler transient load scenarios—during its power-on phase.

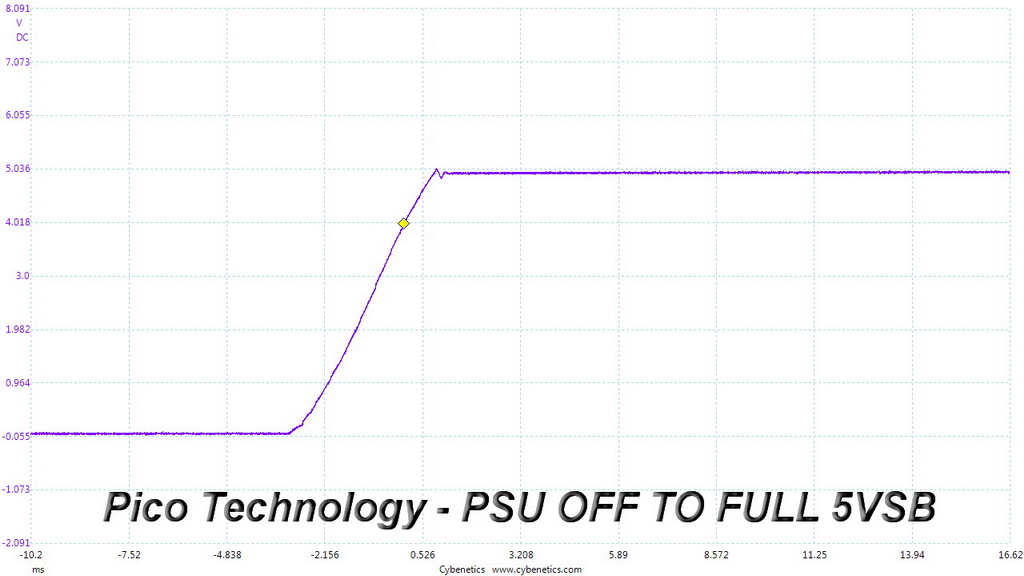

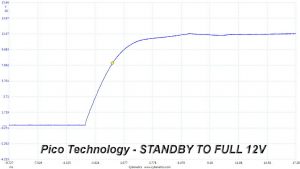

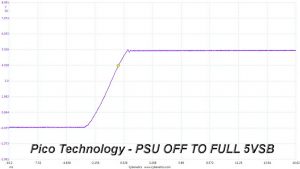

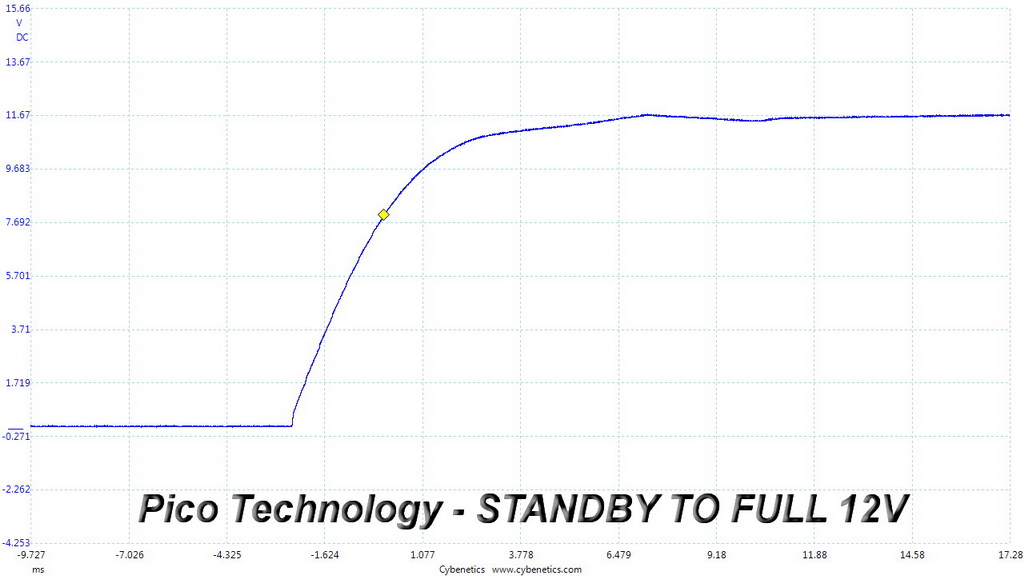

For our first measurement, we turn the HX750 off, dial in the maximum current the 5VSB rail can handle, and switch the PSU back on. In the second test, we dial the maximum load the +12V rail can handle and start the PSU while it is in standby mode.

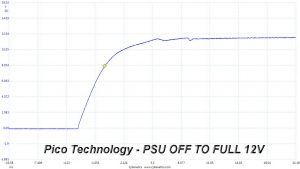

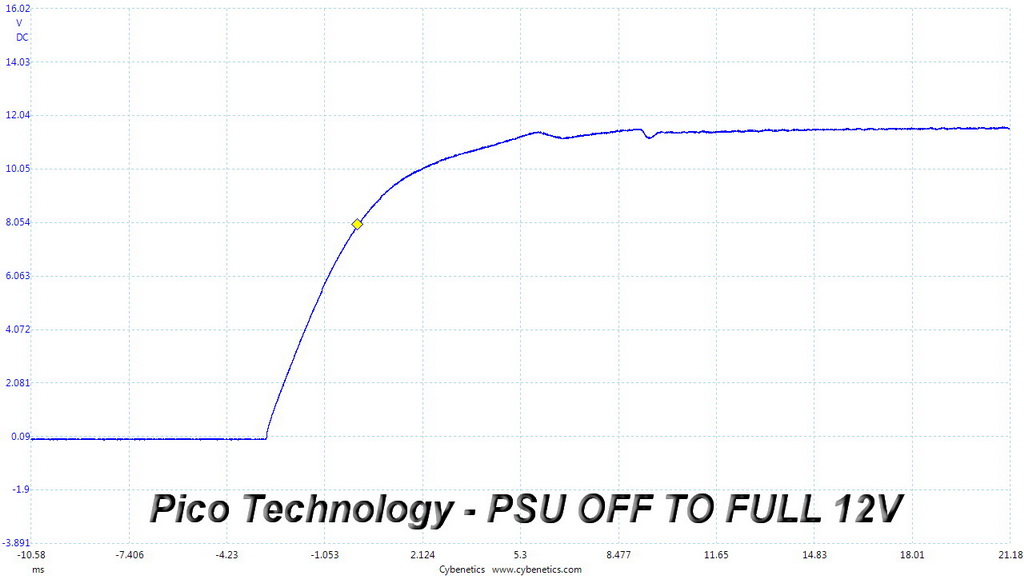

In the last test, while the PSU is completely switched off (we cut off the power or switch the PSU off through its power switch), we dial the maximum load the +12V rail can handle before restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10 percent of their nominal values (+10 percent for 12V is 13.2V, and 5.5 V for 5V).
There is only a tiny spike at 5VSB and a pretty small voltage drop during the last tests. Overall the performance is great, again.
