Our cross-load tests are described in detail here.

To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 1500 possible load combinations with the +12V, 5V, and 3.3V rails. The load regulation deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature is between at 30°C (86°F) to 32°C (89.6°F).

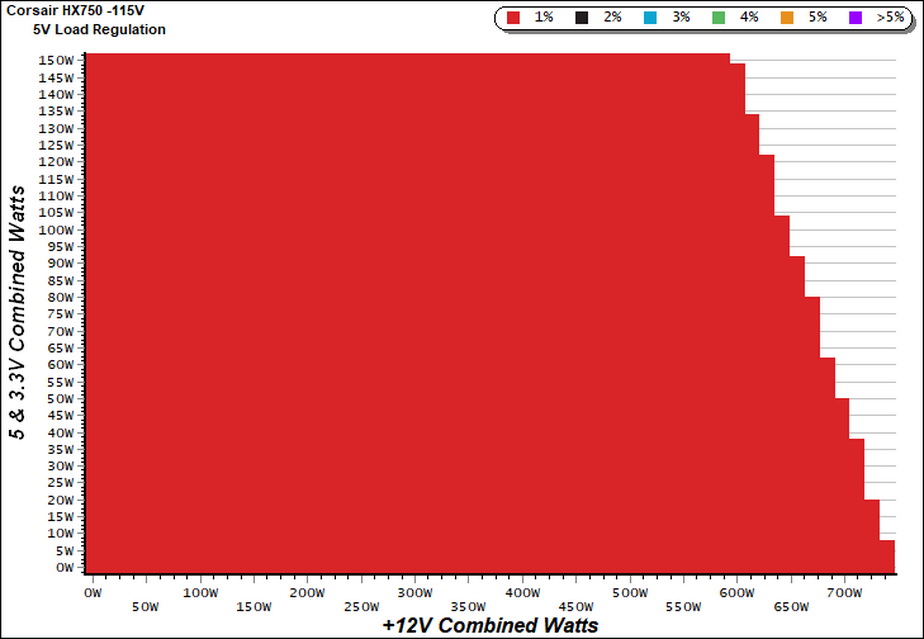

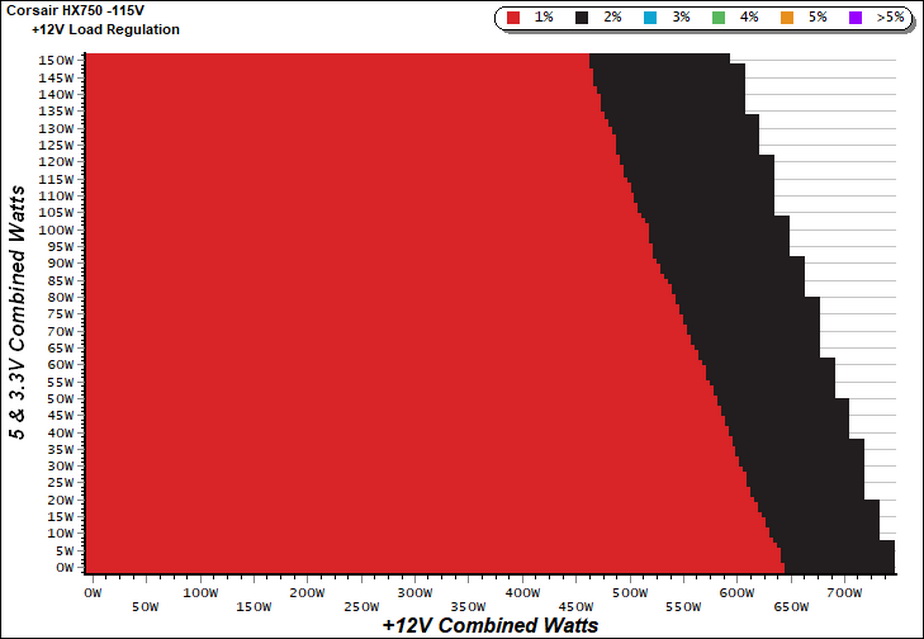

Load Regulation Charts

Efficiency Chart

There is small region where efficiency exceeds 92%, between 250W and 390W load at +12V with the load on the minor rails staying pretty low (<25W).

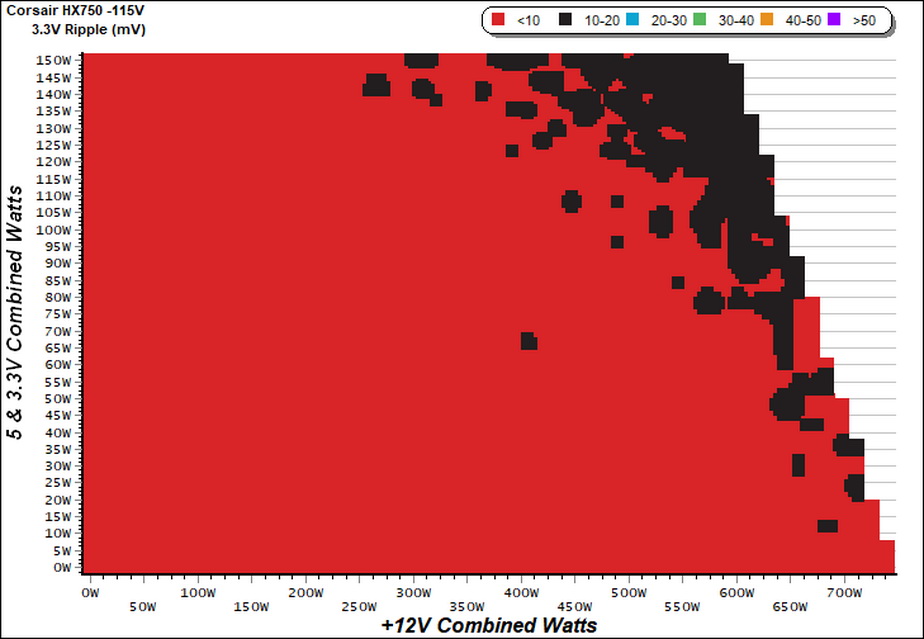

Ripple Charts

Infrared Images

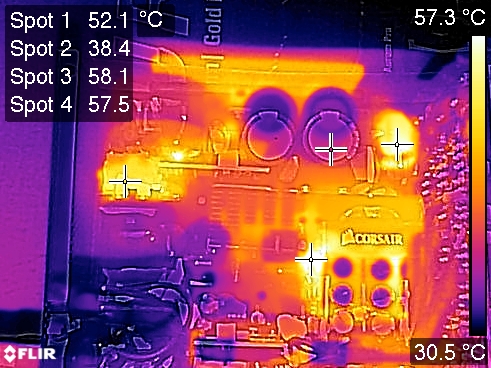

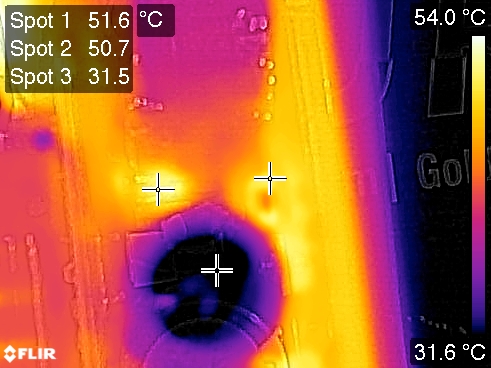

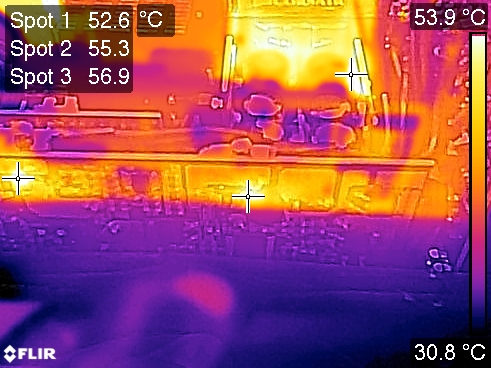

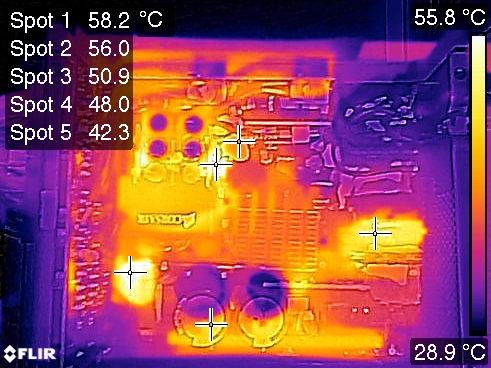

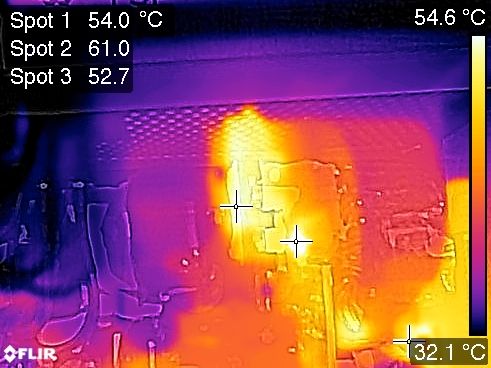

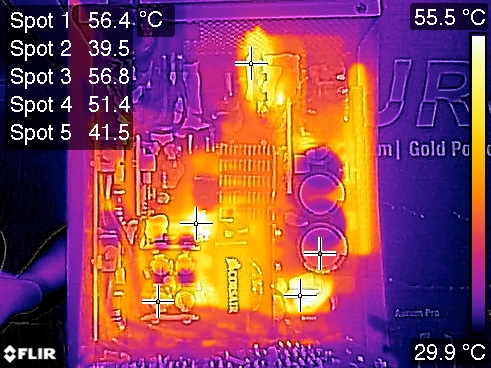

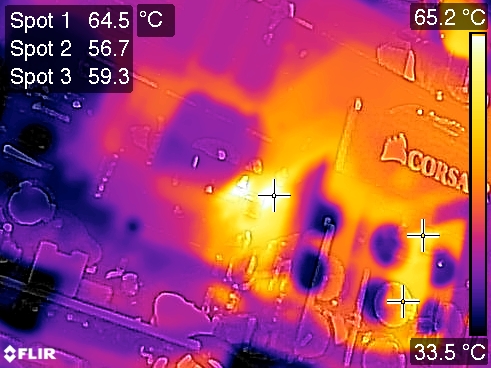

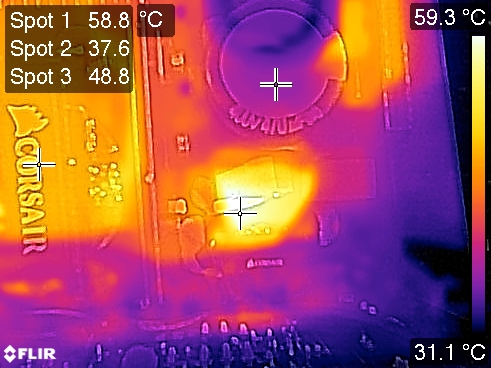

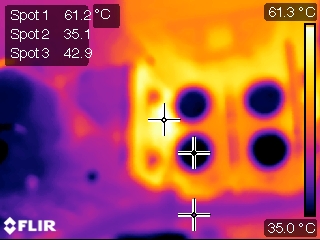

We apply half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with our modified FLIR E4 camera that delivers 320×240 IR resolution (76,800 pixels).

Thanks to the highly efficient FETs that this platform uses, the temperatures at the internals remain at low levels after applying 375W load for a ten minute period.
