ASUS AURA software is at the heart of the Z170 Pro Gaming AURA's functionality. For the software analysis we paired the motherboard up with the ASUS GTX 1060 STRIX OC since the AURA framework can sync effects across compatible products.

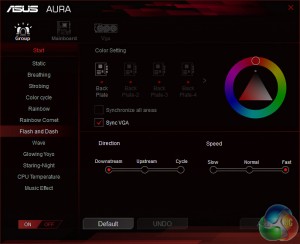

When grouped together you can pick from an extensive list of lighting modes and control the direction of the pattern and its speed.

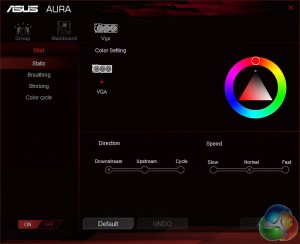

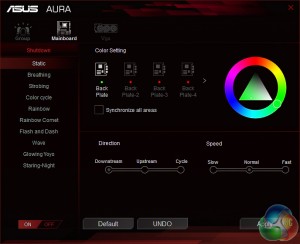

If you choose to control the motherboard and graphics card separately there are less lighting modes, particularly for the graphics card. You are, however, still afforded the same range of customisation options in terms of direction and speed, where appropriate.
The short video below demonstrates how the graphics card and motherboard work together for the “Flash and Dash” group effect:

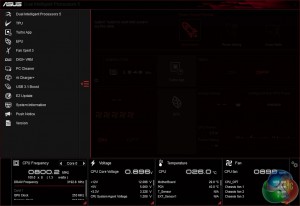

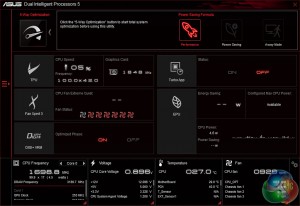

The rest of the ASUS key software suite is more familiar, centred around AI Suite III. From within this motherboard control panel software you can adjust voltages and application specific turbo behaviour, set custom fan curves, enable power saving profiles and more.

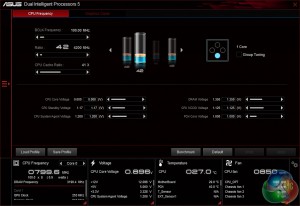

AI Suite III also supports on-the-fly, real-time, CPU overclocking, load line calibration and voltage adjustments – handy if you don't want to keep rebooting into the UEFI to make changes and then test if they are stable.

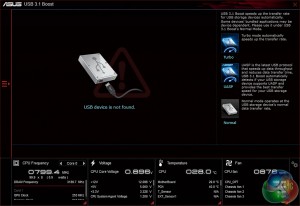

ASUS USB 3.1 Boost is also present to enhance USB throughput by using Bulk Only Transfers (Turbo) or UASP on compatible USB 3.0 and 3.1 storage devices. This is ideal for increasing transfer rates, especially when using the Windows 7 OS.
Finally board manufacturers are ditching the worthless sata express.
I’m still unaware of why sata express requires the use of two sata ports. Unless those connectors are what it uses for the two pci express lanes, but that seems pointless when theres m.2 and u.2 which provide double the bandwidth with 4 lanes vs 2, and supposedly support upto x8.
I think x4 3.0 will be the new standard for high performance SSDs and the focus will move towards bringing higher and higher IOPs since thats still what limits most applications.
Google is paying 97$ per hour! Work for few hours and have longer with friends & family! !mj31d:
On tuesday I got a great new Land Rover Range Rover from having earned $8752 this last four weeks.. Its the most-financialy rewarding I’ve had.. It sounds unbelievable but you wont forgive yourself if you don’t check it
!mj31d:
➽➽
➽➽;➽➽ http://GoogleFinancialJobsCash31GroupTopGetPay$97Hour… ★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★✫★★::::::!mj31d:….,…..
Can I boot from a M.2 SSD on this MB?
Yes. I’m using one right now.
Awesome news. Is all that’s required to just load driver during the OS Install?
apparently with the newest bios update, you should be able to just plug and play. So selecting it as the OS install and you’re good to go.
Love it! Thanks again, I can’t wait to get started on this build.
