Intel's Skylake processors are just the latest Intel CPU architecture to see many of the critical system operations handled by the processor. As such, benchmarking a motherboard becomes more of a test to certify that the part operates correctly and meets the anticipated performance levels.

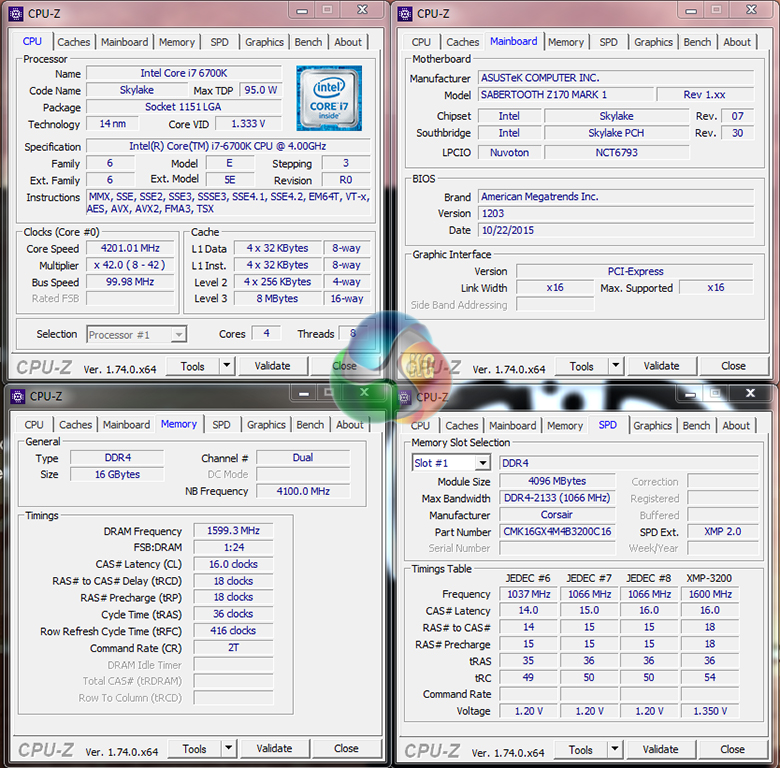

We will be outlining the Asus Sabertooth Z170 Mark 1 motherboard's performance with the Core i7-6700K CPU at its stock frequency (4.2GHz due to forced turbo). Overclocked performance will be outlined later in the review.

The Asus Sabertooth Z170 Mark 1 motherboard allows users to apply multi-core turbo (MCT) and force the 6700K to a constant 4.2GHz when XMP is enabled. This will be displayed as the ‘stock’ setting.

Z170 Motherboard Test System:

• Processor: Intel Core i7-6700K (4.2GHz forced turbo).
• Memory: 16GB (4x4GB) Corsair Vengeance LPX 3200MHz 16-18-18-36 DDR4 @ 1.35V.
• Graphics Card: Nvidia GTX 980 Ti.
• System Drive: 250GB Crucial BX100 SSD.
• CPU Cooler: Noctua NH-D14.
• Case: NZXT Phantom 630.
• Power Supply: Seasonic Platinum 1000W.
• Operating System: Windows 7 Professional with SP1 64-bit.

Compared Z170 Motherboards:

• ASRock Fatal1ty Z170 Gaming K6+.
• Asus Maximus VIII Hero.
• Gigabyte Z170XP-SLI.
• Gigabyte Z170X-Gaming 7.
• MSI Z170A XPower Gaming Titanium Edition.

Software:

• Asus Sabertooth Z170 Mark 1 BIOS v1203.
• GeForce 353.30 VGA drivers.

Tests:

• Cinebench R15 – All-core CPU benchmark (System)
• HandBrake 0.10.2 – Convert 1.23GB 1080P game recording using the High Profile setting and MP4 container (System)
• 7-Zip 15.05 beta – Manual video archival (System)
• 3DMark 1.5.915 – Fire Strike Ultra (Gaming)
• Grand Theft Auto V – 1920 x 1080, near-maximum quality (Gaming)
• Middle Earth: Shadow of Mordor – 1920 x 1080, ultra quality (Gaming)
• ATTO – SATA 6Gbps and USB 3.0 transfer rates (Motherboard)
• RightMark Audio Analyzer – General audio performance test (Motherboard)
