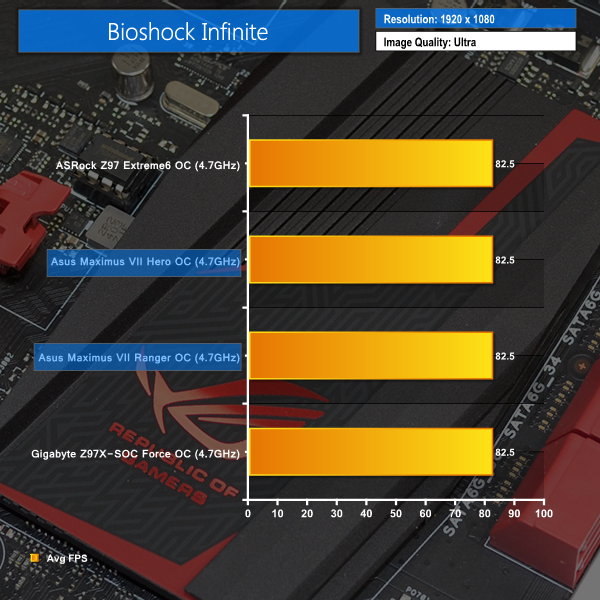

We will outline the performance increases that can be obtained from using the Maximus VII motherboards to overclock our system. Our overclocked processor frequency was 4.7GHz and memory speed was 2400MHz.
As a performance comparison, we have included the overclocked results from other Z97 motherboards. The maximum overclocked configuration achieved with each board was a 4700MHz (47 x 100MHz) processor frequency and 2400MHz CL10 memory speed.

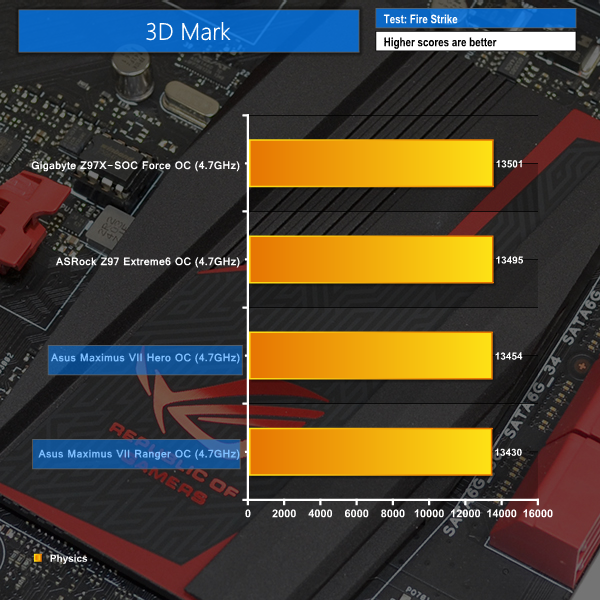

Both Asus boards show strong gains from a CPU frequency boost. While each shows solid Cinebench scores, 3DMark performance isn't as strong as the ASRock and Gigabyte competitors.
Asus VII Hero owner here with a 4690K running at 4.7Ghz with 1.25vlts or 4.8Ghz stable with 1.3vlts, maybe I could have got the same with a £30 cheaper Ranger board..maybe not but more than happy with my purchase and those LED lights do look cool..:)
Strong overclocking capacity for those who can make use of it, Well said and this is coming from a guy that lives for machine’s, guest I can thank you for those settings. I just order the ASUS Maximus VII Hero last night along with Corsair Vengeance Pro, Air Flow Pro, the Core i7 4790K and a few other gadgets for testing.
I would also like to point out that I found this website all because of HardOCP and started digging around the site and became a liker, although the layout can get a bit confusing at first, it got bookmark with the other 1000+ that’s in there.
Nevertheless nice, good and simple review keep up the good work Luke Hill.
PhoneyVirus
WordPress: https://phoneyvirus.wordpress.com/
Twitter: https://twitter.com/PhoneyVirus
does ASUS Maximus VII RANGER support 4k and hdmi?
yes support 4K HDMI
