For more details on ASRock’s UEFI and OS software offering, check out our previous ASRock AM4 motherboard reviews HERE and HERE.

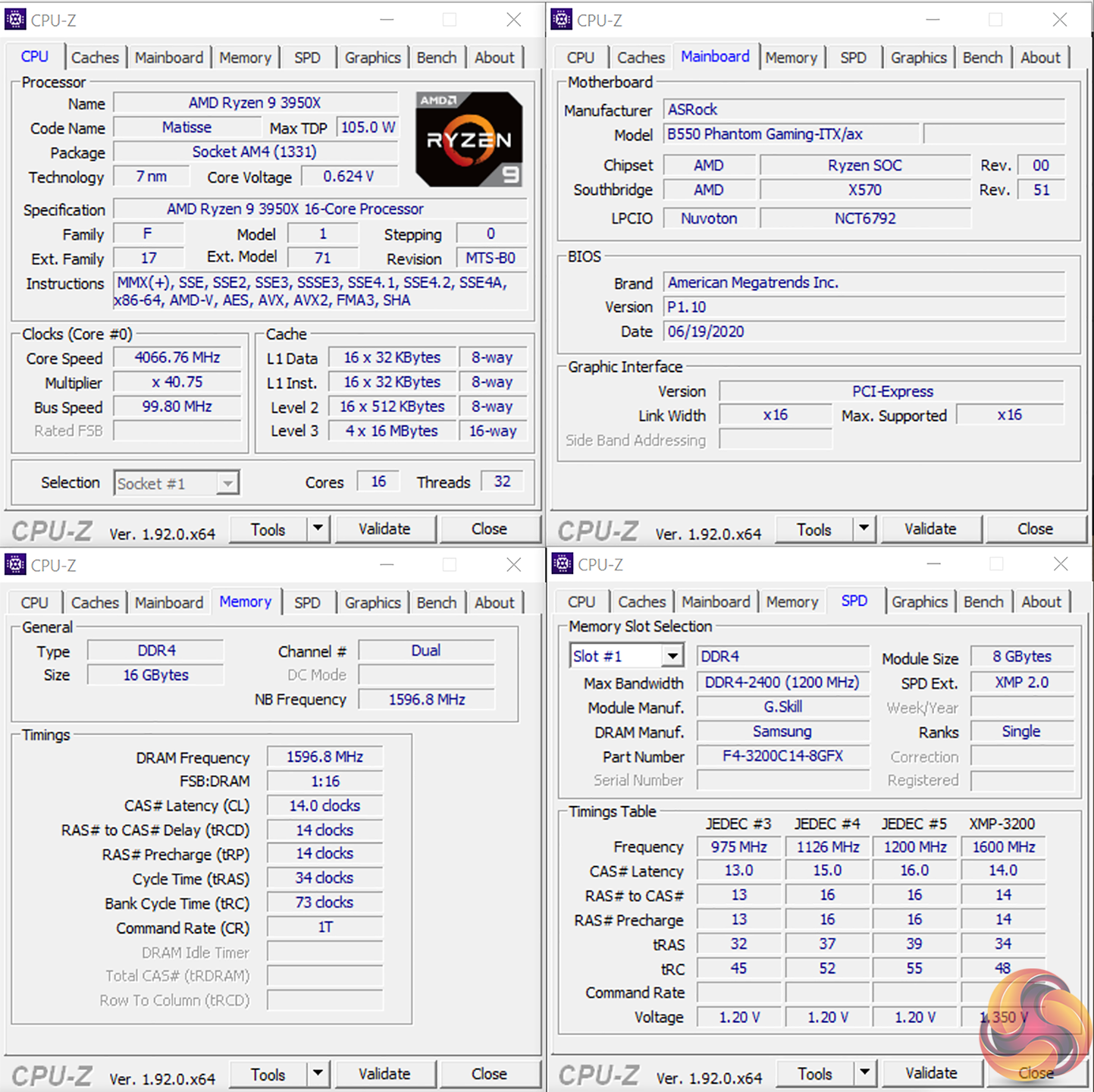

We will be outlining the ASRock B550 Phantom Gaming-ITX/AX motherboard’s performance with the AMD Ryzen 9 3950X CPU, 16GB of 3200MHz DDR4 memory, and an Aorus RTX 2080 Ti graphics card.

AM4 Motherboard Test System:

• Processor: AMD Ryzen 9 3950X.
• Memory: 16GB (2x8GB) G.SKILL 3200MHz CL14 DDR4 @ 1.35V.
• Graphics Card: Gigabyte Aorus RTX 2080 Ti XTREME (custom fan curve to minimise thermal throttling).
• System Drive: WD_Black SN750 PCIe 3.0 x4 NVMe M.2 SSD.
• Games and Test SSD: Crucial MX300 750GB & Aorus 2TB PCIe Gen 4 M.2 SSD.
• CPU Cooler: Fractal Celsius+ S28 Prisma 280mm AIO (full speed fans and pump to eliminate thermal throttling).
• Power Supply: Seasonic Prime TX-1000 1000W.
• Case: Lian Li Open-air Test Bench.
• Operating System: Windows 10 Pro 64-bit.

BIOS Version:

• BIOS version 1.10 (AGESA ComboAM4v2PI 1.0.0.2) [Latest at the time of testing]

Comparison Motherboards:

• ASUS ROG STRIX B550-E Gaming (AGESA 1.0.0.1)
• ASUS ROG STRIX B550-F Gaming (WiFi) (AGESA 1.0.0.1)
• Gigabyte B550 Aorus Master (AGESA ComboAM4v2 PI 1.0.0.1)
• MSI MAG B550 Tomahawk (AGESA ComboAM4v2PI 1.0.0.2)
• ASUS TUF Gaming X570-Plus (Wi-Fi) (AGESA Combo-AM4 1.0.0.4)

Tests:

• Cinebench R20 – All-core & single-core CPU benchmark (CPU)
• Blender 2.82a – All-core rendering of the BMW and Classroom benchmarks (CPU)
• SiSoft Sandra – Memory bandwidth (Memory)
• AIDA64 – Memory bandwidth, memory latency (Memory)
• 3DMark TimeSpy – Time Spy (1440p) test (Gaming)
• Shadow of the Tomb Raider – 1920 x 1080, Highest quality preset, no AA, DX12 version (Gaming)
• Tom Clancy's The Division 2 – 1920 x 1080, Ultra quality preset, no AA, DX12 version (Gaming)
• CrystalDiskMark– Storage transfer rates (Motherboard)
• Rightmark Audio Analyzer 6.4.5 – Record and playback test using a line-in to line-out loopback with a 3.5mm audio cable (Motherboard)
• AIDA64 – Stress test (Temperatures & Power Consumption)
• HWiNFO – System sensor monitoring during stress test (Temperatures & Power Consumption)
