NZXT N7 Z690 Review

1. Introducing the NZXT N7 Z6902. Testing and Performance: CPU3. Testing and Performance: Gaming4. Testing and Performance: Technical5. Closing Thoughts6. View All Pages

Test System:

• Processor: Intel Core i9-12900K (16 cores/24 threads)
• CPU Cooler: Corsair H150i Elite LCD
• Motherboard: NZXT N5 Z690 and N7 Z690
• Memory: 32GB Corsair Vengeance LPX DDR4-3600
• Graphics card: Palit RTX 3080 Gaming Pro 10GB
• Power supply: Seasonic Prime Titanium 850W
• SSD: 500GB Sabrent Rocket 4.0 M.2 NVMe
• OS: Windows 11

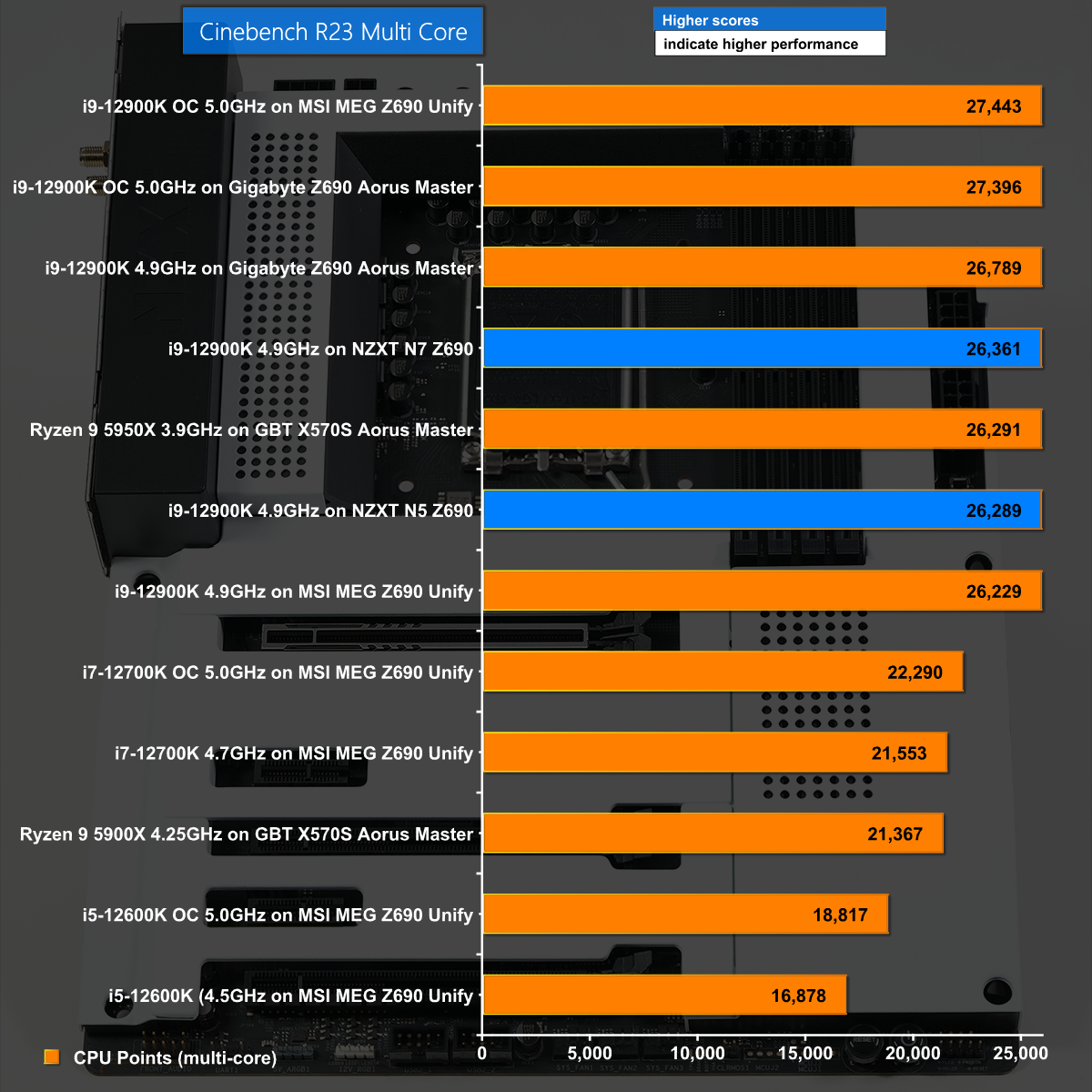

Cinebench R23 Multi Core

in Cinebench R23 Multi Core ,the NZXT N7 Z690 did not use our Core i9-12900K to best effect and the performance is unimpressive.

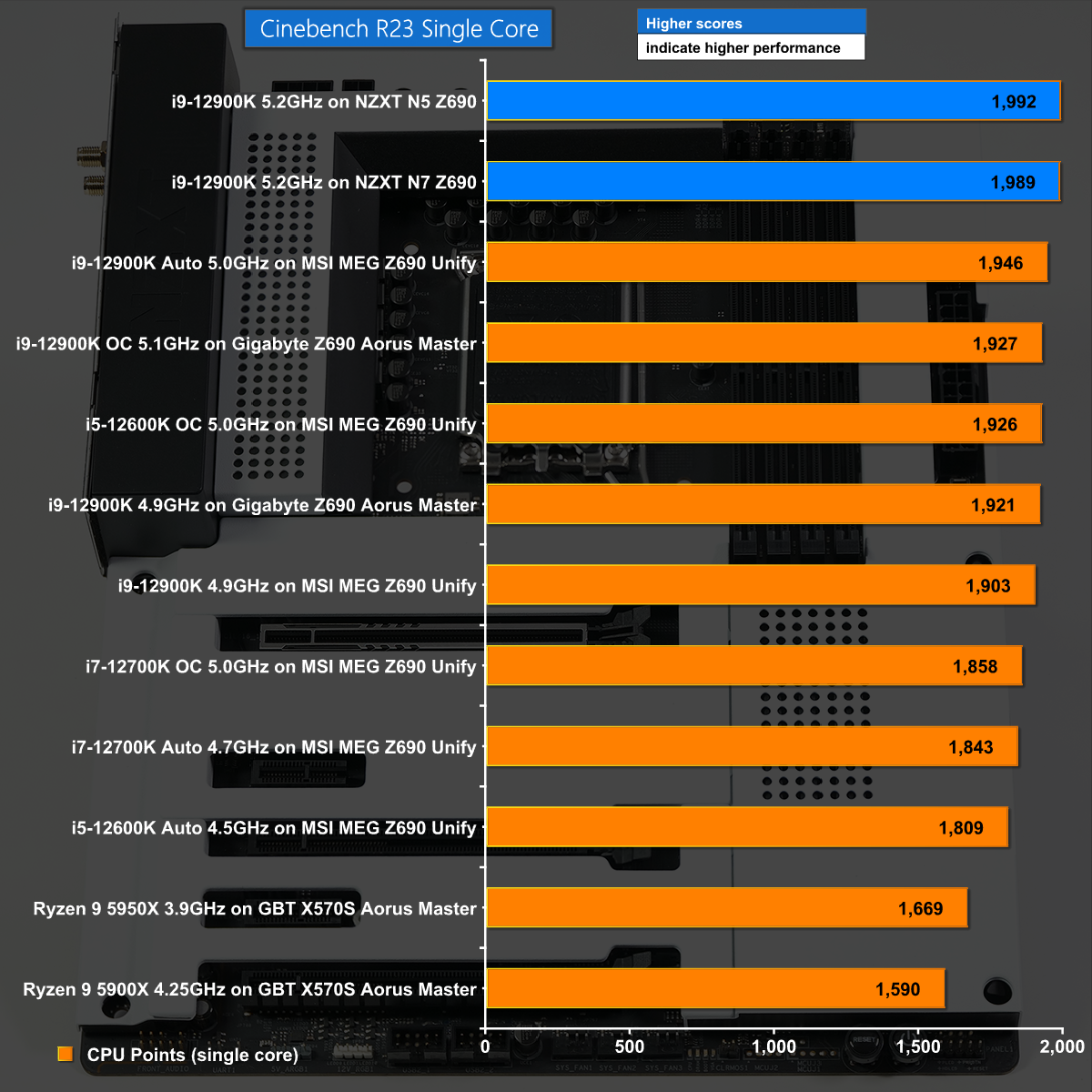

Cinebench R23 Single Core

In Cinebench R23 Single Core, the NZXT motherboards run our CPU at 5.2GHz and as a result they sit at the top of the chart.

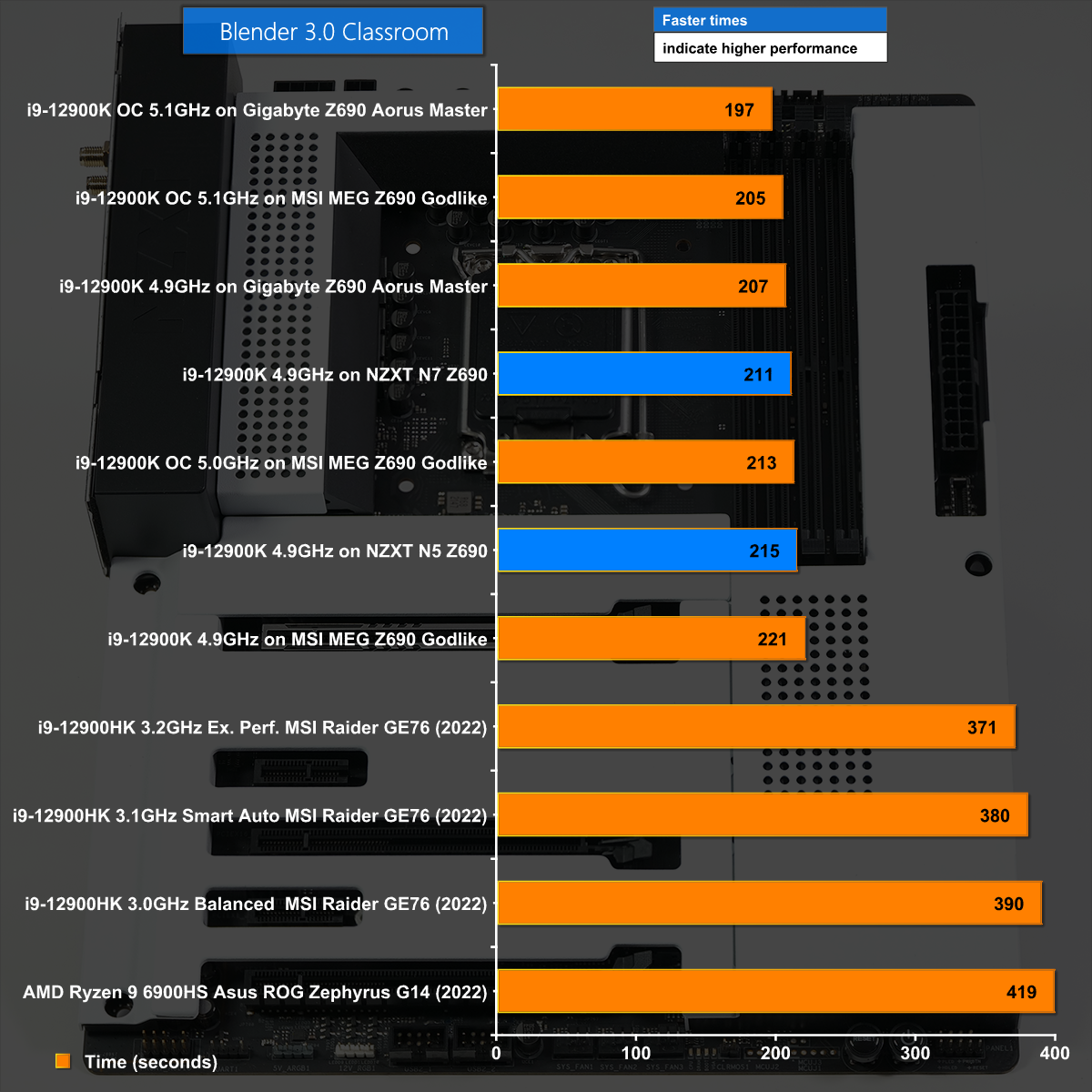

Blender 3.0 Classroom

In Blender we see the NZXT N7 trailing slightly behind the Gigabyte Aorus Master on Auto settings.

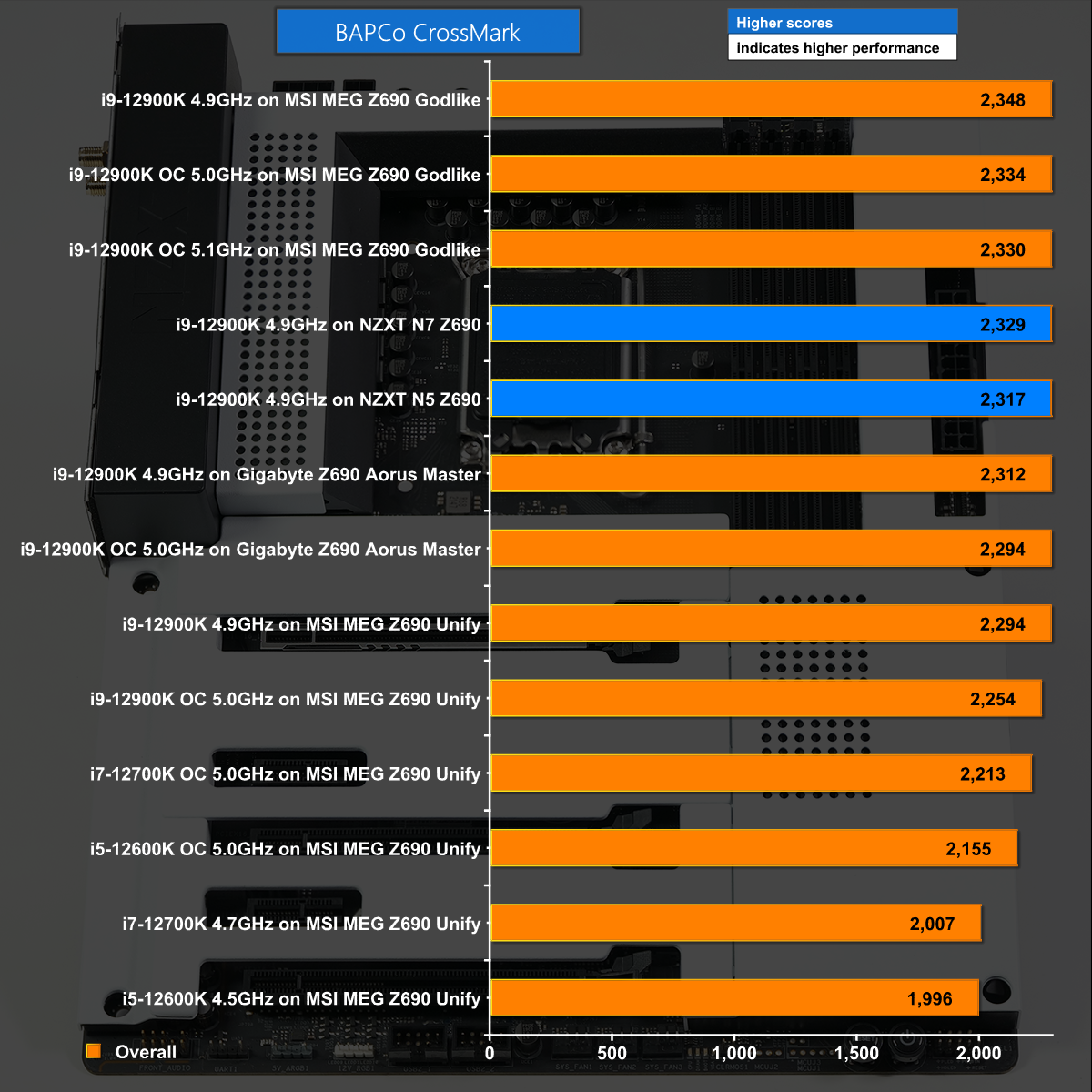

BAPCo CrossMark

BAPCo CrossMark allows the NZXT N7 Z690 to put on a good show.
