The front of the box has a good clear image of what the memory modules look like including working RGB. At the top right of the box is a sticker displaying the memory speed and the kit capacity (in this case 7600MT/s and 32GB). The bottom left of the box has an icon displaying that the memory comes with a lifetime warranty, while the bottom right has the icons for Intel XMP and AMD EXPO support. At the top left of the rear of the box is the other end of the speed and capacity sticker. Below this is a small feature list, multilingual information about the modules and icons displaying the motherboard RGB systems supported; Asus Aura Sync, Gigabyte RGB Fusion 2.0, MSI Mystic Light Sync, and ASRock Polychrome Sync.

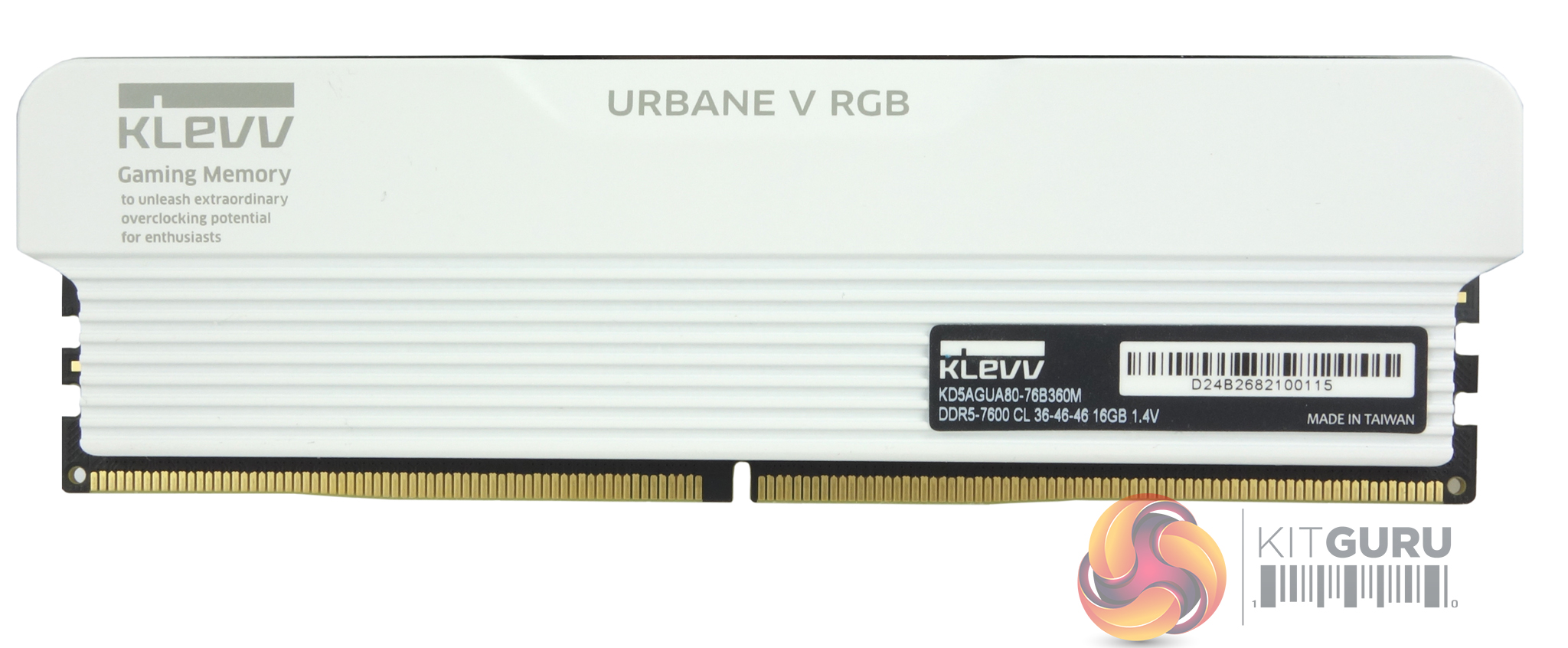

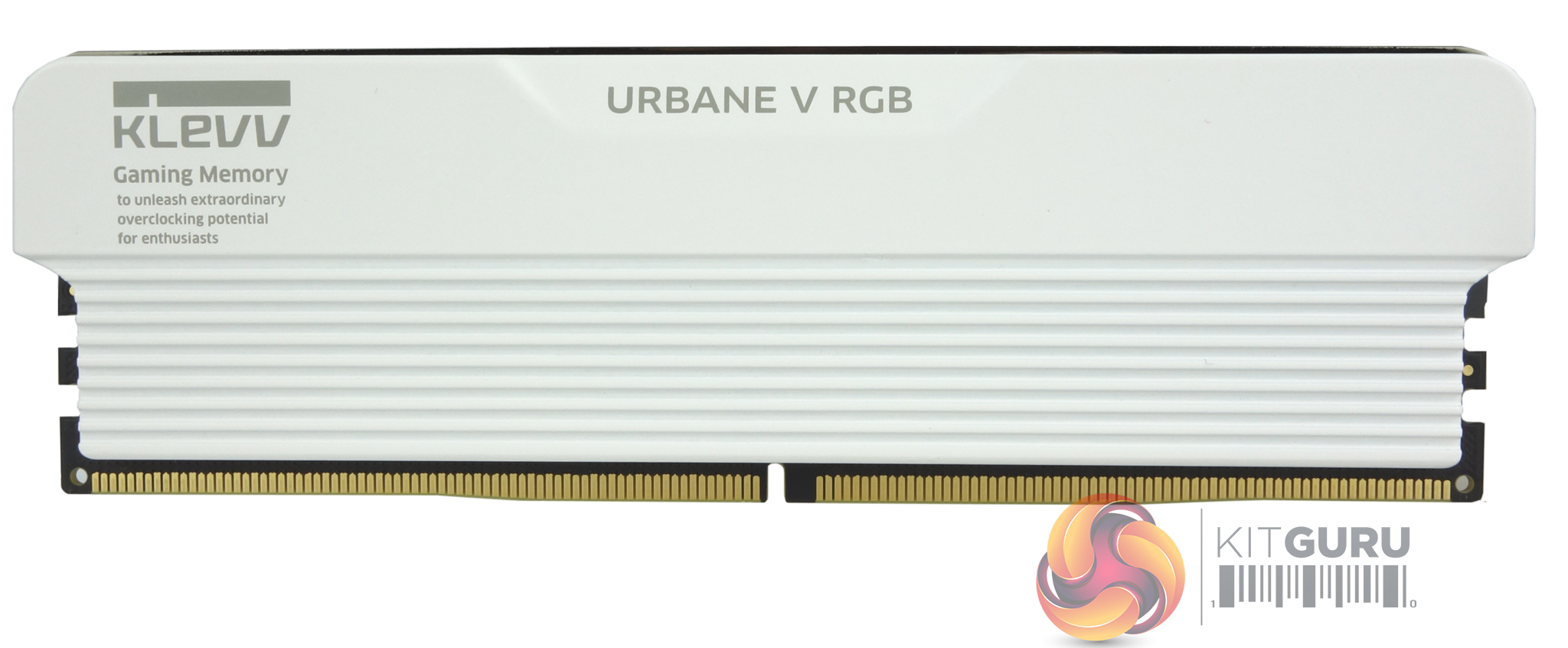

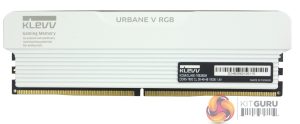

The heat spreaders on the 42.5mm high modules are made from 2mm thick aluminium finished in white with the bottom half grooved for better cooling.

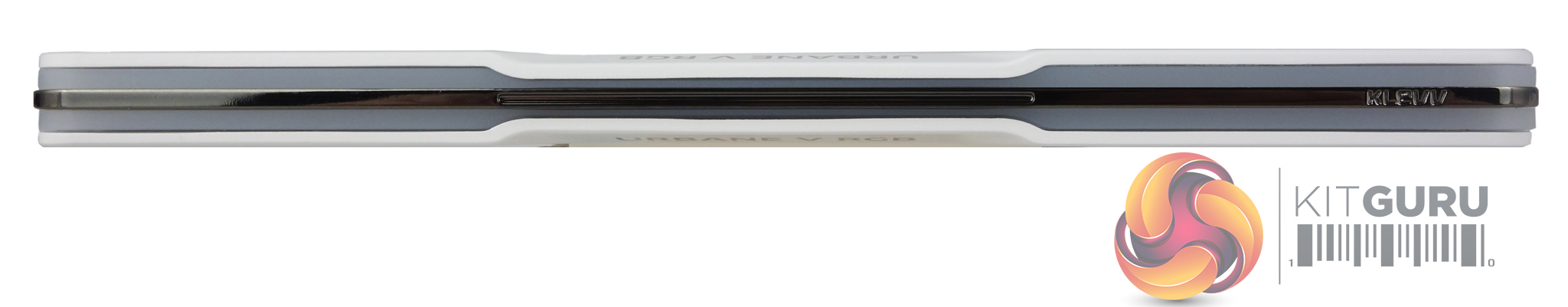

The top of the module is home to the defuser bar, which covers the RGB zones. A chrome strip carries a very small Klevv name tag and splits the bar into two lengthwise. The RGB is controlled by the motherboard RGB system software, as Klevv presently doesn't have dedicated RGB memory software.

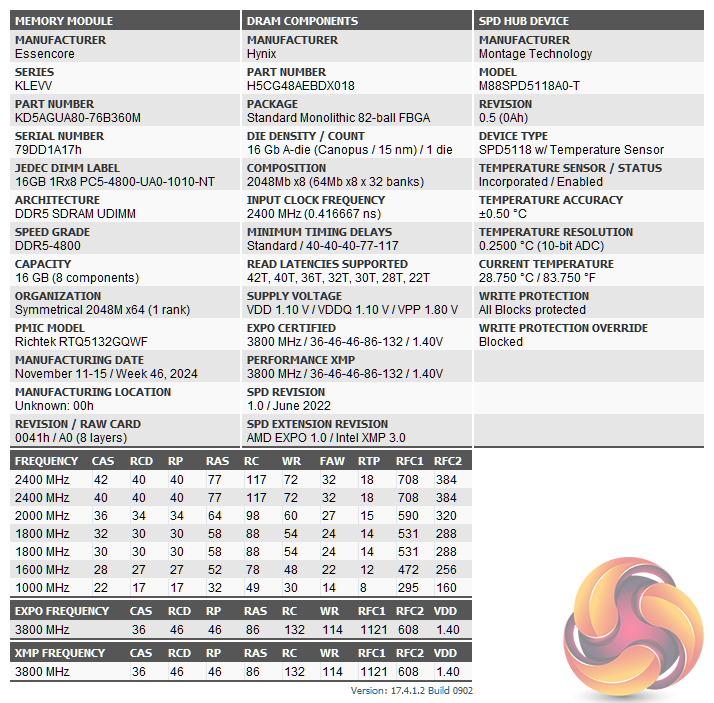

Built on a 10-layer PCB, the modules are a single-rank design, under the heatsink, there are eight 2GB SK Hynix chips (H5CG48AEBDX018) along with a Richtek RTQ5132GQWF power management IC (PMIC).

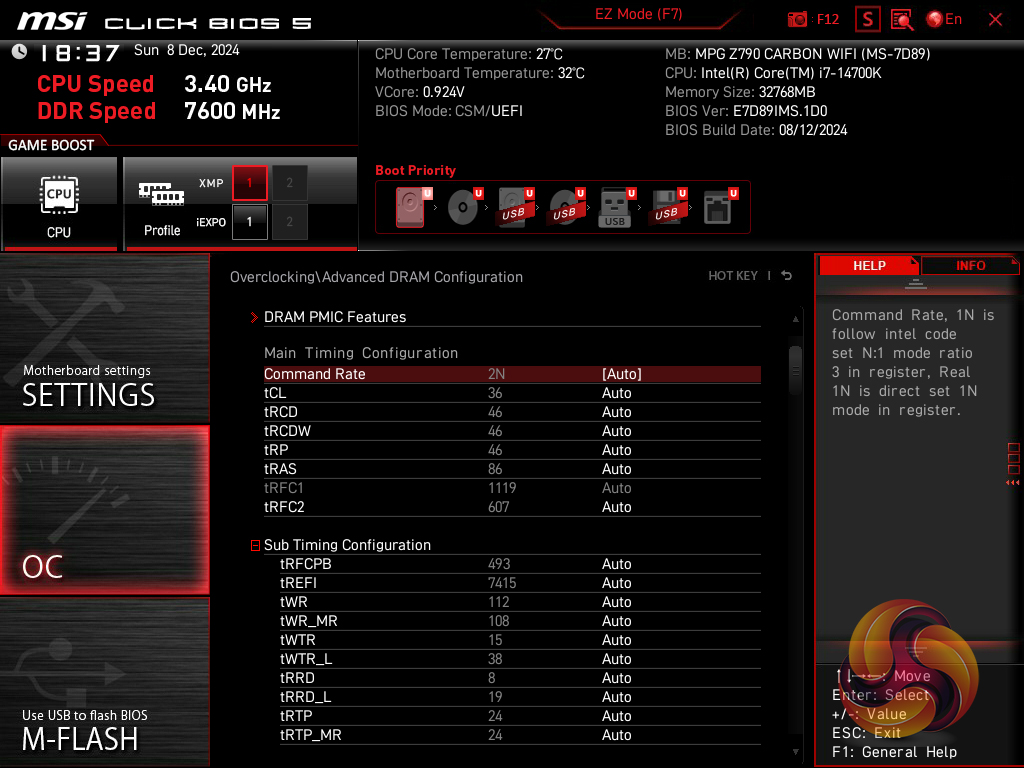

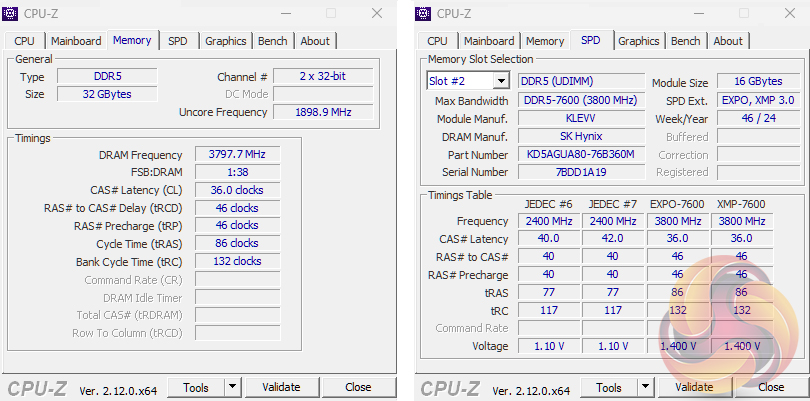

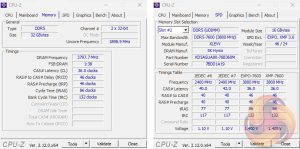

The memory runs at DDR5-4800 with timings of 40-40-40-77-117 natively with the XMP 3.0 and EXPO profiles supporting DDR5-7600 with 36-46-46-86-132 timings at 1.4V.
