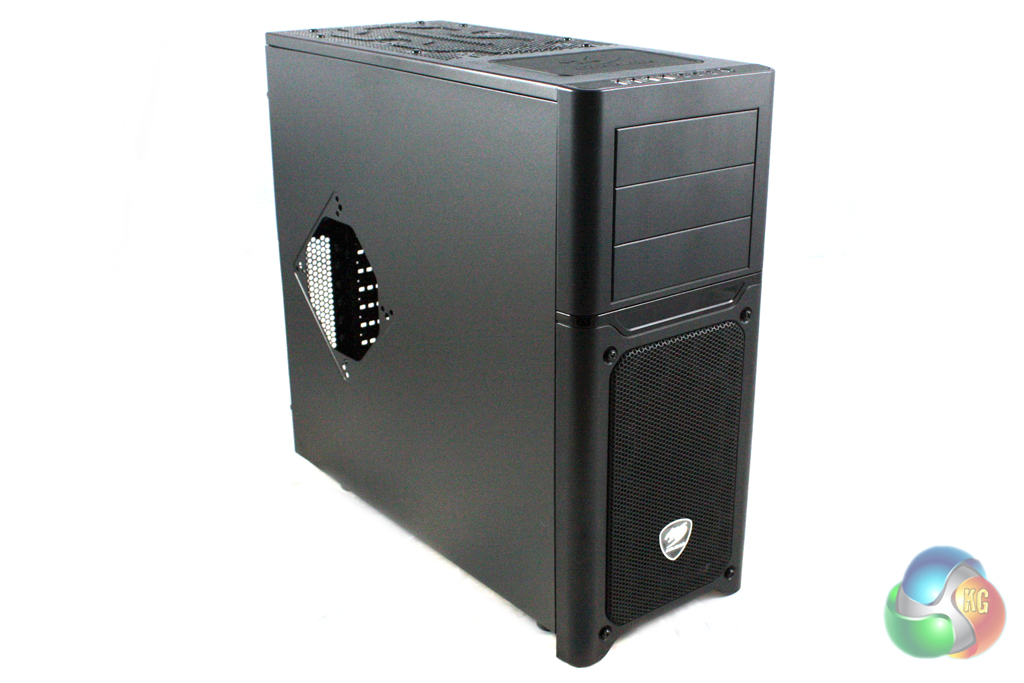

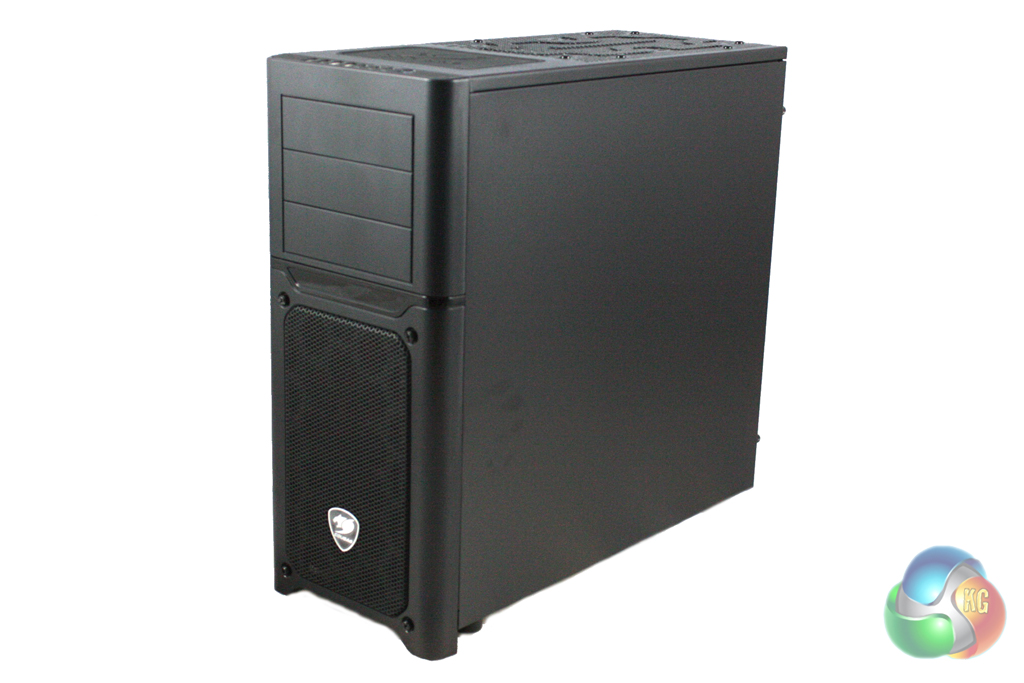

It is clear that Cougar have chosen to adopt a much more understated approach to the aesthetic design of the MX500 to the Challenger that we reviewed previously. It is painted entirely in black and has quite an attractive visage, especially when compared to the Challenger.

In terms of build quality, the MX500 cannot really be faulted. The construction of the case is comprised of SECC steel and plastic which is what we would expect at this price point. It feels sturdier than most competing cases too.

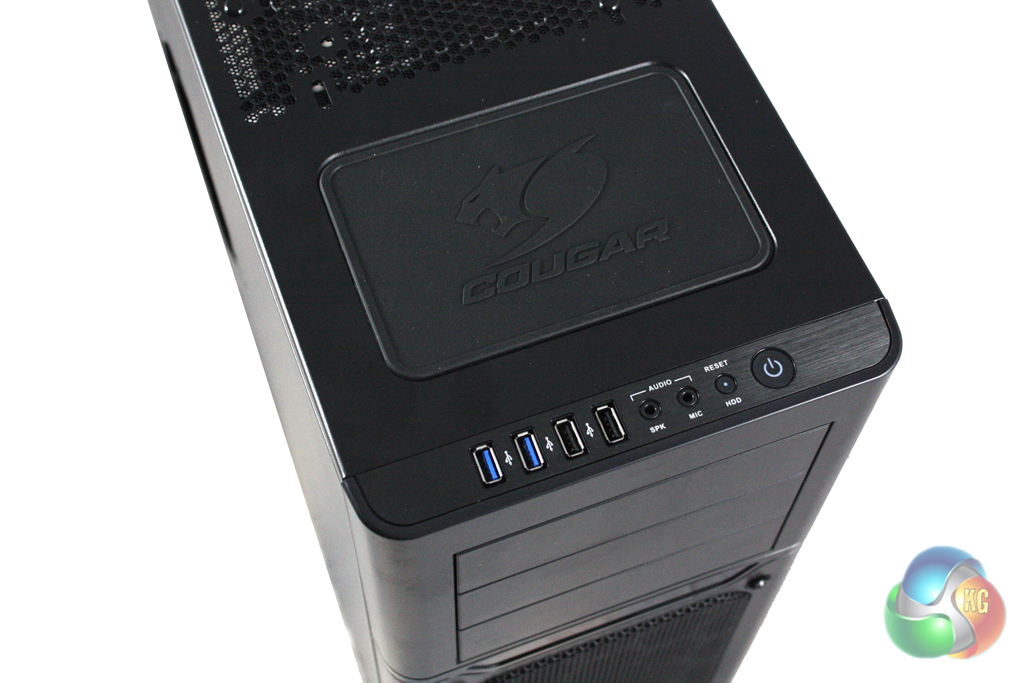

The front panel connections are located on the top of the case at the front. From left to right we find two USB 3.0 ports, two USB 2.0 ports and headphone and microphone jacks. To the right of these we find the power and reset buttons.

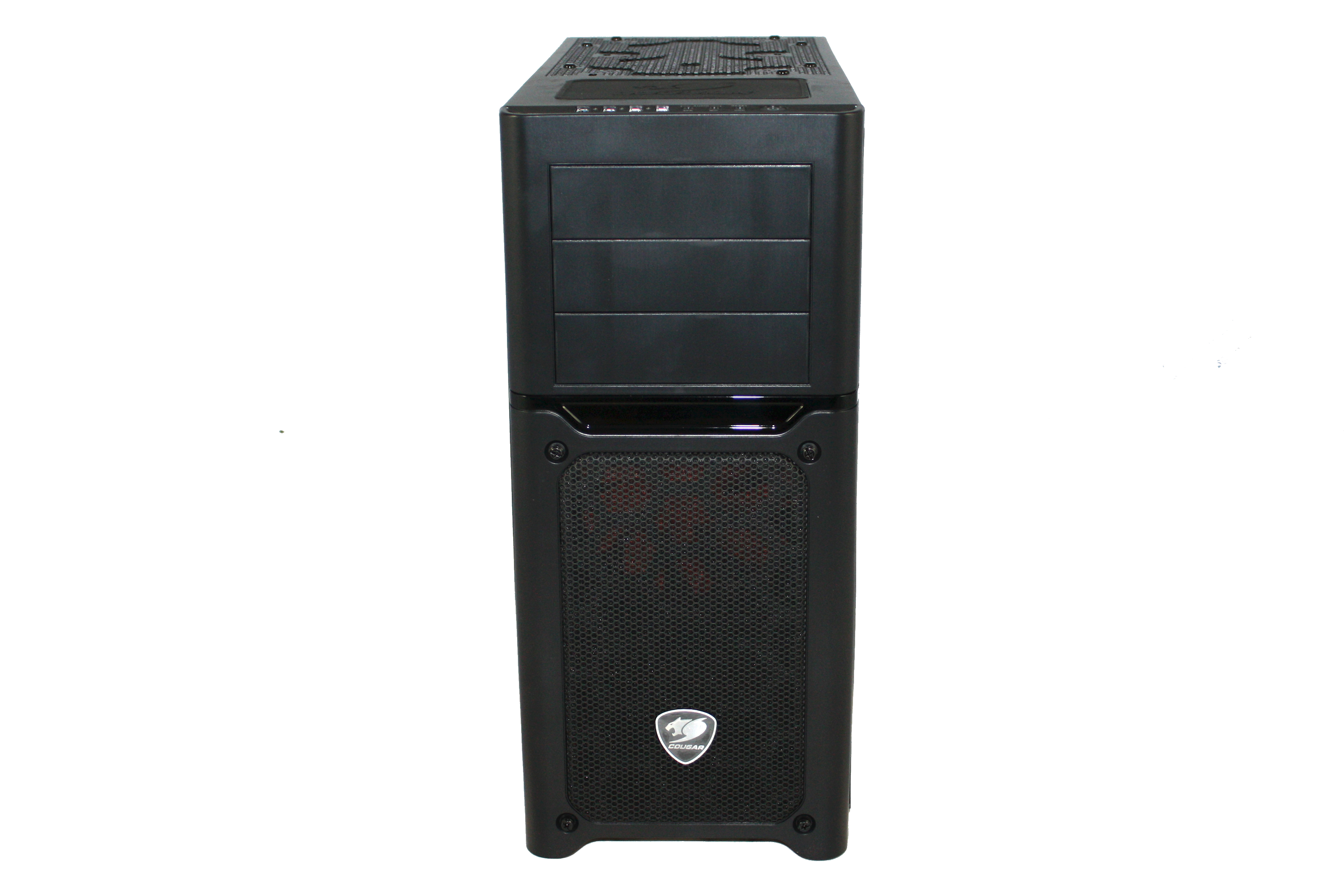

Moving down the front panel of the case we find three external 5.25” bays, an external 3.5” bay and a large fan vent. Cougar pre-install a 140 mm intake fan behind this grille, however there is room for up to two 120 mm or 140 mm fans to be installed.

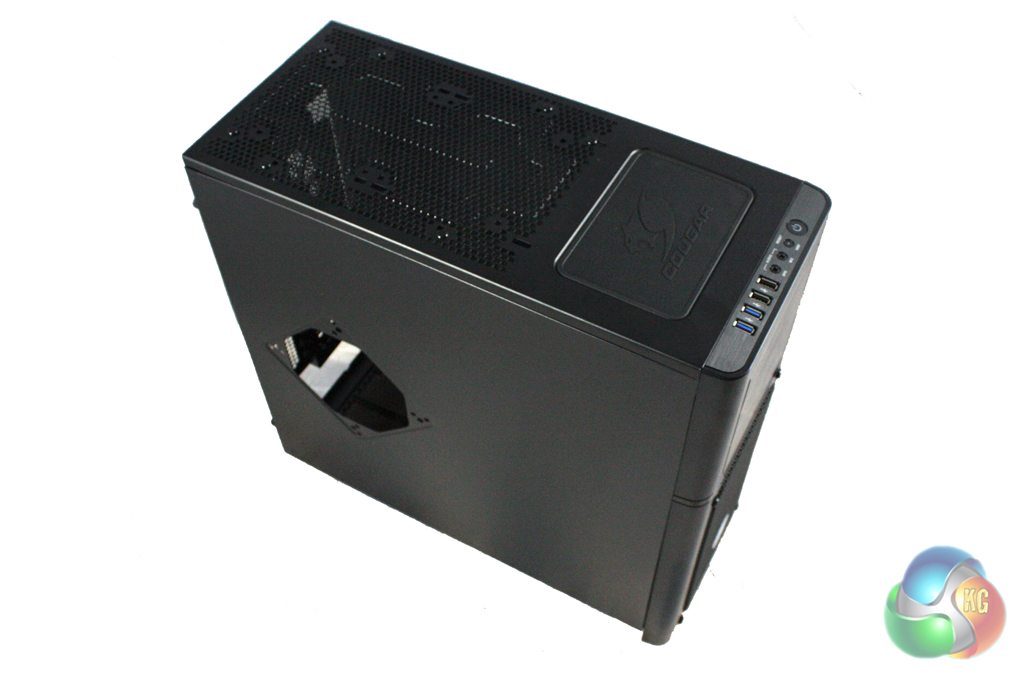

There is also a large vent in the top panel of the case which can also support dual 120 mm or 140 mm fans, or even a 180 mm or 200 mm fan. This location would be the ideal position for the radiator of an all-in-one water cooling unit like the Corsair H100i.

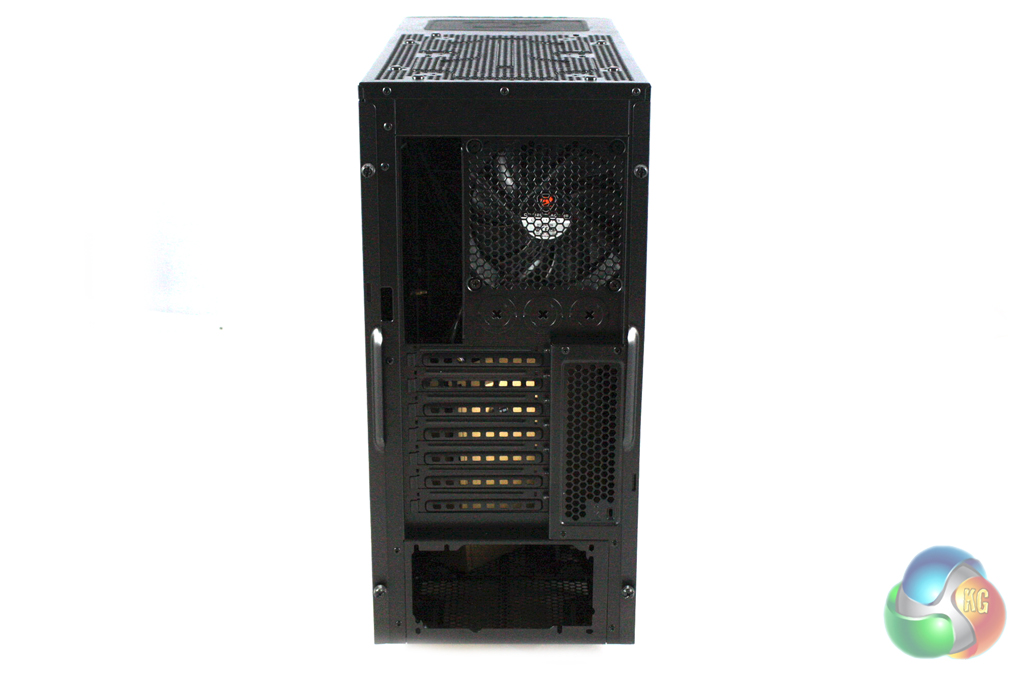

The rear of the case has a fairly standard layout, featuring a 120 mm exhaust fan vent, seven expansion slots and power supply mounting points at the bottom. Cougar include a 120 mm exhaust fan with the case.
