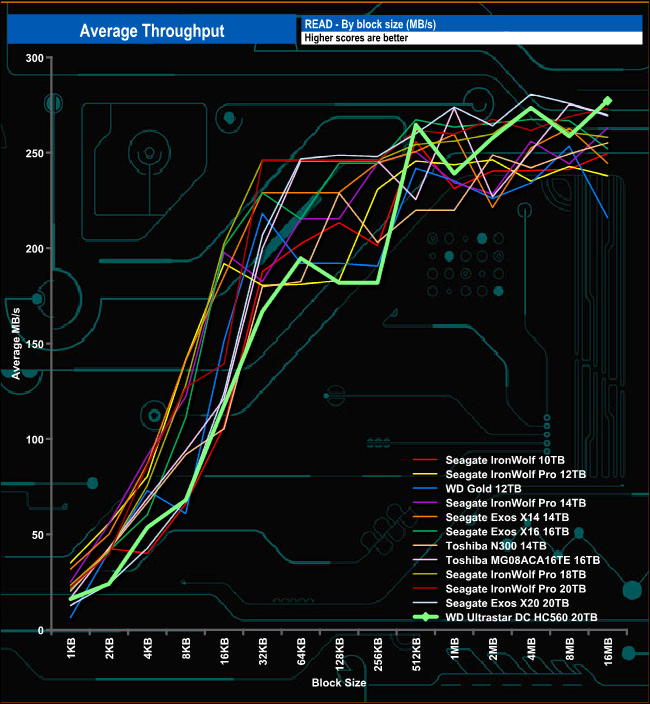

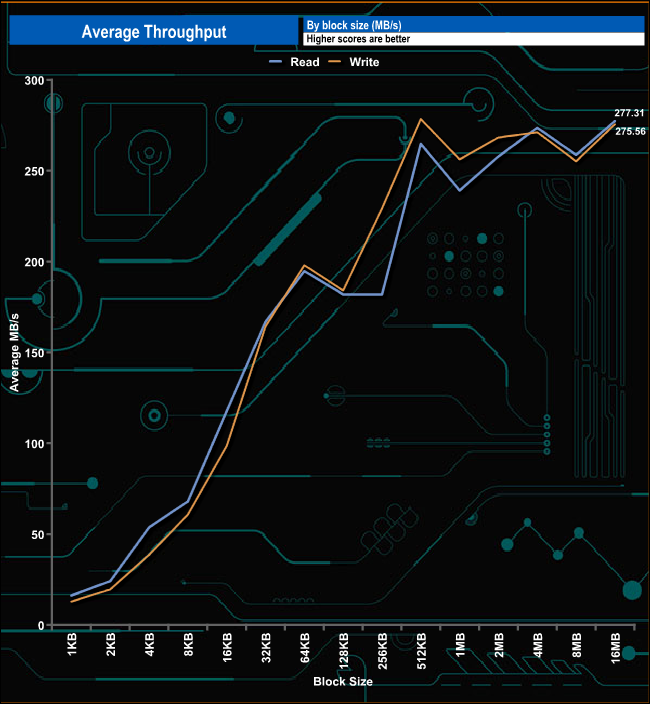

In our throughput tests, reads peaked at 277MB/s (16MB block) while writes peaked at the 512KB block mark at 278MB/s before dropping back very slightly to finish the test run at 275MB/s. Both peak figures confirmed the official maximum transfer rate of 269MB/s.

With a peak read result of 277MB/s, the DC HC560 is the fastest HDD we've seen to date when it comes to read throughput.

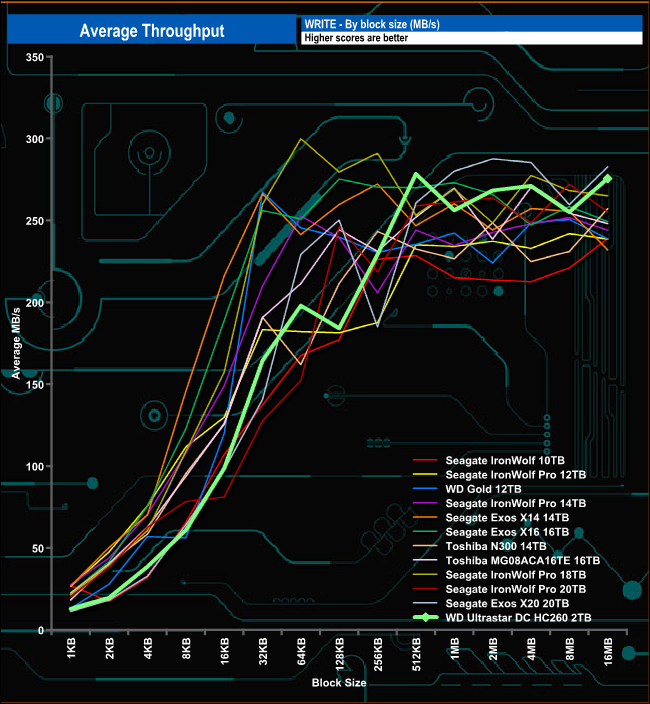

When it comes to write throughput, the drive finishes the test run at 275MB/s, the second-fastest drive we've seen to date, just behind Seagate's Exos X20 20TB data centre focused drive.
