WD Red Pro 20TB HDD Review

1. Introduction2. WD Red Pro 20TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. 4K Random Performance7. Throughput8. Workload Scenarios9. Real Life File Testing10. Closing Thoughts11. View All Pages

To test real-life performance of a drive we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of the drive reading from & writing to a 256GB Samsung SSD850 PRO.

We use the following folder/file typesL

• 100GB data file.
• 60GB iso image.
• 60GB Steam folder – 29,521 files.
• 50GB File folder – 28,523 files.
• 12GB Movie folder – (15 files – 8 @ .MKV, 4 @ .MOV, 3 @ MP4).
• 10GB Photo folder – (304 files – 171 @ .RAW, 105 @ JPG, 21 @ .CR2, 5 @ .DNG).
• 10GB Audio folder – (1,483 files – 1479 @ MP3, 4 @ .FLAC files).
• 5GB (1.5bn pixel) photo.
• BluRay Movie – 42GB.
• 21GB 8K Movie demos – (11 demos)
• 16GB 4K Raw Movie Clips – (9 MP4V files).
• 4.25GB 3D Printer File Folder – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).
• 1.5GB AutoCAD File Folder (80 files – 60 @ .DWG and 20 @.DXF).

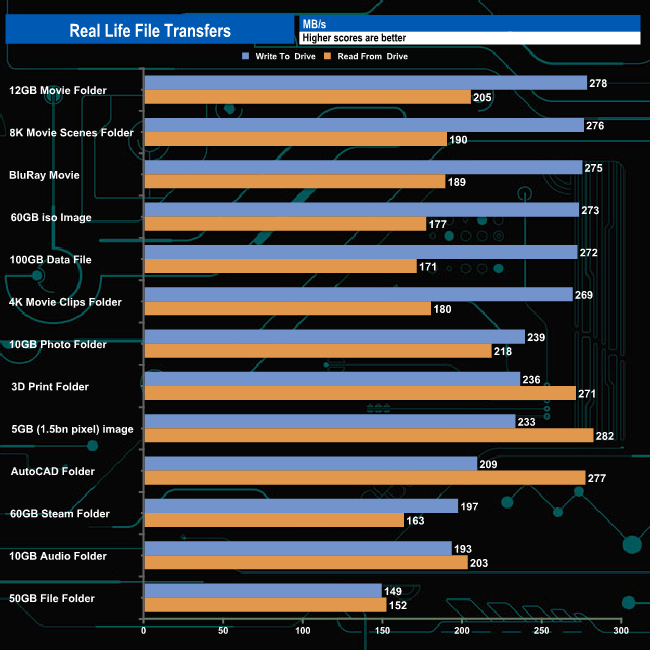

The 20TB WD Red Pro produced very consistent performance when it came to handling the larger file sizes with an average write figure for the seven large file transfers of 268.86MB/s. The fastest write performance was the 12GB Movie Folder at 278MB/s while the fastest read speed came from the 5GB image transfer at 282MB/s. The slowest of the file transfers was the 50GB File Folder, full of small bity files, with writes at 149MB/s and reads at 152MB/s.
