We tested the MG10AFA22TE with some scenarios that it may face in the real world. The settings for these scenarios are as follows.

File Server
512MB file size, 16KB Block size
80% Read 20% Write 100% Random
I/O queue depth 128

Web Server
1GB file size, 16KB Block size
100% Read 0% Write 100% Random
I/O queue depth 64

Database
2GB file size, 4KB Block size
90% Read 10% Write, 90% Random, 10% Sequential
I/O depth 128

Workstation
1GB file size, 16KB Block size
70% Read 30% Write, 100% Random, 0% Sequential
I/O depth 6

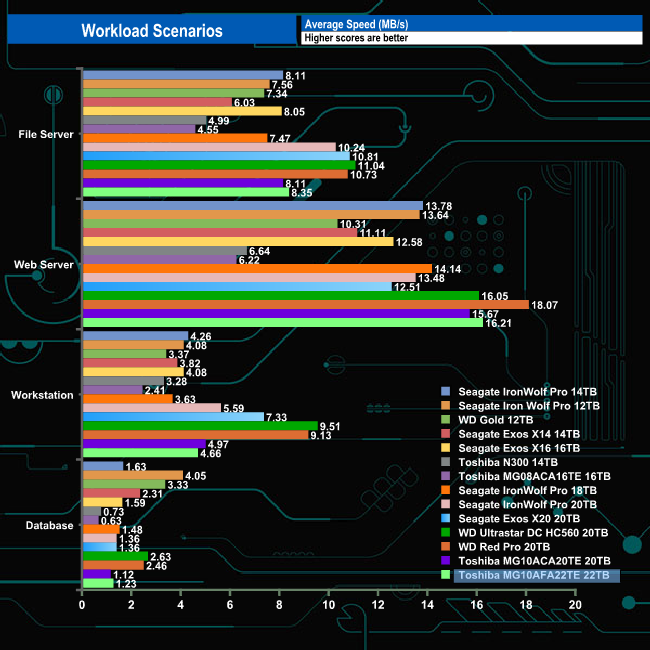

Out of our four tests, the MG10AFA22TE handled the Web Server trace the best with a test result of 16.21MB/s, the second fastest we've seen to date for this particular test.
