Seagate Exos X16 16TB HDD Review

1. Introduction2. Seagate X16 16TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. IOMeter - 4K Random Test7. Throughput8. Workload Scenarios9. Real Life File Testing10. Closing Thoughts11. View All Pages

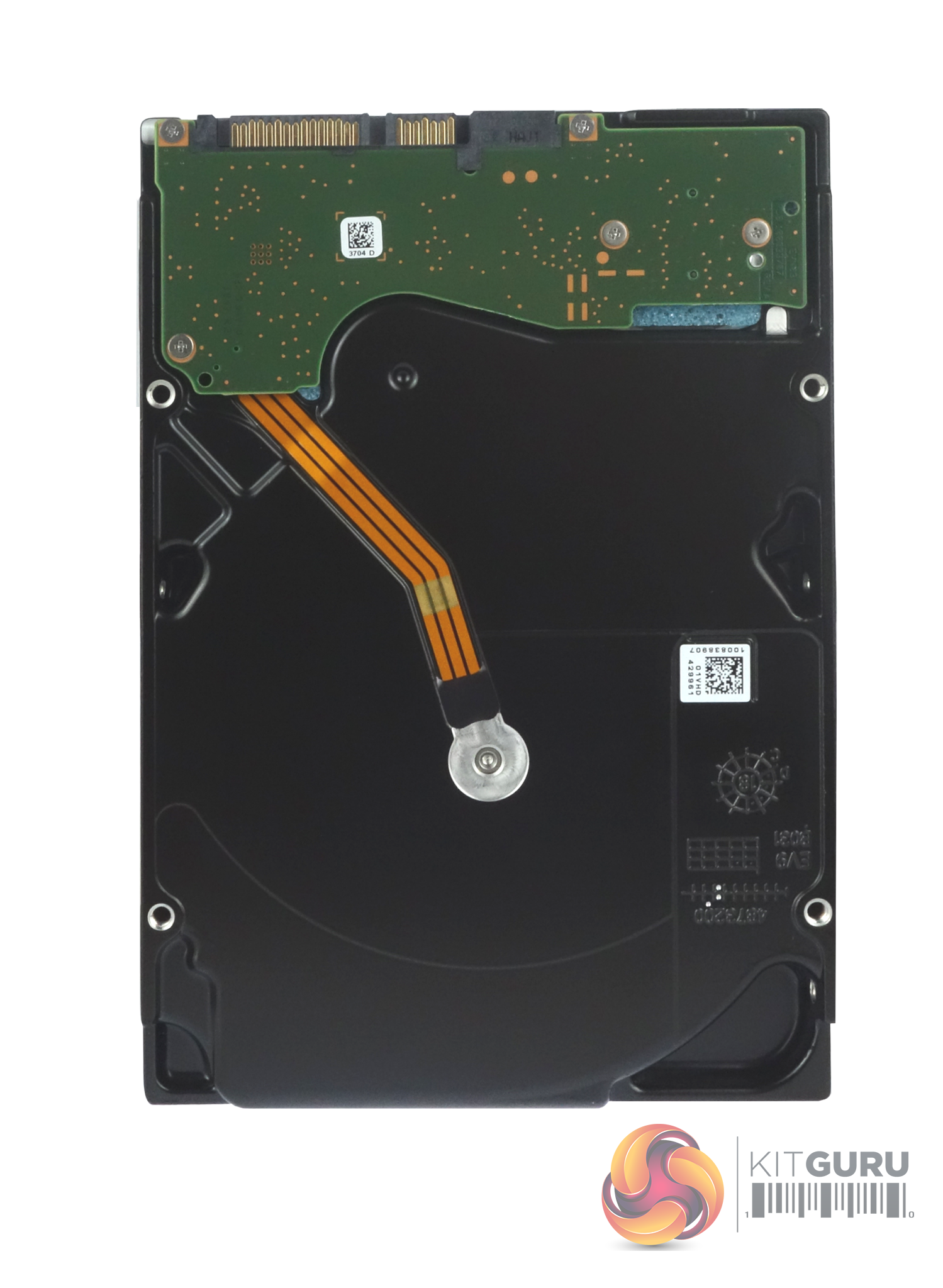

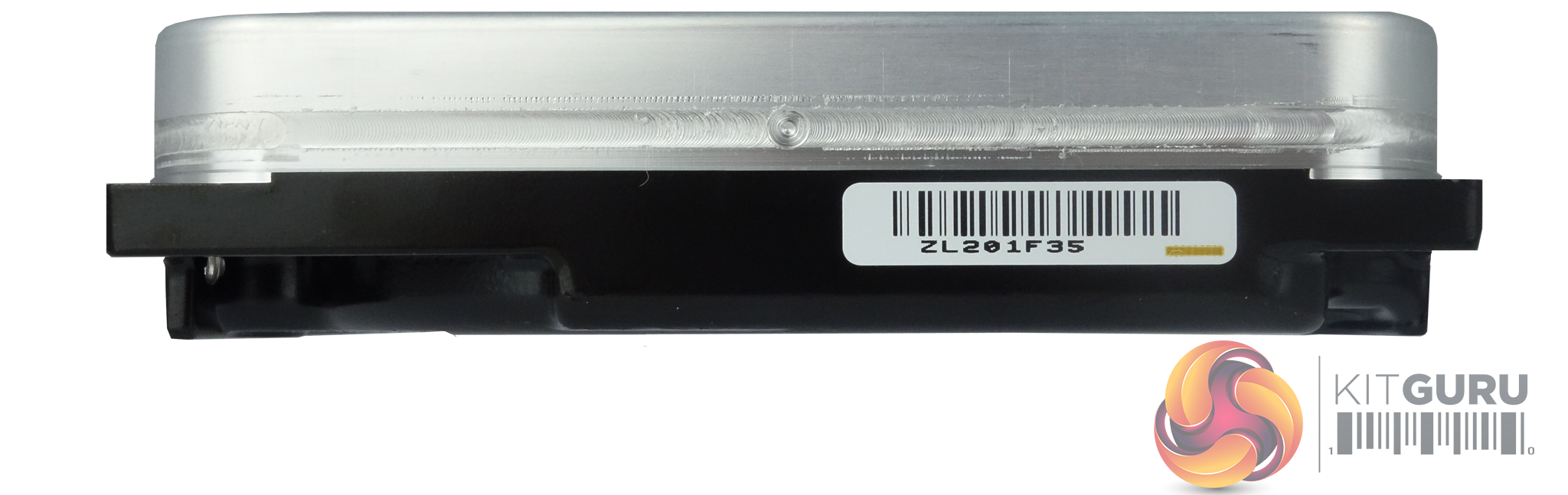

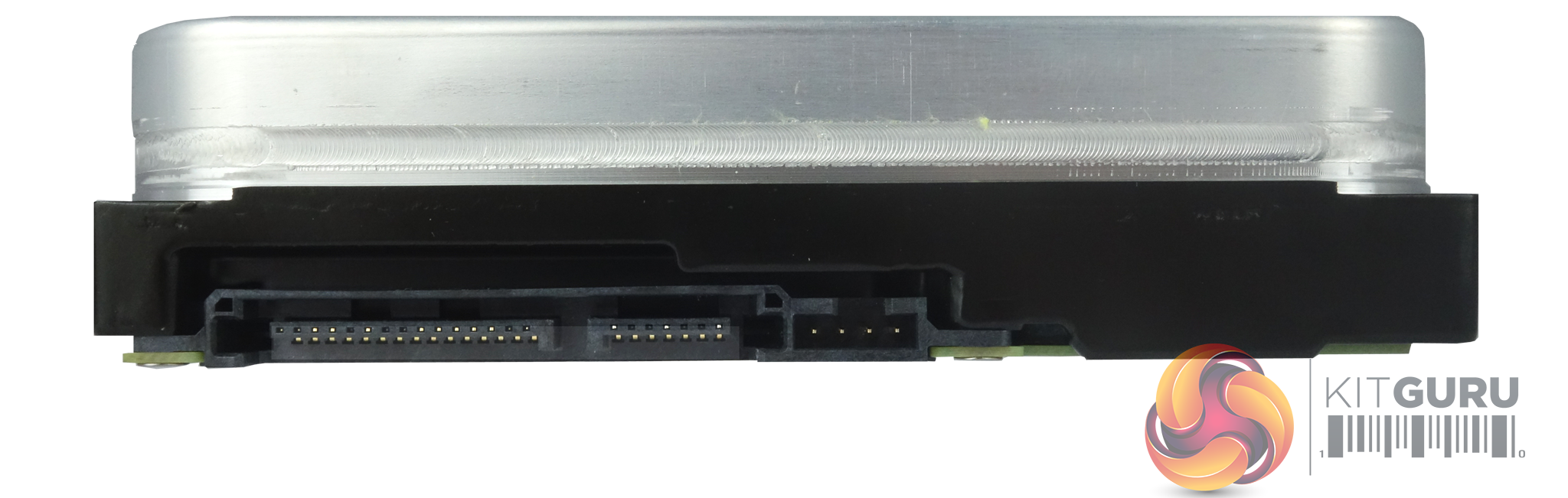

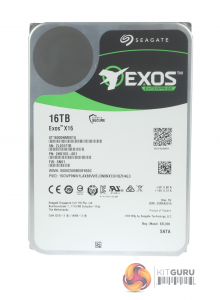

Seagate’s Exos X16 is built on a standard 3.5in format but with an enclosure thickness of 26.11mm. The drive has a spindle speed of 7,200rpm and 256MB of cache.

The drive uses Helium technology which enables Seagate to use nine 1.8TB CMR (Conventional Magnetic Recording) platters and 18 TDMR (Two-Dimensional Magnetic Recording) reading heads into the drive.

TDMR technology has come about because as the areal density of hard drive platters (discs) increases, tracks get ever narrower and as a result, magnetic inter-track interference (ITI) becomes problematic for the writer part of the drive head. TDMR uses two or more heads to read data from a single or even several nearby tracks at the same time to improve the signal-to-noise ratio delivered to the controller.
