Sapphire R9 285 ITX Compact v MSI GTX760 Gaming Mini ITX

BOX

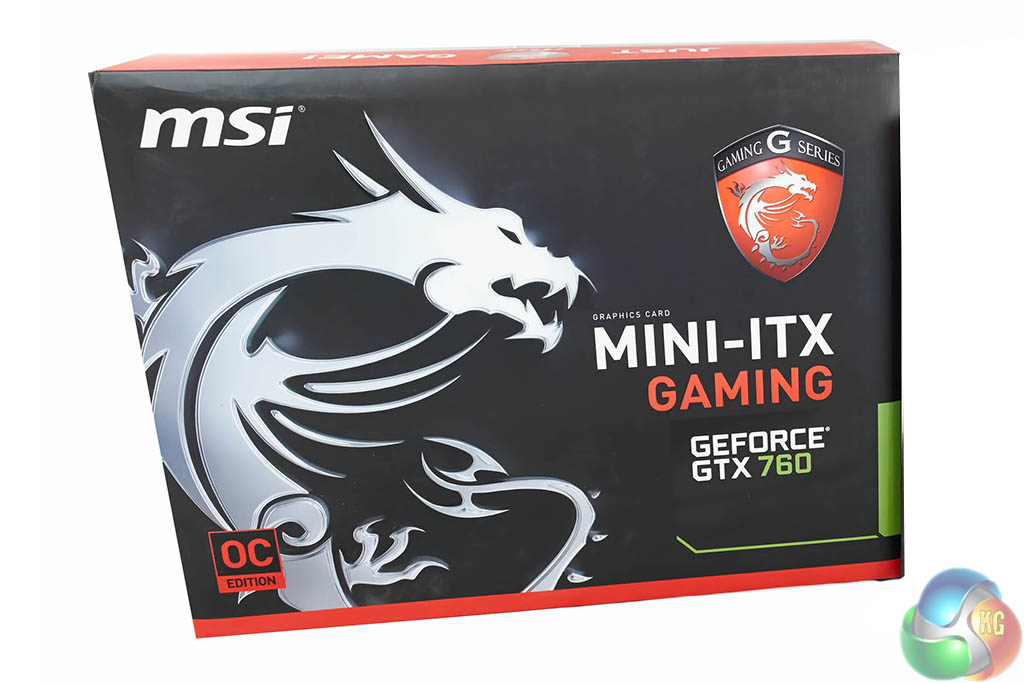

The MSI Dragon is one of the best looking mascots on the market. Its a simple box, but one that we immediately associate with MSI.
DSCF2869

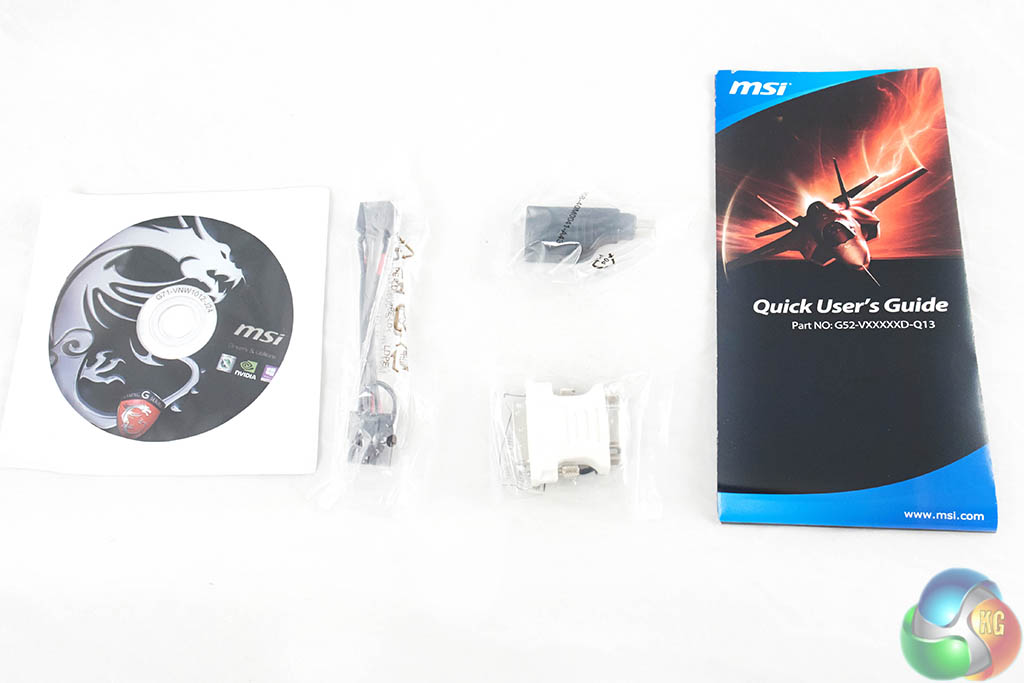

The bundle includes a software disc, converter cables, and a quick start guide.
DSCF2872DSCF2874

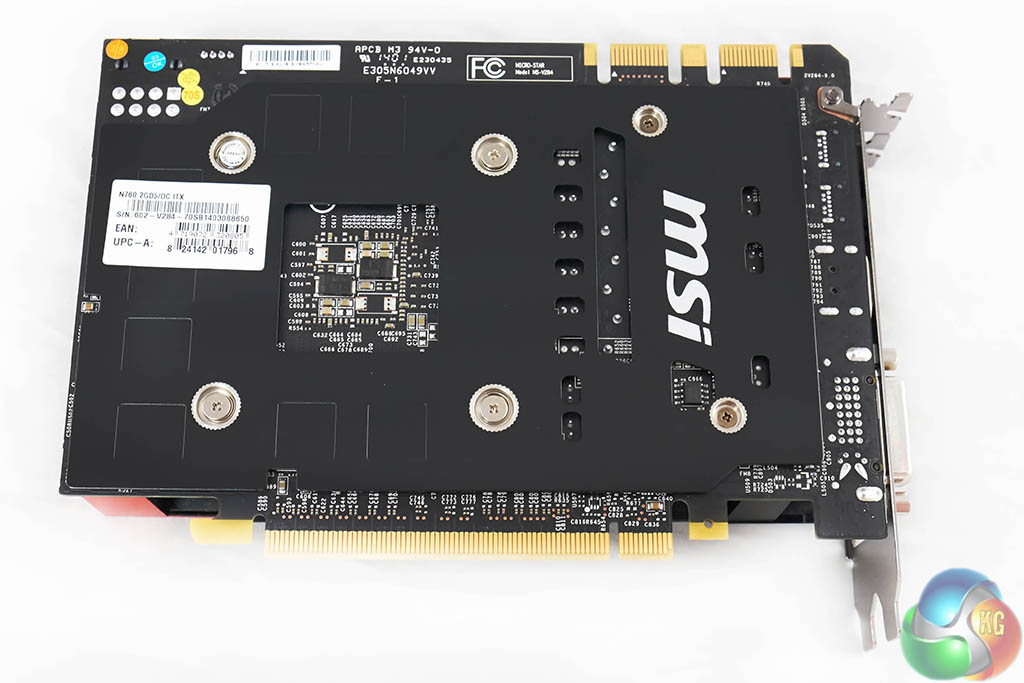

The MSI GTX760 Gaming Mini ITX is a great looking card. It is built around a black PCB and even includes a backplate. Bonus points for MSI before we even get to testing the hardware.
DSCF2879

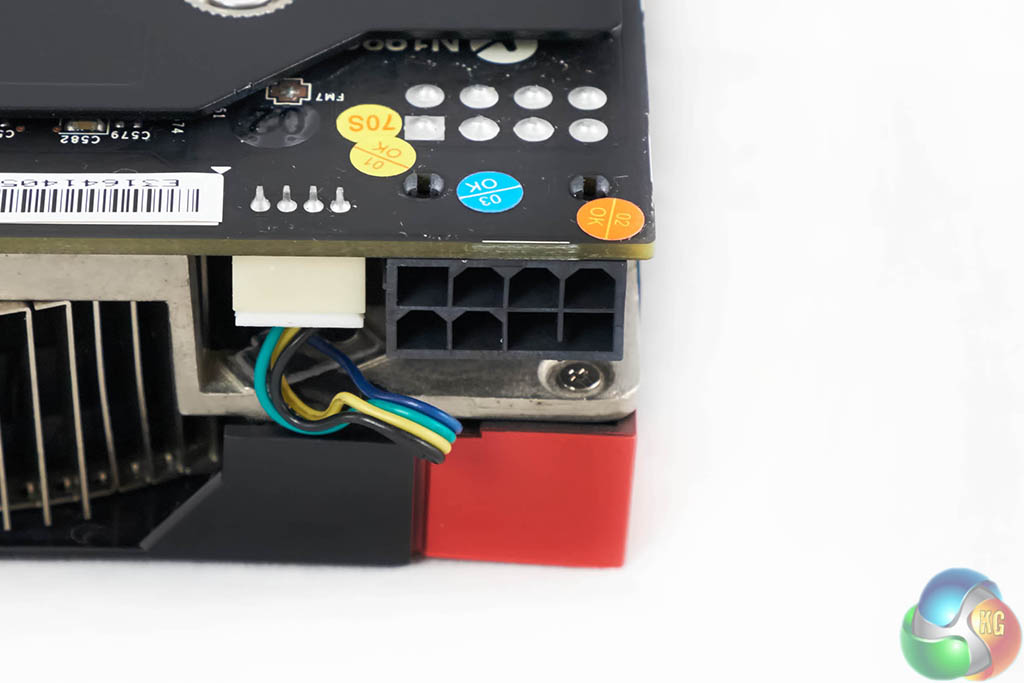

The card takes power from a single 8 pin power connector.
DSCF2882

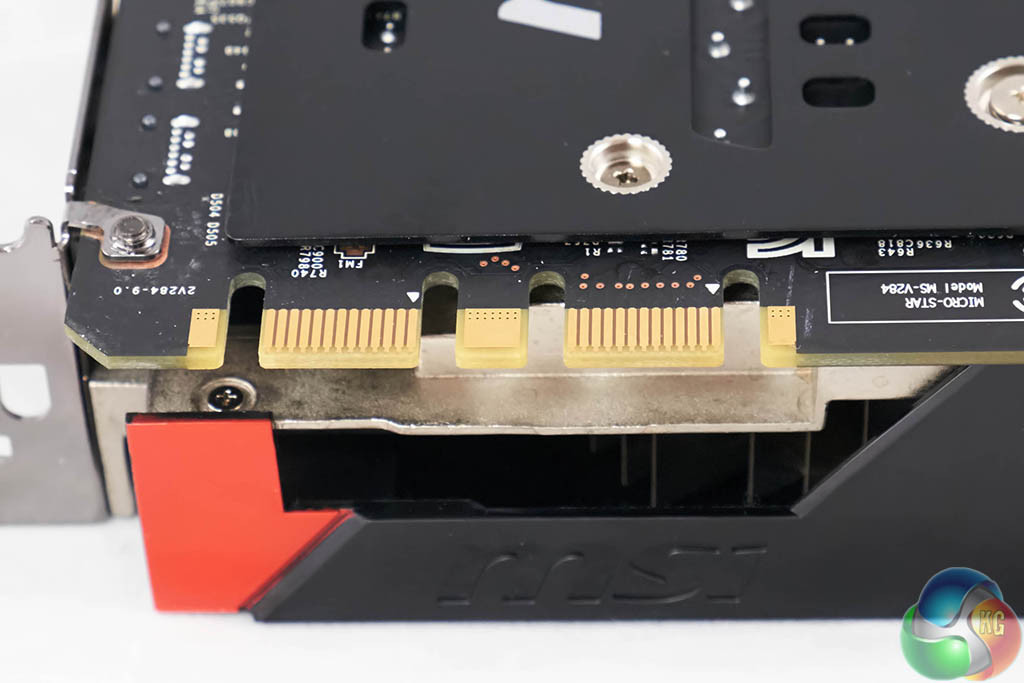

The MSI GTX760 Gaming Mini ITX is SLi capable.
DSCF2883DSCF2887

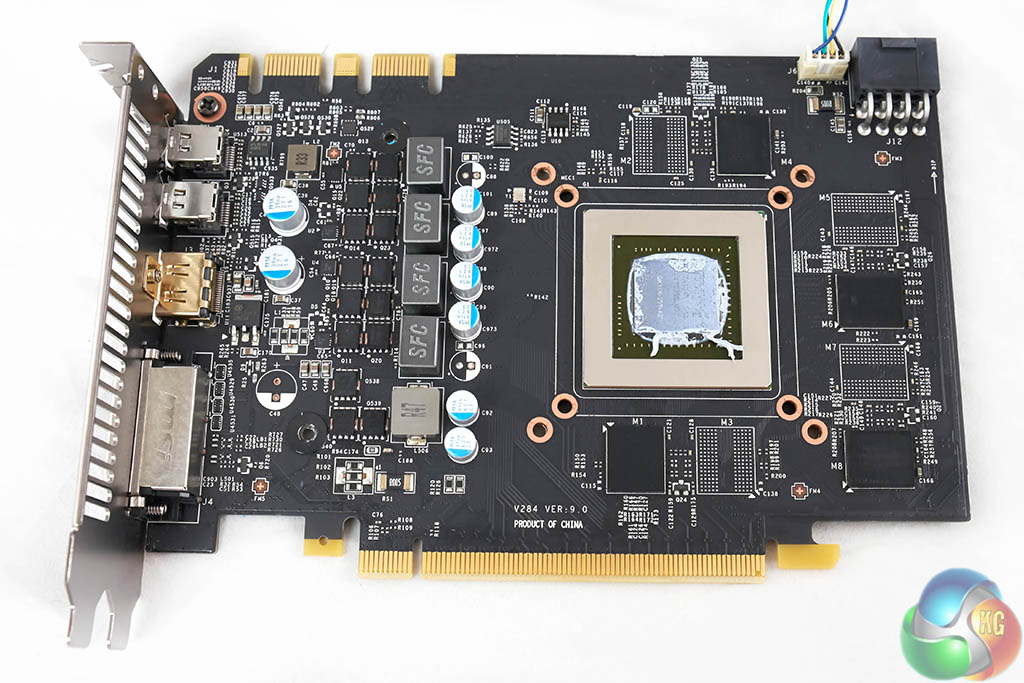

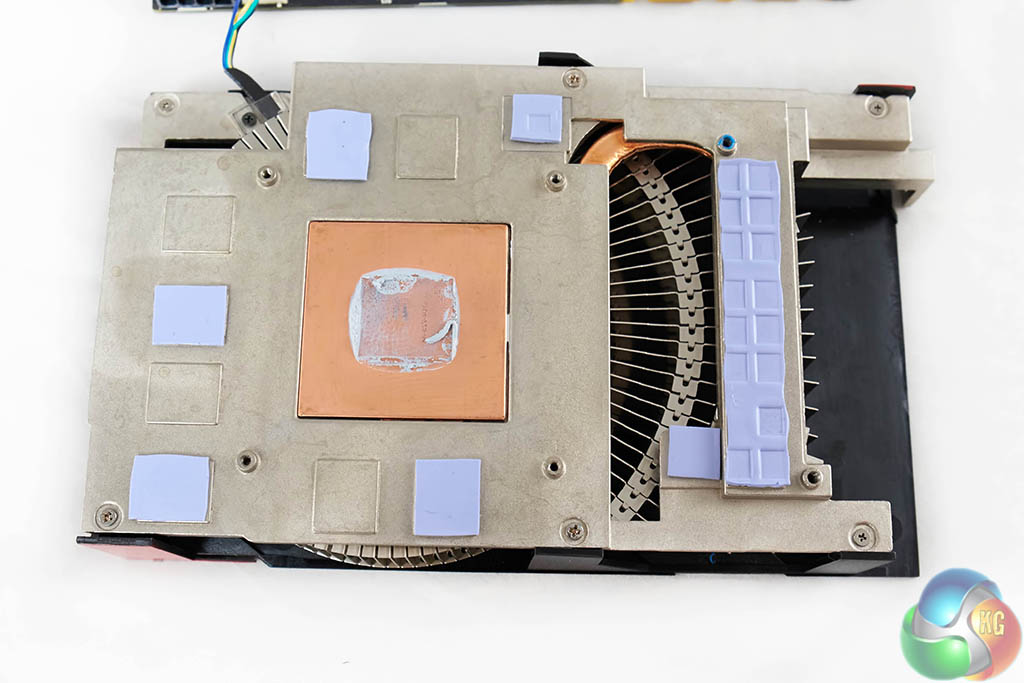

The cooler itself is enclosed, however there are several copper heatpipes that run from the central copper block which cools the core. MSI are using Hynix 2GB of GDDR5 memory.
gpuz

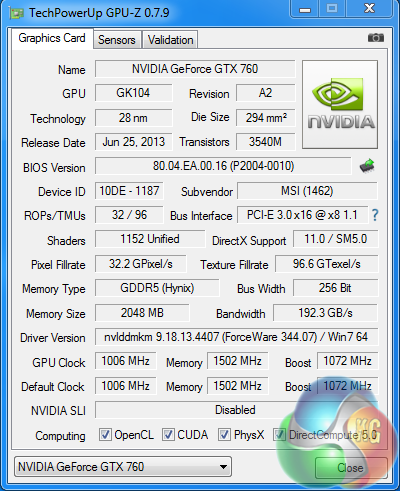

The MSI GTX760 Gaming Mini ITX is built on the 28nm process. It has 32 ROP's, 96 texture units and 1,152 Cuda Cores. The 2GB of GDDR5 memory is connected via a 256 bit interface it is clocked at 1,500mhz (6Gbps effective). The core clock speed has been increased to 1,006mhz with a boost to 1,072mhz.
