Asus GeForce GTX 970 DirectCU Mini 4096MB

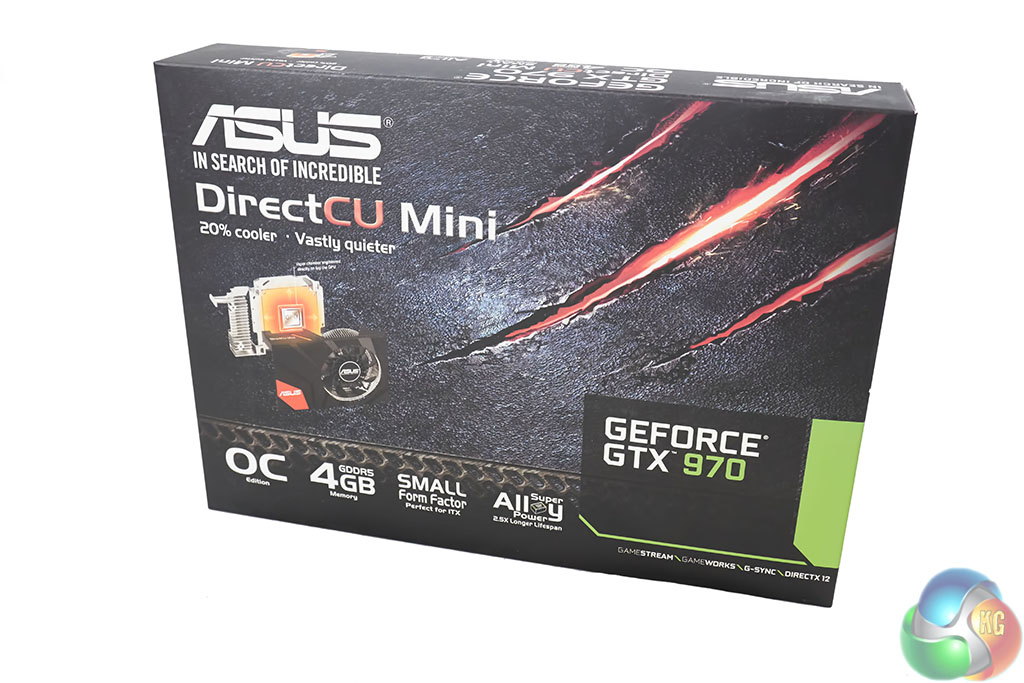

DSCF6743
Asus box artwork is instantly recognisable. Along the bottom of the box, are key selling points. The card is indeed overclocked, has 4GB of GDDR5 memory and is ‘perfect' for ITX systems.
DSCF6744
The rear of the box offers more detail on the card configuration, including the adoption of concrete core chokes. This is said to eliminate buzzing sounds when under full load.
DSCF6747
Not much of a bundle, just some literature on setting the card up.

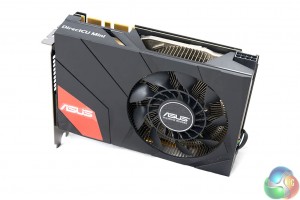

DSCF6760DSCF6756

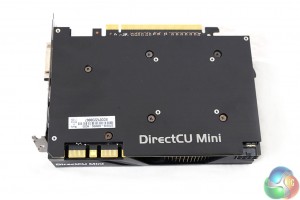

The GTX 970 DirectCU Mini is only 17cm long, 12.19cm high and 4.07cm thick. Asus have included a backplate on the card to help improve appearance and cooling efficiency. It is quite heavy and we like the design, which is effective.

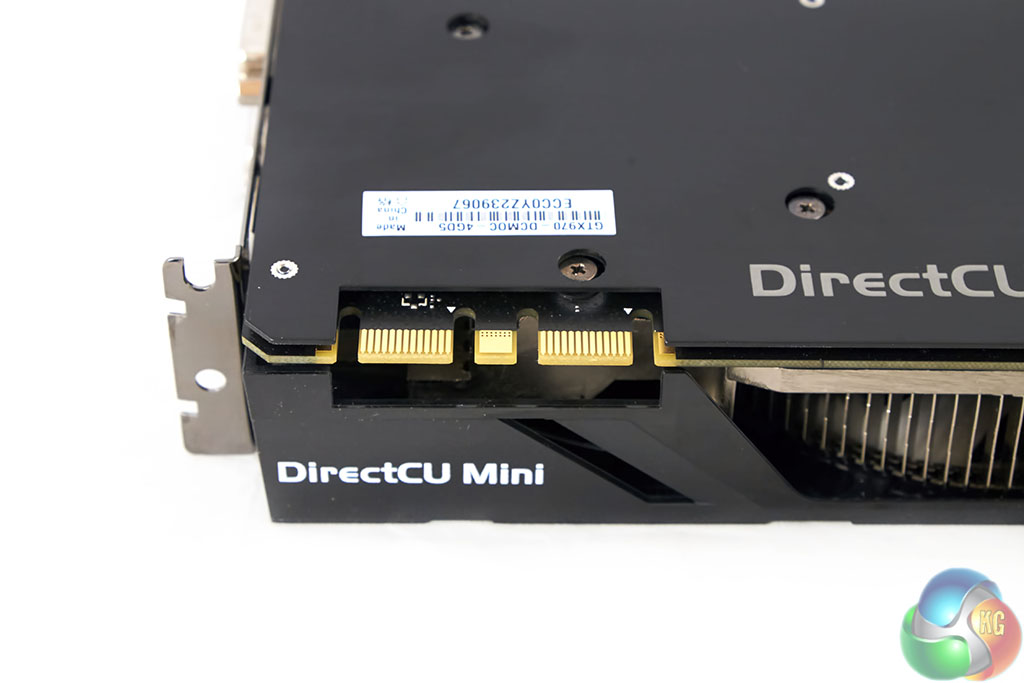

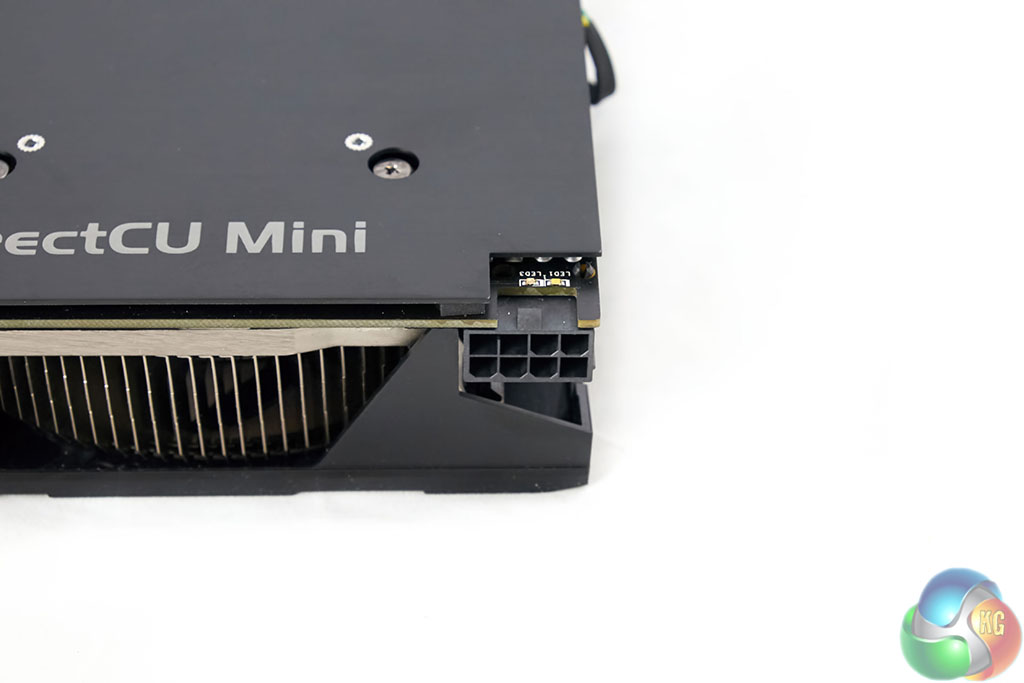

DSCF6763DSCF6762
It is SLI capable, just like any GTX970 we have reviewed to date. The card takes all the power it needs from a single 8 pin connector.

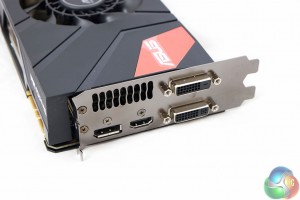

DSCF6767
The Asus GeForce GTX 970 DirectCU Mini  has two DVI connectors on the back (DVI-D and DVI-I), and a full sized HDMI 2.0 and DisplayPort. This HDMI port will handle 4K resolutions at up to 60hz.

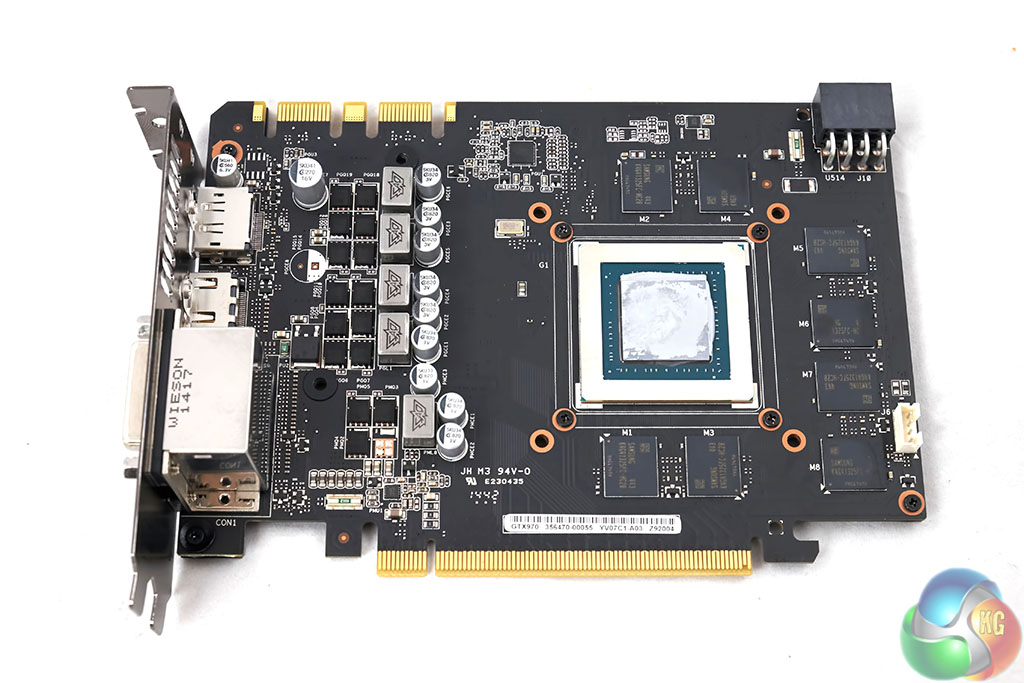

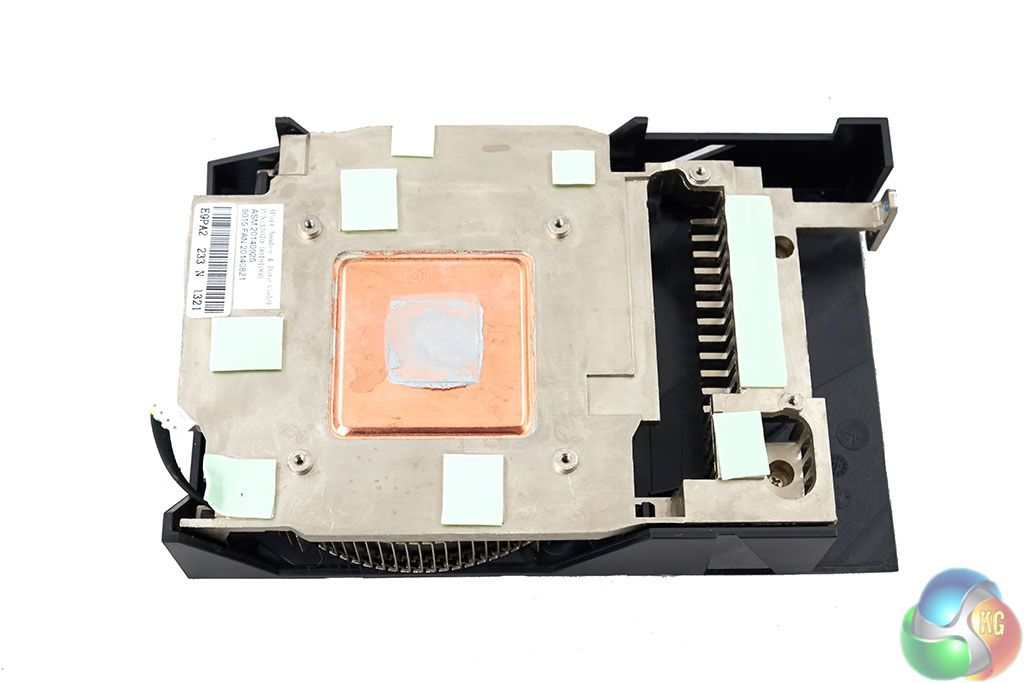

DSCF6775DSCF6777
The cooler is very compact and actually uses a vapor chamber to help enhance the performance. The card is using high grade SAMSUNG memory chips – always good to see.
