Zotac is well known for producing monster-sized graphics cards within its AMP! Extreme line up, but then it has also had success at the opposite end of the spectrum with its Mini series. The card we are looking at today is definitely Mini, measuring in at just 211mm long. It's an RTX 2070, too, with a factory overclocked core – so we are definitely still hoping for solid performance despite this card's diminutive nature. Have any trade-offs been made to get an RTX 2070 to this size? Let's find out.

Interestingly, Zotac has released two versions of its RTX 2070 Mini card – one ‘OC' model with a 1650MHz boost clock, and one reference-clocked model with a 1620MHz boost clock. The former retails for £539 while the latter is currently a fair bit cheaper at £459. We have the OC model in for review, so let's see how it stacks up against the competition.

GPU	RTX 2080 Ti (FE)	GTX 1080 Ti	RTX 2080 (FE)	GTX 1080	RTX 2070 (FE)	GTX 1070
SMs	68	28	46	20	36	15
CUDA Cores	4352	3584	2944	2560	2304	1920
Tensor Cores	544	N/A	368	N/A	288	N/A
Tensor FLOPS	114	N/A	85	N/A	63	N/A
RT Cores	68	N/A	46	N/A	36	N/A
Texture Units	272	224	184	N/A	144	120
ROPs	88	88	64	64	64	64
Rays Cast	10 Giga Rays/sec	1.1 Giga Rays/sec	8 Giga Rays/sec	0.877 Giga Rays/sec	6 Giga Rays/sec	0.65 Giga Rays/sec
RTX Performance	87 Trillion RTX-OPS	11.3 Trillion RTX-OPS	60 Trillion RTX-OPS	8.9 Trillion RTX-OPS	45 Trillion RTX-OPS	6.5 Trillion RTX-OPS
GPU Boost Clock	1635 MHz	1582 MHz	1800 MHz	1733 MHz	1710 MHz	1683 MHz
Memory Clock	14 Gbps	11 Gbps	14 Gbps	10 Gbps	14 Gbps	8 Gbps
Total Video Memory	11GB GDDR6	11GB GDDR5X	8GB GDDR6	8GB GDDR5X	8GB GDDR6	8GB GDDR5
Memory Interface	352-bit	352-bit	256-bit	256-bit	256-bit	256-bit
Memory Bandwidth	616 GB/sec	484 GB/sec	448 GB/sec	320 GB/sec	448 GB/sec	256 GB/sec
TDP	260W	250W	225W	180W	185W	150W

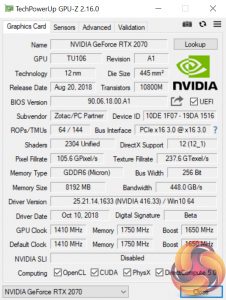

As mentioned, this is the OC Mini we are taking a look at today, so it ships with a 1650MHz boost clock – just 30MHz faster than reference, this is probably the smallest factory overclock I have ever seen. Memory has been left at stock, though, meaning we are left with the default 14Gbps speed.
