For our temperature testing, we measure the peak GPU core temperature under load. A reading under load comes from running the 3DMark Time Spy stress test for 30 minutes.

As for temperature testing, it's again fascinating to compare the Pulse's results from before and after the BIOS update. Results before the update are stellar, with a 67C edge temperature and 74C junction temperature. Naturally, these do increase up to 74C and 83C, respectively, once the card is operating with higher clocks and power target, but those are still very respectable results.

We will be testing other AIB cards in the coming days as well, stay tuned for more direct thermal comparisons with other models on the market.

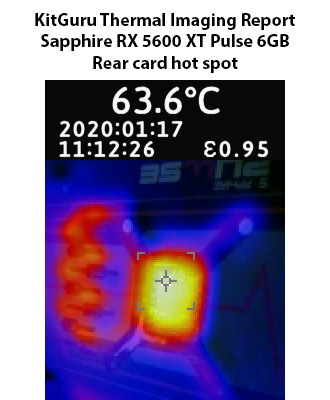

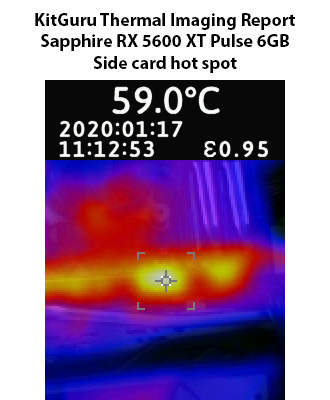

Lastly, it was more of the same with the images from our thermal gun – we saw hotspots between 59 and 64C, so really nothing to worry about there.
