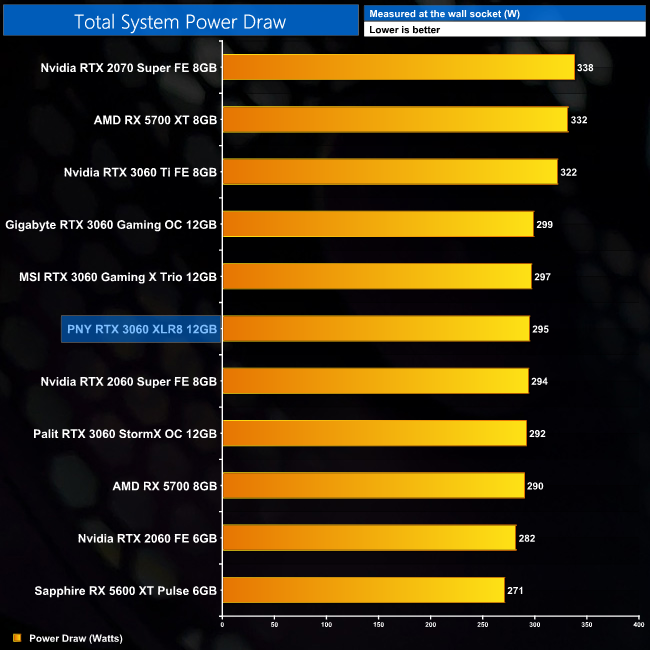

We measure system-wide power draw from the wall while running the 3DMark Time Spy stress test for 30 minutes.

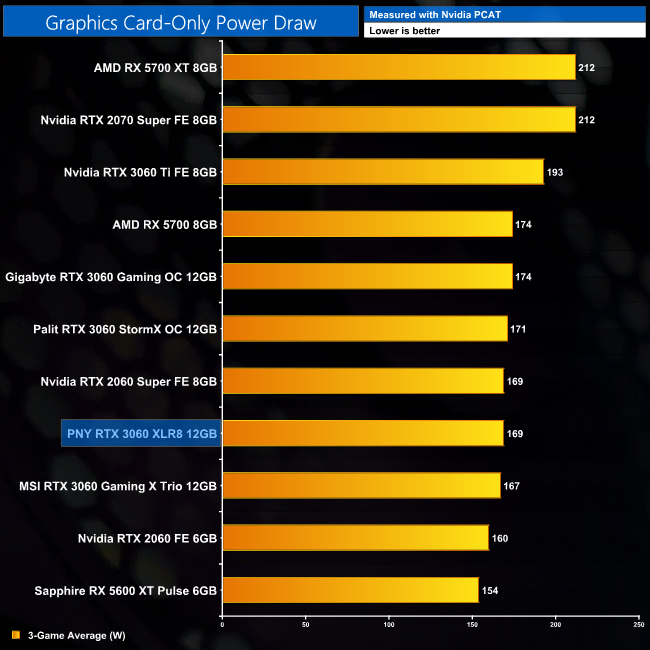

We also use Nvidia PCAT to measure power draw of the graphics card only, with readings from both the PCIe slot and the PCIe power cables combined into a single figure. This provides us with significantly more accurate data to work with as it is measuring only the GPU power, and not total system power which is a fundamentally imprecise measurement.

Power draw is right in line with the other RTX 3060s. All four share a 170W power target, and while there is some variation, the XLR8 averaged 169W during our testing – so that's as expected.
