Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

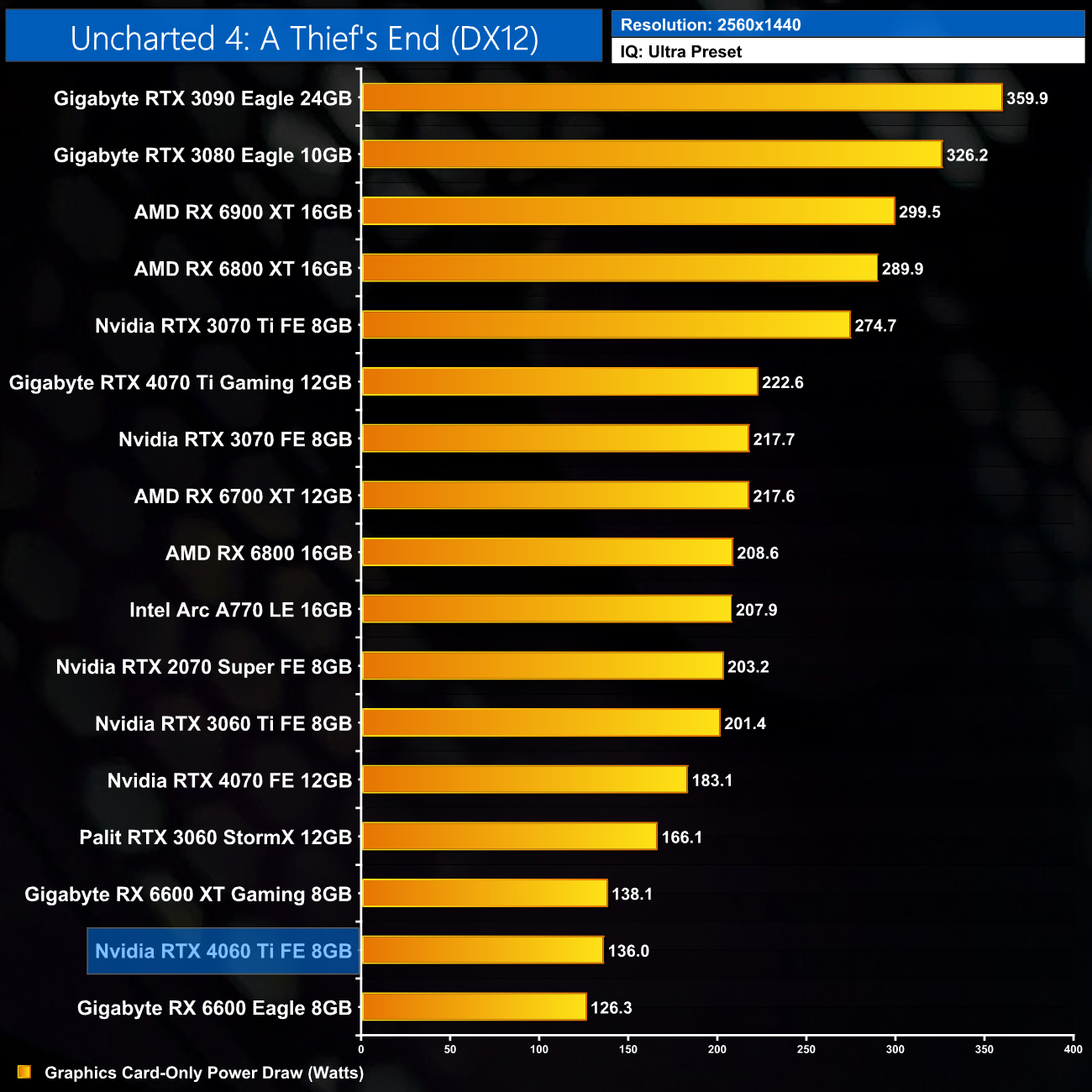

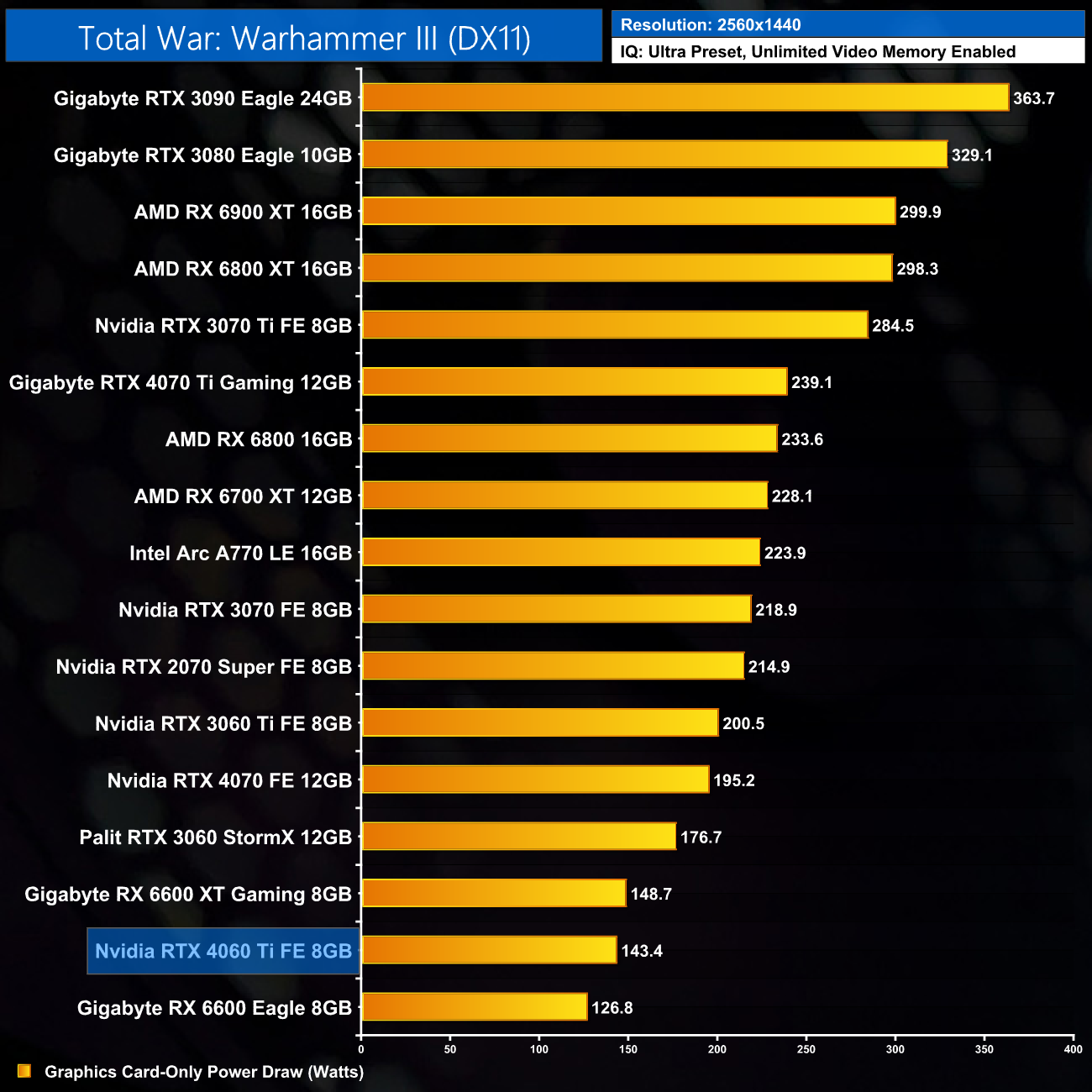

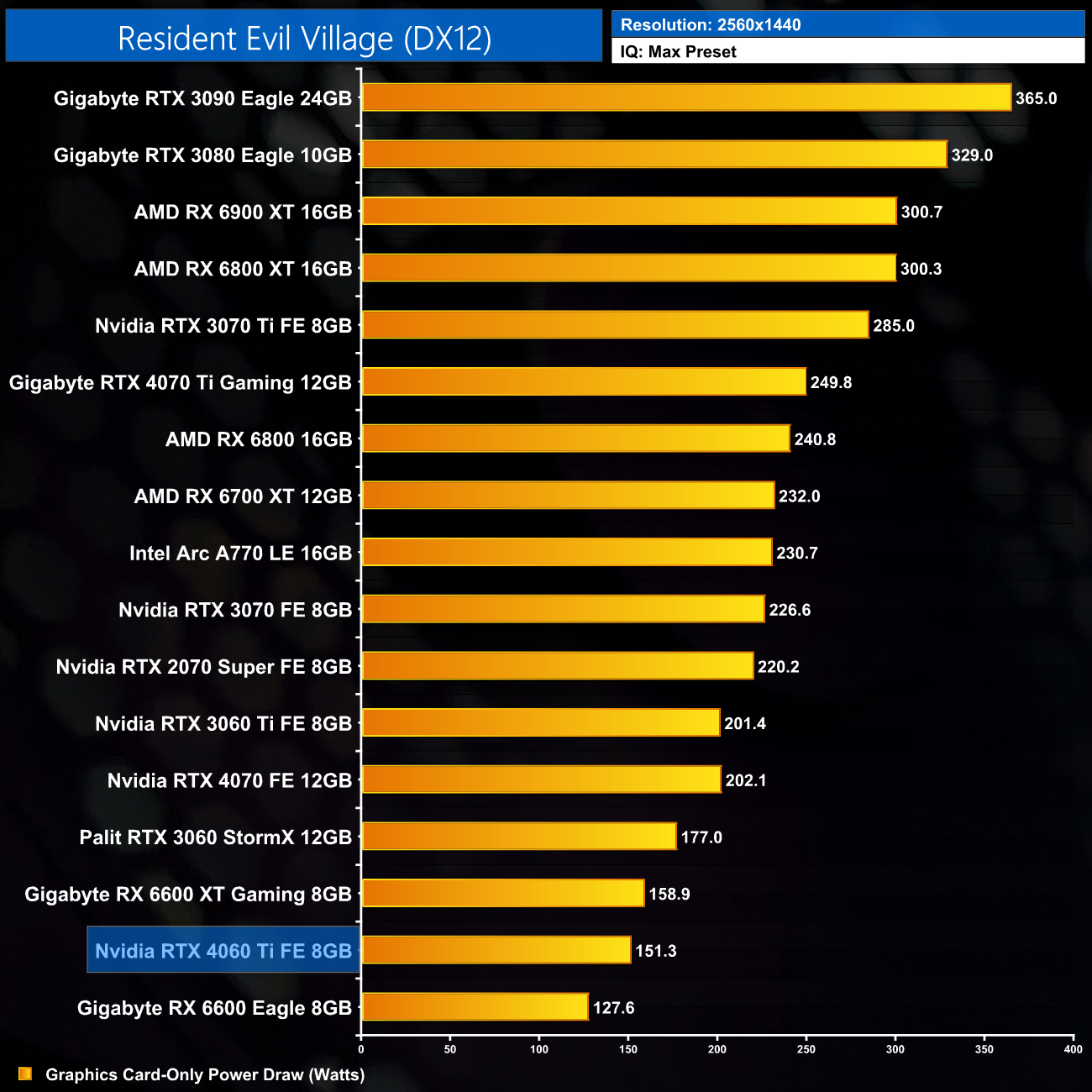

Per-Game Results at 1440p:

Click to enlarge.

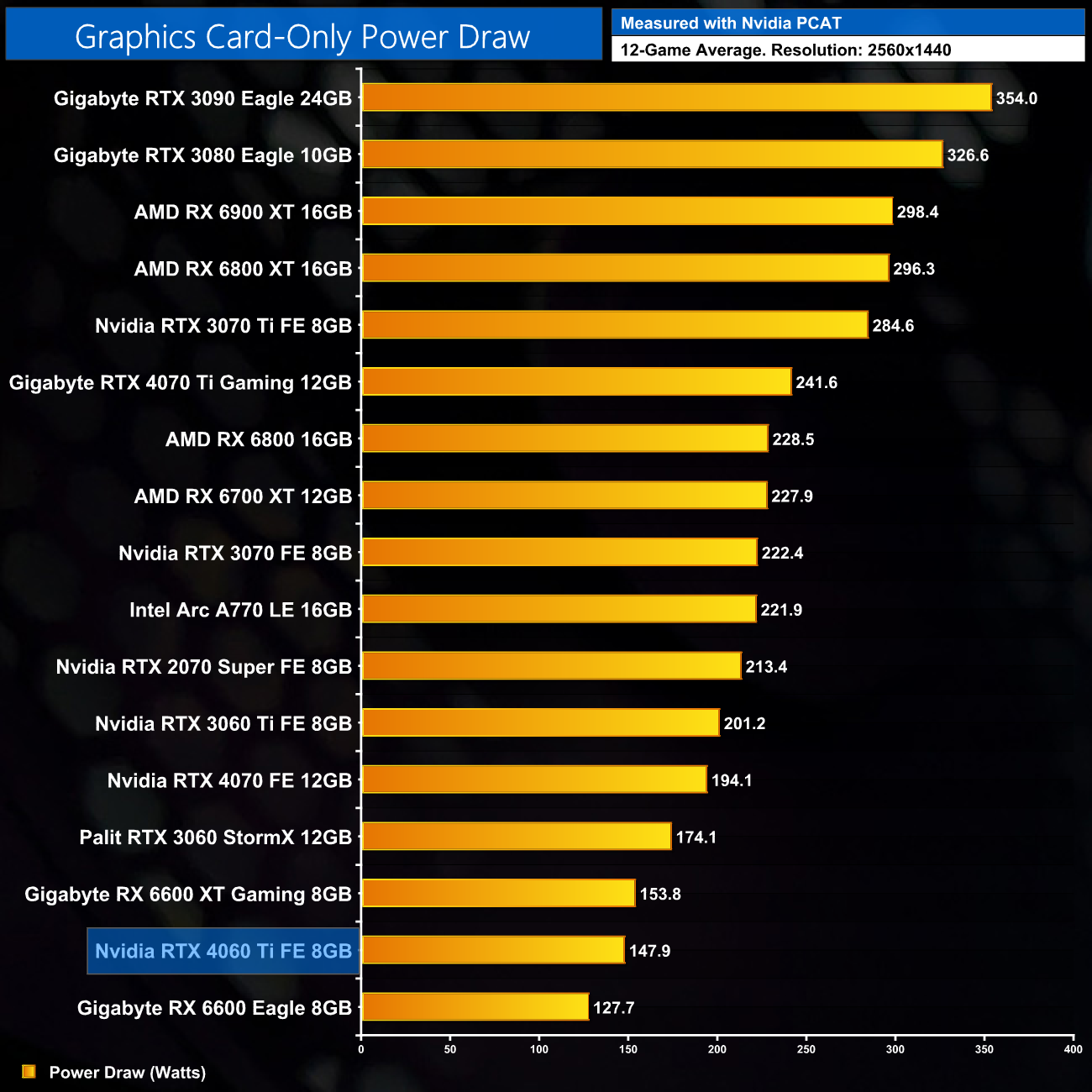

12-Game Average at 1440p:

Stepping up to 1440p sees an average power draw increase of 5W or so compared to 1080p, but we are still comfortably below the 160W TGP.

Ray tracing results

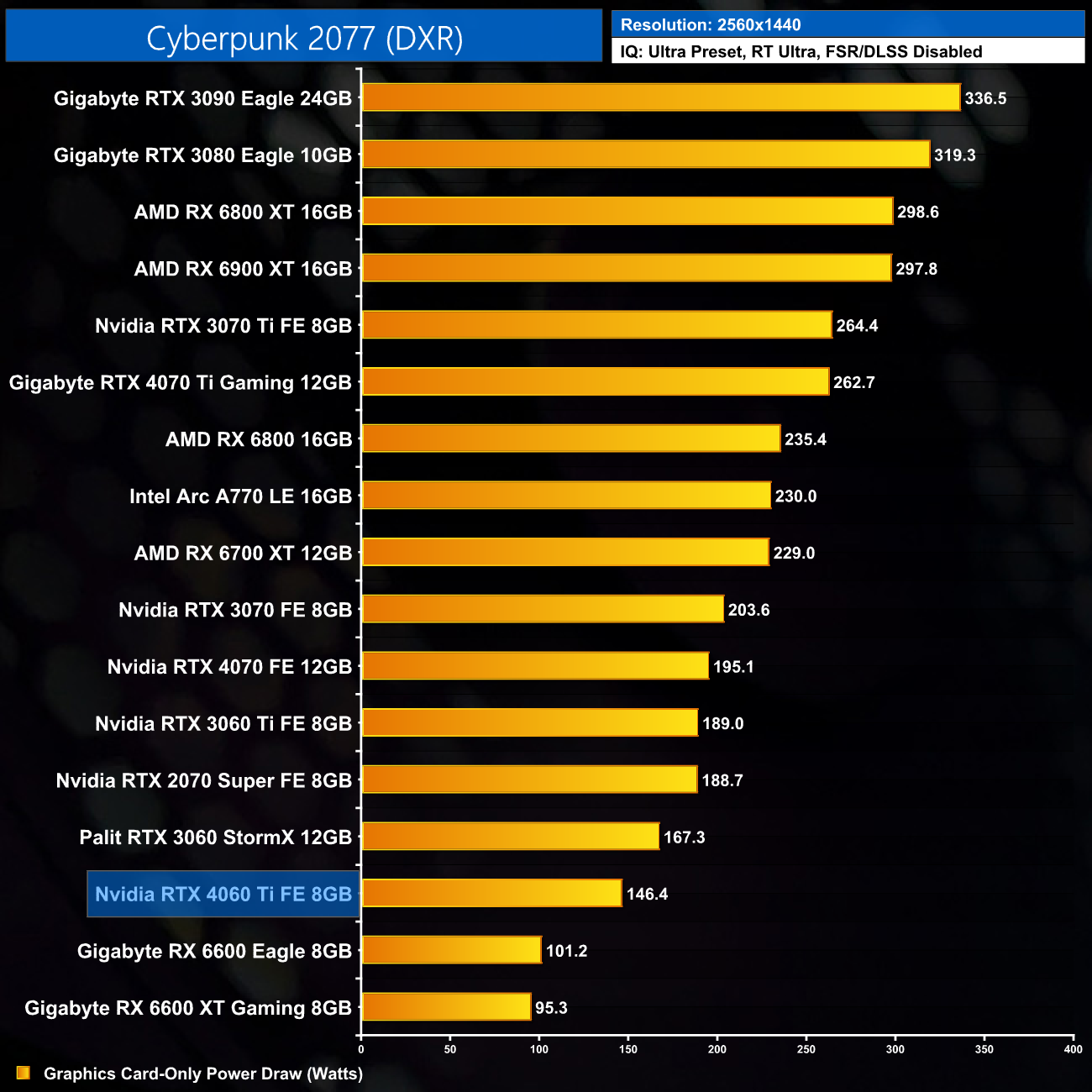

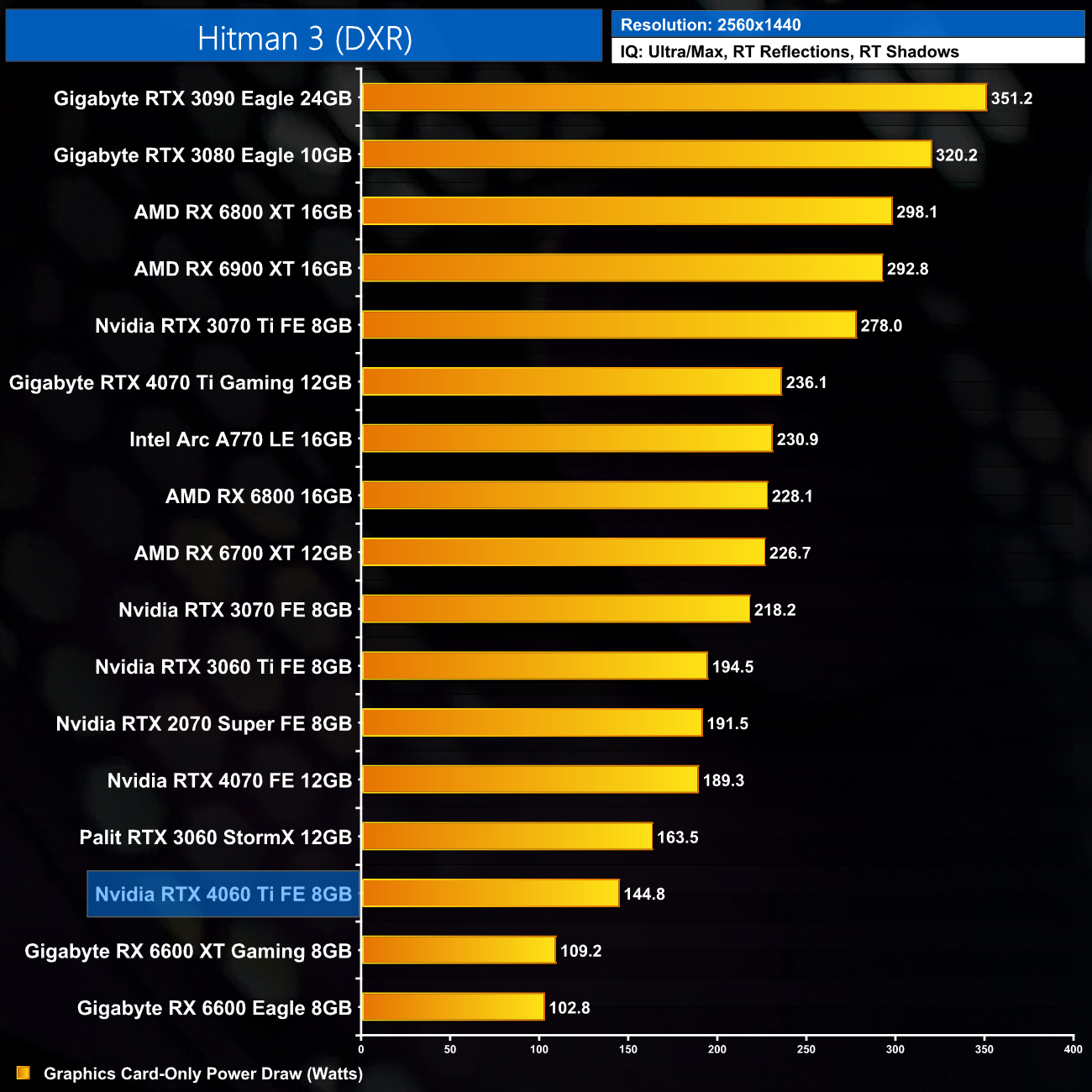

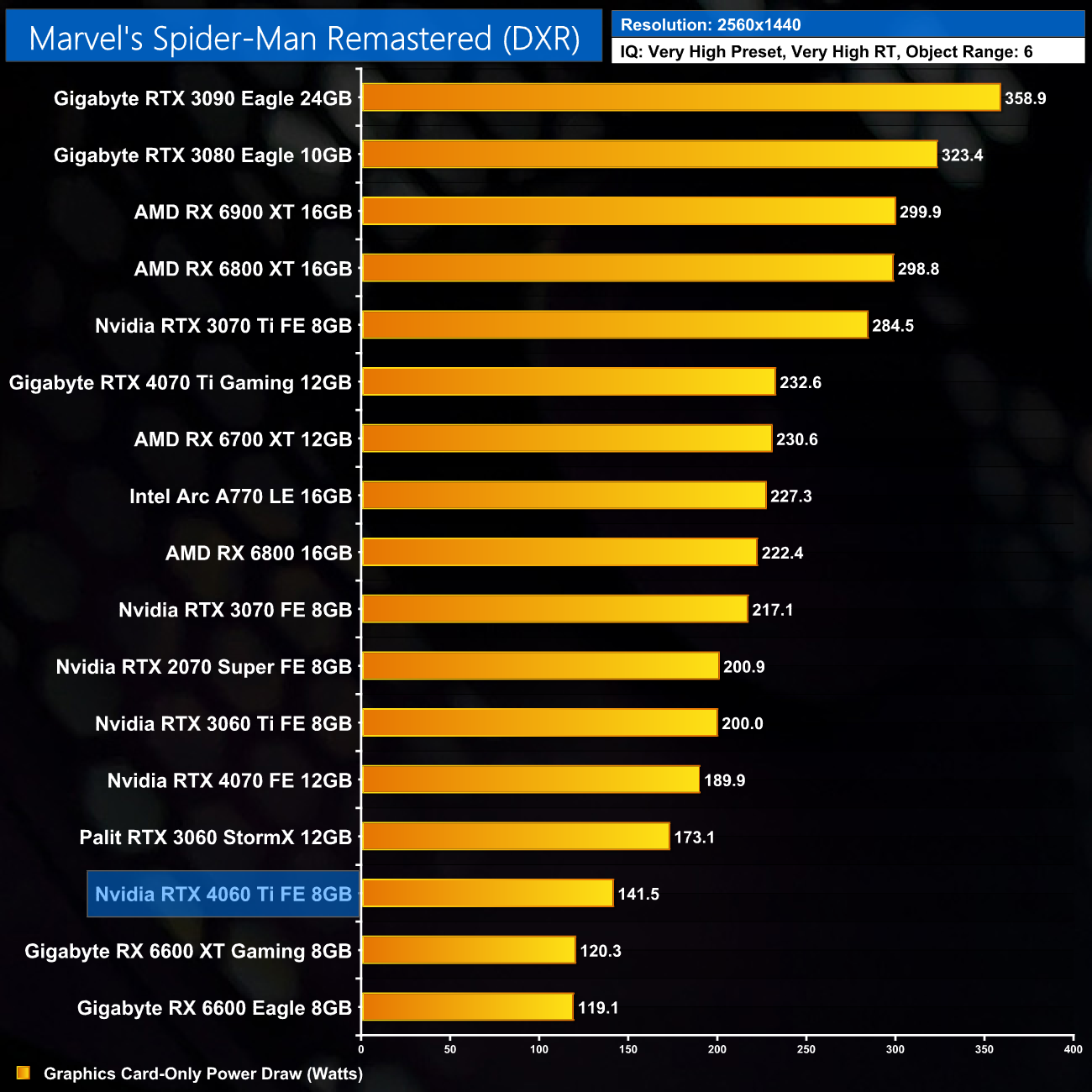

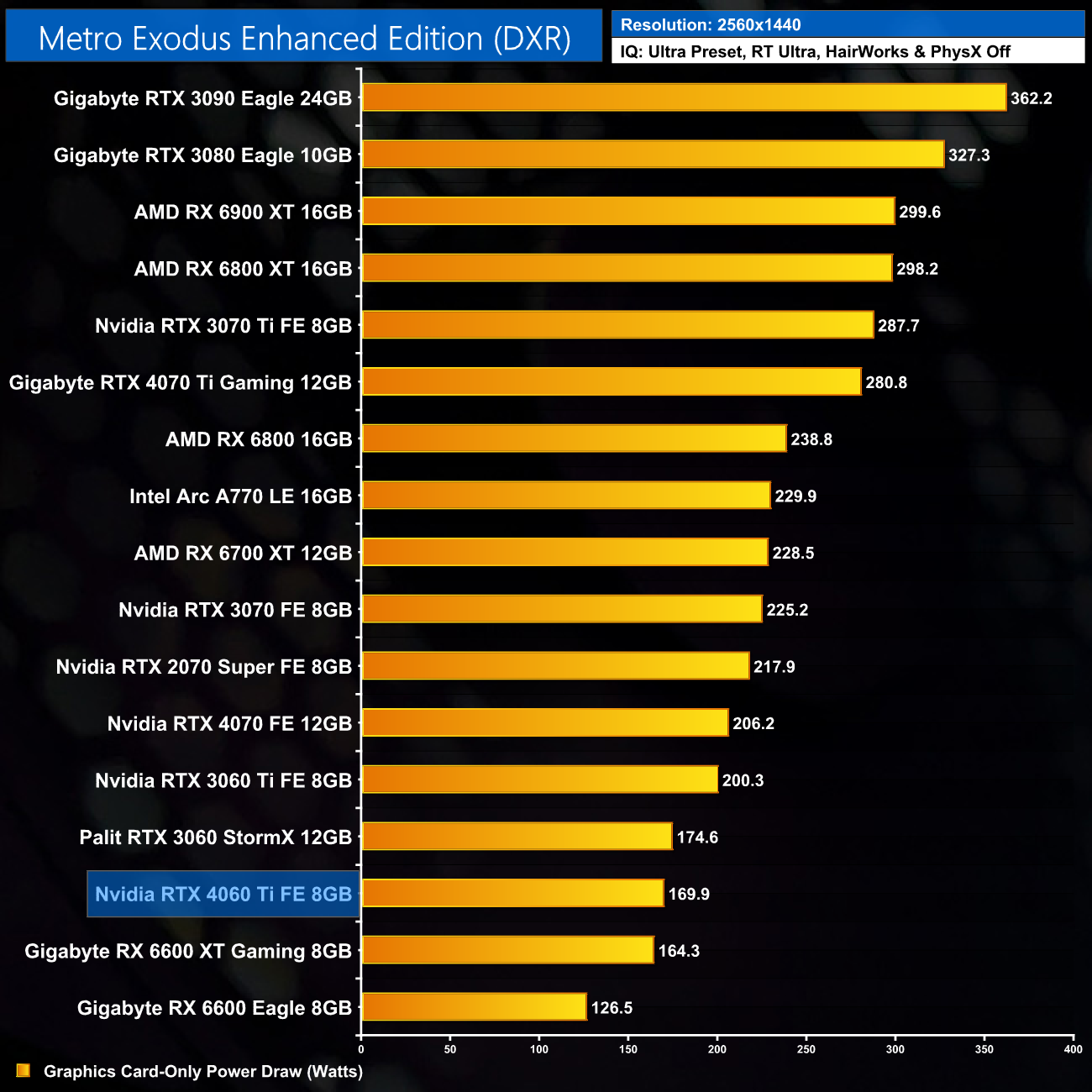

As a bonus, we now include the power figures for all six games we test with ray tracing enabled.

6-Game ray tracing average:

Ray tracing does add on a touch more juice, but only 5W compared to the non-ray traced average. Either way, power draw is very low.
