Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1080p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

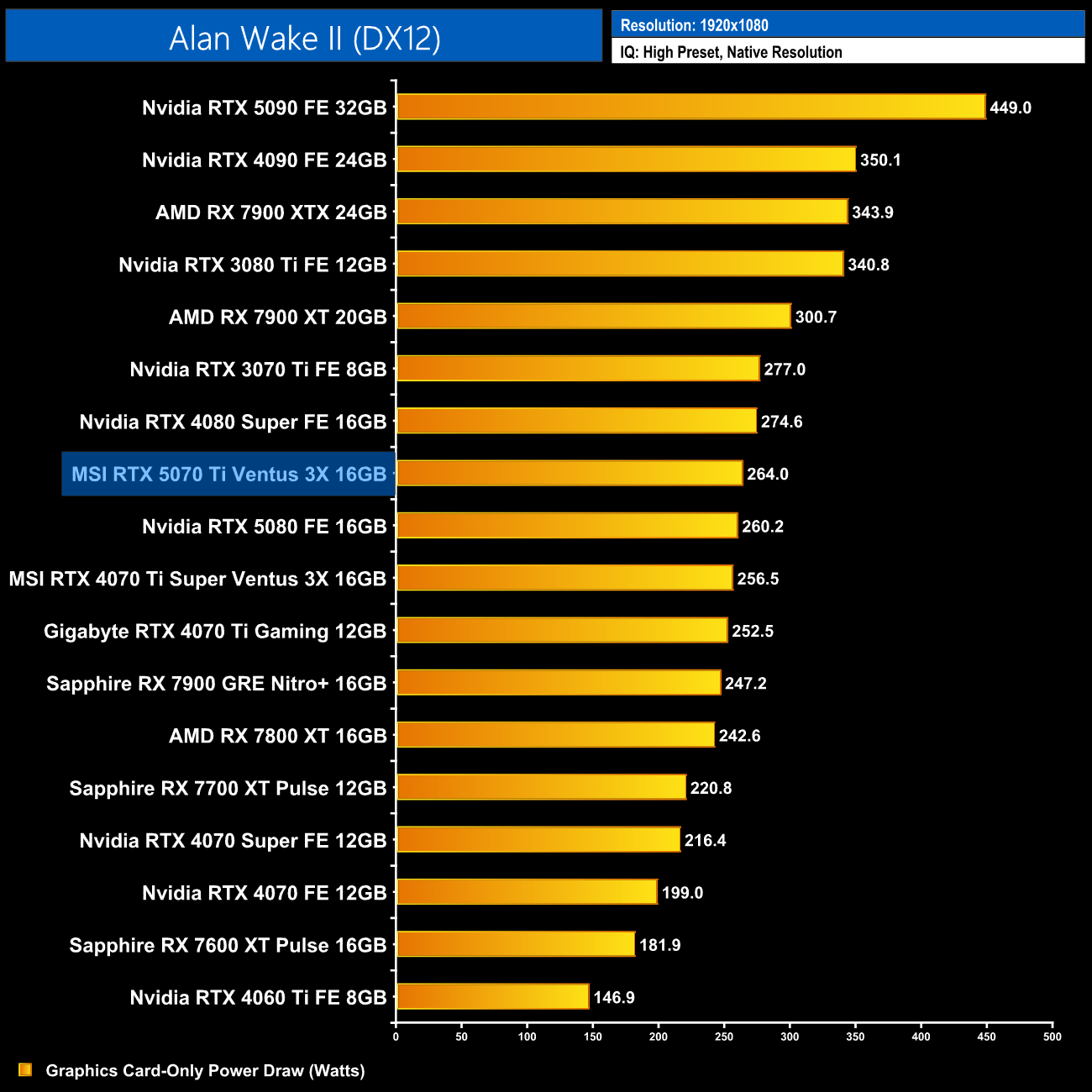

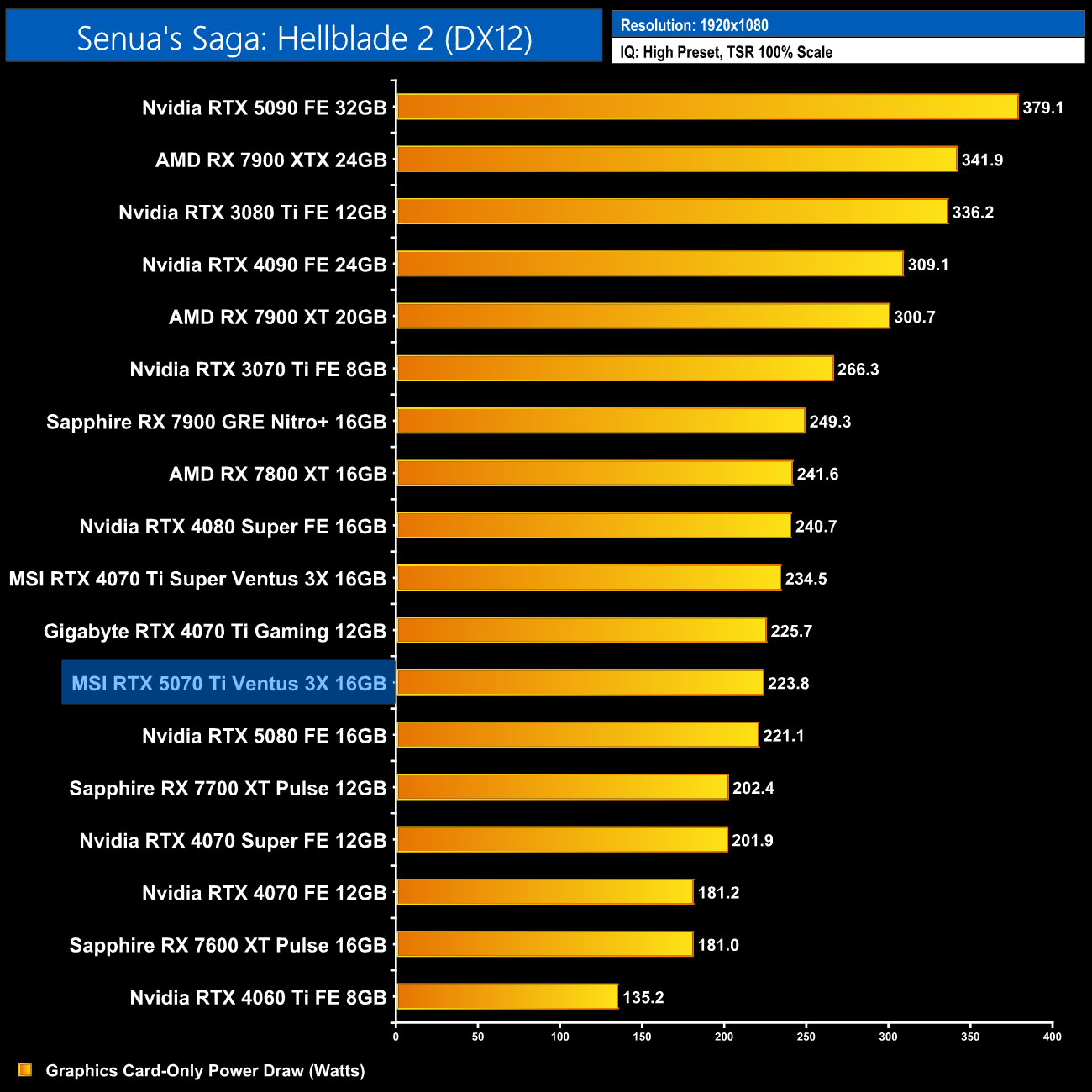

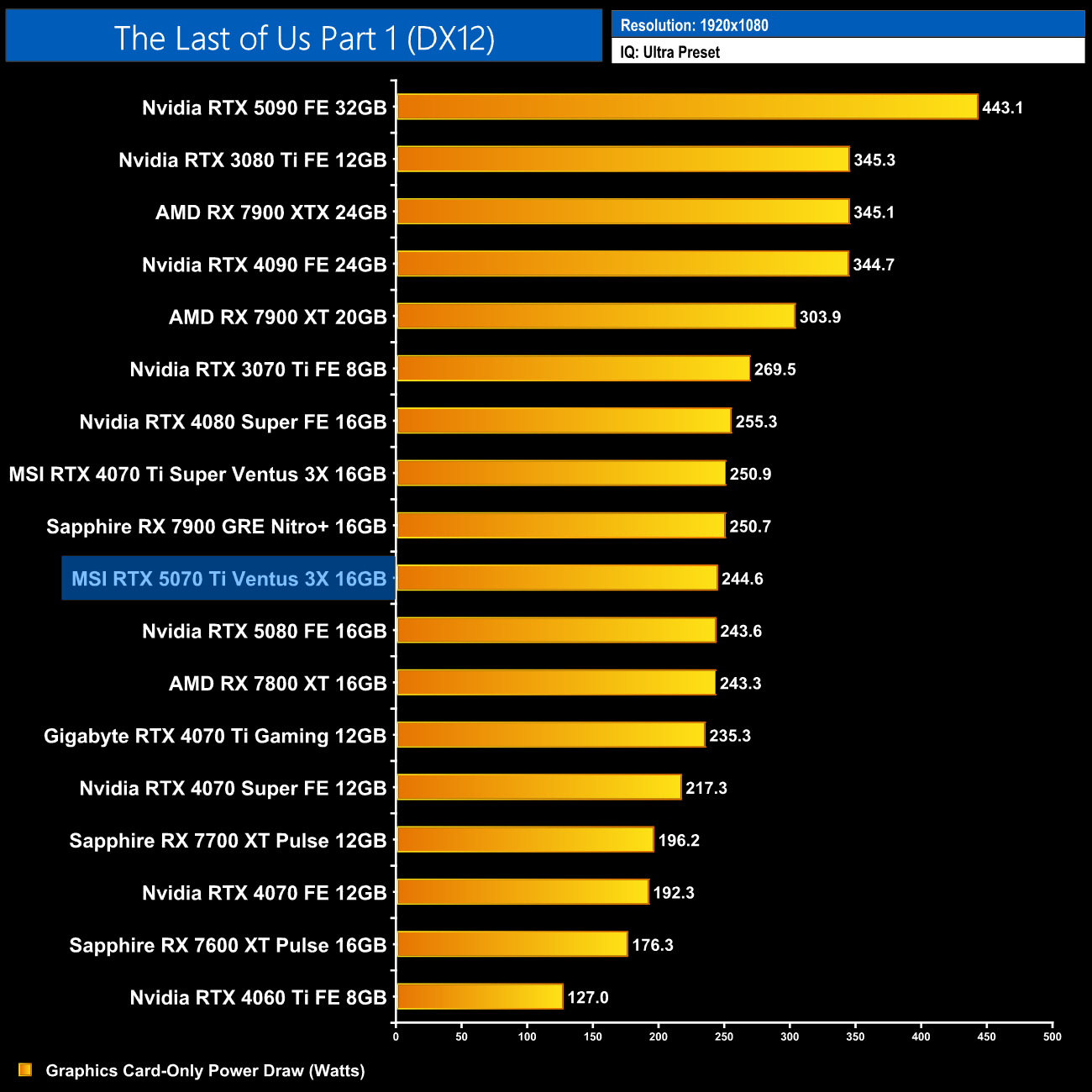

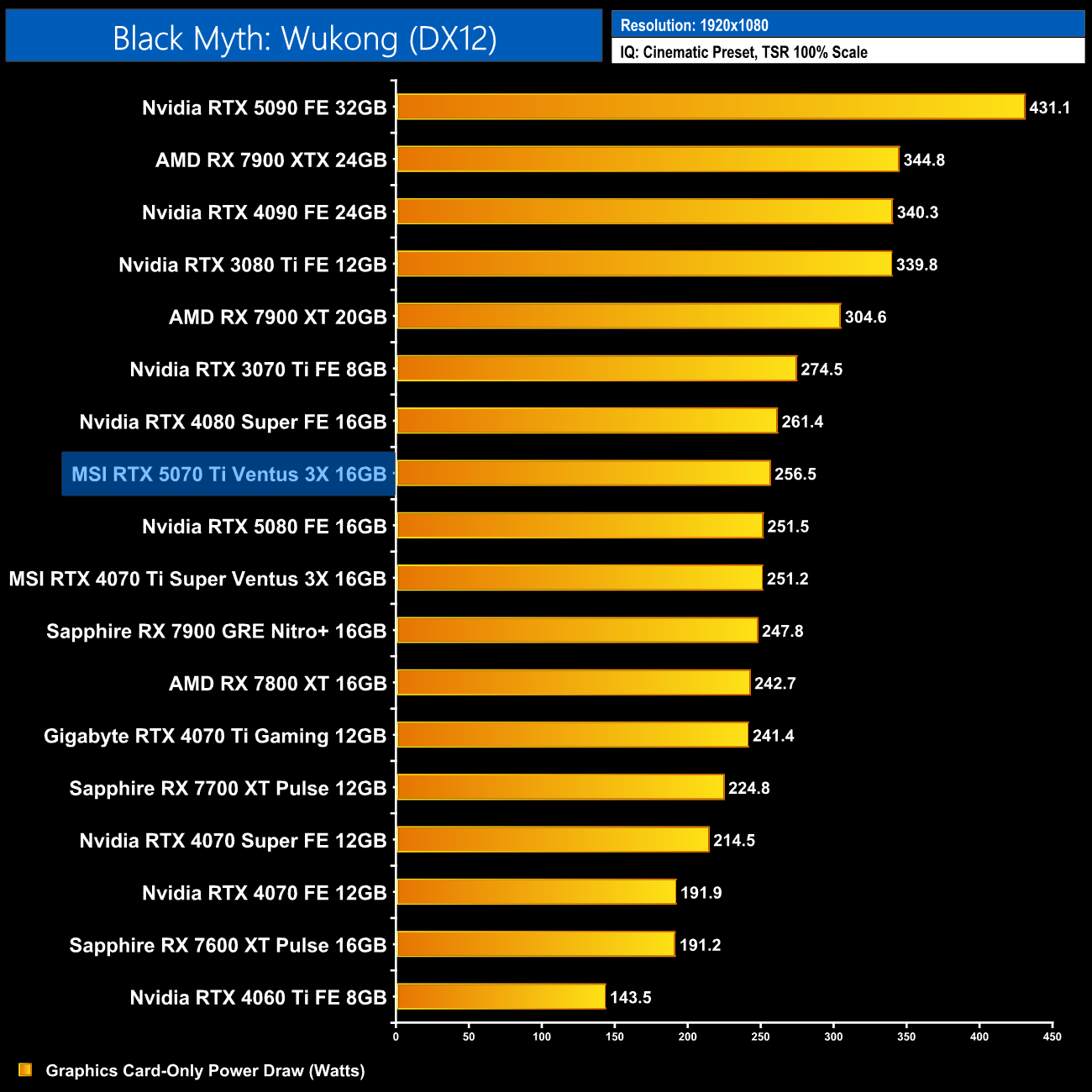

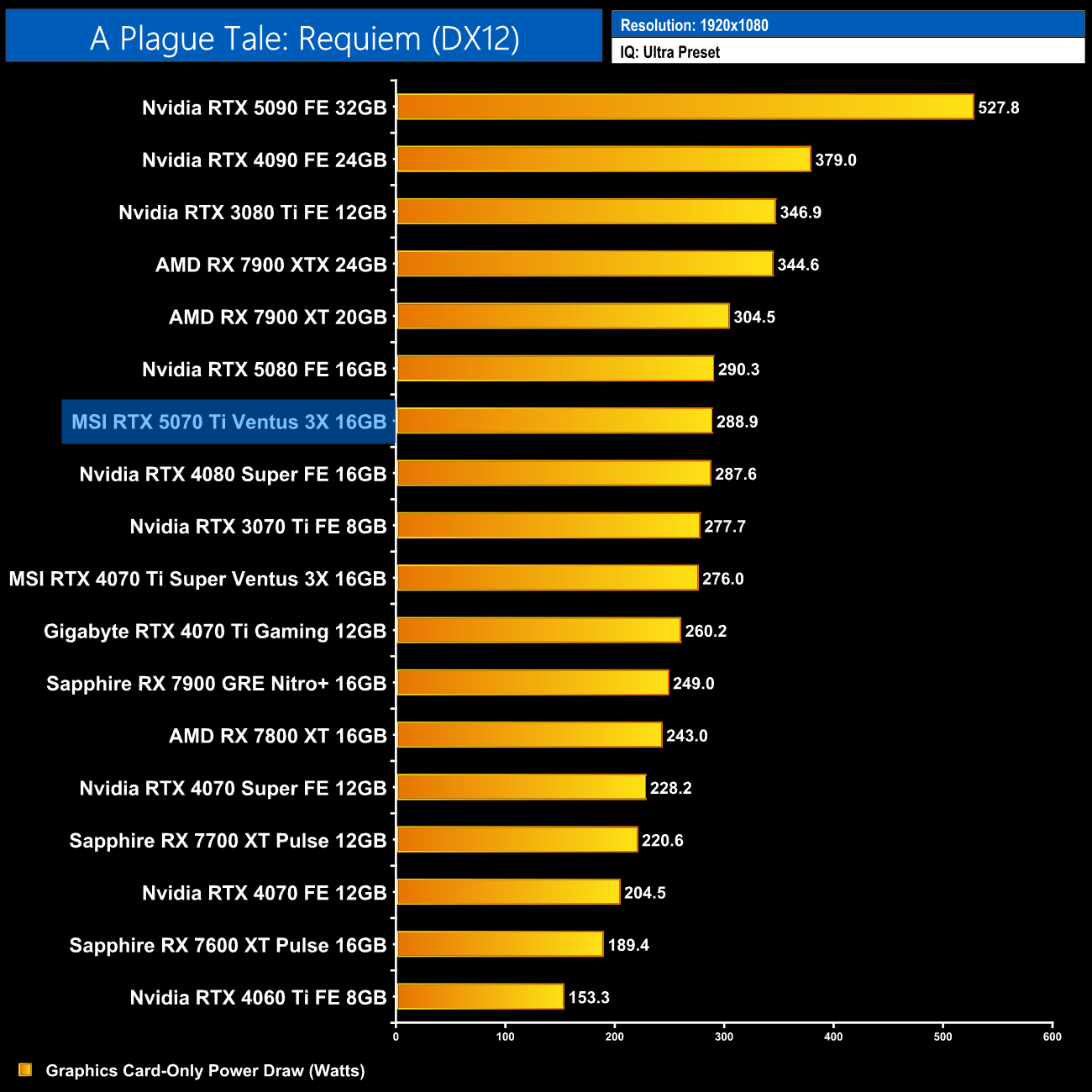

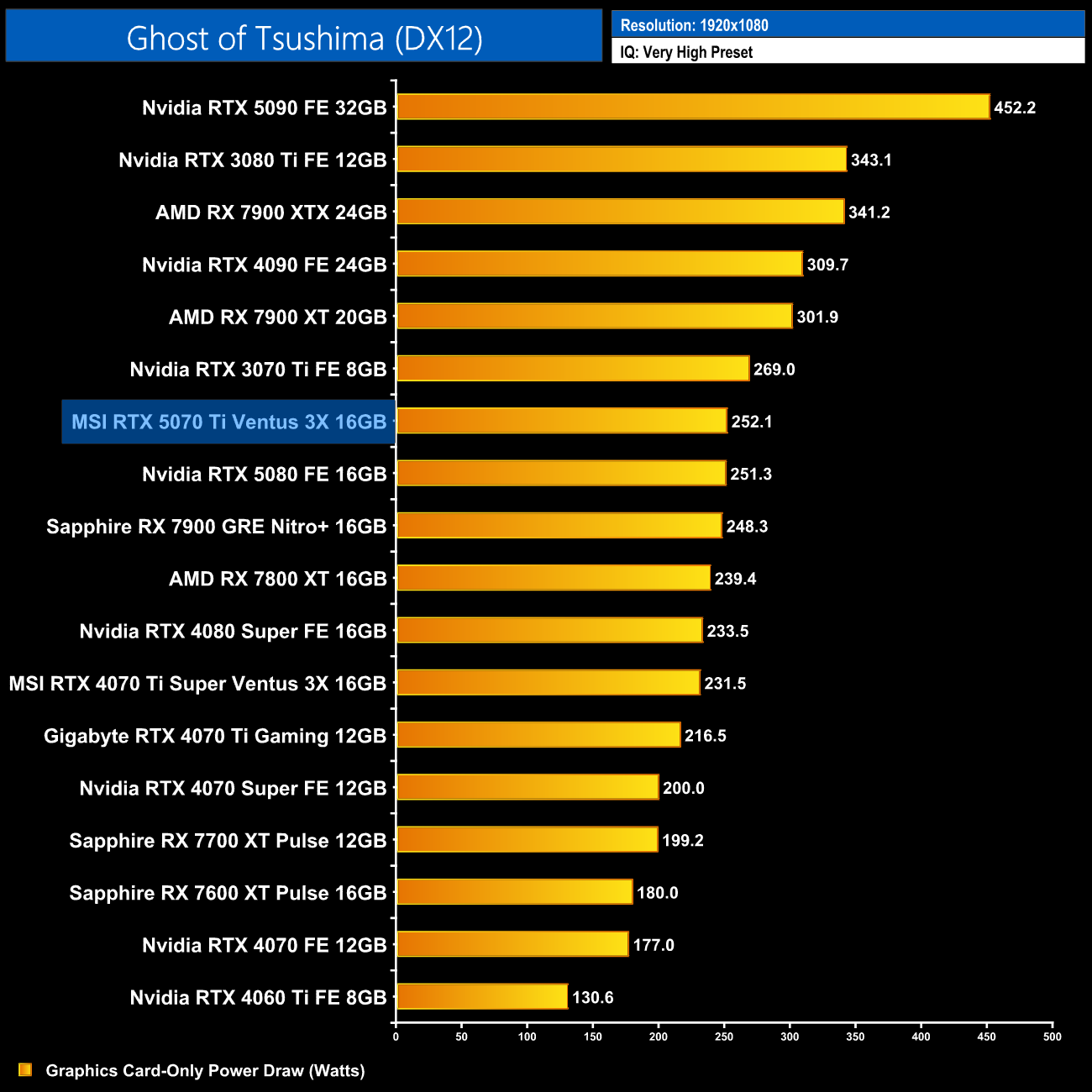

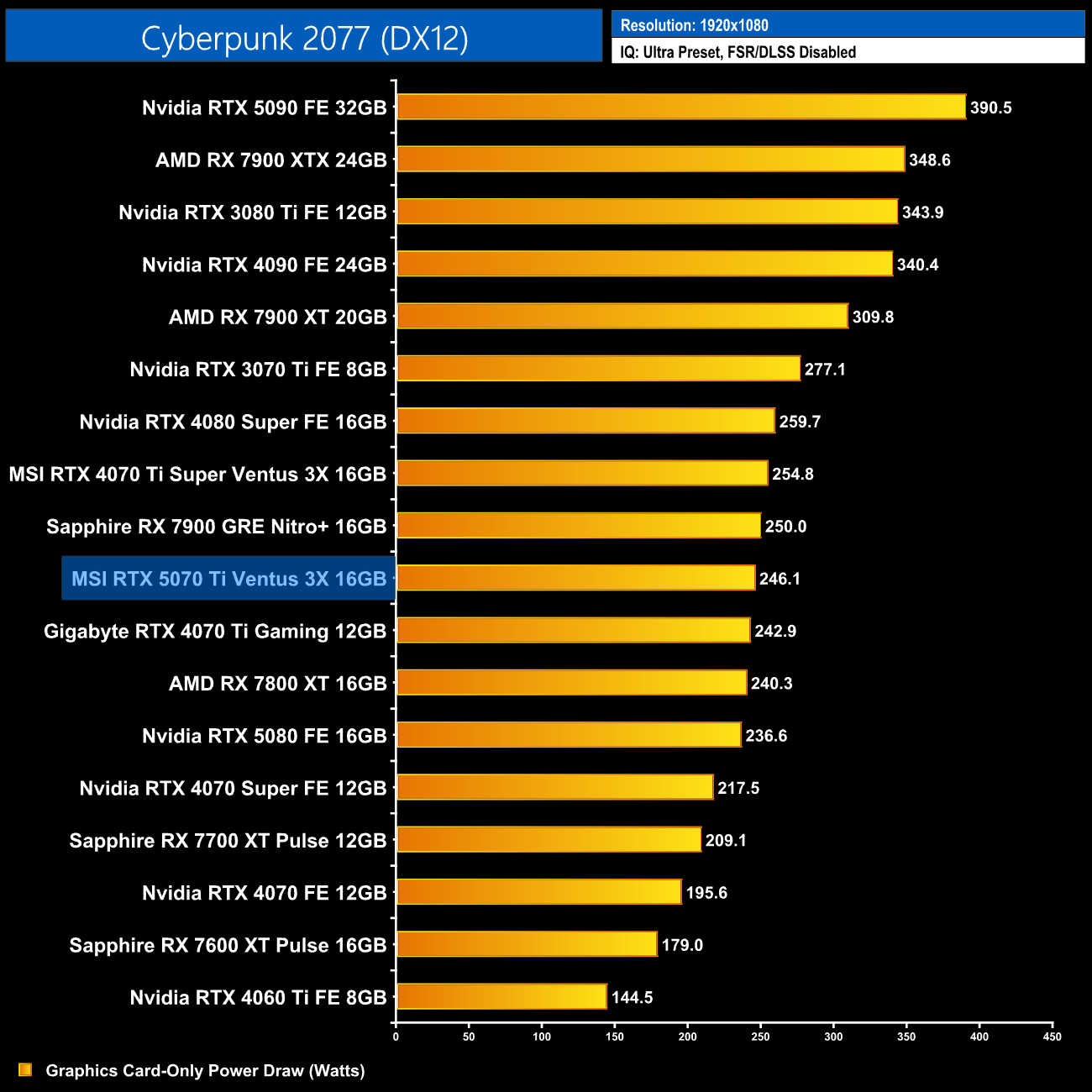

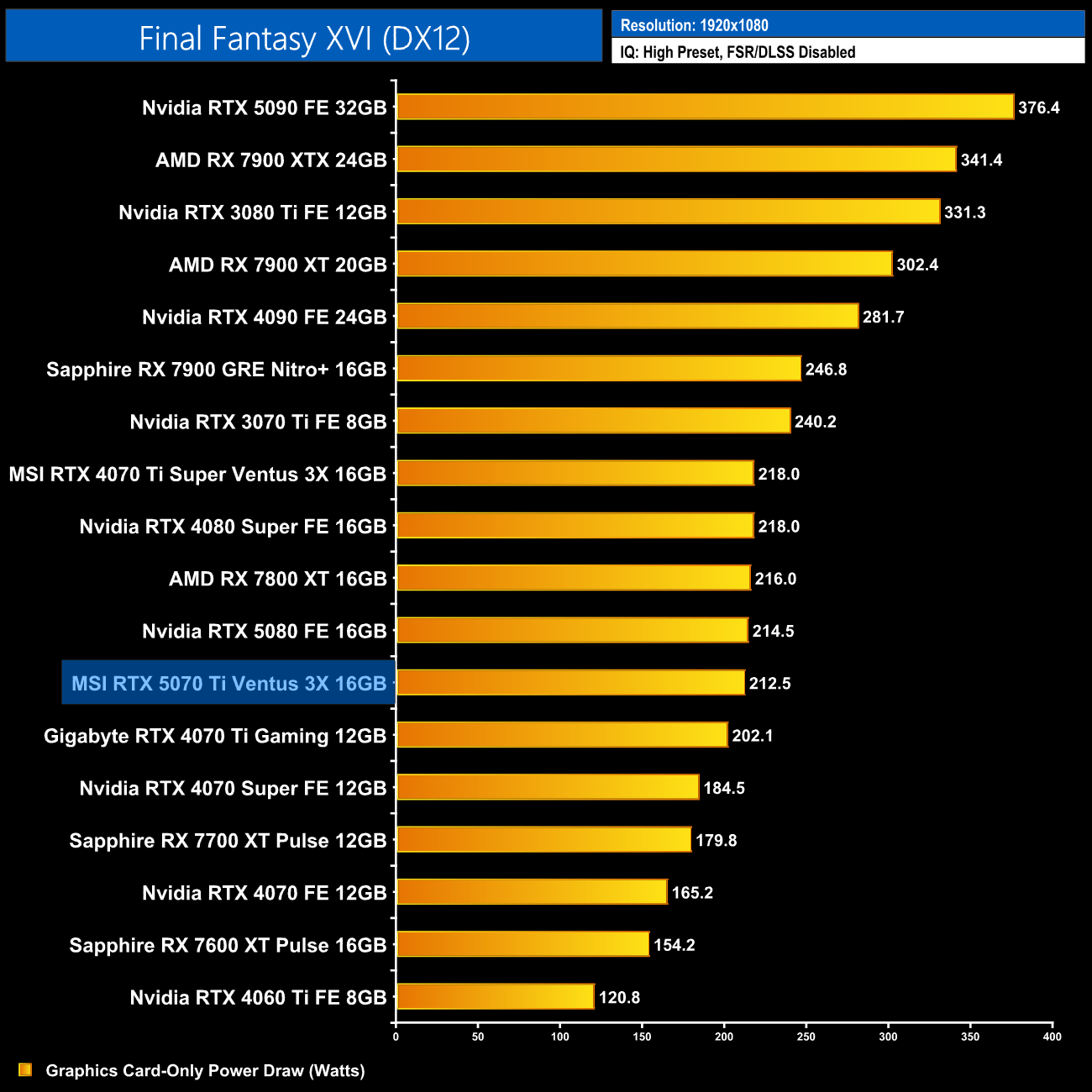

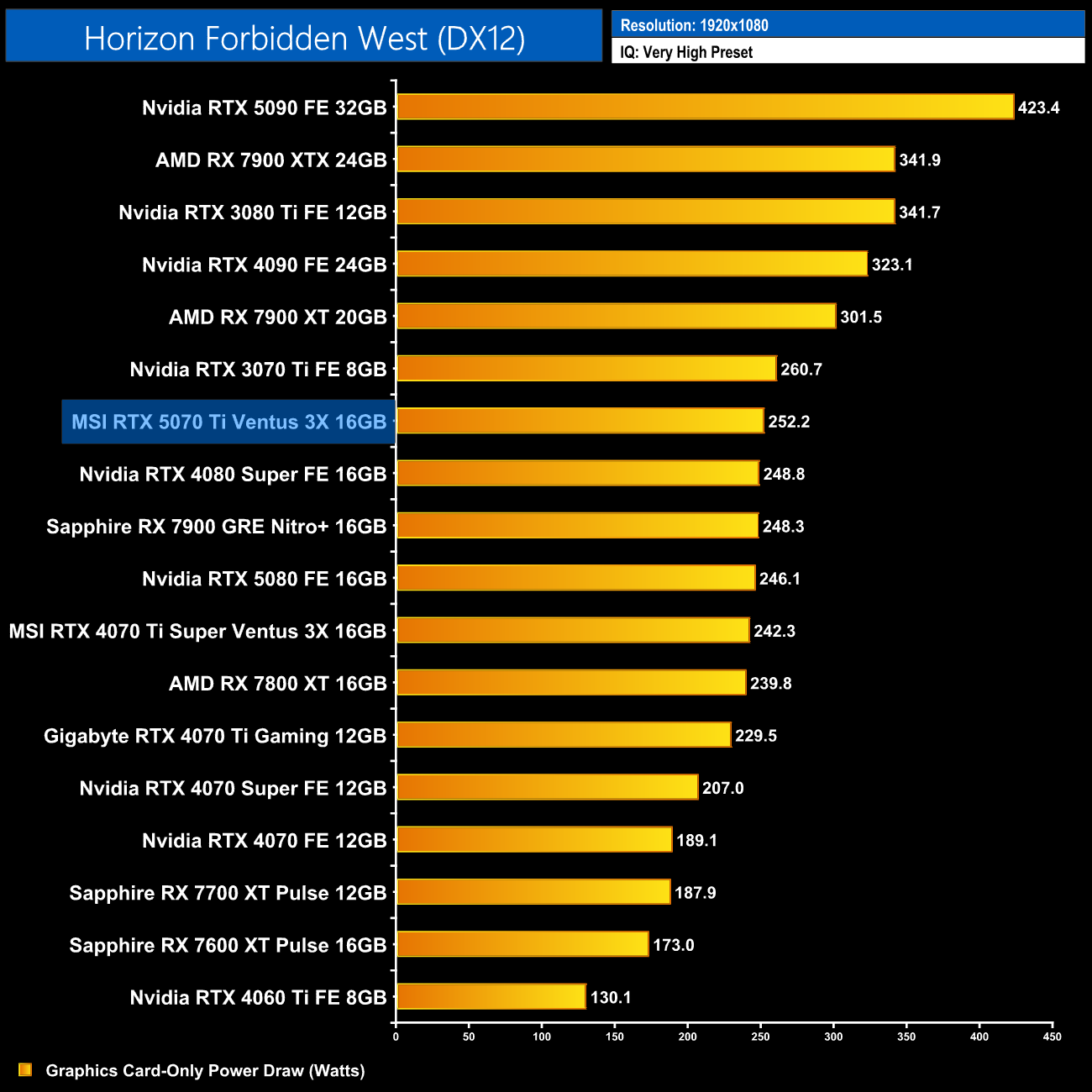

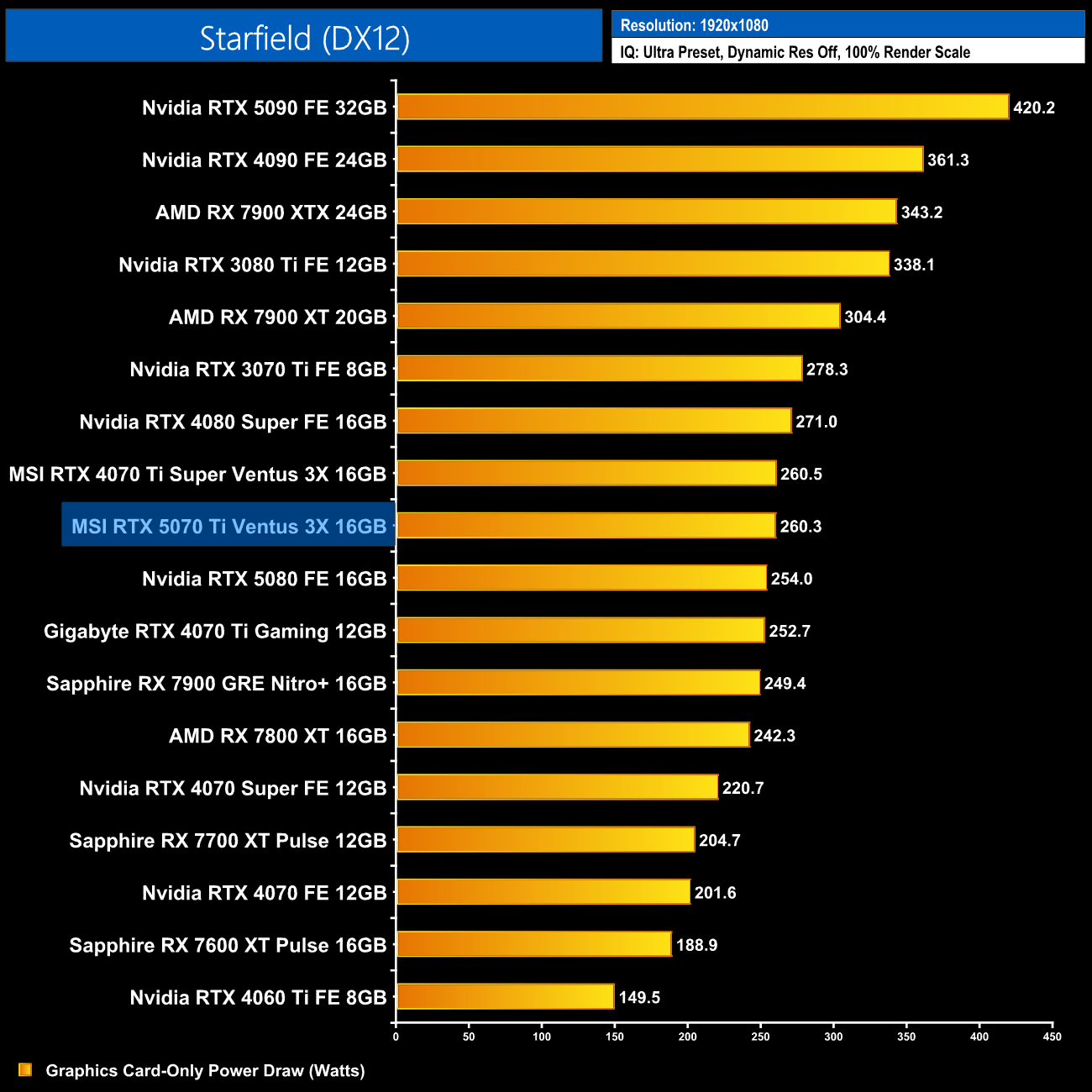

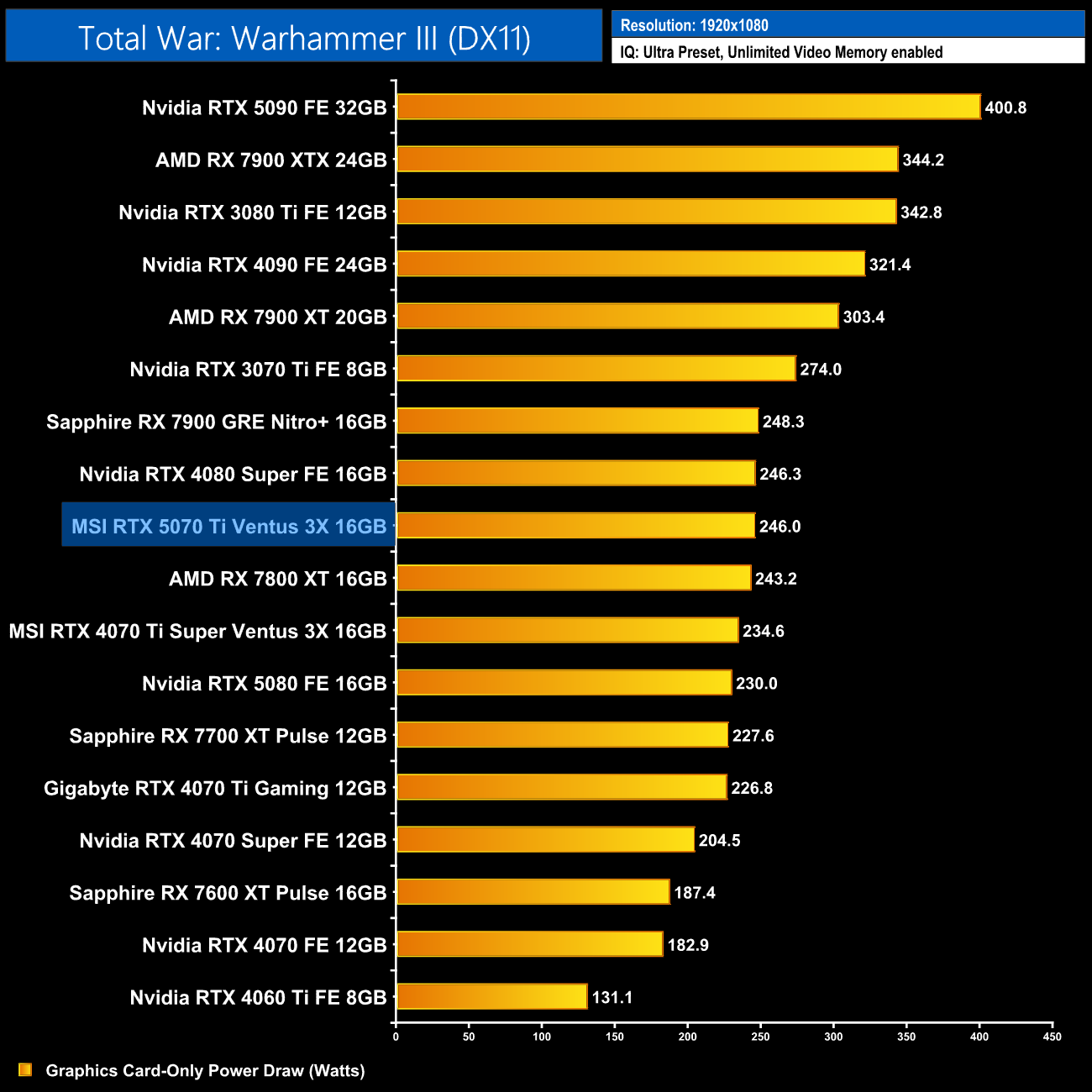

Per-Game Results at 1080p:

Click to enlarge.

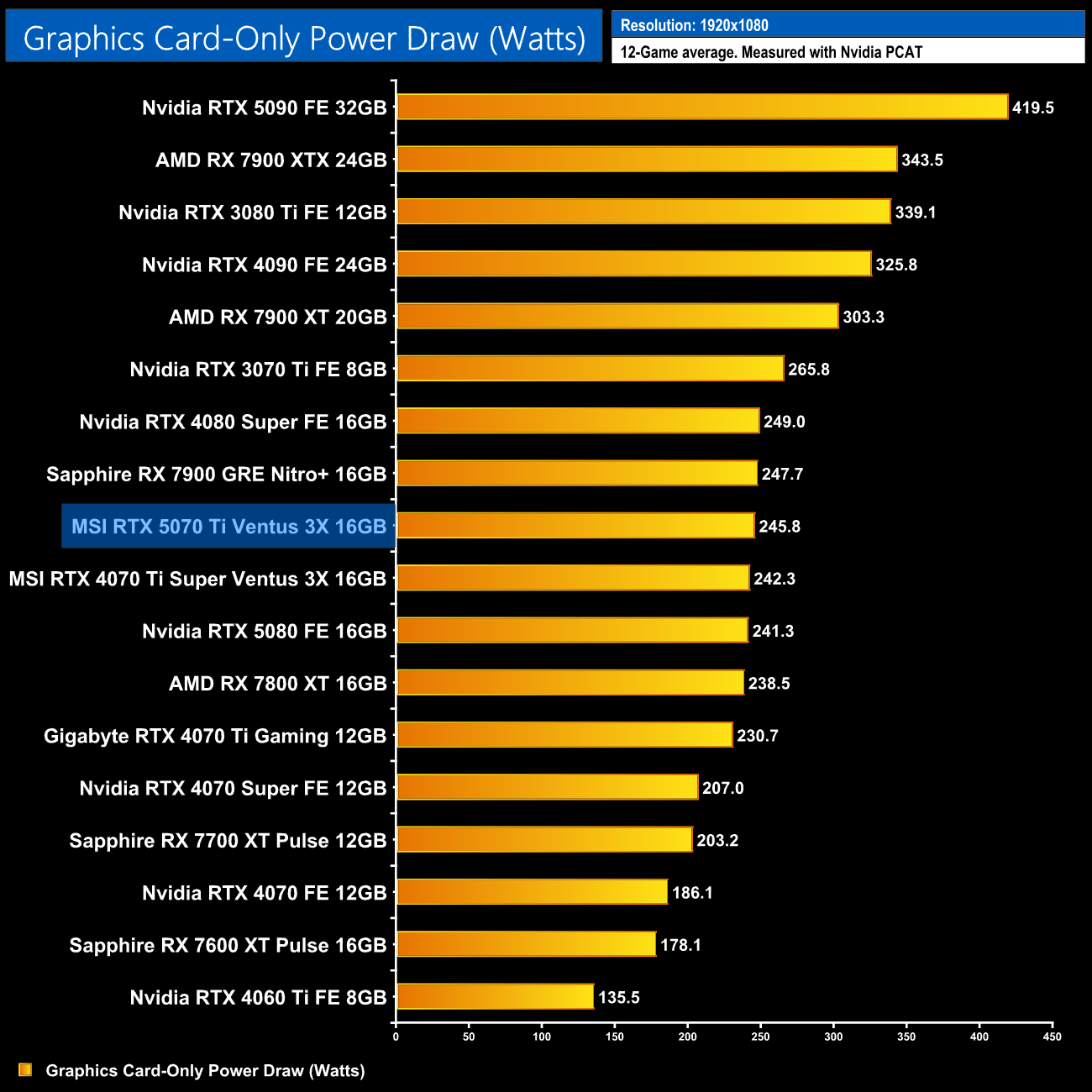

12-Game Average at 1080p:

Power draw at 1080p is well below the rated 300W TGP, but interestingly it is actually higher than the RTX 5080!

Ray tracing results

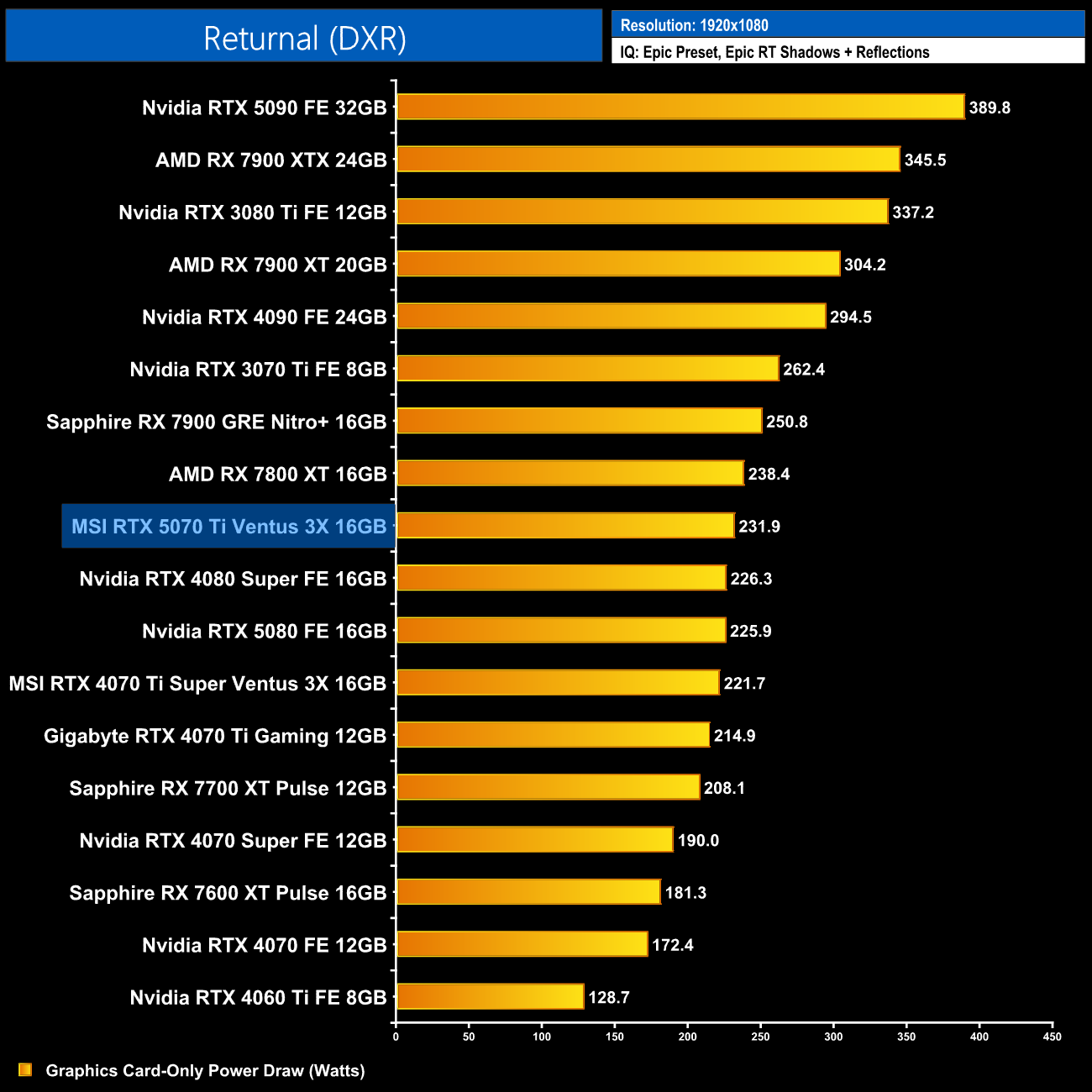

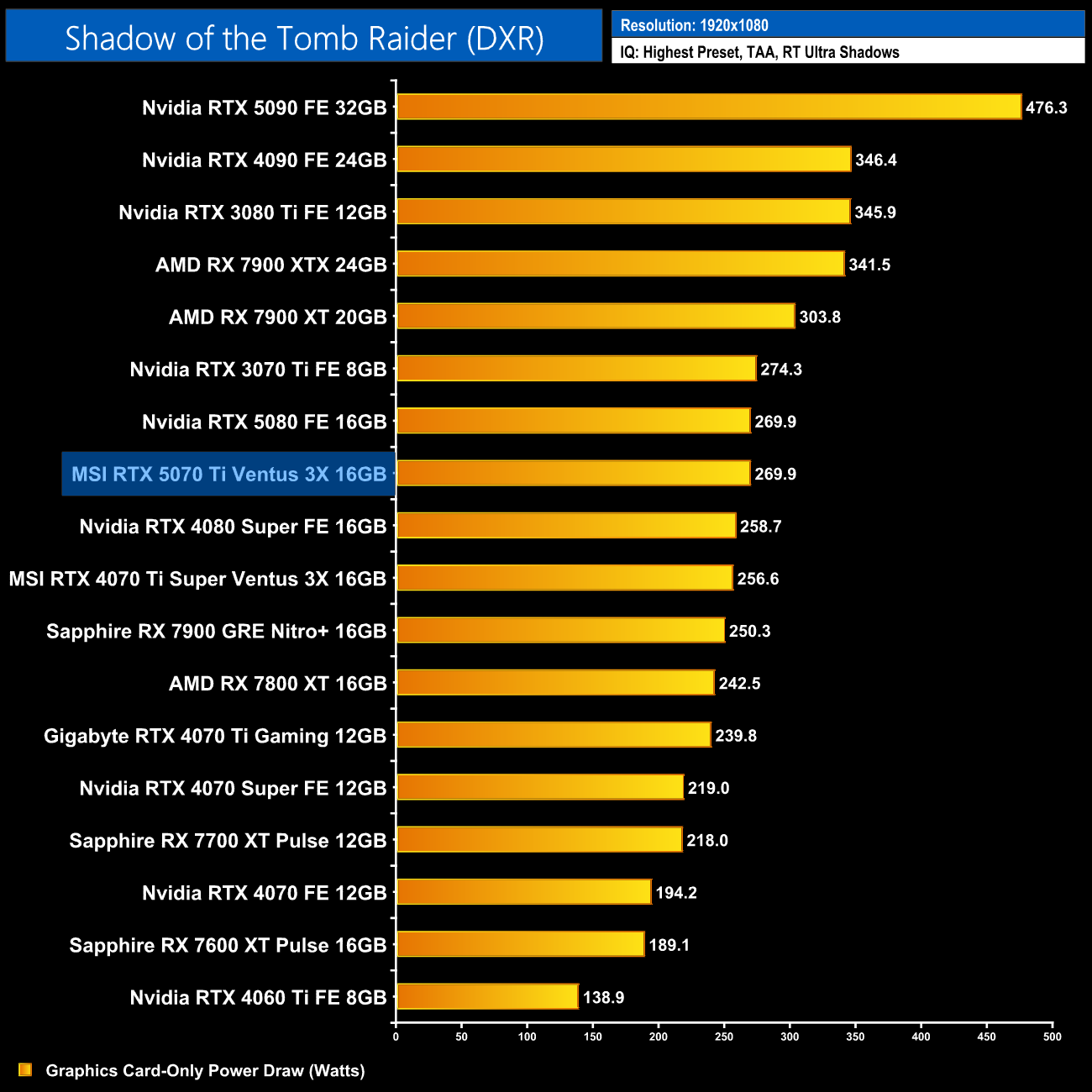

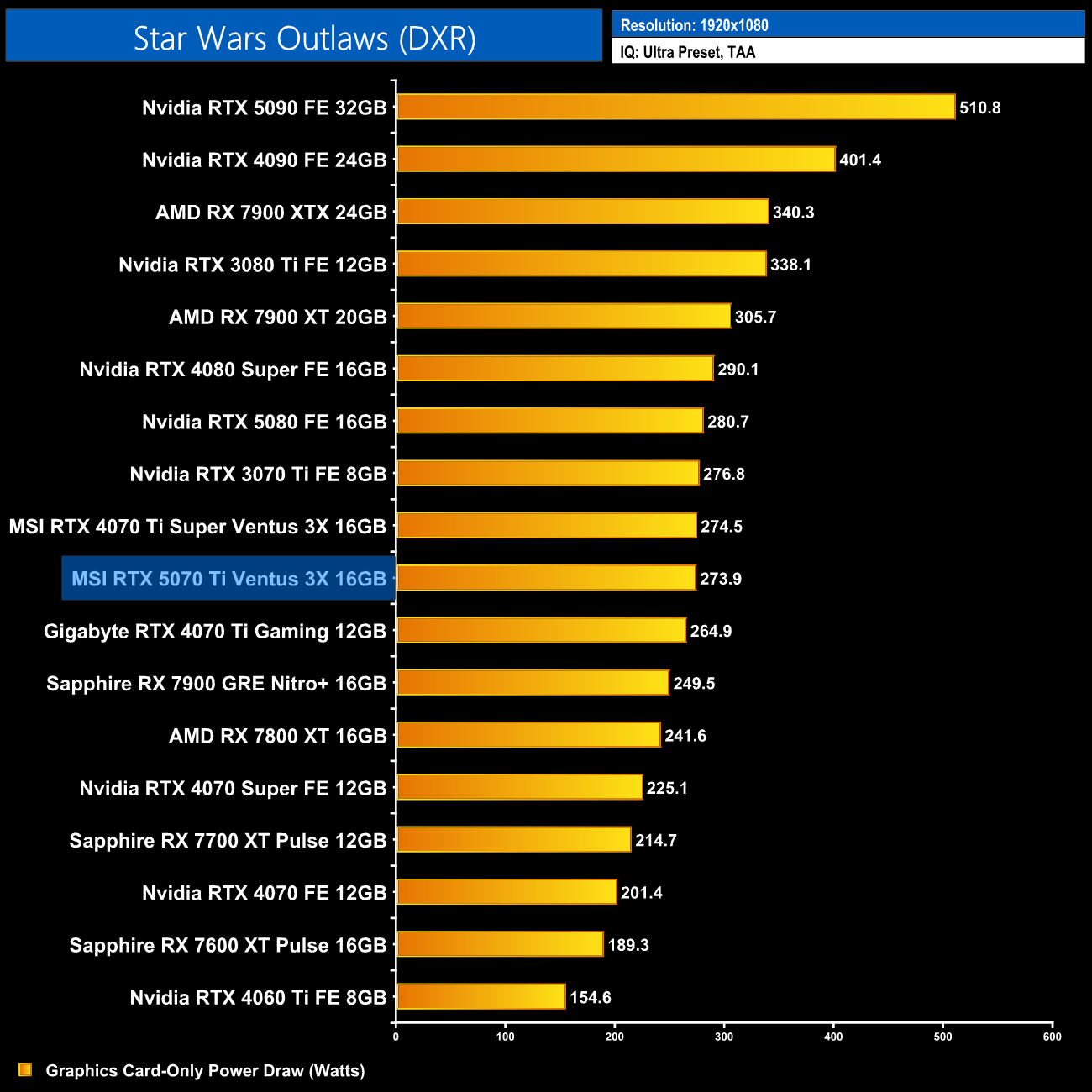

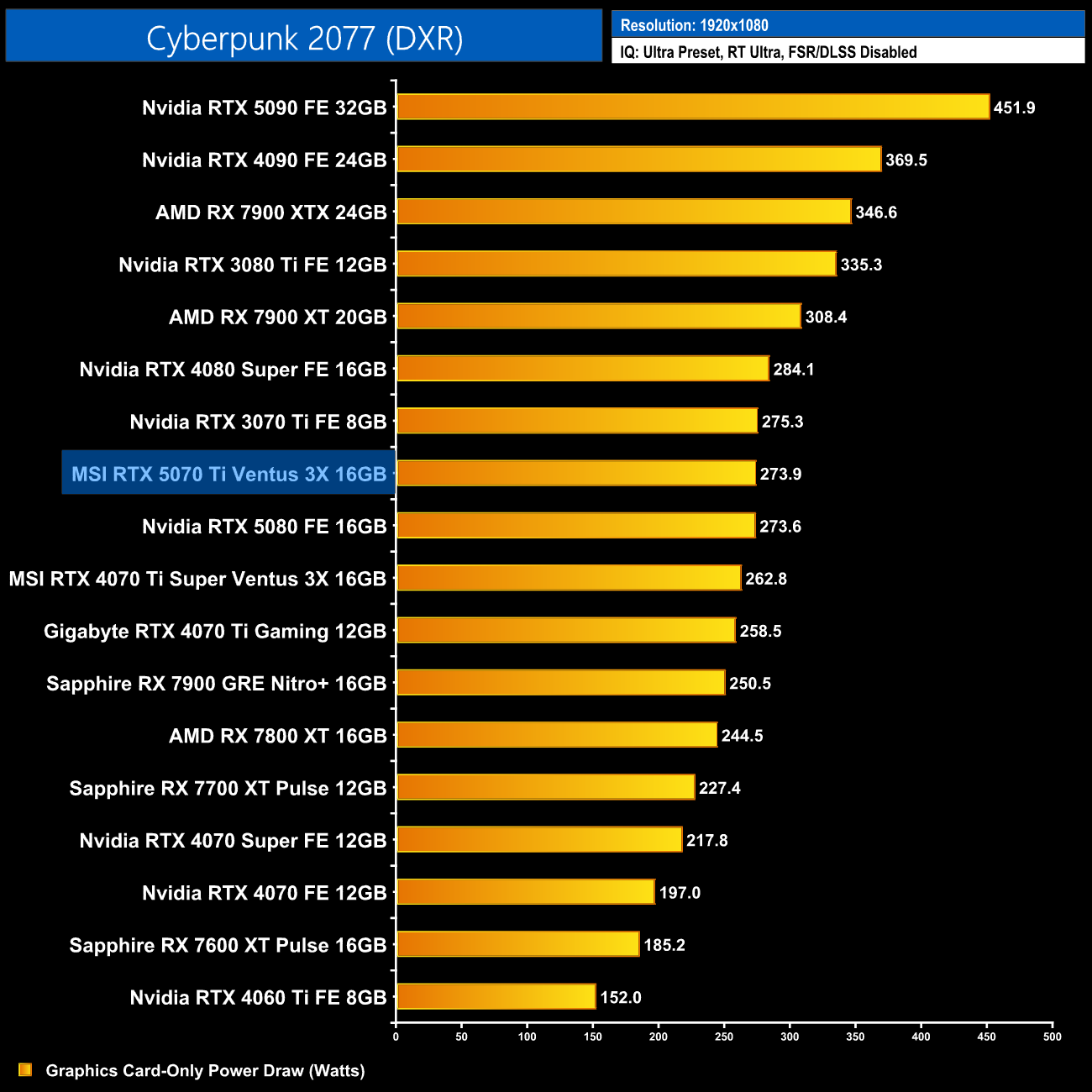

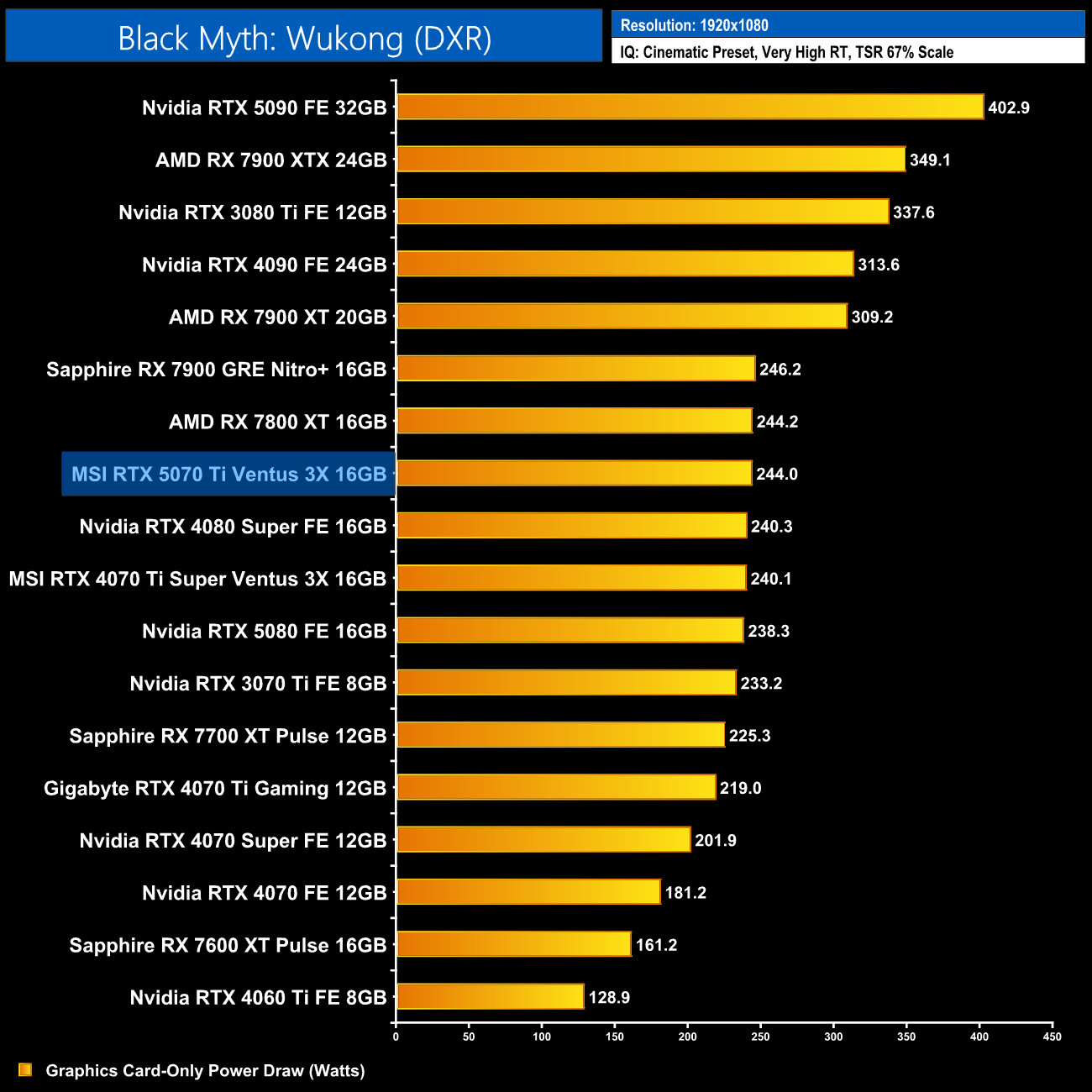

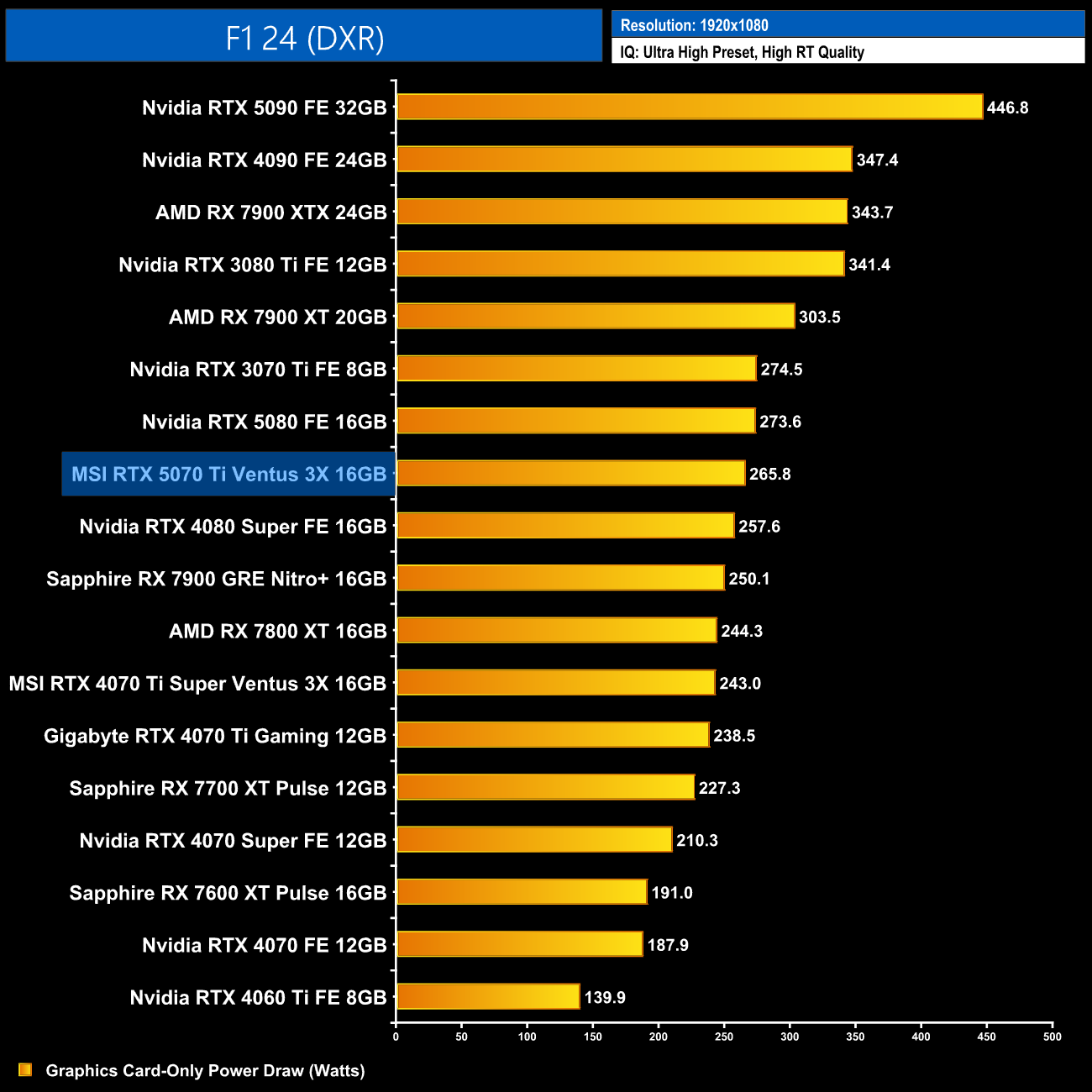

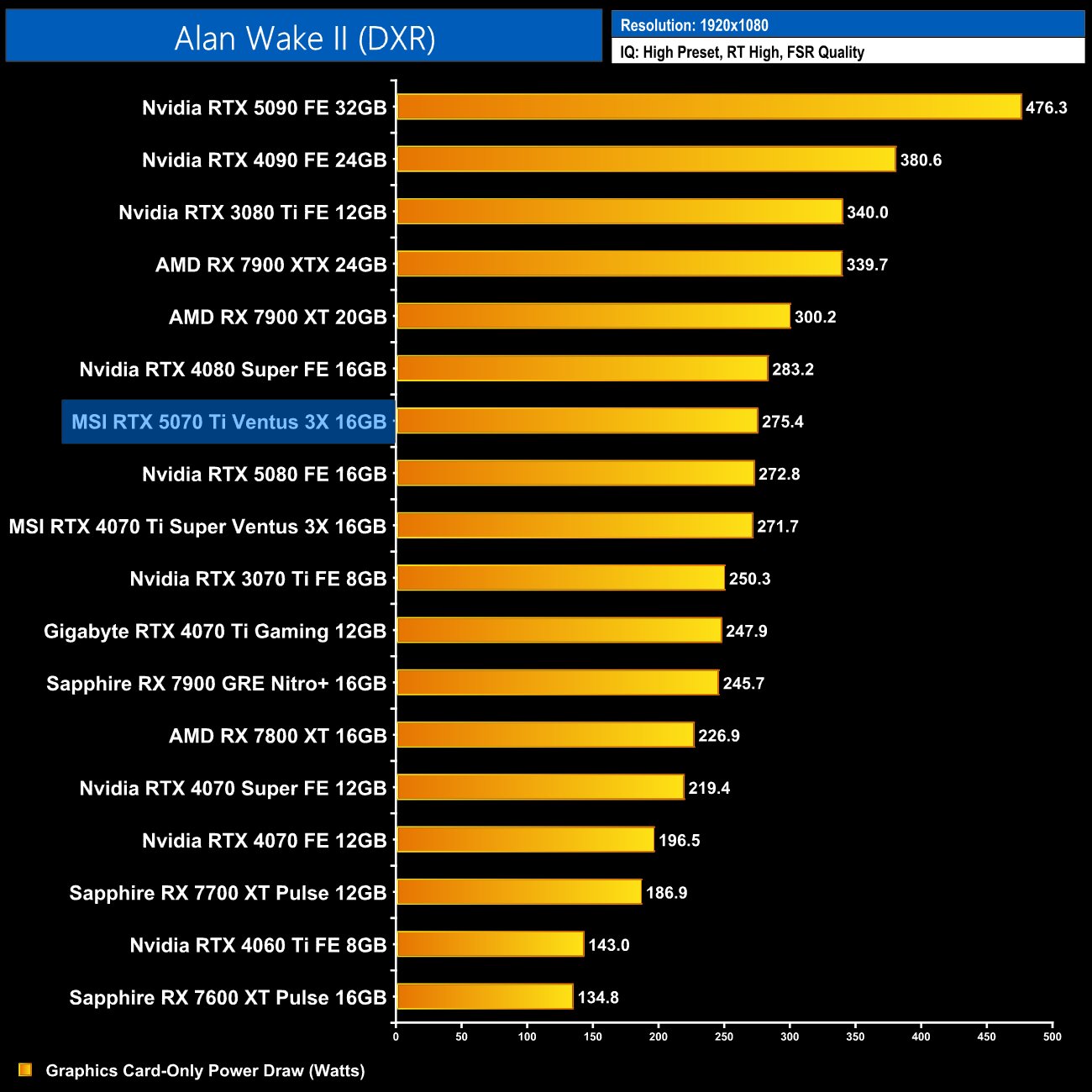

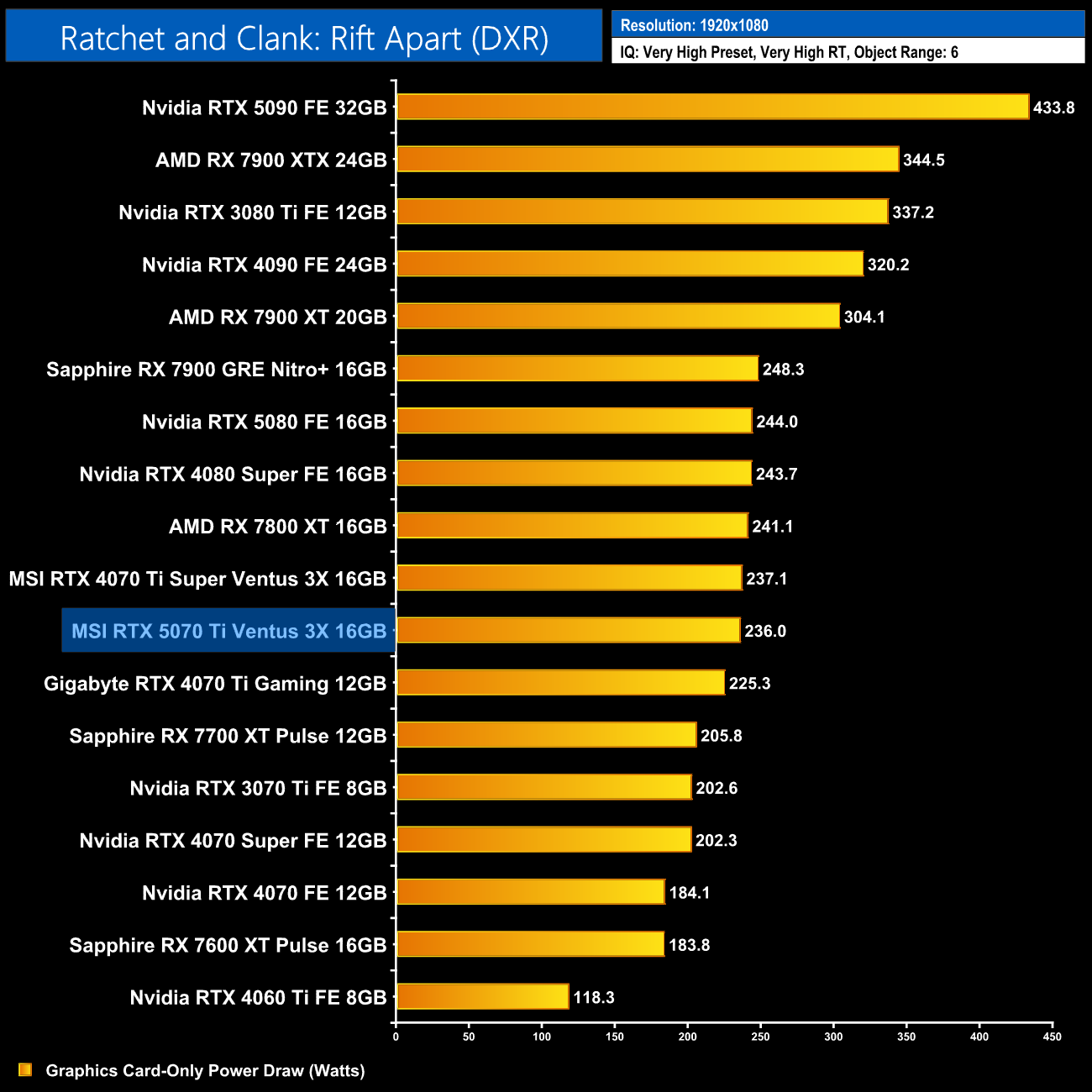

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

8-Game ray tracing average:

With ray tracing enabled, power creeps up to 259W, roughly on par with the RTX 5080.
