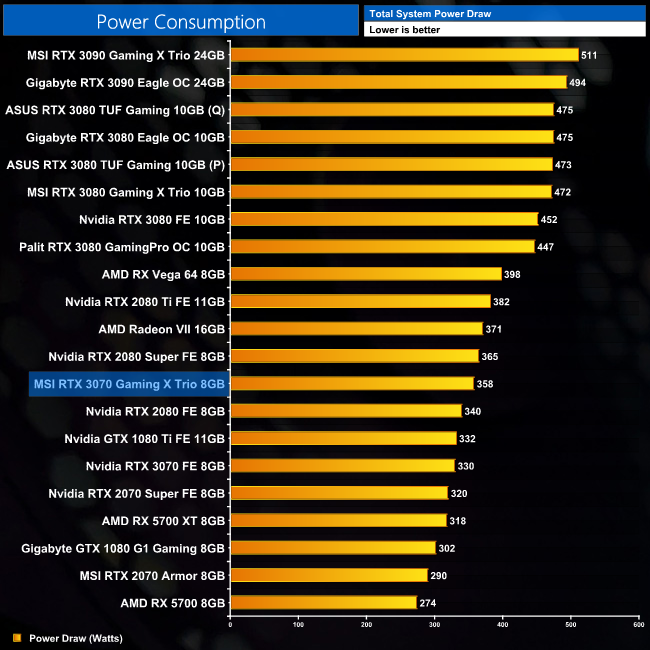

We measure system-wide power draw from the wall while running the 3DMark Time Spy stress test for 30 minutes.

Total system power draw comes in about 30W higher than the RTX 3070 Founders Edition, so it is just shy of the RTX 2080 Super.

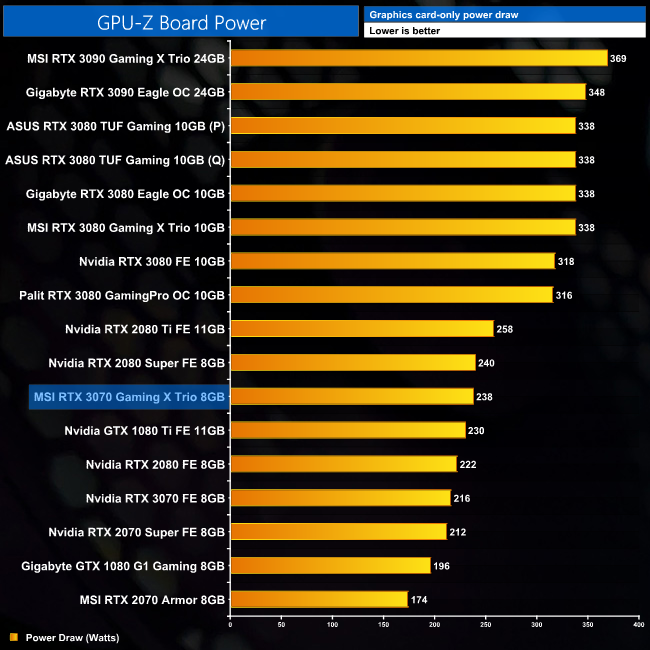

We also use GPU-Z to measure Board Power (graphics card-only power draw). This is currently only available for Nvidia cards, which is why we have excluded AMD results from the chart. Aside from the fact this is software-based reporting, and not a hardware measurement of the PCIe power cables and PCIe slot (for that we’d need something like PCAT), this should provide us more accurate data to work with as it is measuring only the GPU power, and not total system power which is a fundamentally imprecise measurement.

Looking at GPU-only power paints a clearer picture, and we can see the RTX 3070 Gaming X Trio averaged 238W under load, which is bang in line with its 240W target. This puts power draw 22W above the RTX 3070 Founders Edition, but still 20W less than RTX 2080 Ti FE.
