Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

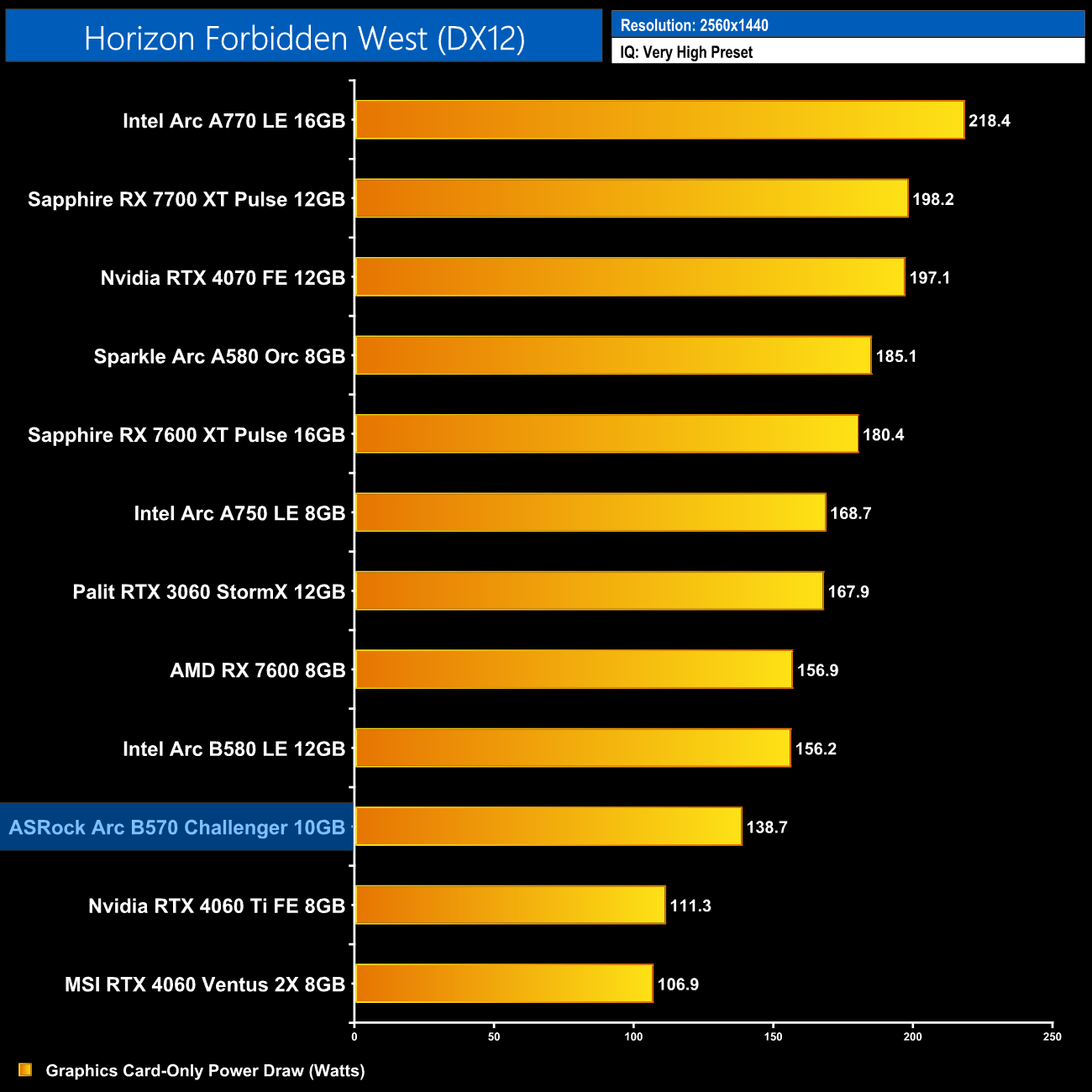

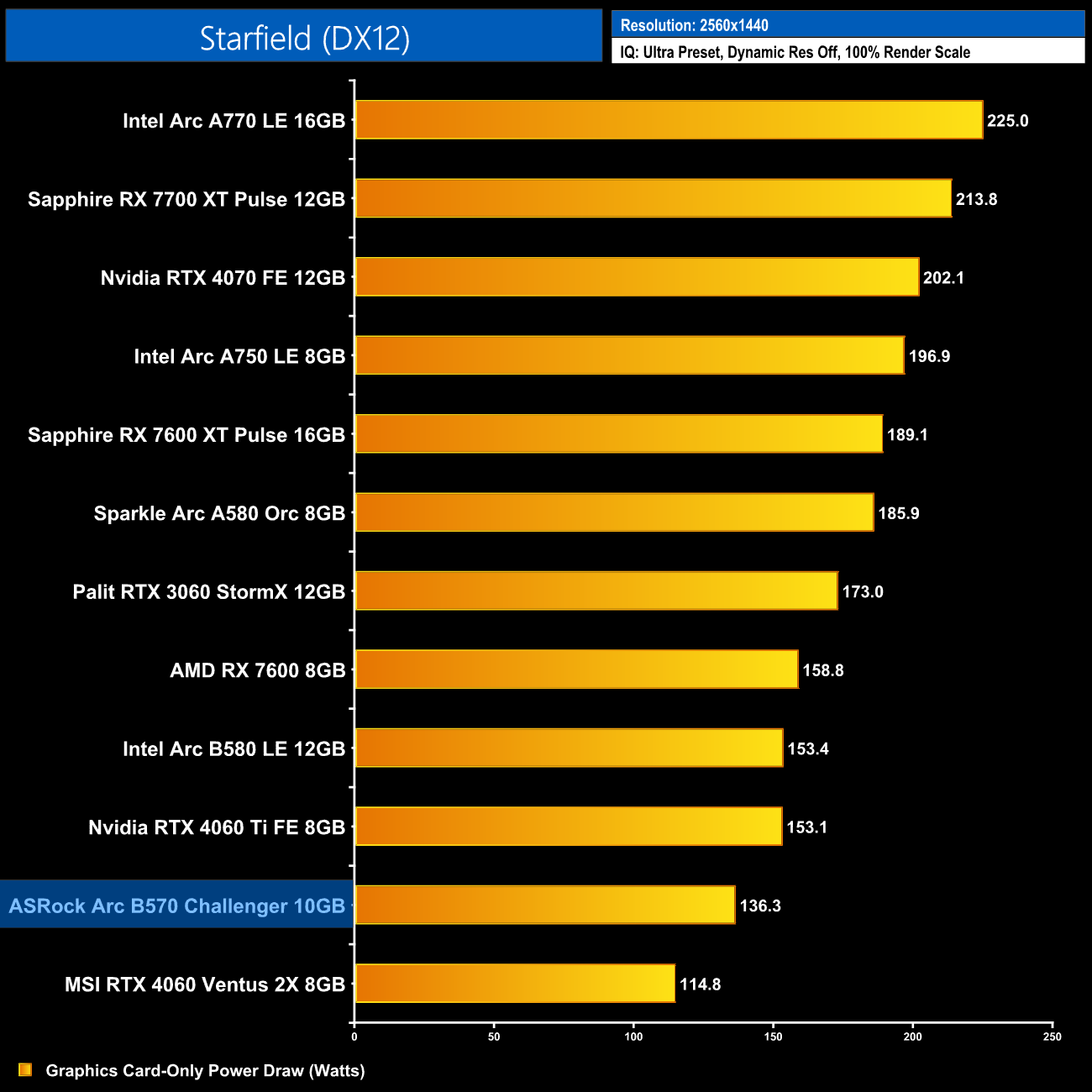

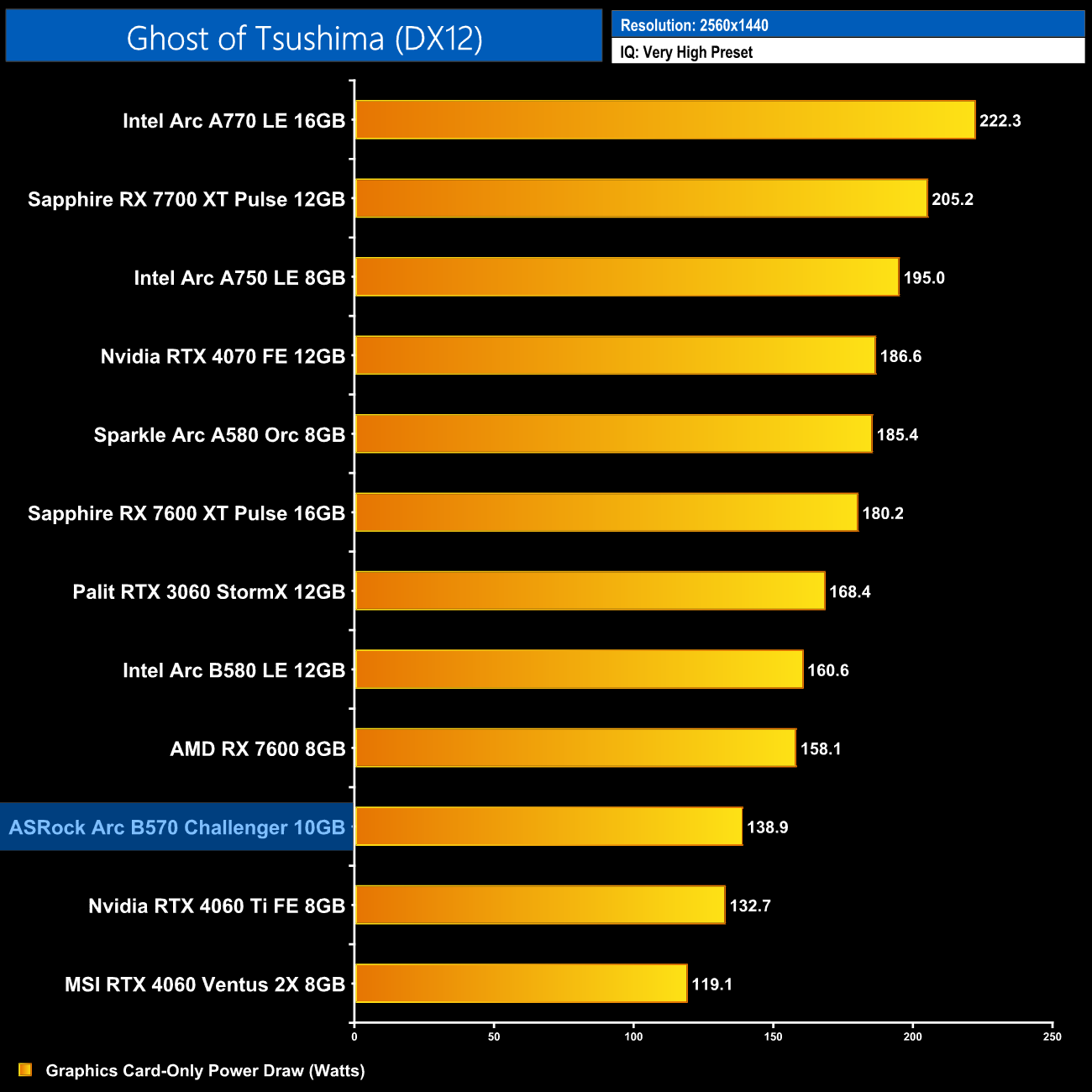

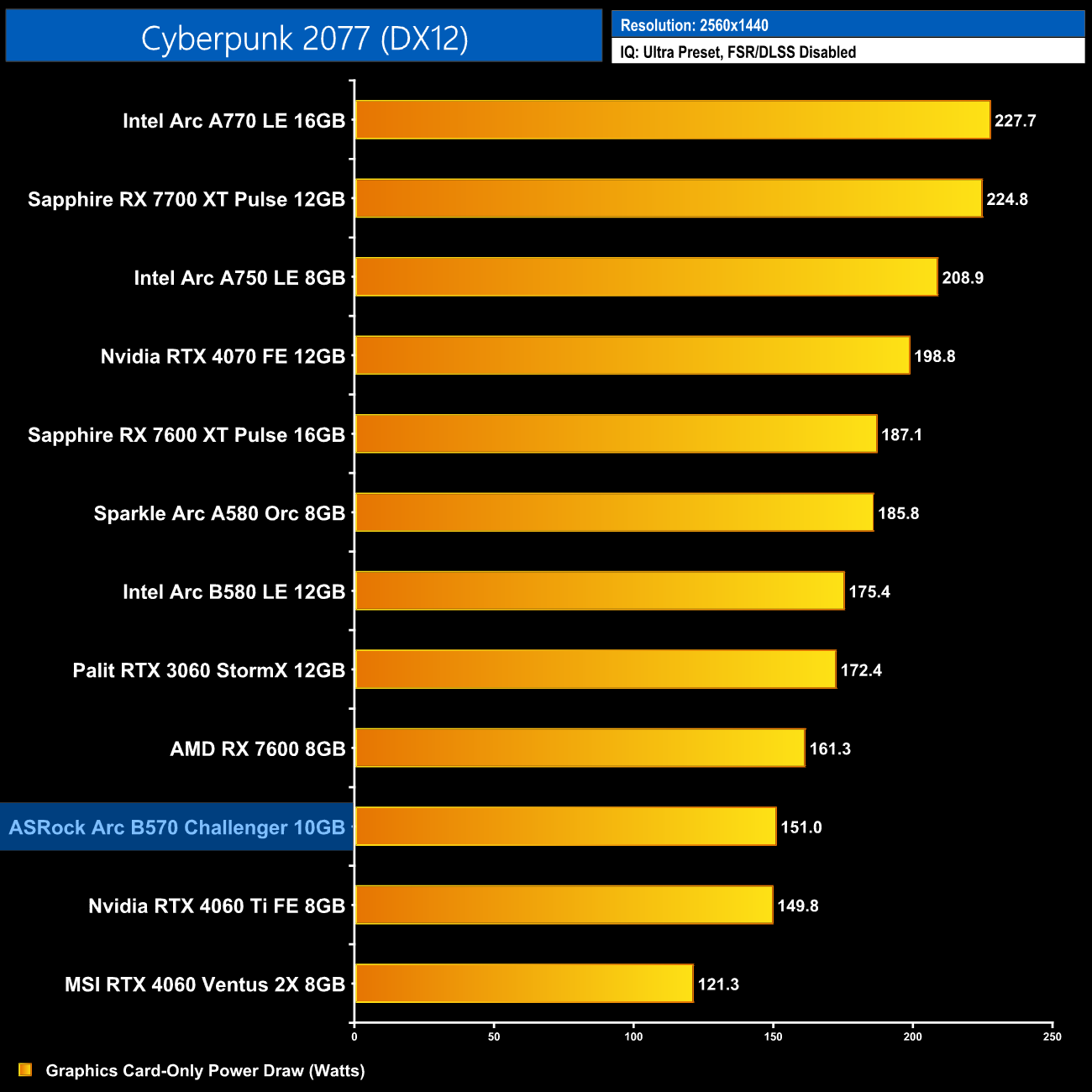

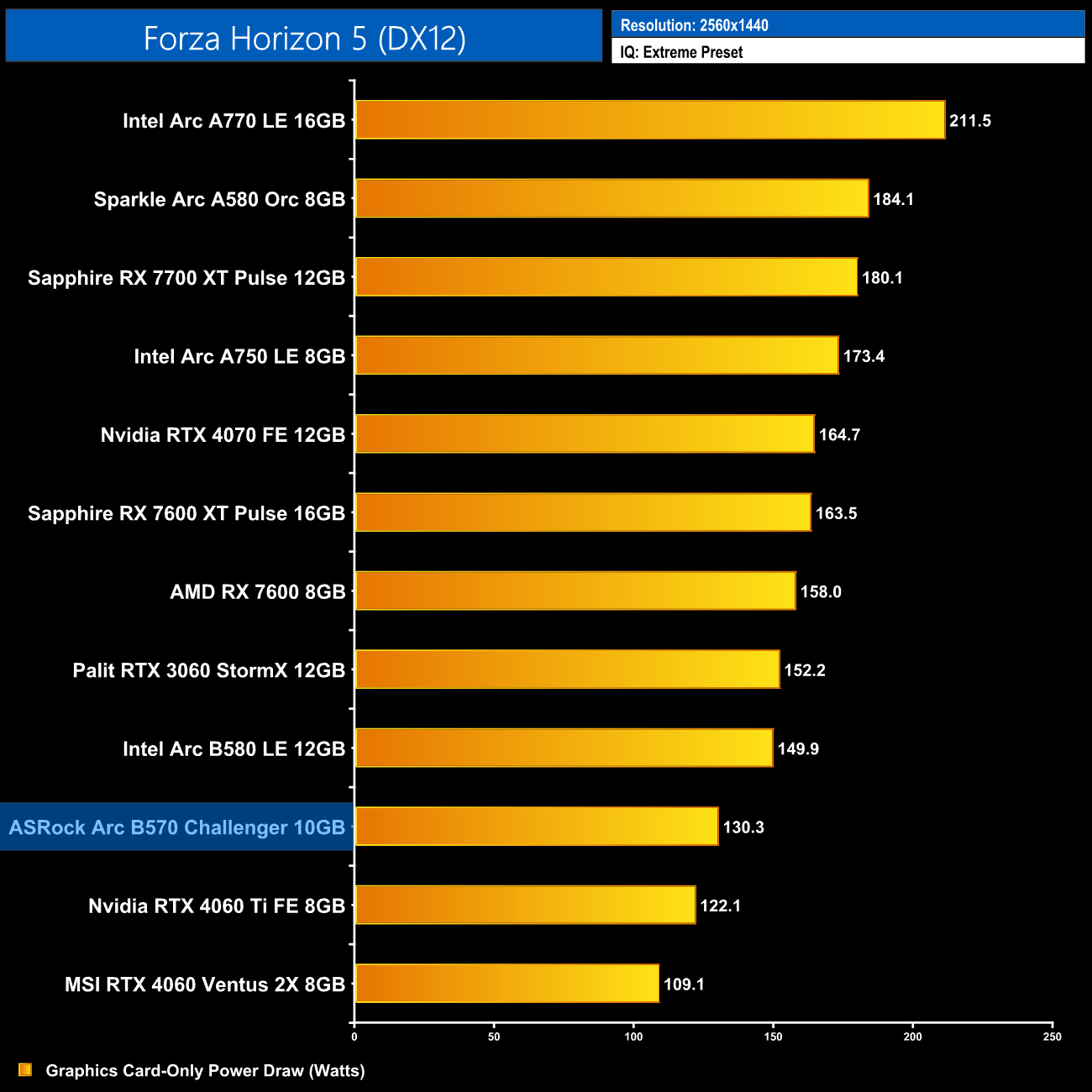

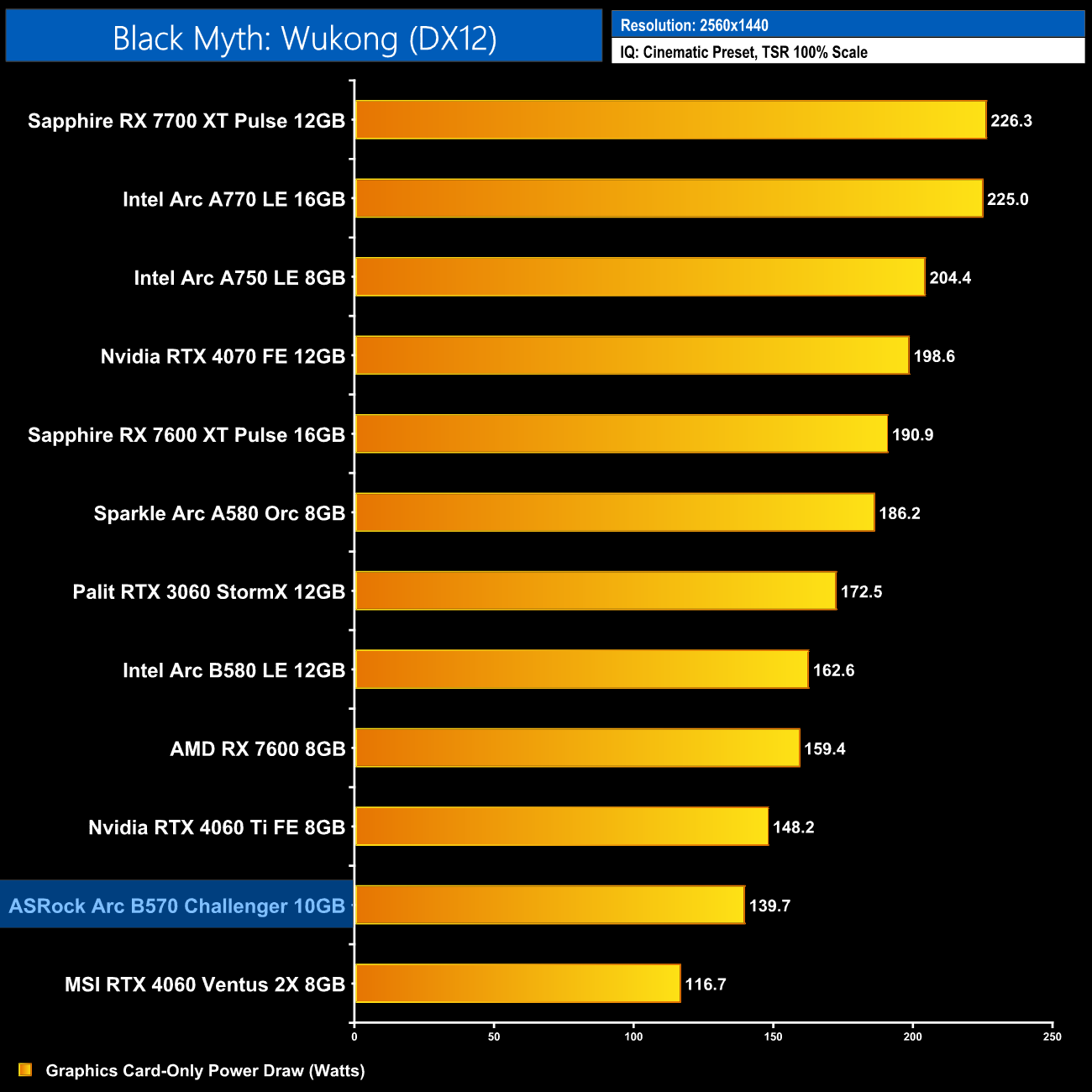

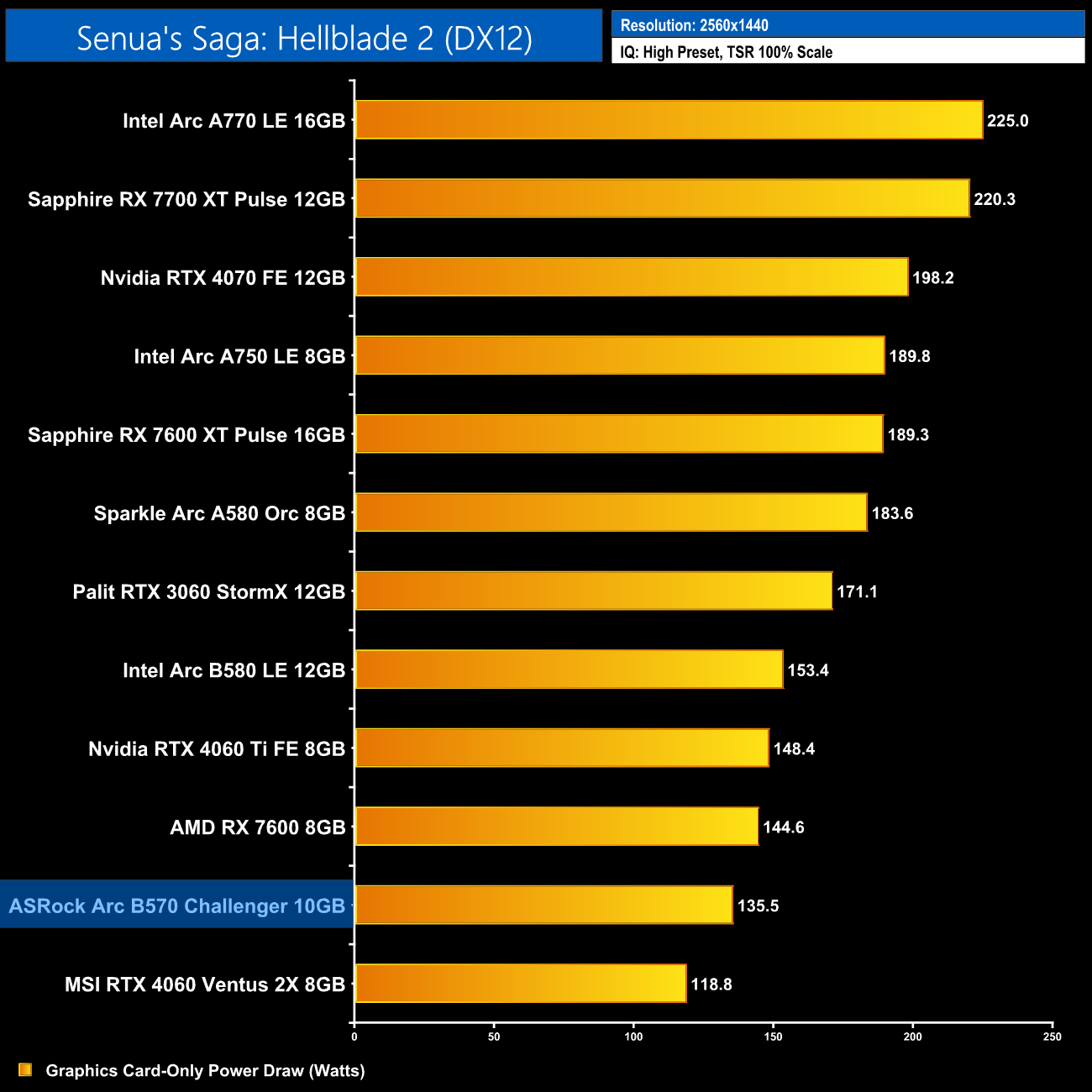

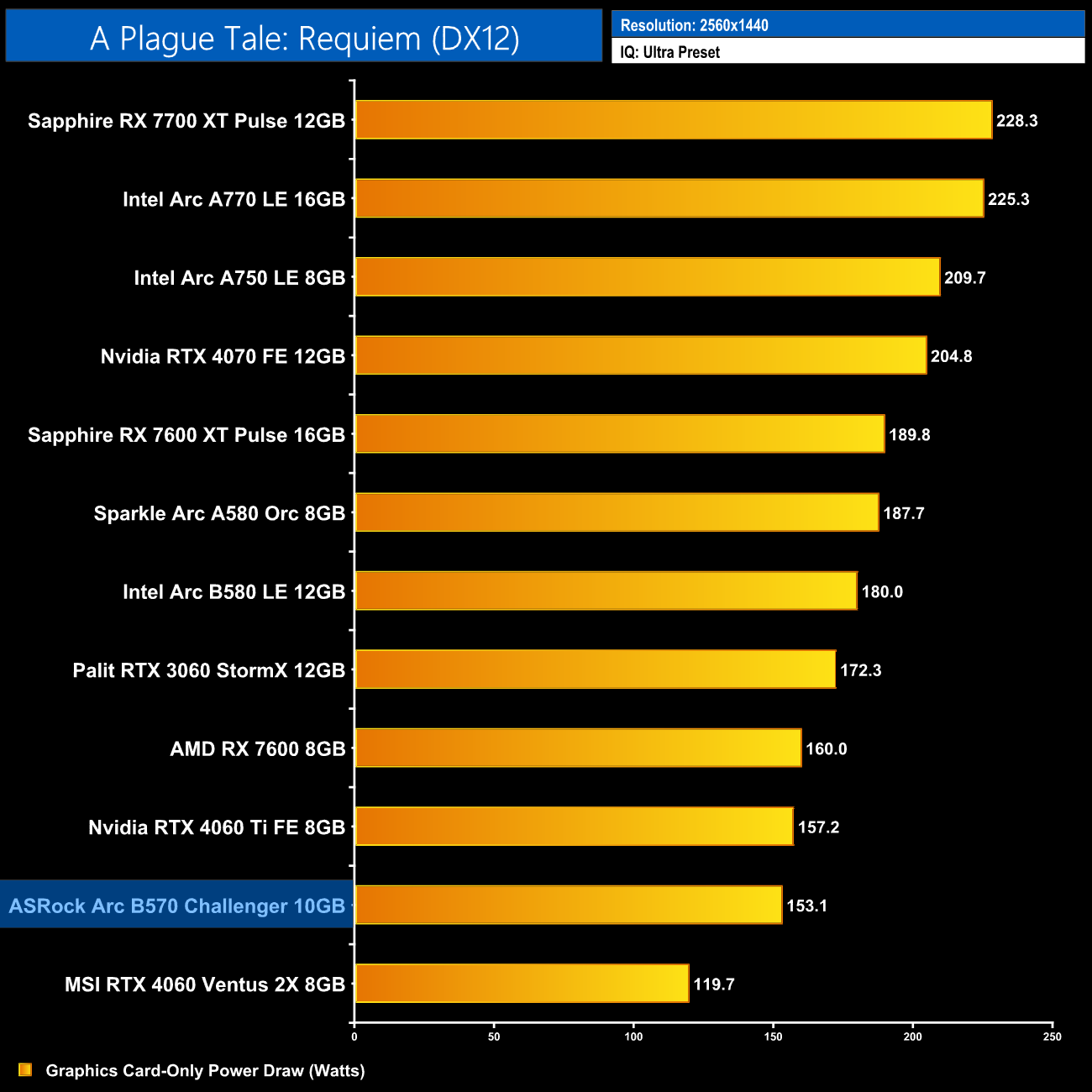

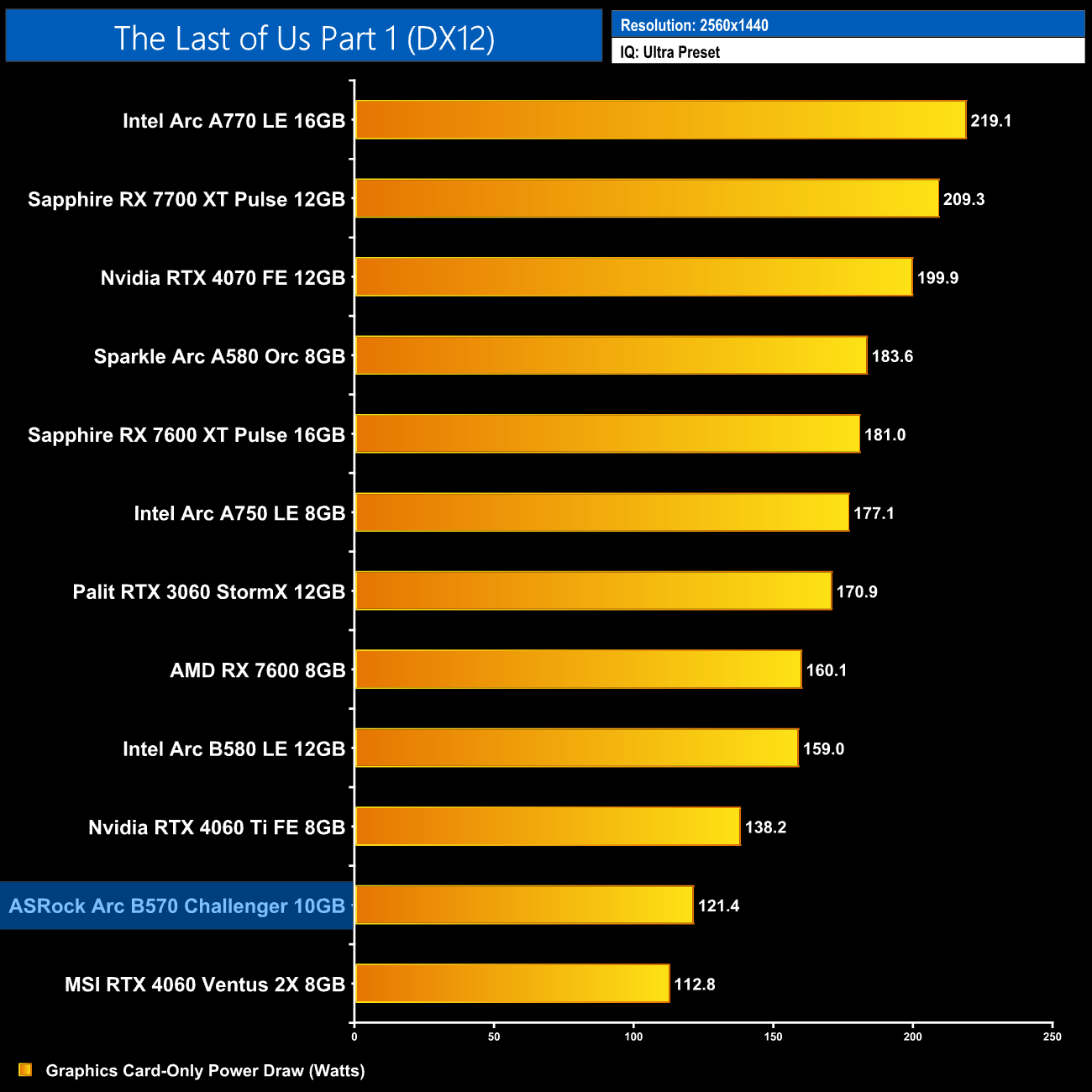

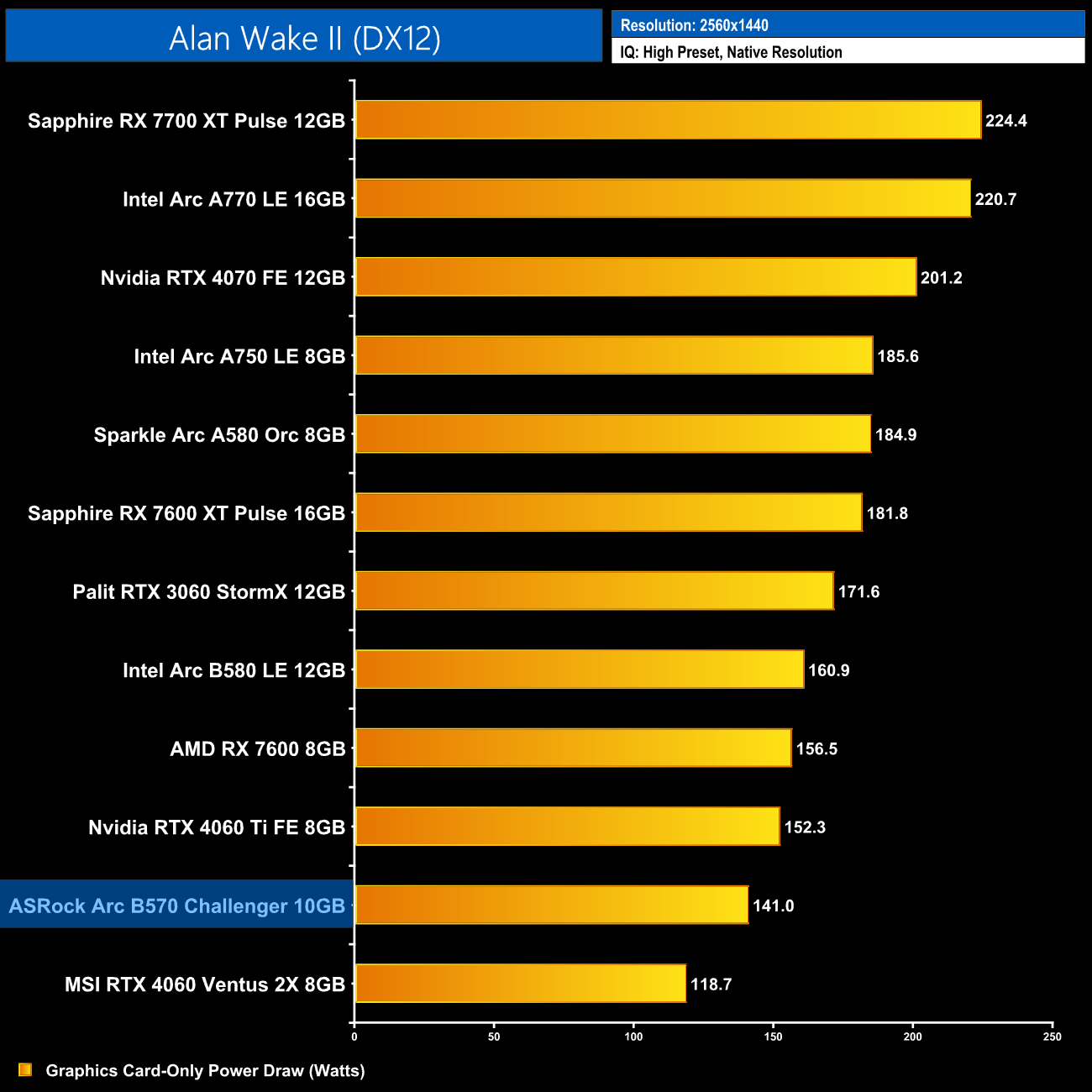

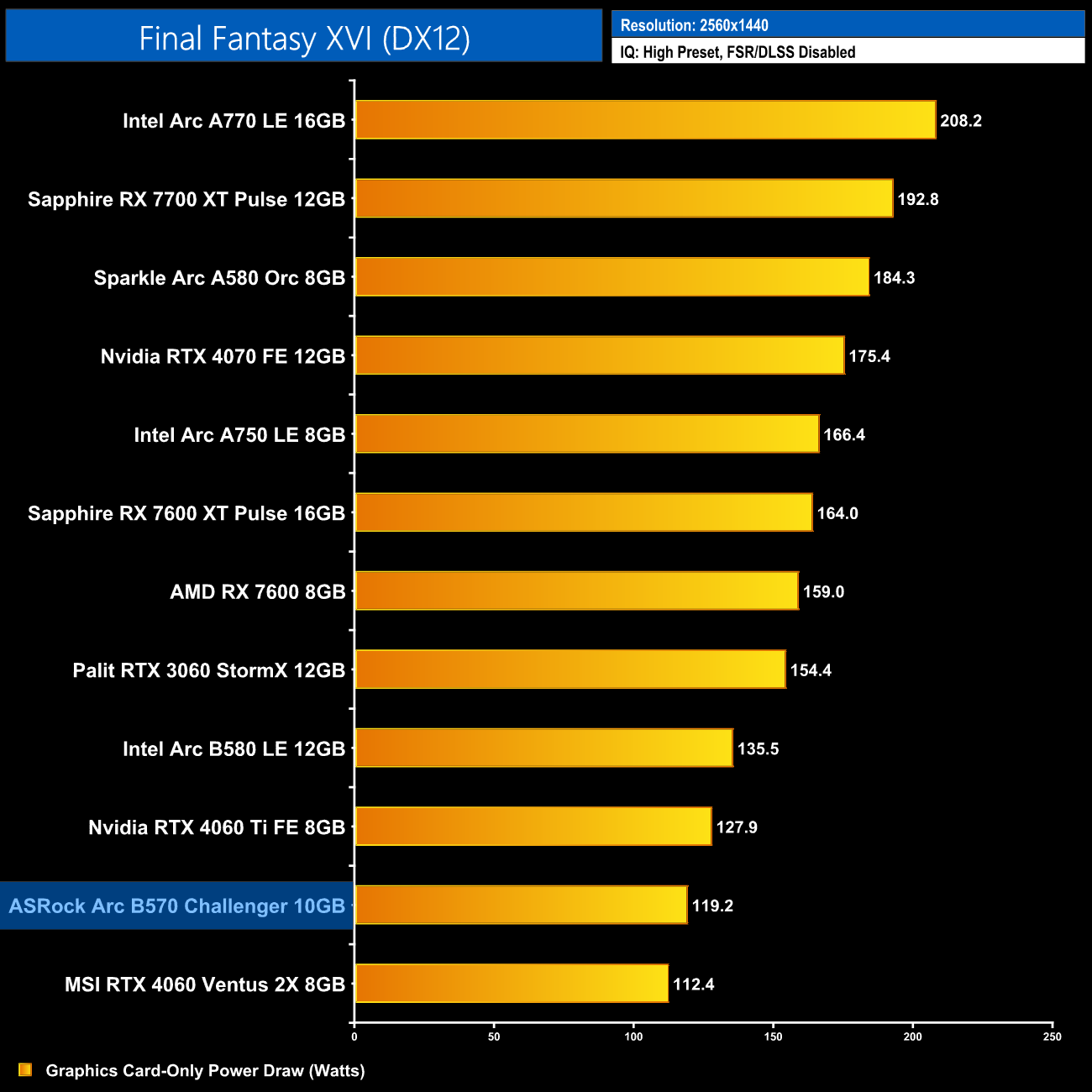

Per-Game Results at 1440p:

Click to enlarge.

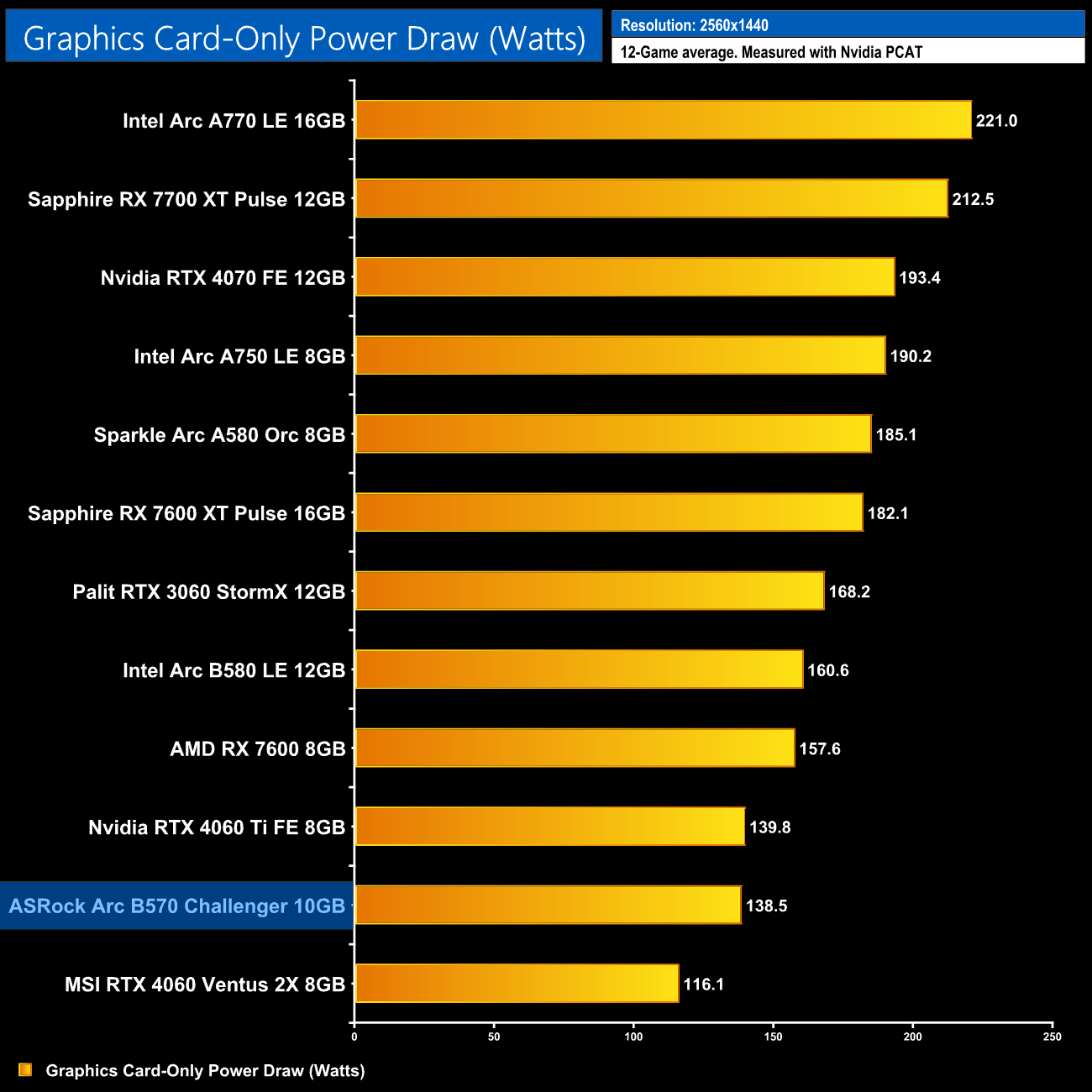

12-Game Average at 1440p:

At 1440p, power draw does increase slightly, but it's still below 140W – or 138.5W, to be precise. You can already tell that Nvidia's GPUs are more efficient, considering the RTX 4060 Ti draws a similar amount of power yet is a good chunk faster, but it's hardly a horrible amount of power draw for the B570.

Ray tracing results

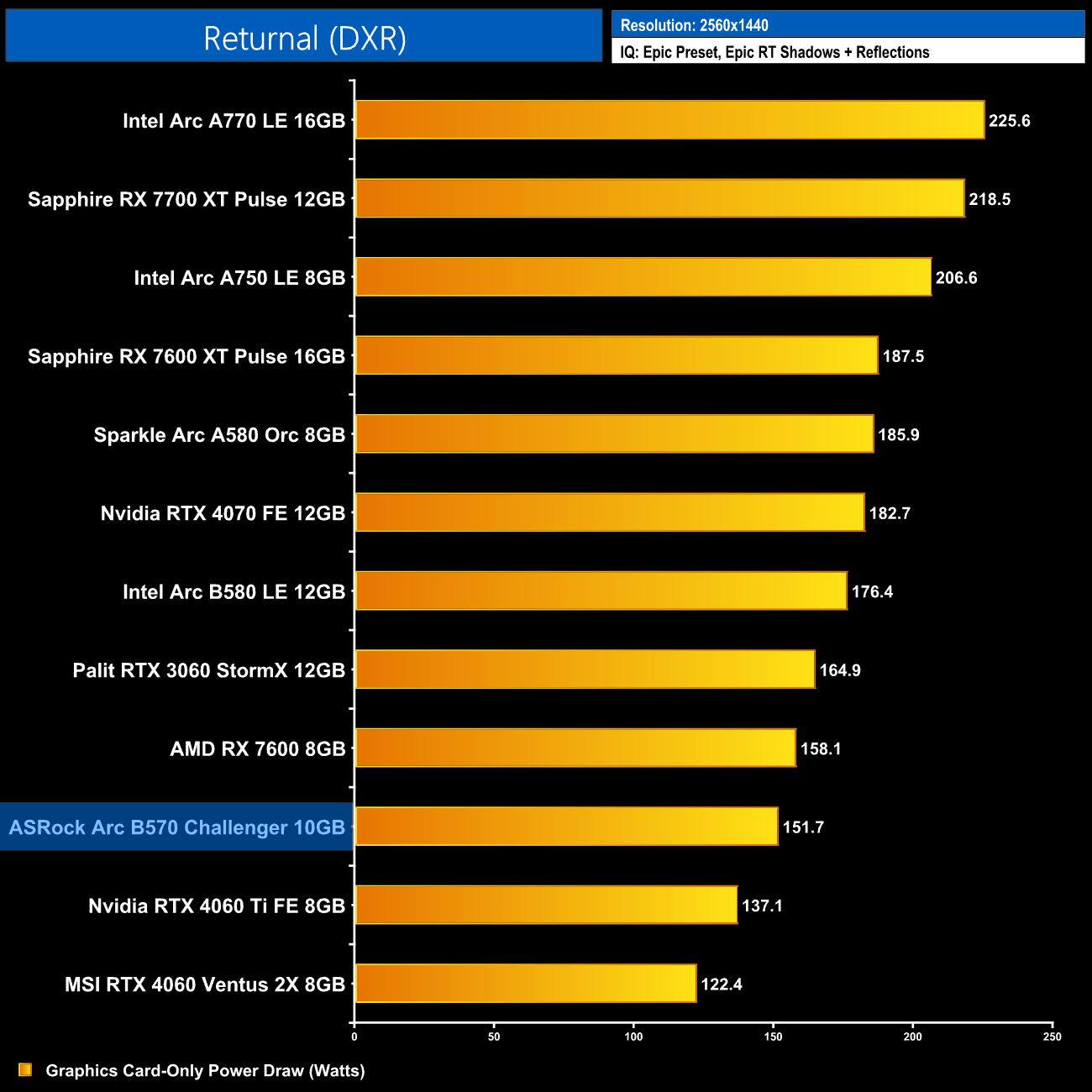

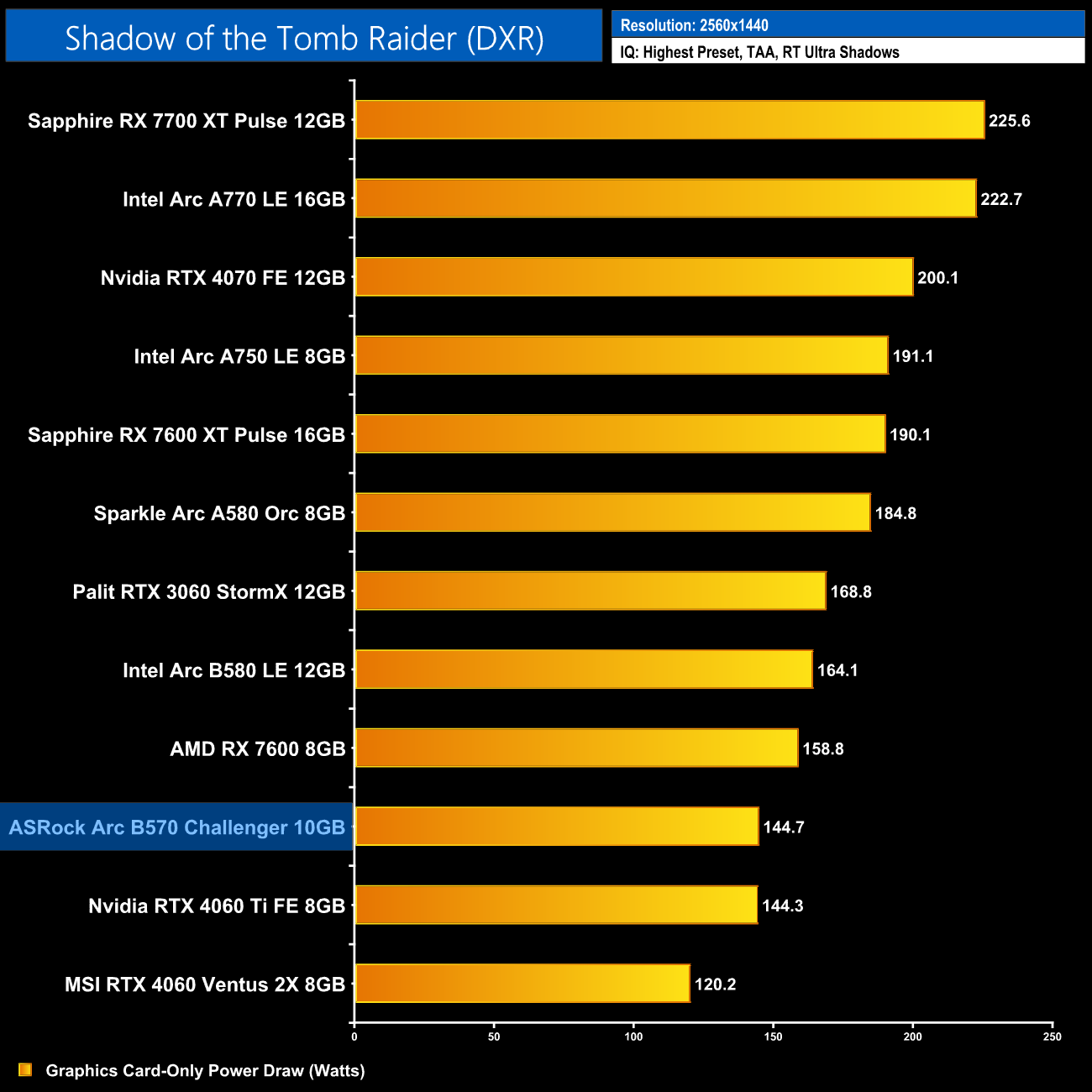

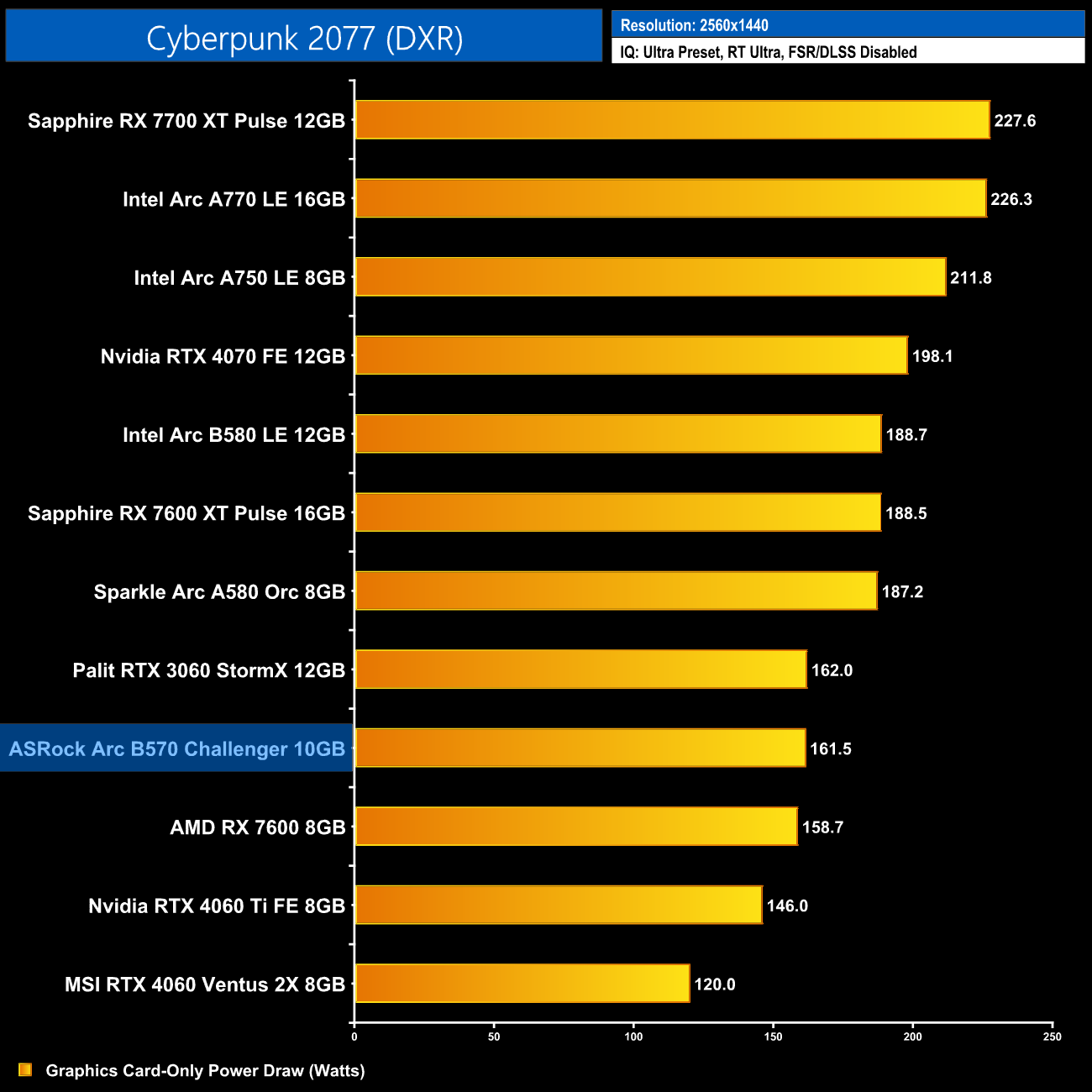

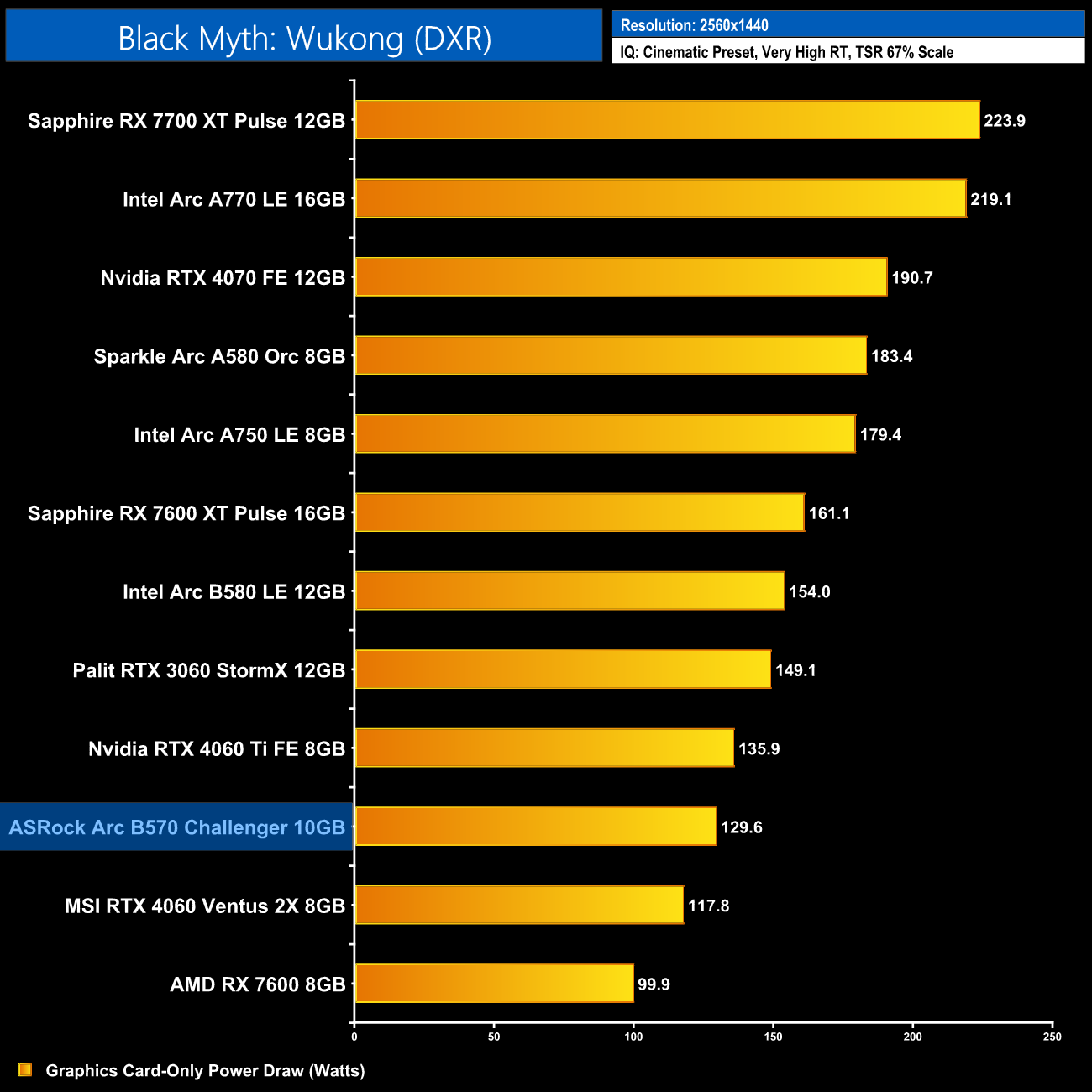

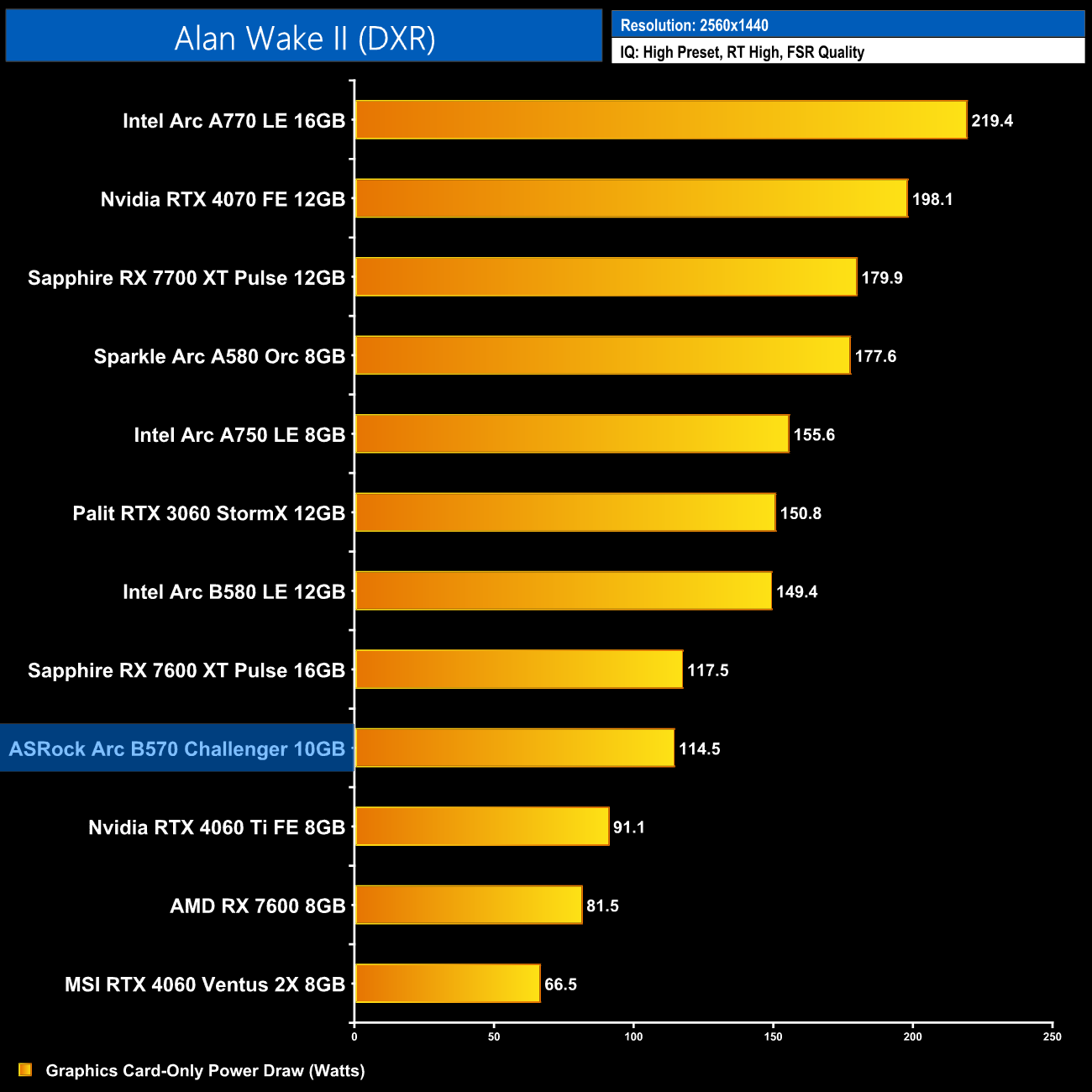

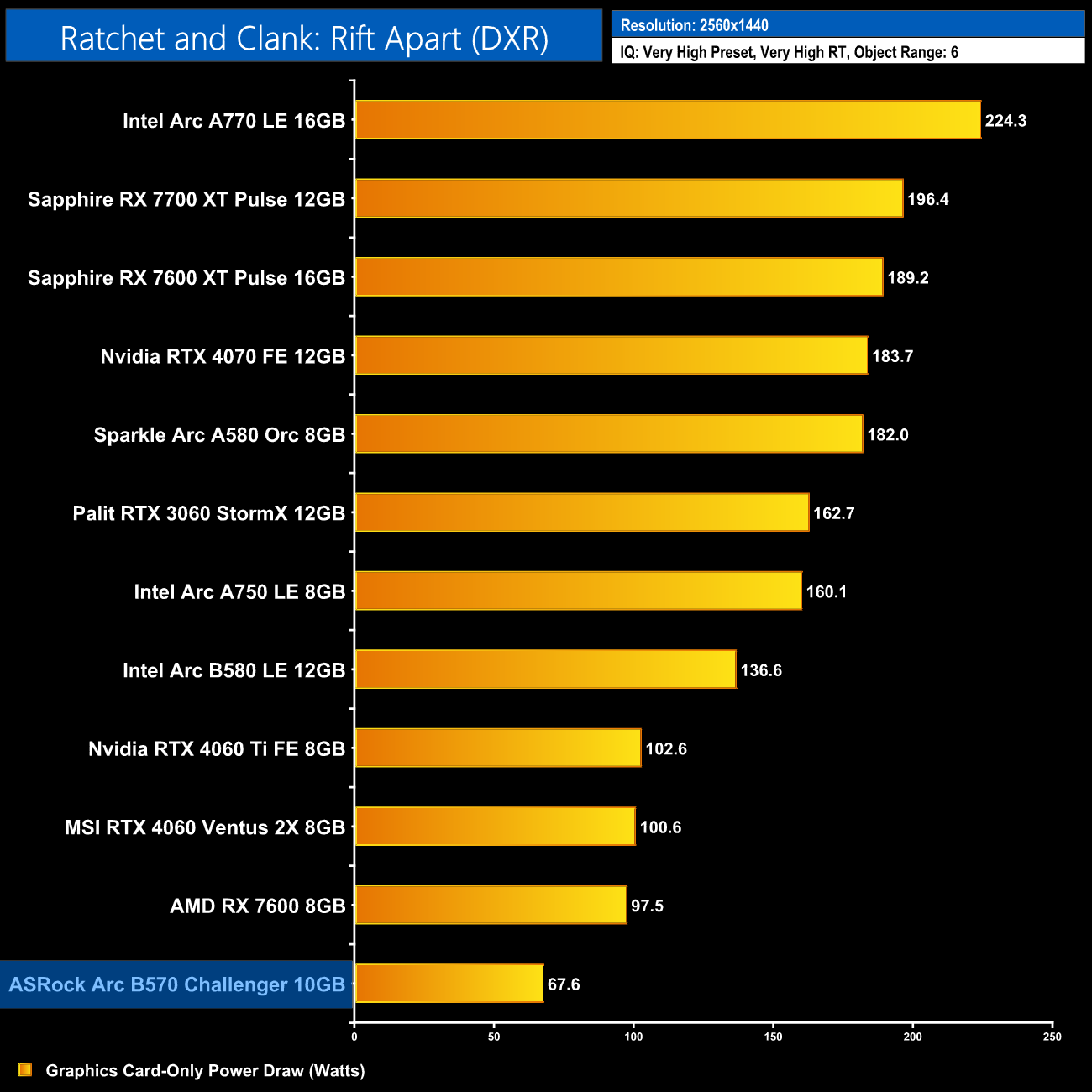

As a bonus, we now include the power figures for all six games we test with ray tracing enabled.

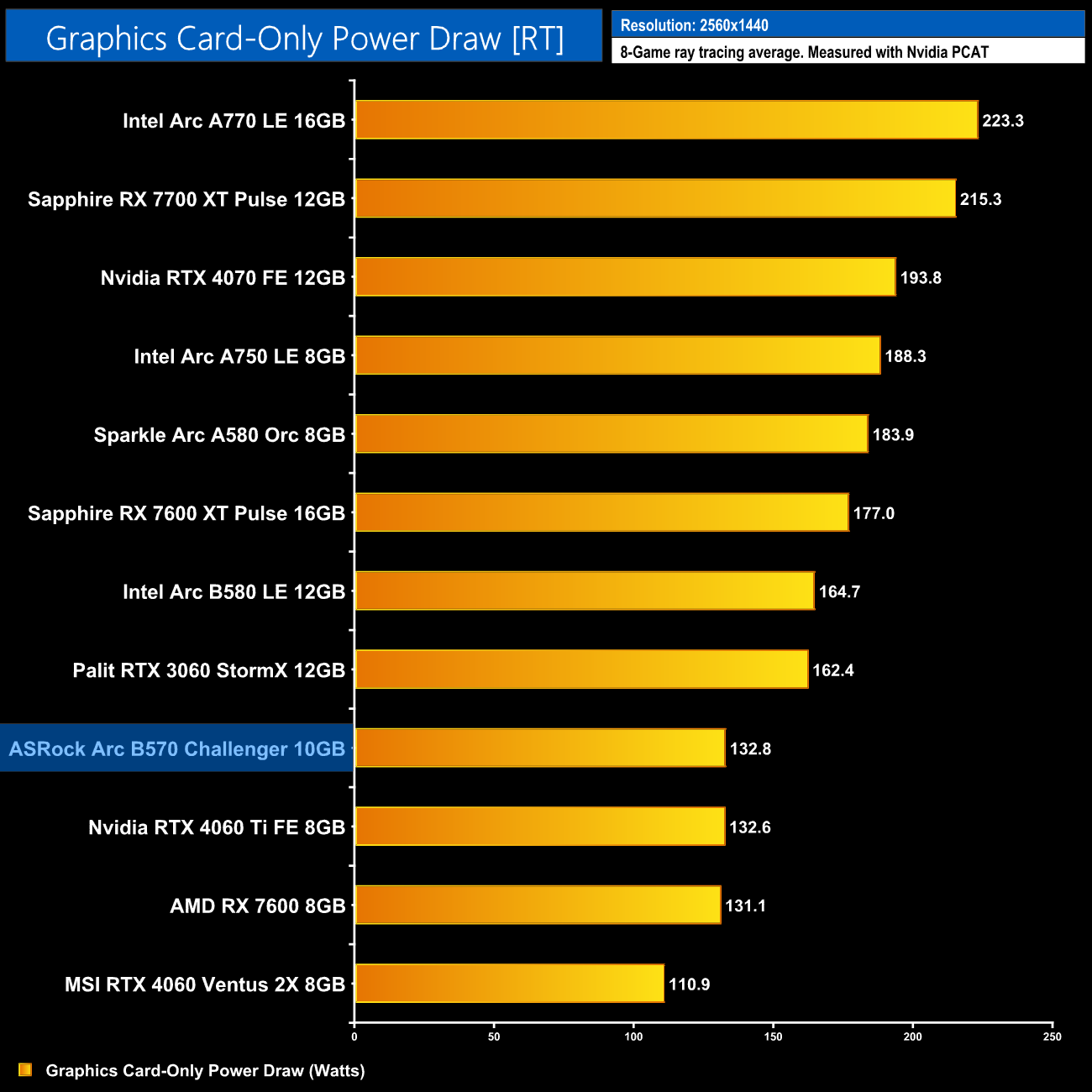

8-Game ray tracing average:

Ray tracing power is a touch lower, still around 133W.
