Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

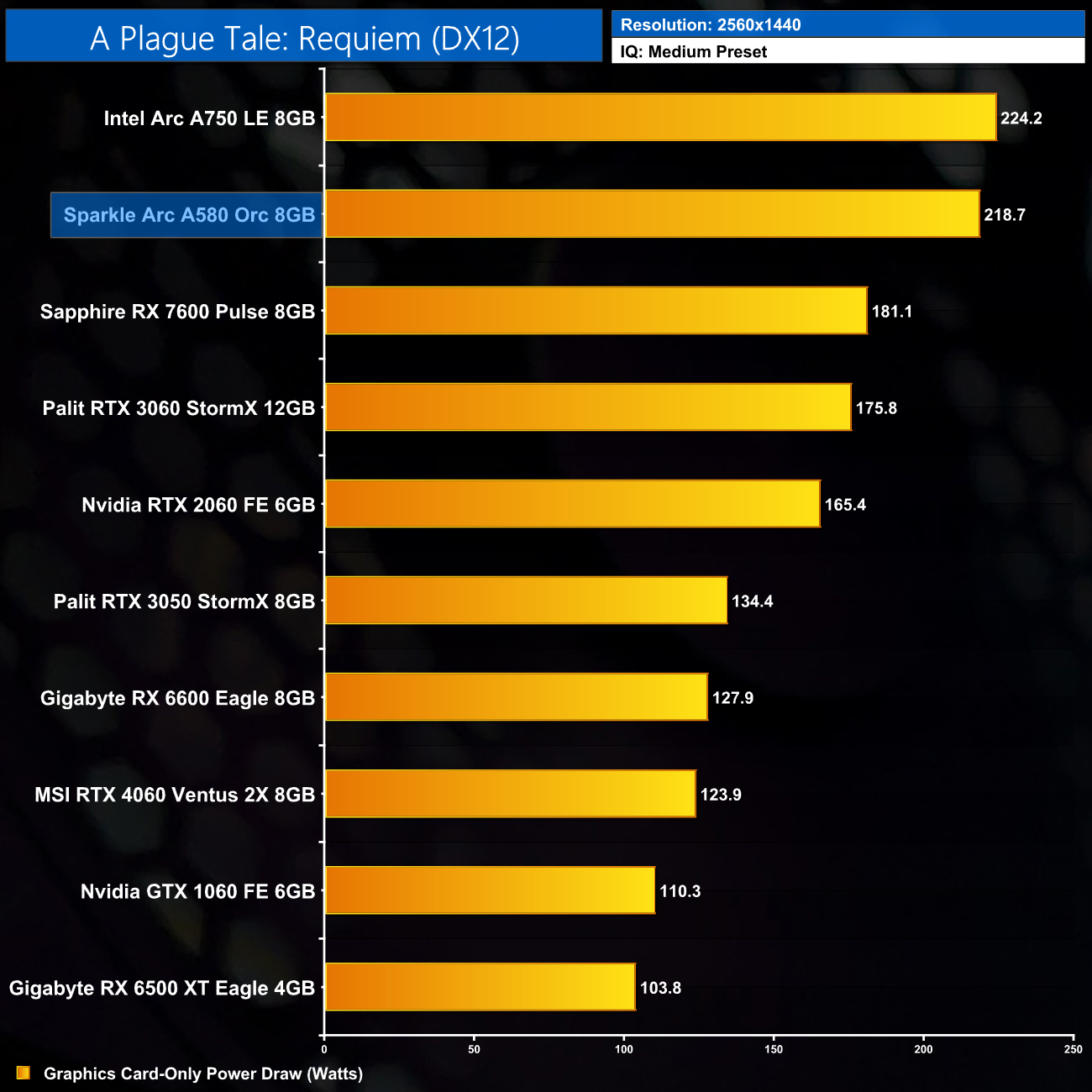

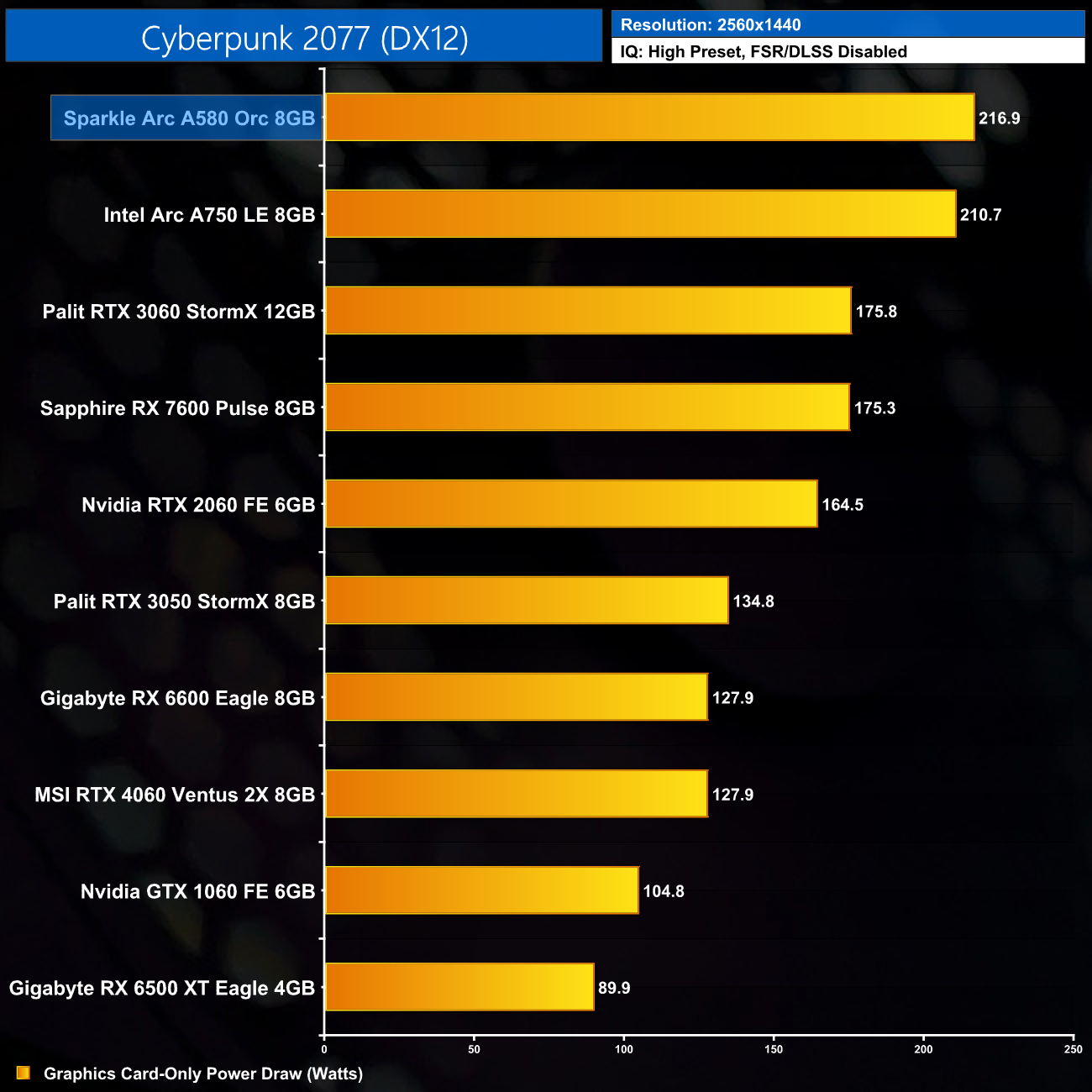

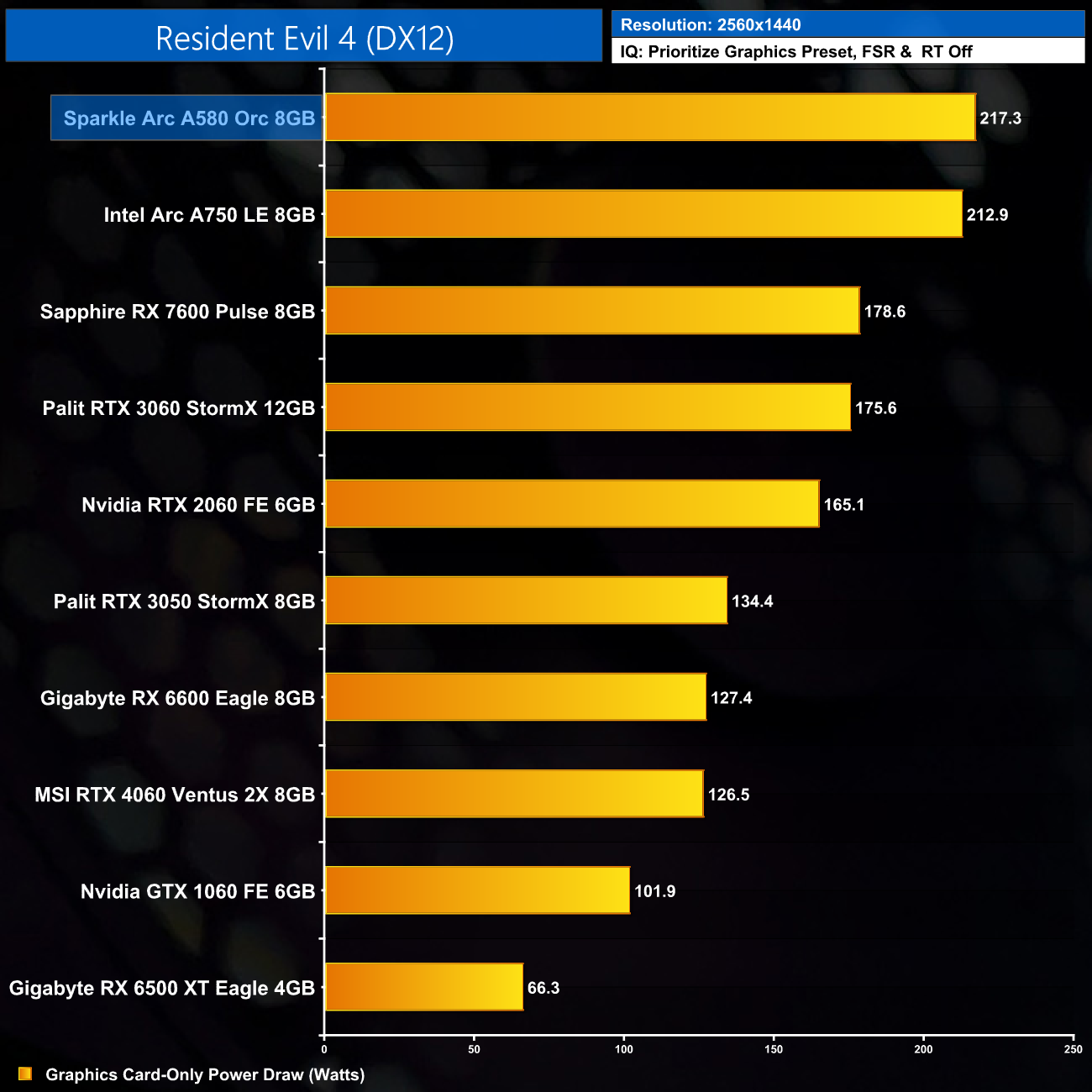

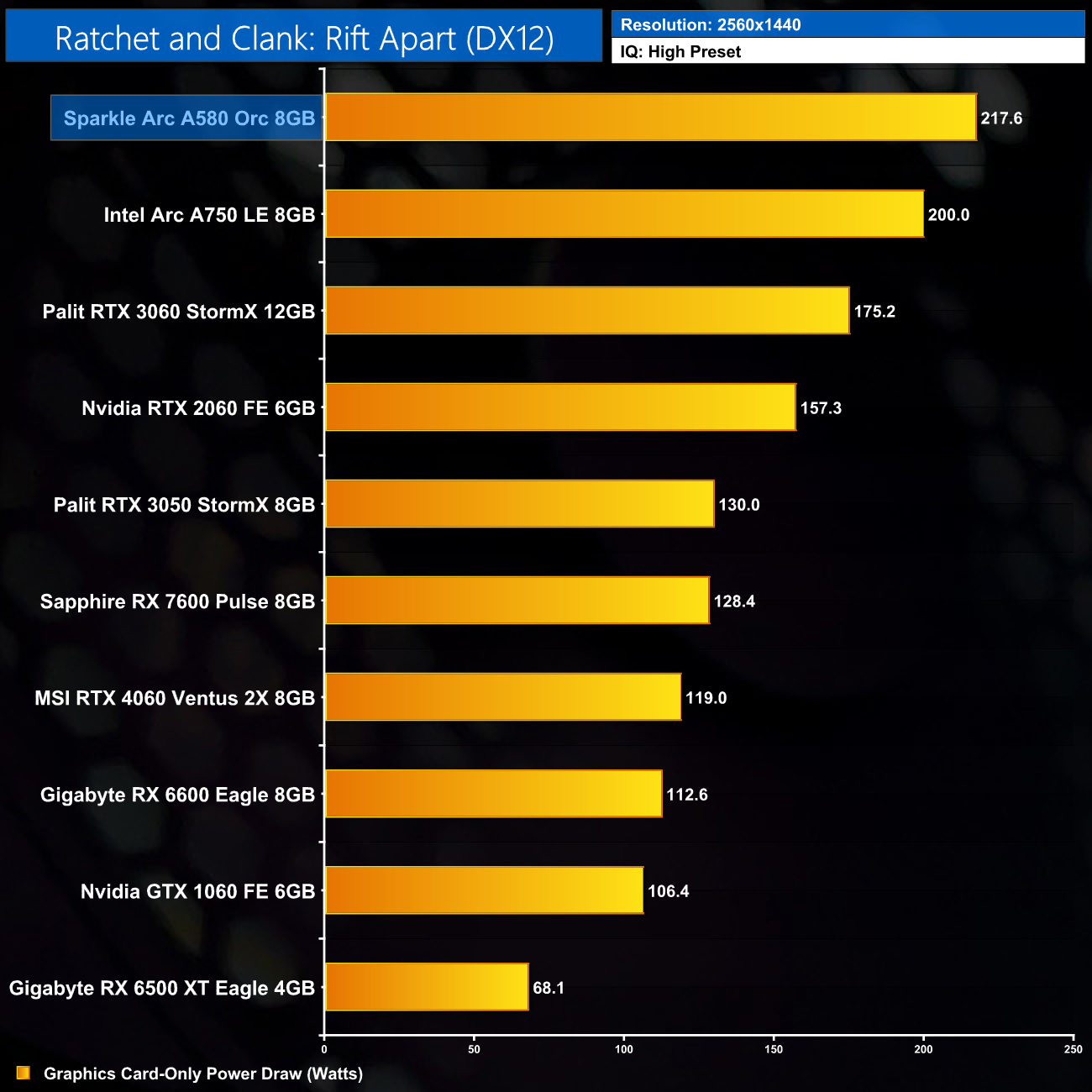

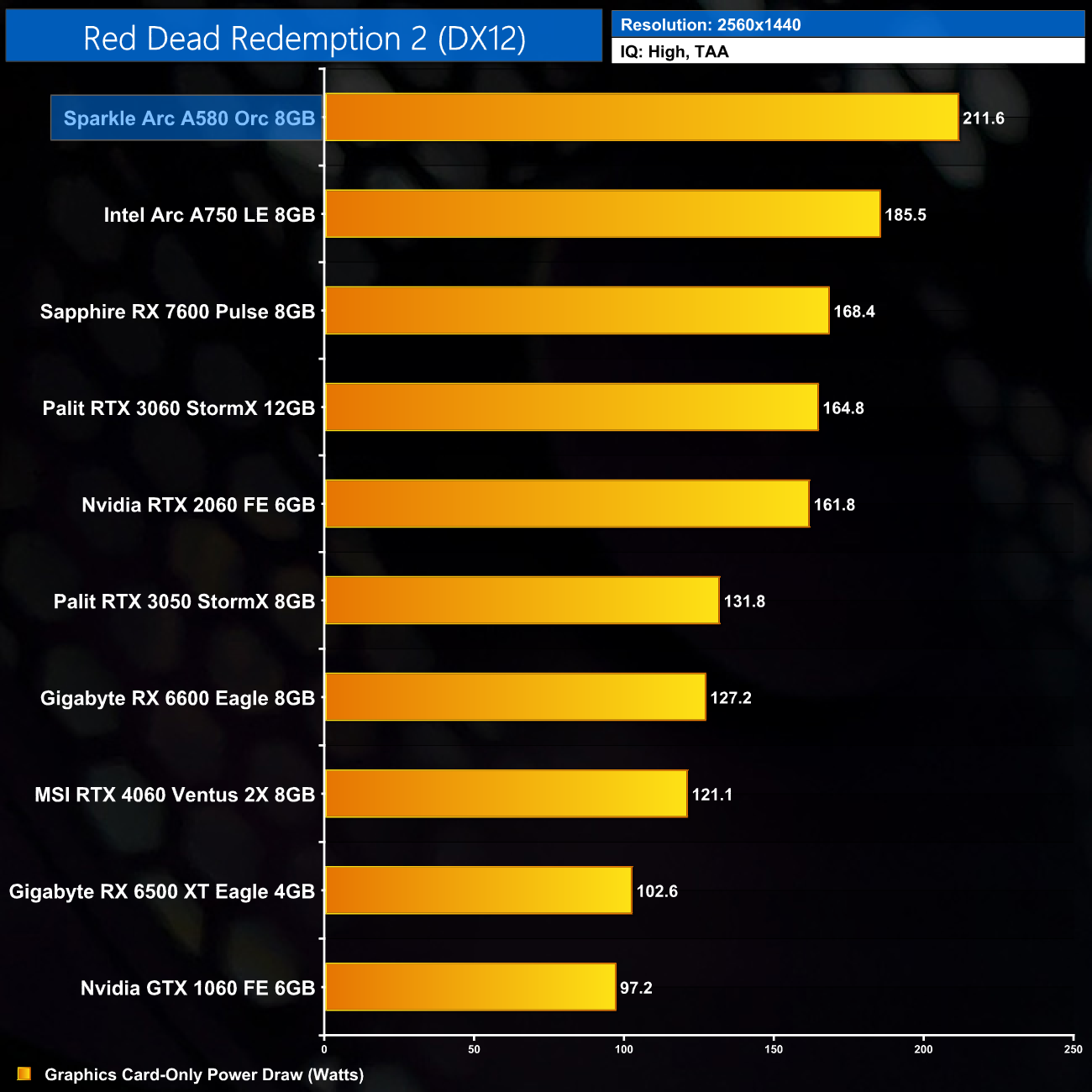

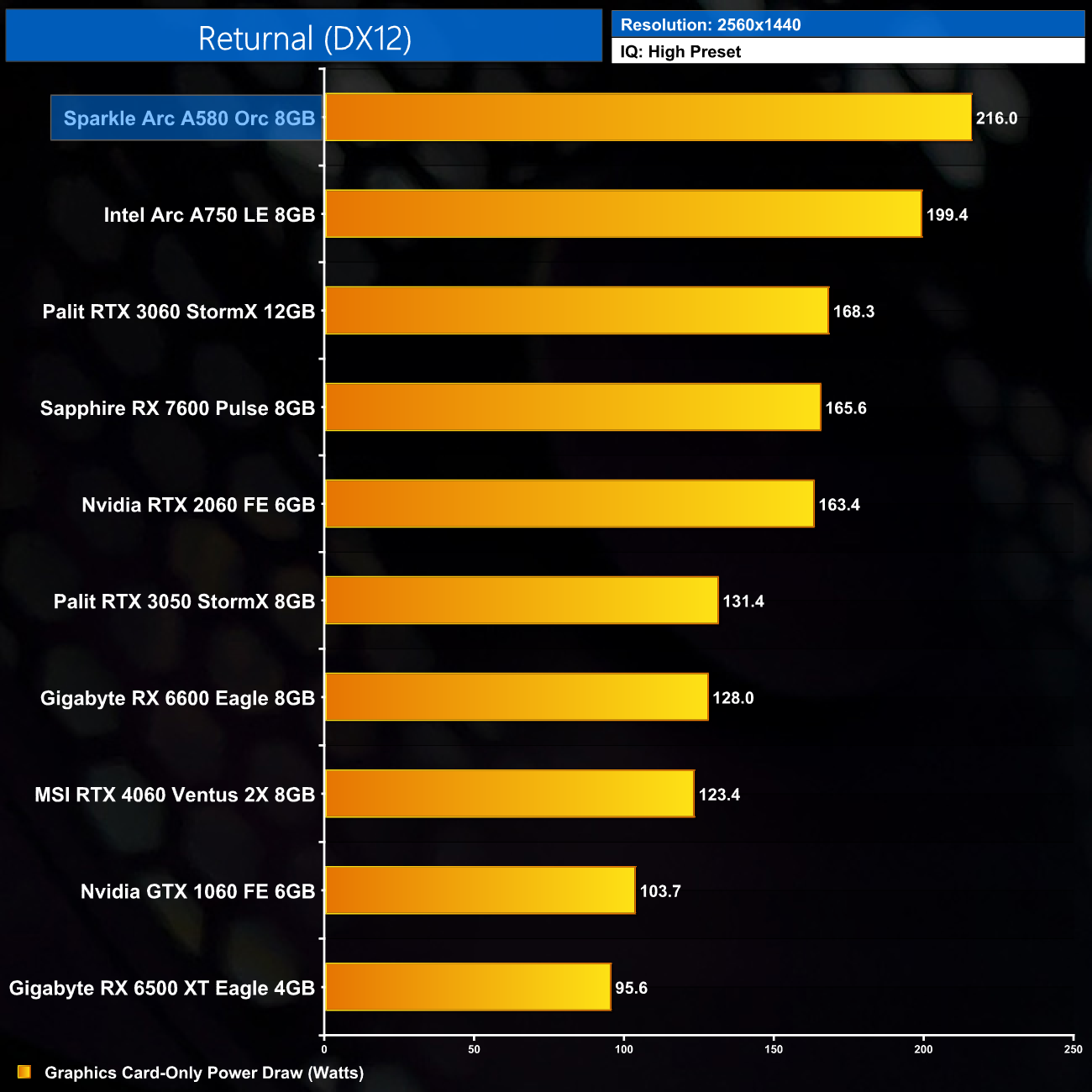

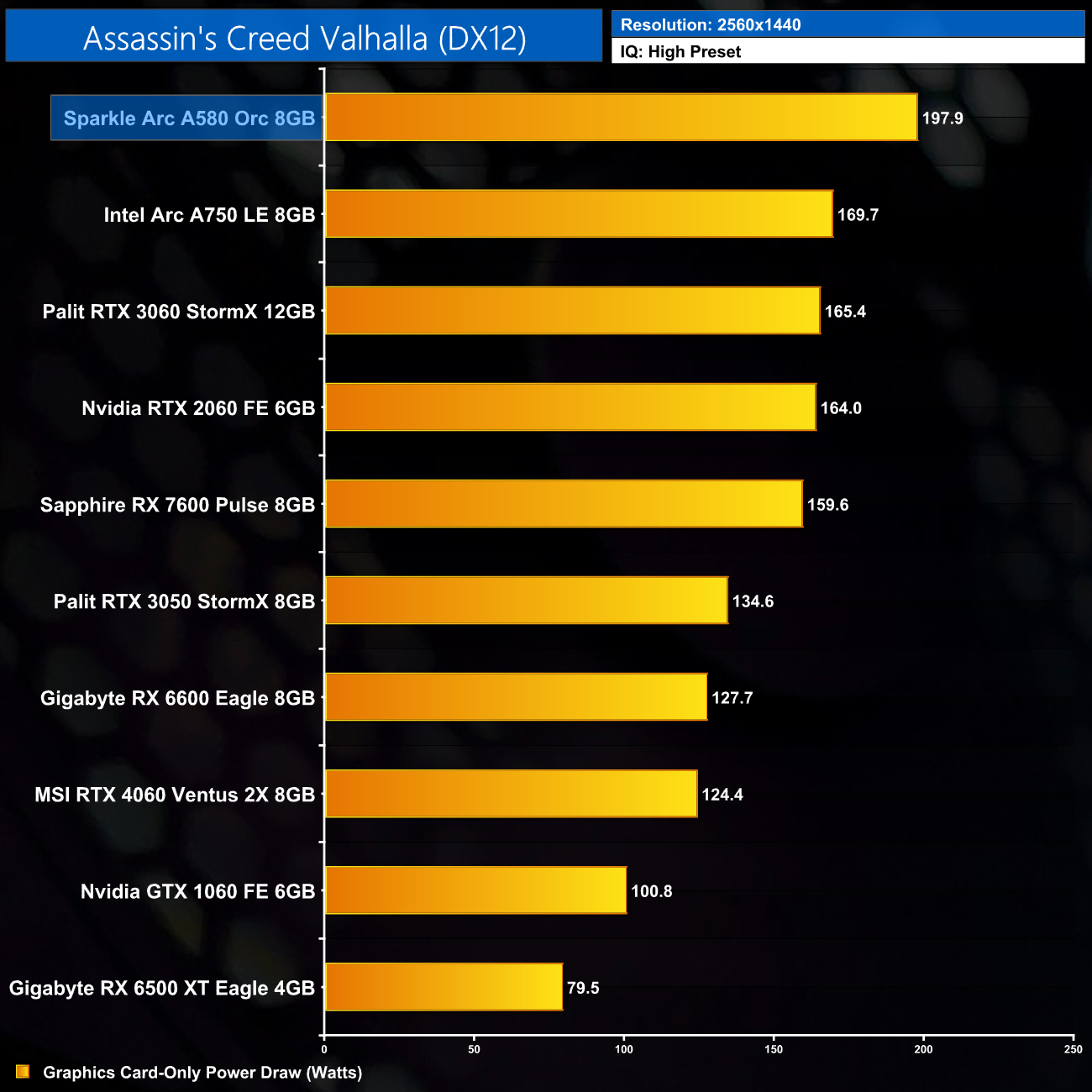

Per-Game Results at 1440p:

Click to enlarge.

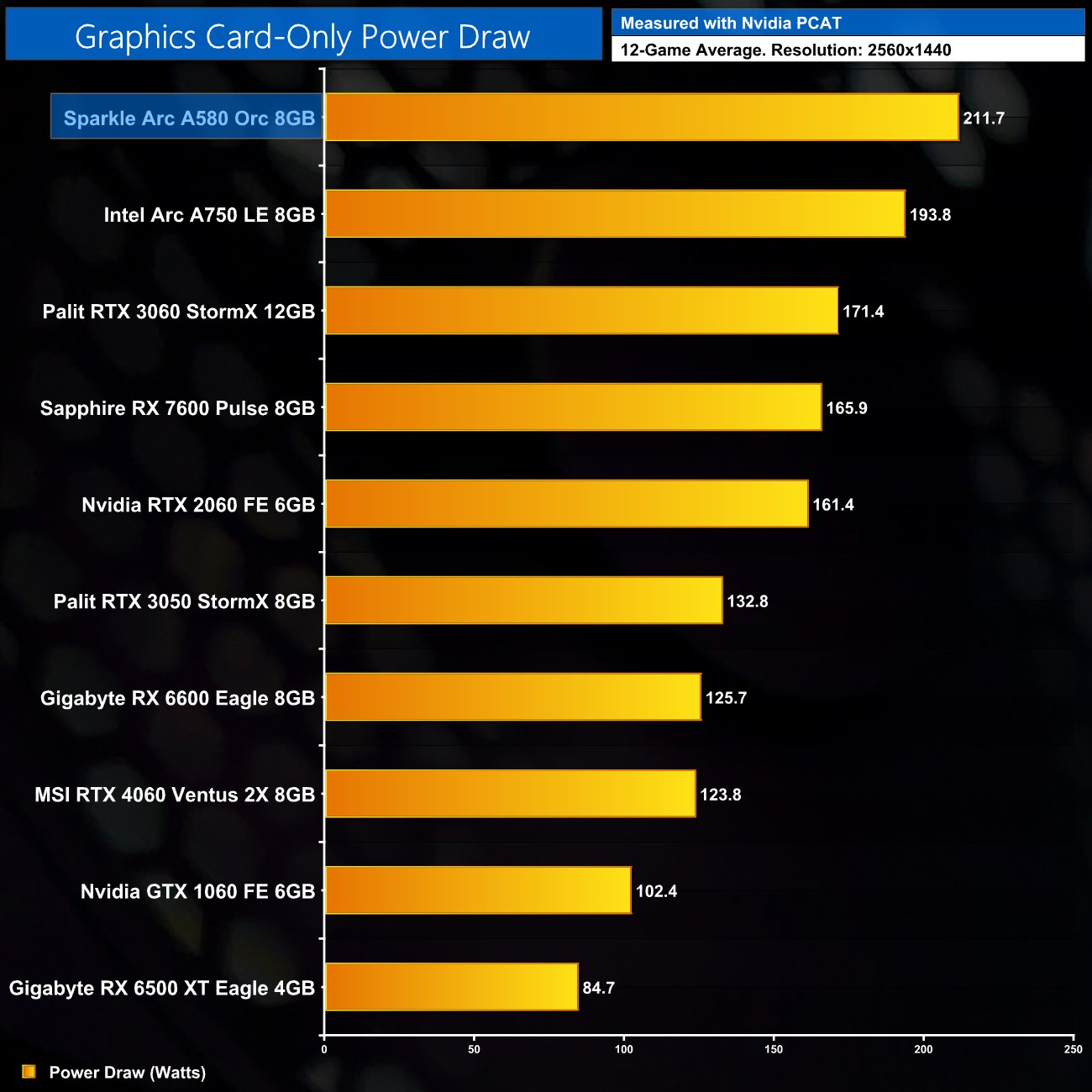

12-Game Average at 1440p:

At 1440p, power draw is increased for the A580, this time averaging 211.7W. That's still a sizeable increase over the A750 Limited Edition and an eye-watering 68% increase versus the RX 6600.
