Today we are back with a look at not one, but two RX 5700 XT graphics cards. In this review, we are directly comparing the Gigabyte RX 5700 XT Gaming OC to the Aorus RX 5700 XT. For those that don't know, Aorus is Gigabyte's premium sub-brand, and today we see what differences there are between the two cards, and whether or not it is worth paying the extra money for an Aorus model.

The prices of these two graphics cards immediately reflects the different product positioning for each model. The Gigabyte RX 5700 XT Gaming OC is currently £374.99 while the flagship Aorus RX 5700 XT retails for £409.99. That £35 increase over the Gaming OC is almost a 10% price jump for the Aorus model.

So what do you get for that extra money? Well, we won't spoil everything for you here, but the Aorus comes with a higher boost clock, larger cooler and dual-BIOS support. Over the next two pages we take a close look at the difference in design between these two models, before extensively testing the two GPUs in over 10 games to see if there's any meaningful difference in performance.

	RX 5600 XT	RX 5700	RX 5700 XT	RX Vega 56	RX Vega 64
Architecture	Navi	Navi	Navi	Vega 10	Vega 10
Manufacturing Process	7nm	7nm	7nm	14nm	14nm
Transistor Count	10.3 billion	10.3 billion	10.3 billion	12.5 billion	12.5 billion
Die Size	251mm²	251mm²	251mm²	486mm²	495mm²
Compute Units	36	36	40	56	64
Stream Processors	2304	2304	2560	3584	4096
Base GPU Clock	n/a	Up to 1465MHz	Up to 1605MHz	1156 MHz	1274 MHz
Game GPU Clock	1375MHz	Up to 1625MHz	Up to 1755MHz	n/a	n/a
Boost GPU Clock	Up to 1560MHz	Up to 1725MHz	Up to 1905MHz	1471 MHz	1546 MHz
Peak Engine Clock	n/a	n/a	n/a	1590 MHz	1630 MHz
Peak SP Performance	Up to 7.19 TFLOPS	Up to 7.95 TFLOPS	Up to 9.75 TFLOPS	Up to 10.5 TFLOPS	Up to 12.7 TFLOPS
Peak Half Precision Performance	Up to 14.4 TFLOPS	Up to 15.9 TFLOPS	Up to 19.5 TFLOPS	Up to 21.0 TFLOPS	Up to 25.3 TFLOPS
Peak Texture Fill-Rate	Up to 224.6 GT/s	Up to 248.4 GT/s	Up to 304.8 GT/s	Up to 330.0 GT/s	Up to 395.8 GT/s
ROPs	64	64	64	64	64
Peak Pixel Fill-Rate	Up to 99.8 GP/s	Up to 110.4 GP/s	Up to 121.9 GP/s	Up to 94.0 GP/s	Up to 98.9 GP/s
Memory	6GB GDDR6	8GB GDDR6	8GB GDDR6	8GB HBM	8GB HBM
Memory Bandwidth	288 GB/s	448 GB/s	448 GB/s	410 GB/s	483.8 GB/s
Memory Interface	192-bit	256-bit	256-bit	2048-bit	2048-bit
Board Power	150W	185W	225W	210W	295W

Gaming OC (left) compared with Aorus (right

For just a quick recap over the core spec of the RX 5700 XT GPU, this Navi chip is built on TSMC's 7nm process and has a total of 40 Compute Units (CU). Each CU houses 64 stream processors, giving the GPU a total of 2560. 8GB of 14Gbps GDDR6 memory is also supplied, using a 256-bit bus for total memory bandwidth of 448 GB/s.

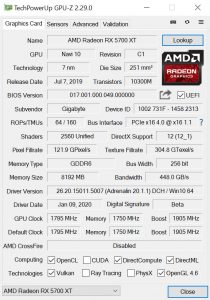

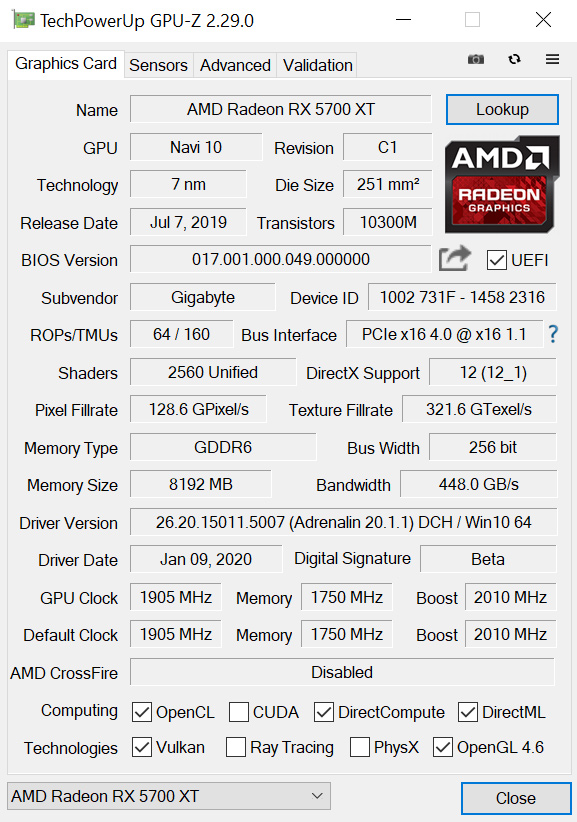

Reference RX 5700 XT has a rated game clock of 1755MHz, meaning both the Gigabyte and Aorus cards are factory overclocked. The Gaming OC has a 1795MHz game clock, while the Aorus is clocked even higher with a 1905MHz game clock.
