Our newest GPU test procedure has been built with the intention of benchmarking high-end graphics cards. We test at 1920×1080 (1080p), 2560×1440 (1440p), and 3840×2160 (4K UHD) resolutions.

We try to test using the DX12 API if titles offer support. This gives us an interpretation into the graphics card performance hierarchy in the present time and the near future, when DX12 becomes more prevalent. After all, graphics cards of this expense may stay in a gamer’s system for a number of product generations/years before being upgraded.

We tested the RX Vega64 and Vega56 using the ‘Turbo‘ power mode in AMD’s WattMan software. This prioritises all-out performance over power efficiency, noise output, and lower thermals.

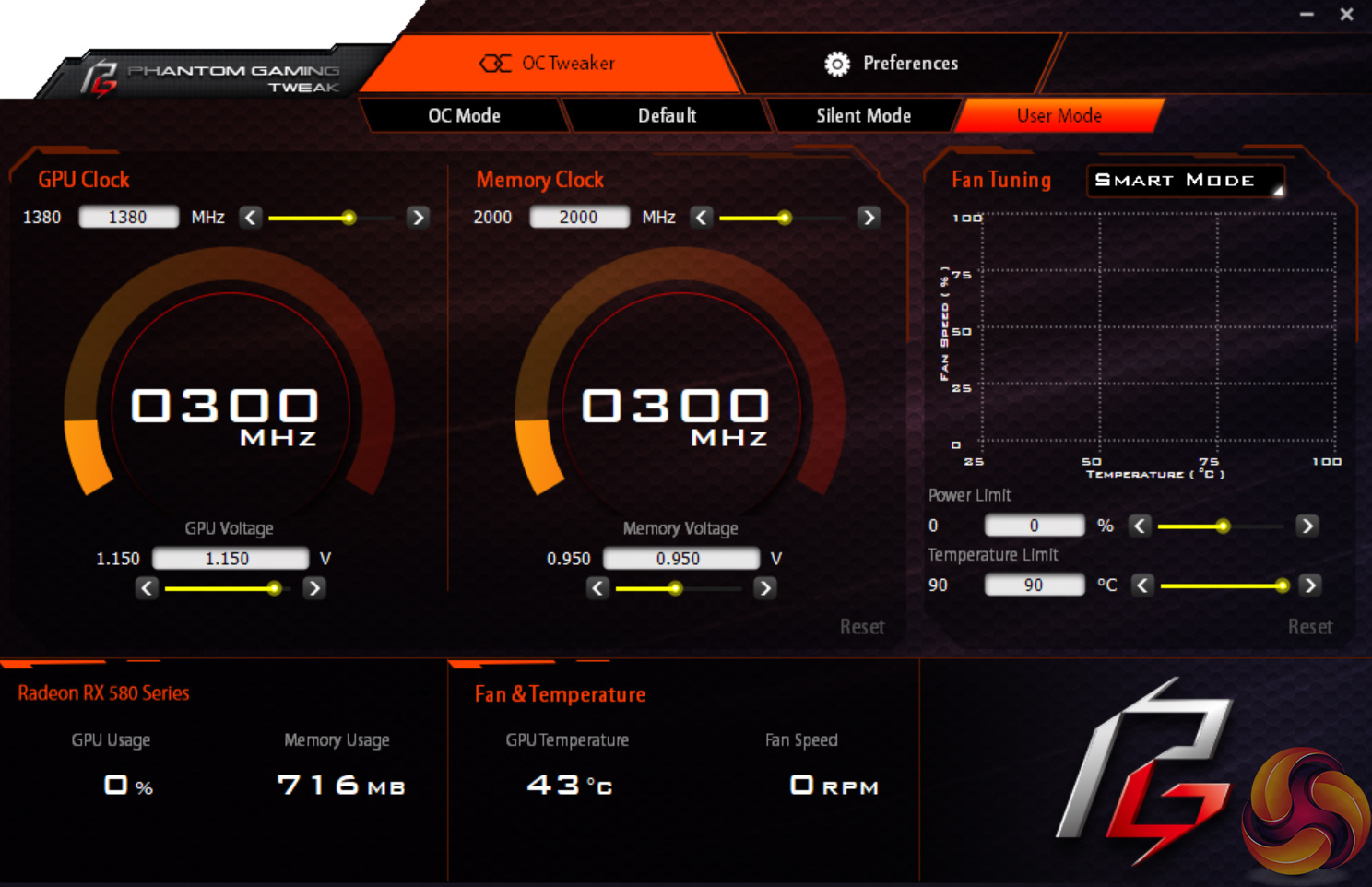

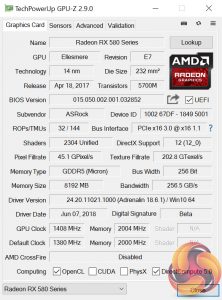

The ASRock Phantom Gaming X RX 580 comes with its own GPU tweak tool, with three ‘one-click' profiles available. We tested using the ‘OC Mode' which bumps the core up to 1408MHz, a +28MHz boost over stock.

Driver Notes

• AMD graphics cards were benchmarked with the Adrenalin 18.6.1 driver.
• Nvidia Graphics cards were benchmarked with the Nvidia 398.36 driver.

Test System

We test using the Overclockers UK Germanium pre-built system. You can read more about it over HERE. It is important to note we have had to re-house the components to an open-air test bench to accommodate our new GPU power testing (more on that later) but the core of the system is unchanged and the performance figures you see presented here are what you can expect from the Germanium.

CPU	Intel Core i7-8700K Overclocked to 4.8GHz
Motherboard	ASUS ROG Strix Z370-F Gaming
Memory	Team Group Dark Hawk RGB 16GB (2x8GB) @ 3200MHz 16-18-18-38
Graphics Card	Varies
System Drive	Patriot Wildfire 240GB
Games Drive	Crucial M4 512GB
Chassis	Streacom ST-BC1 Bench
CPU Cooler	OCUK TechLabs 240mm AIO
Power Supply	SuperFlower Leadex II 850W 80Plus Gold
Operating System	Windows 10 Professional

Comparison Graphics Cards List

• Nvidia GTX 1080 Ti Founders Edition (FE) 11GB
• Gigabyte GTX 1080 G1 Gaming 8GB
• Palit GTX 1070 Ti Super Jetstream 8GB
• Nvidia GTX 1070 Founders Edition (FE) 8GB
• Nvidia GTX 1060 Founders Edition (FE) 6GB
• AMD RX Vega 64 Air 8GB
• AMD RX Vega 56 8GB
• Sapphire RX 580 Nitro+ Limited Edition (LE) 8GB
• ASUS RX 570 ROG Strix Gaming OC 4GB

Software and Games List

• 3DMark Fire Strike & Fire Strike Ultra (DX11 Synthetic)
• 3DMark Time Spy (DX12 Synthetic)
• Deus Ex: Mankind Divided (DX12)
• Far Cry 5 (DX11)
• Tom Clancy's Ghost Recon: Wildlands (DX11)
• Middle Earth: Shadow of War (DX11)
• Rise of the Tomb Raider (DX12)

We run each benchmark/game three times, and present averages in our graphs.
