Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

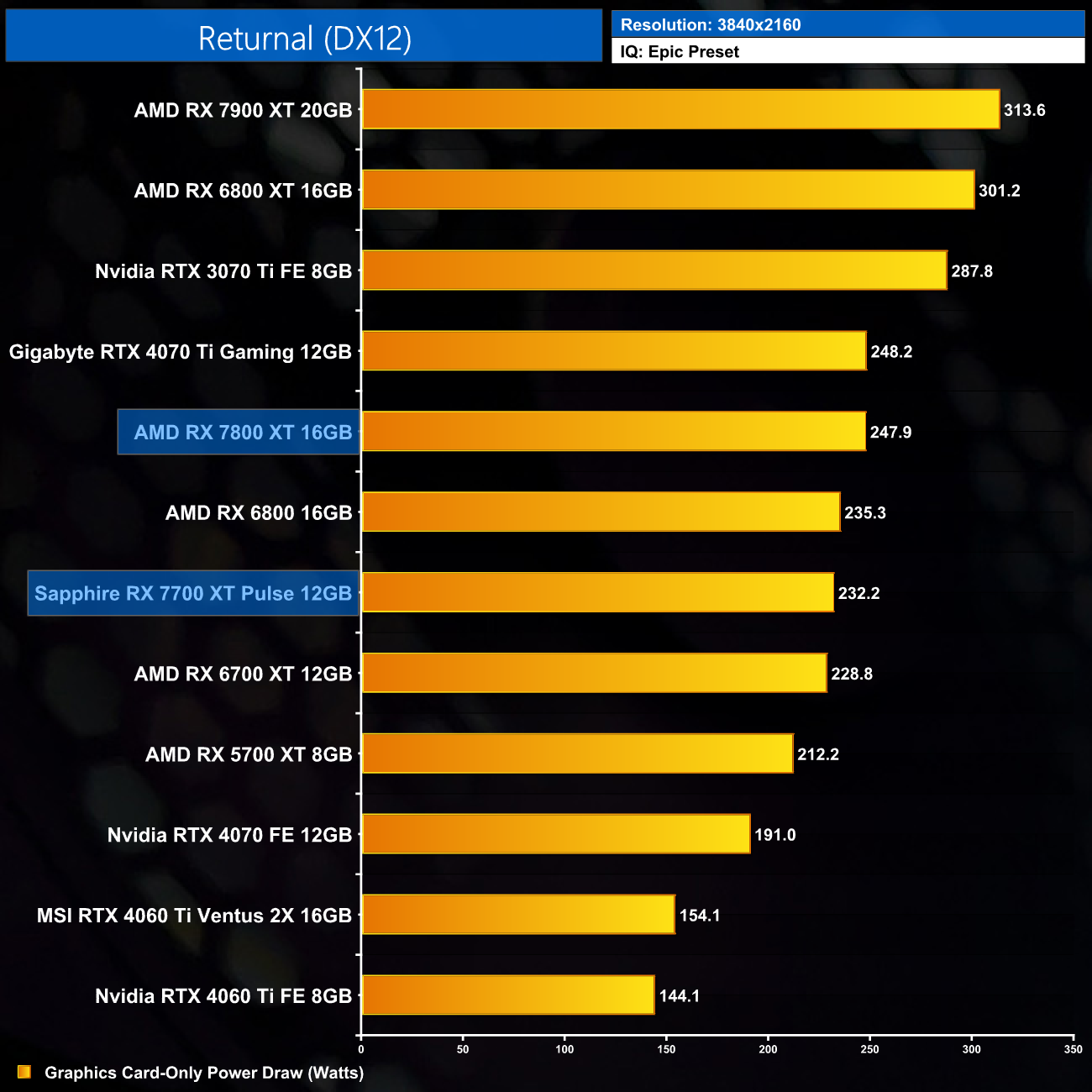

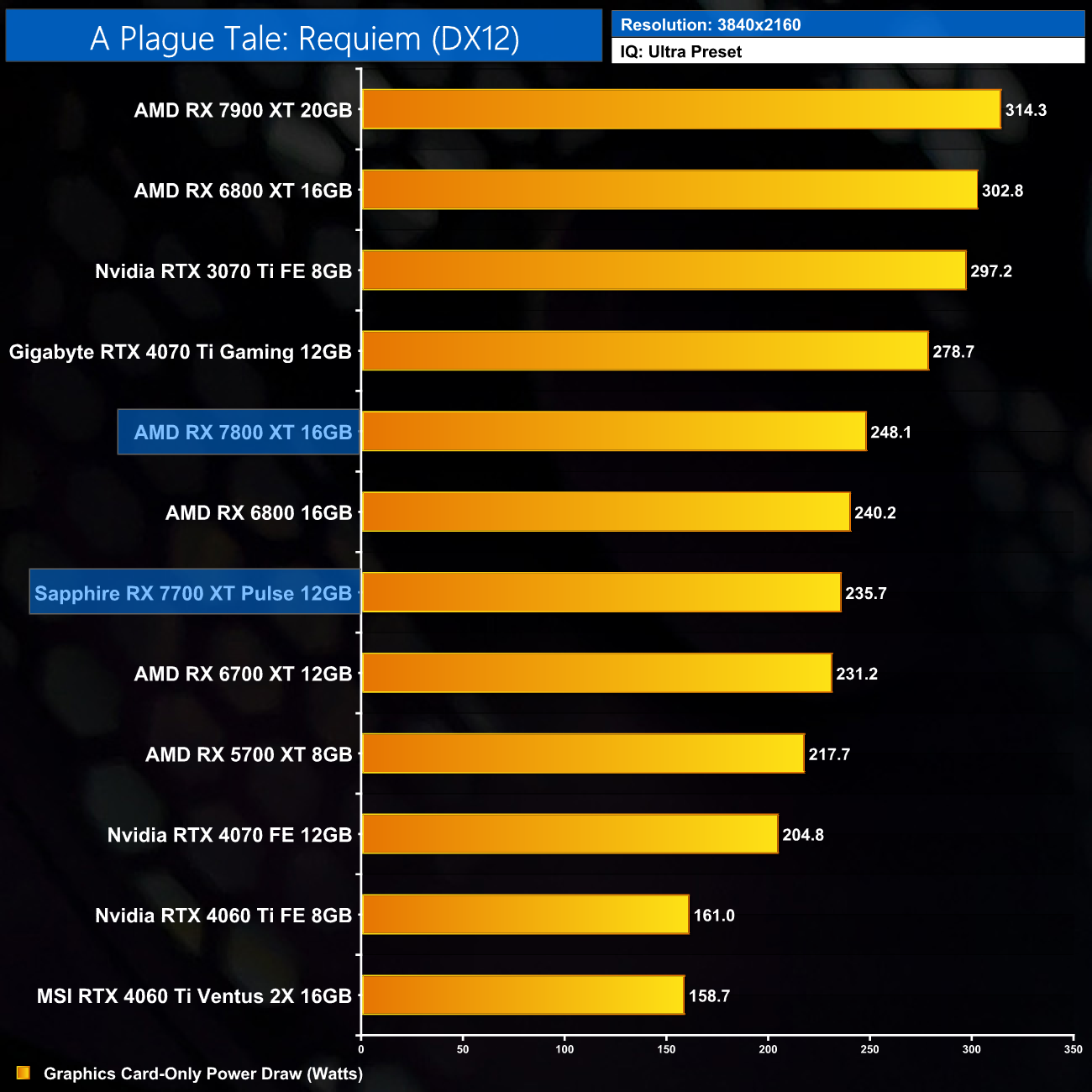

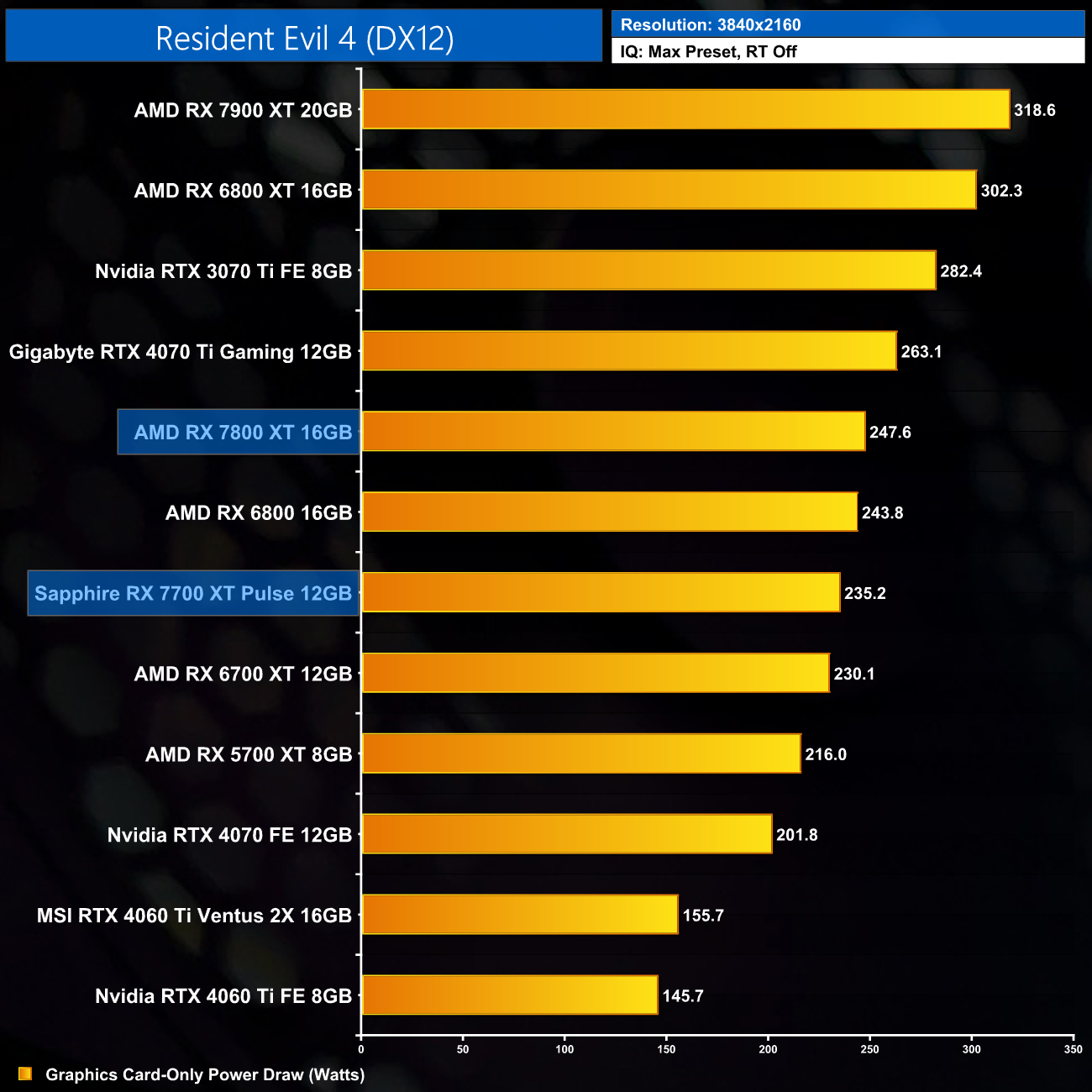

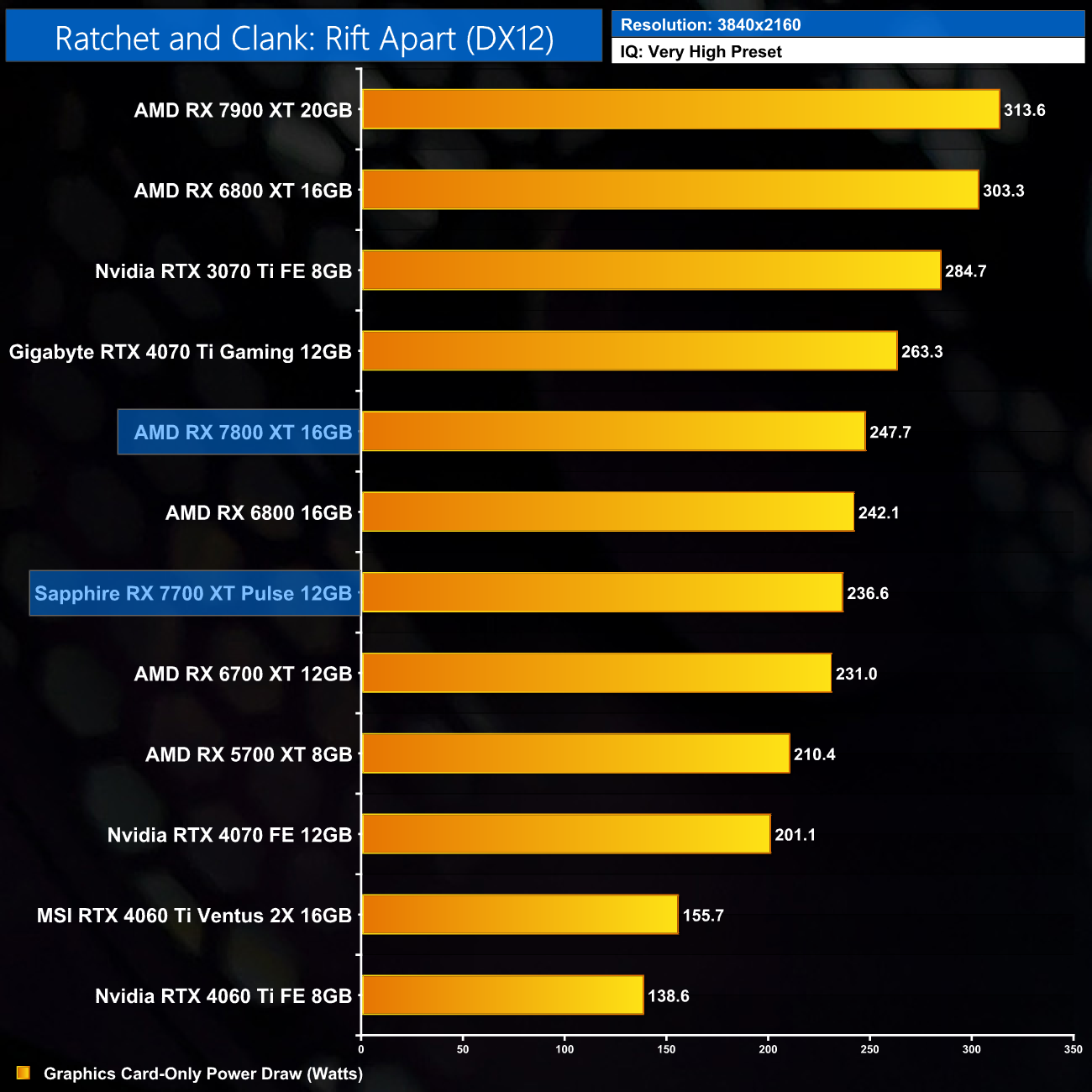

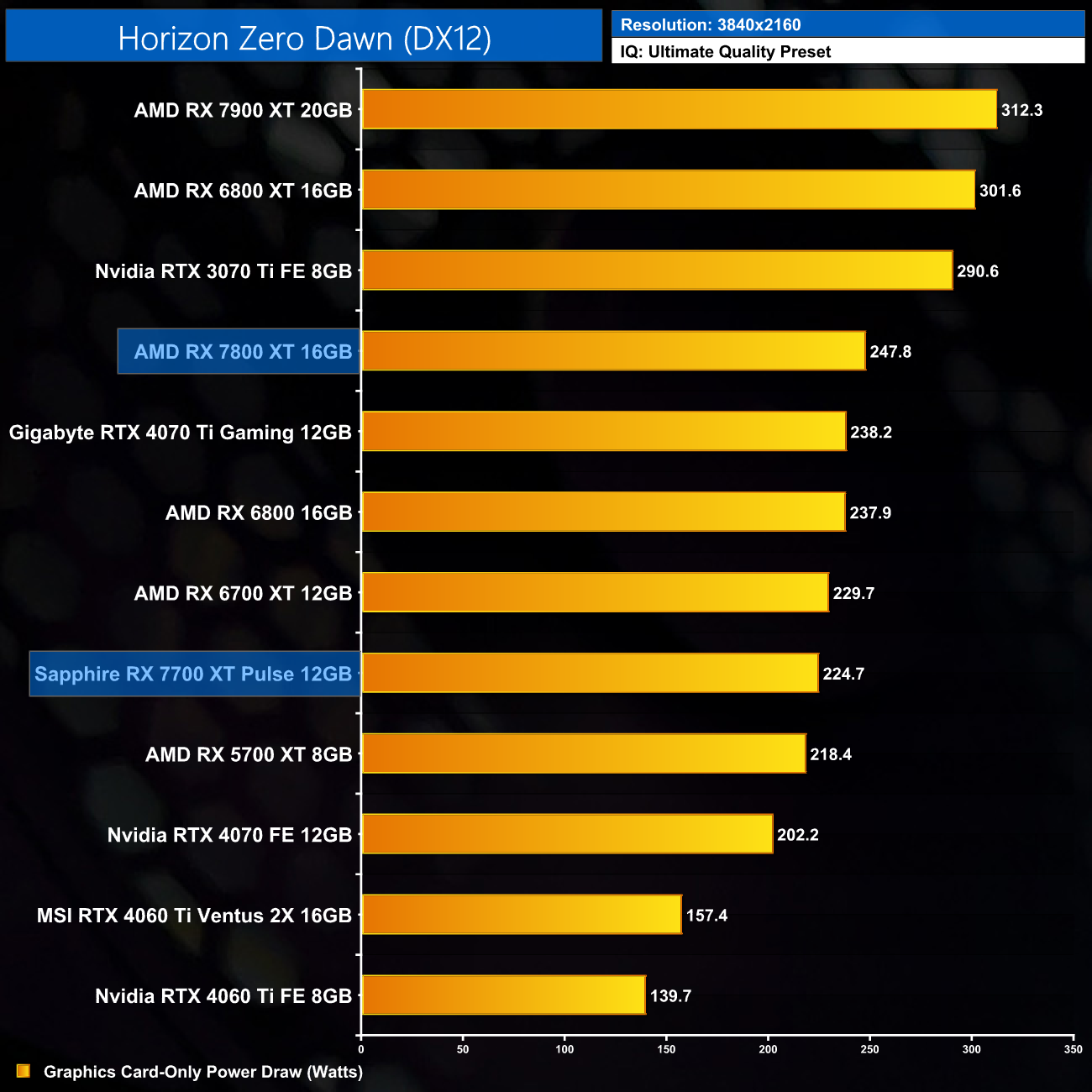

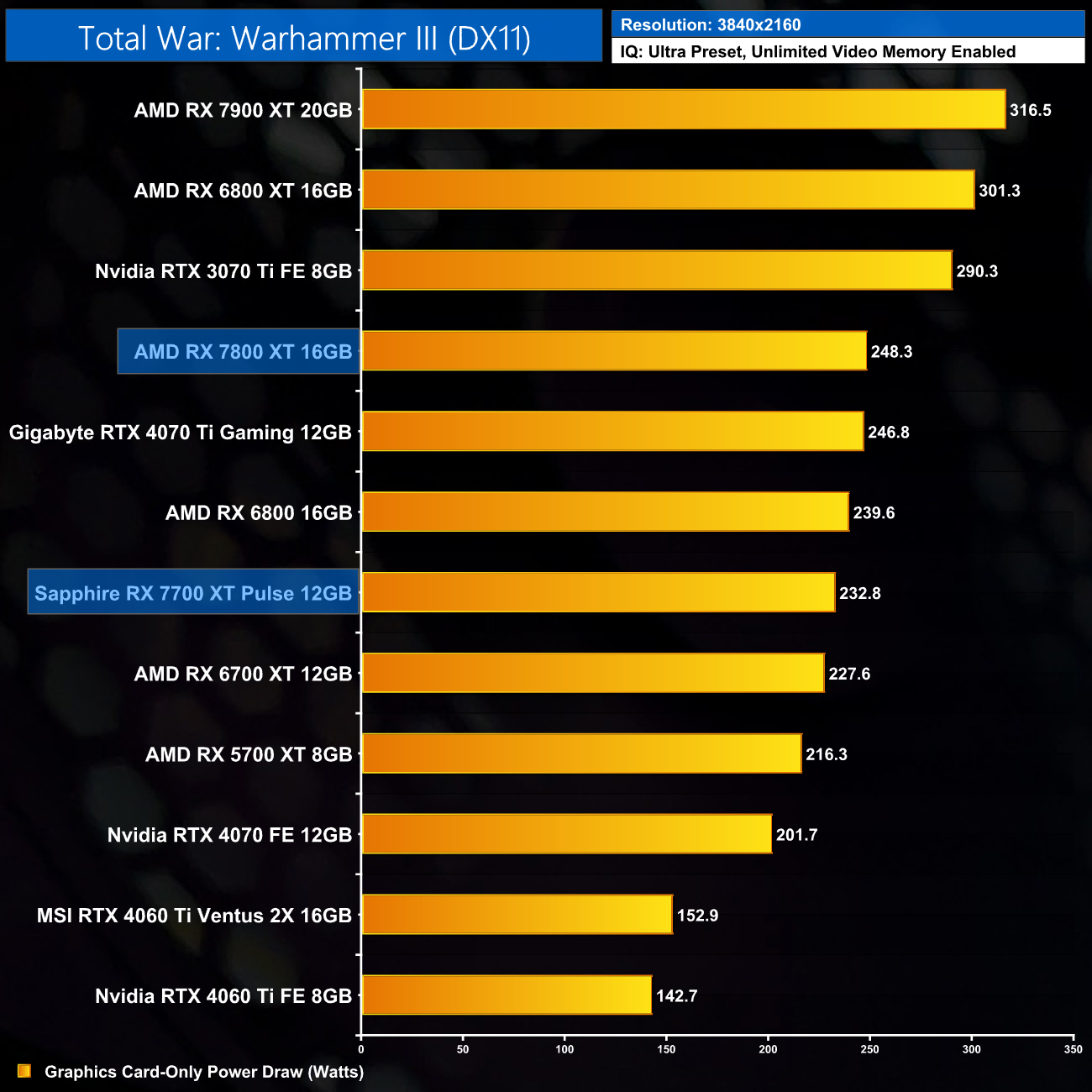

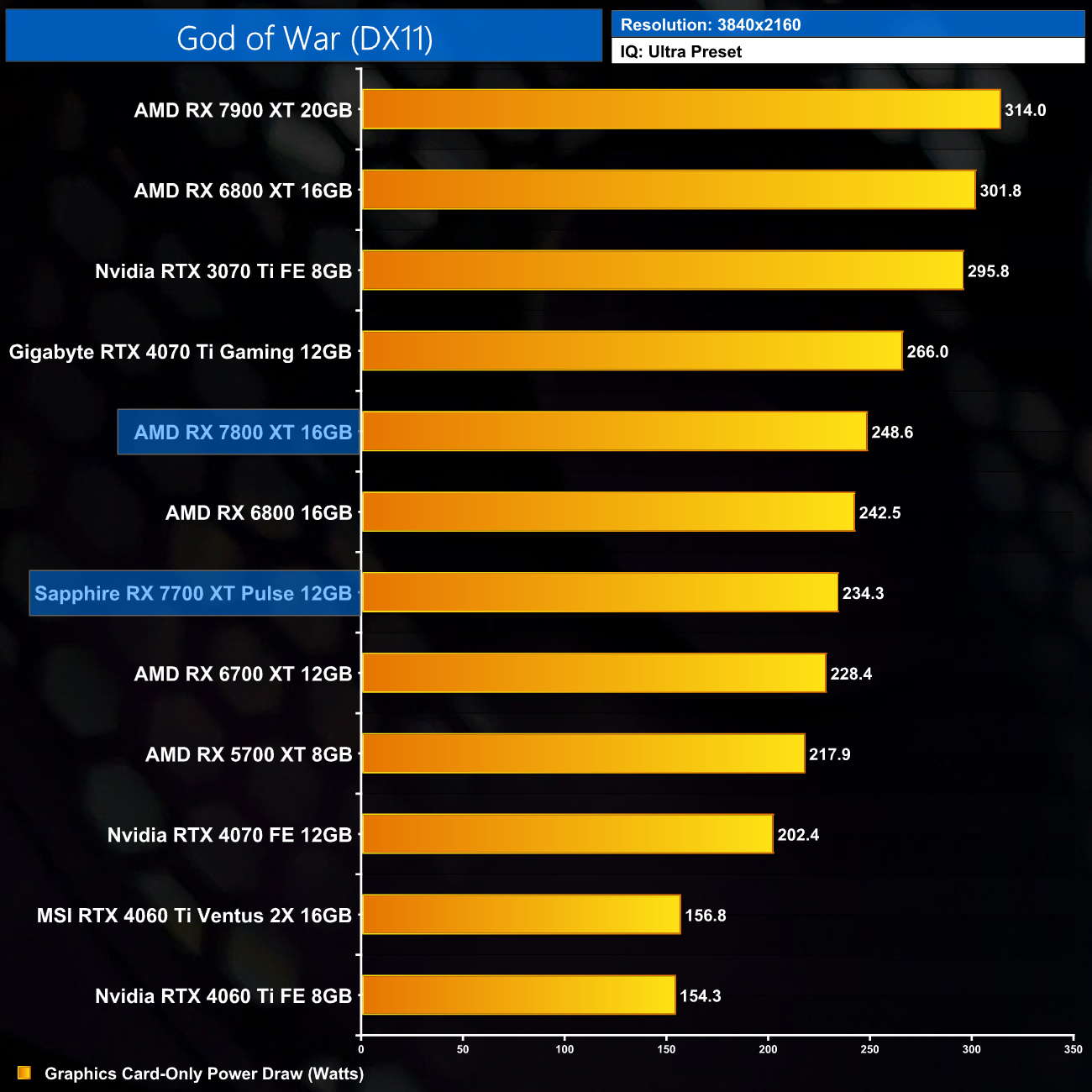

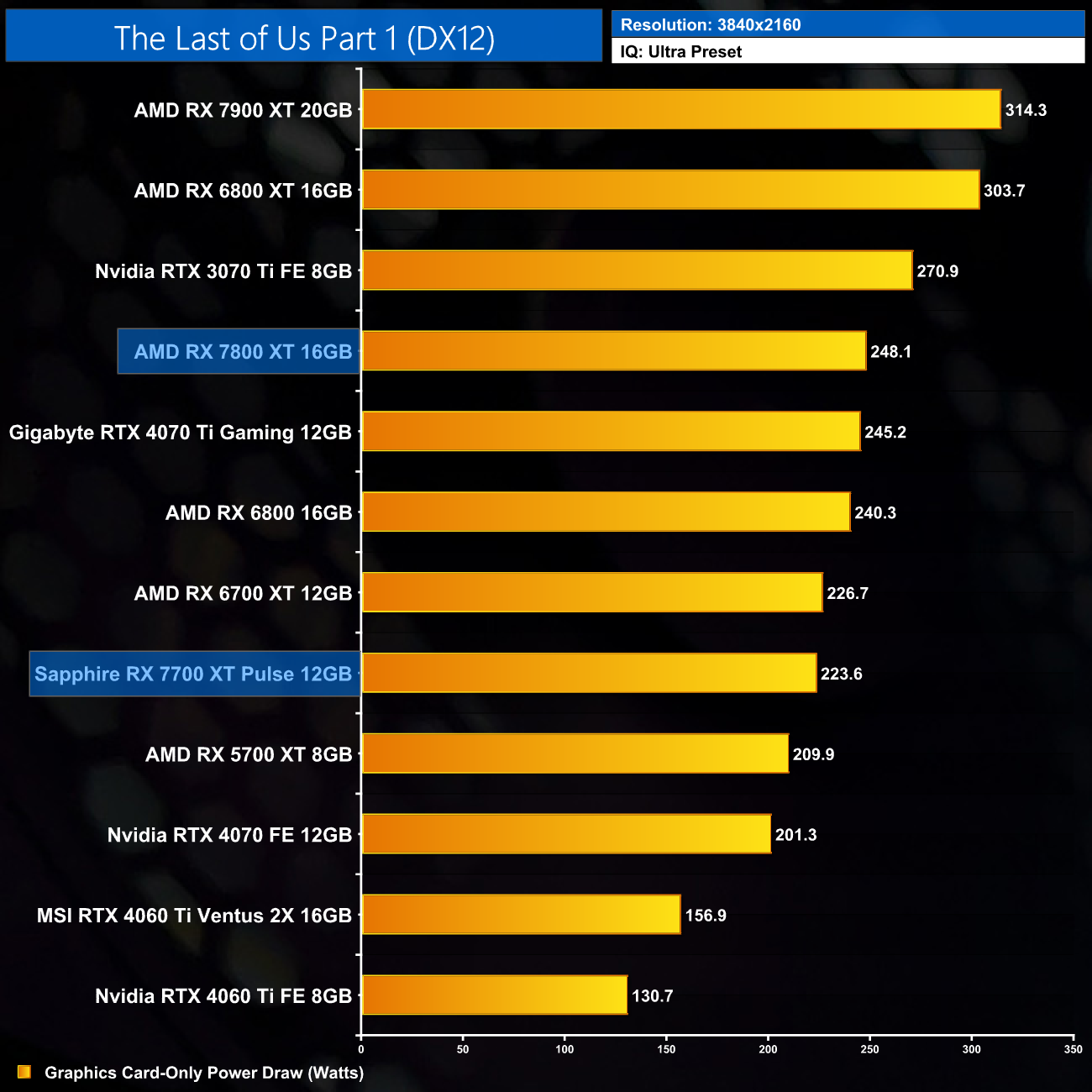

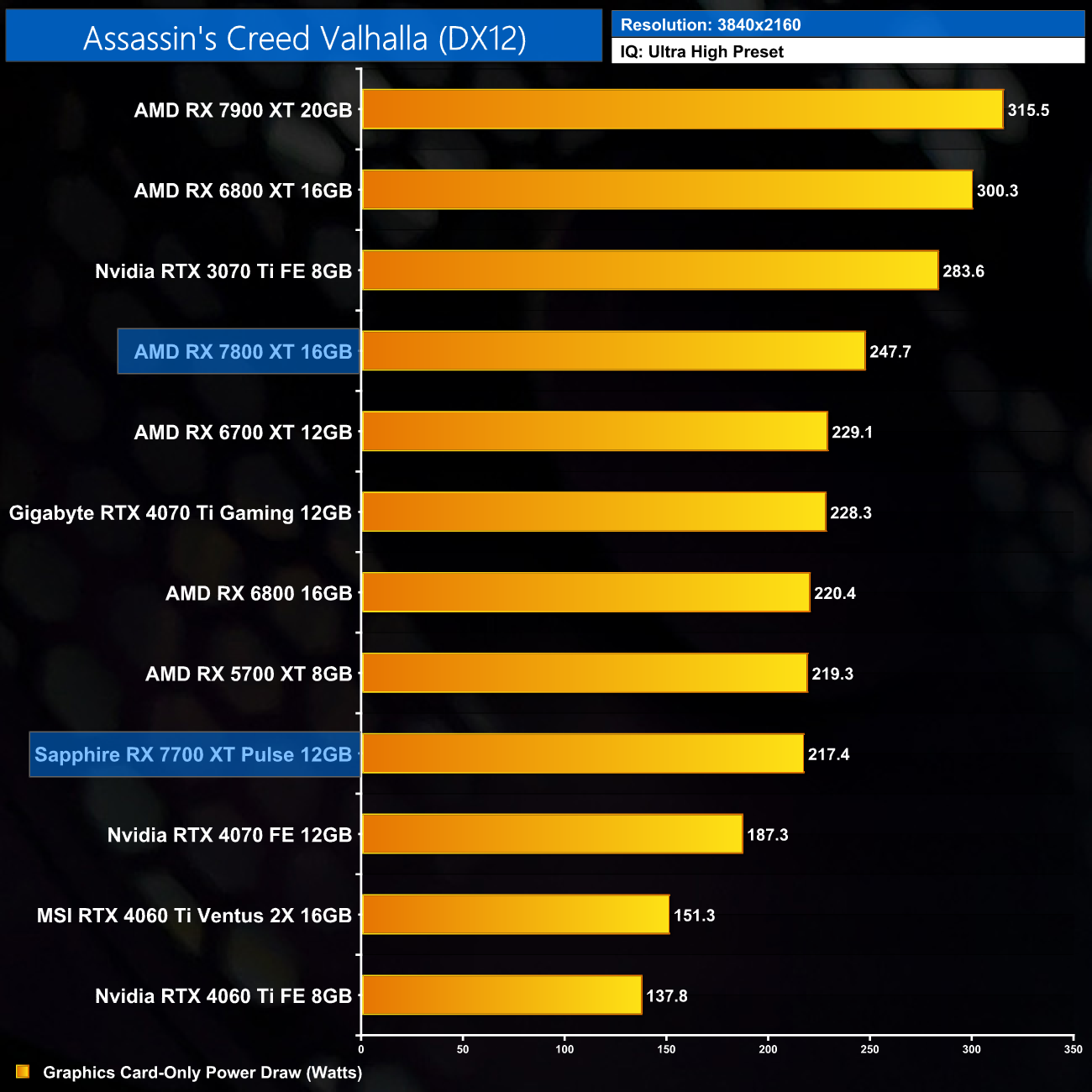

Per-Game Results at 2160p (4K):

Click to enlarge.

12-Game Average at 2160p (4K):

Up at 4K, by now the picture is clear – the RX 7800 XT draws a very consistent 250-or-so Watts with very little deviation, regardless of game or resolution. At 4K, it averaged 247.9W.

Ray tracing results

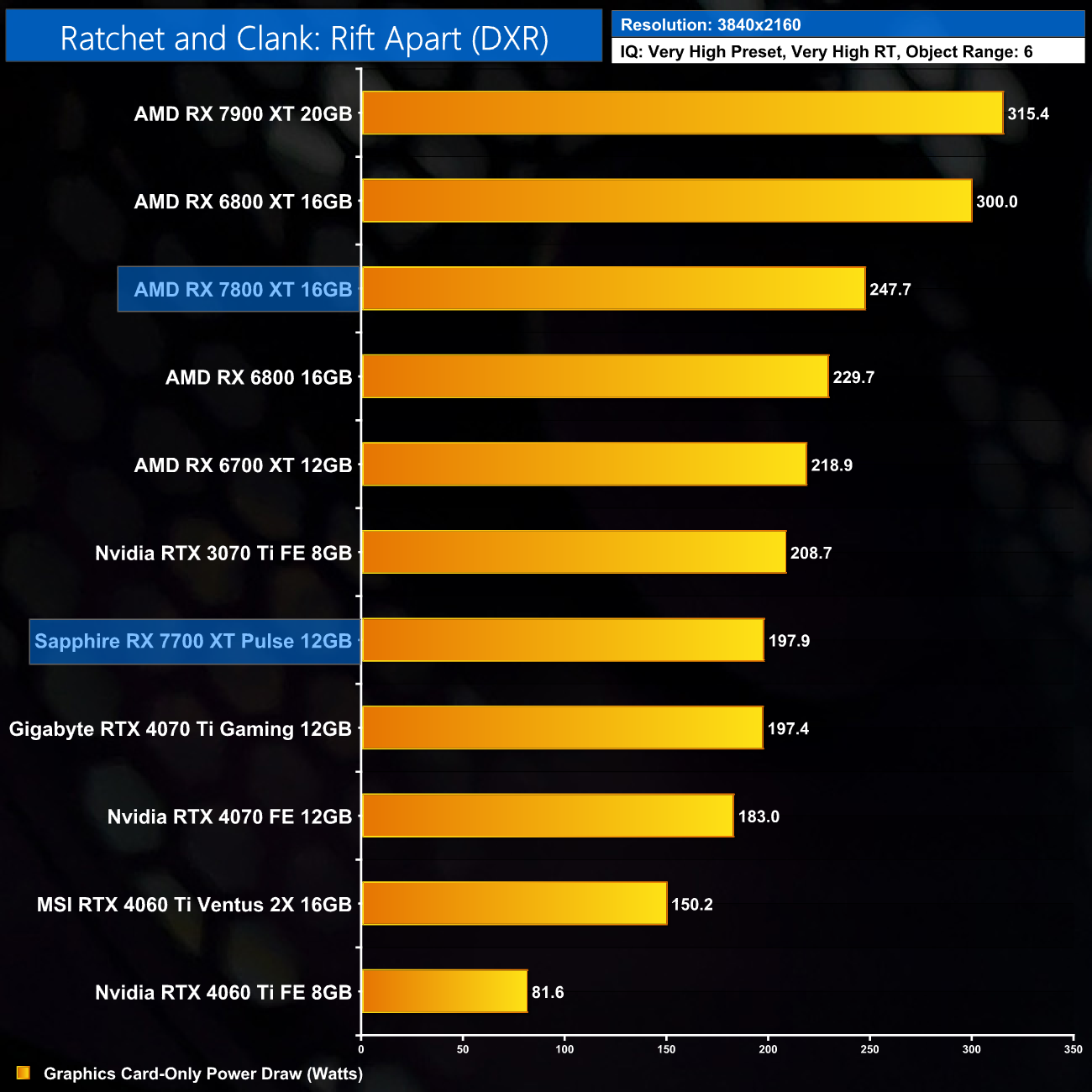

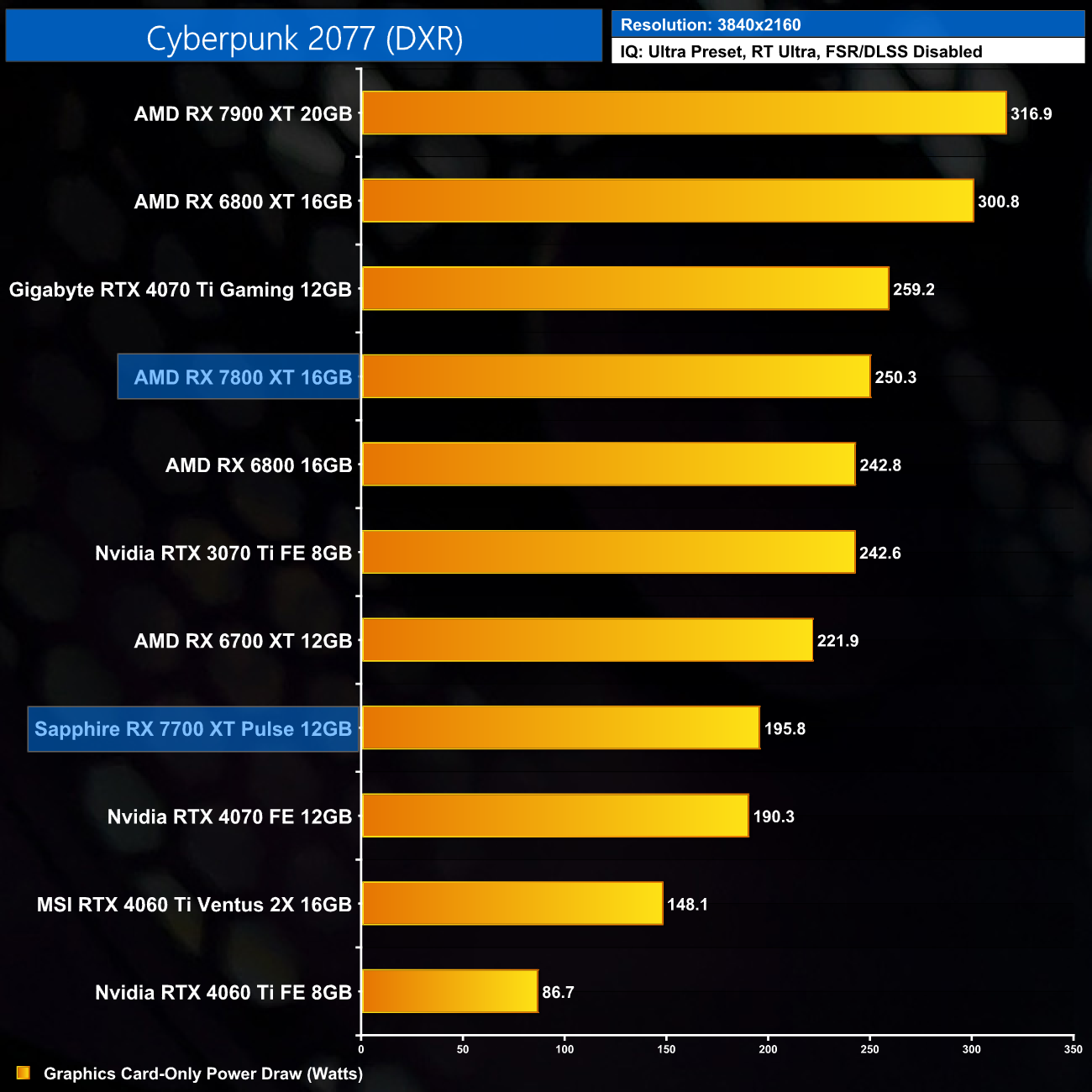

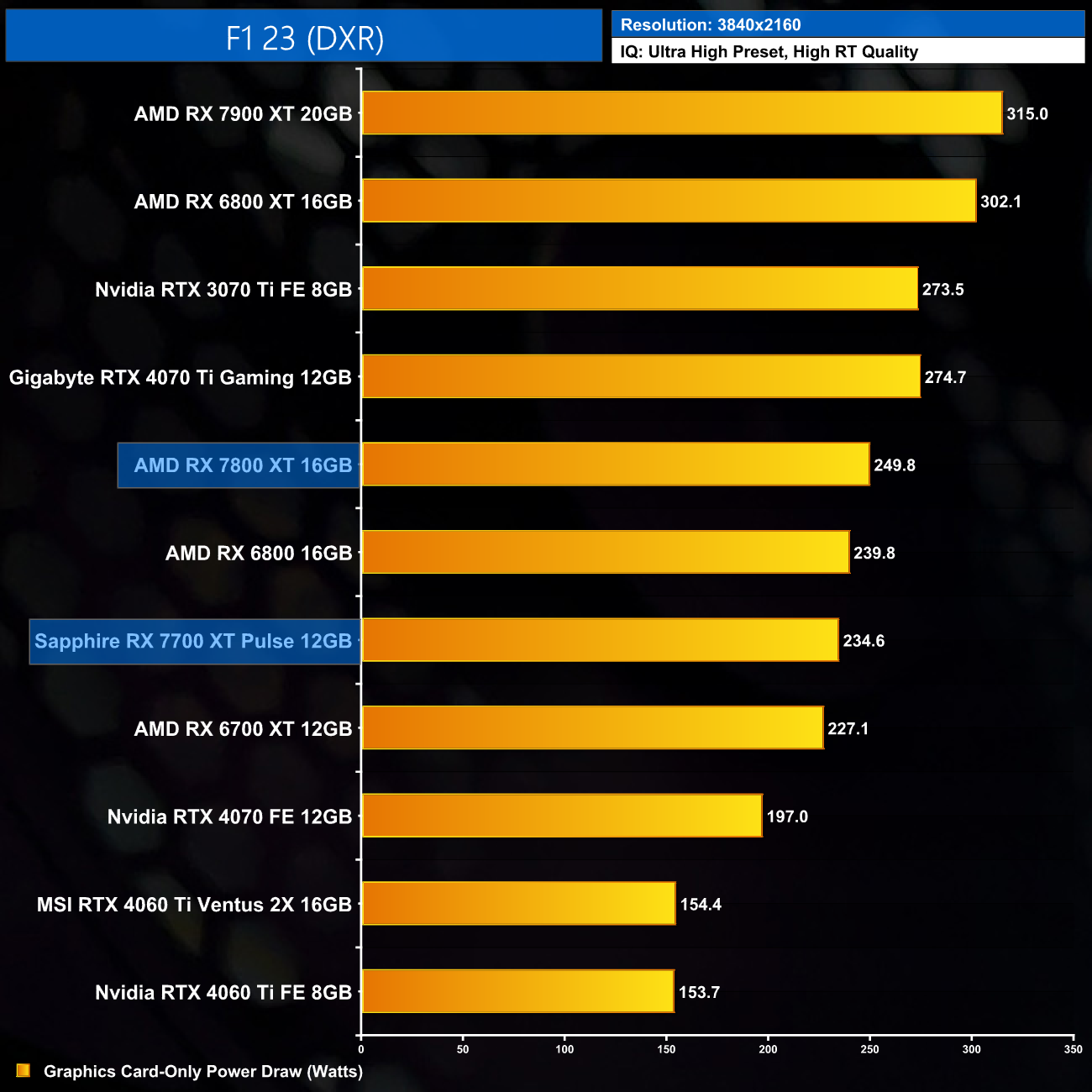

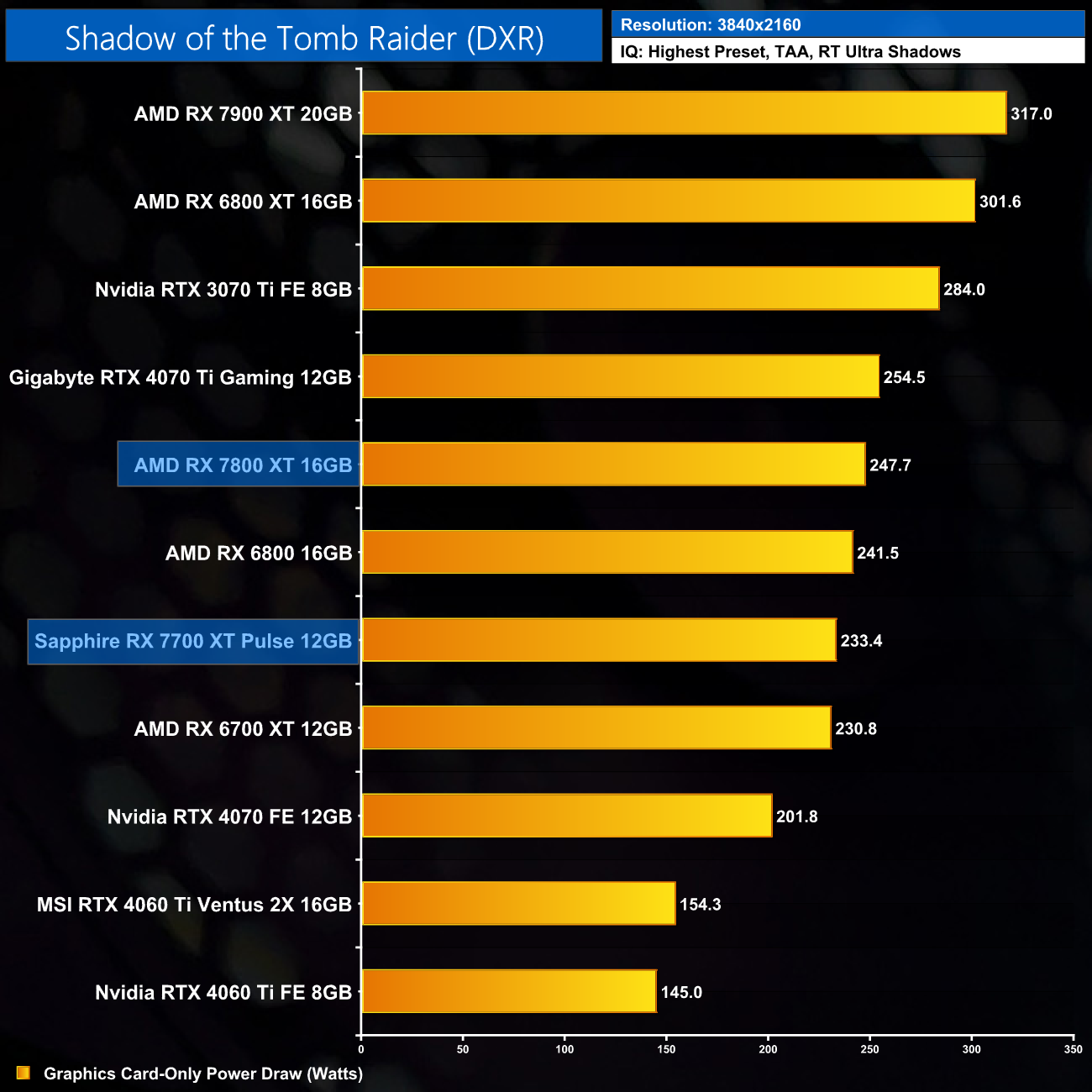

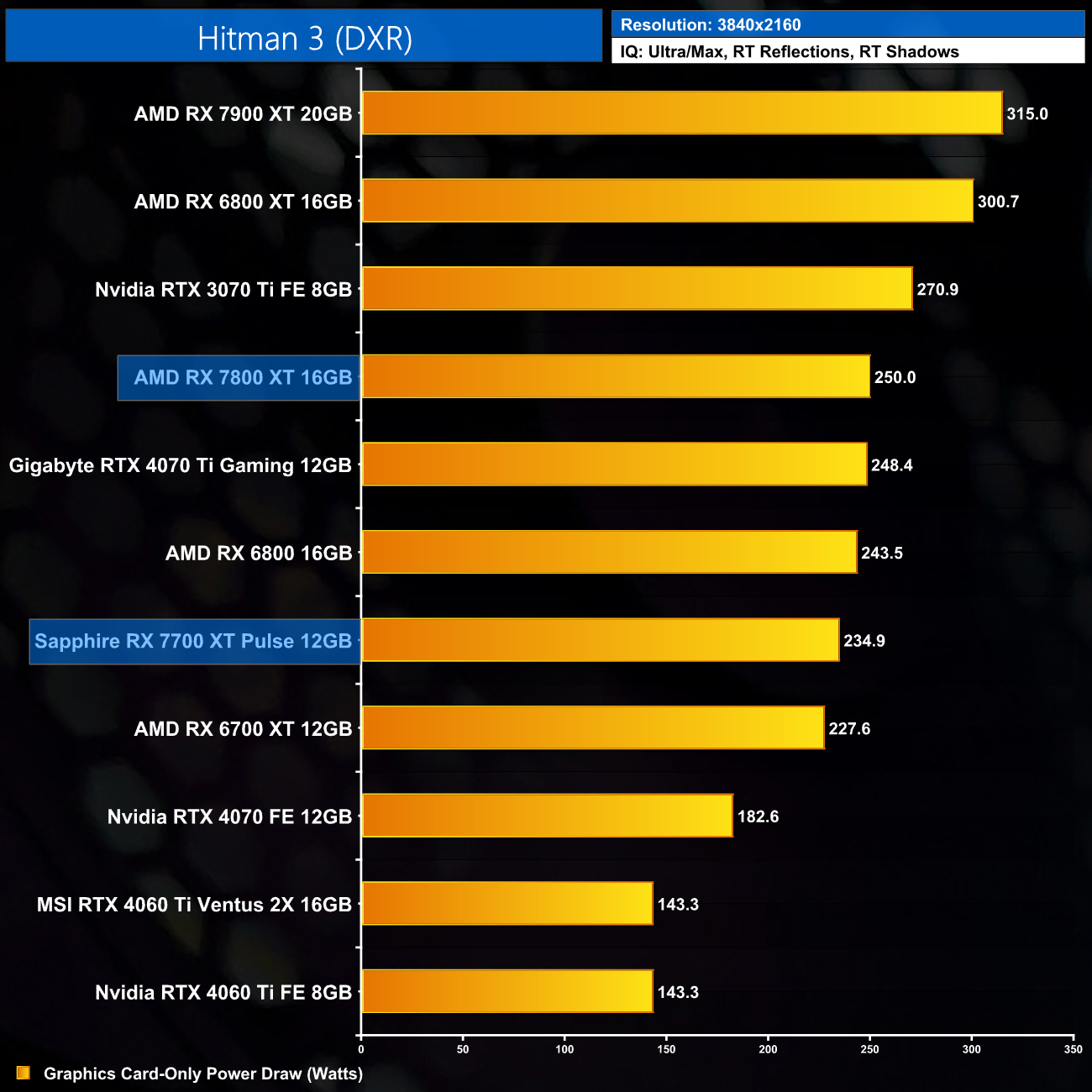

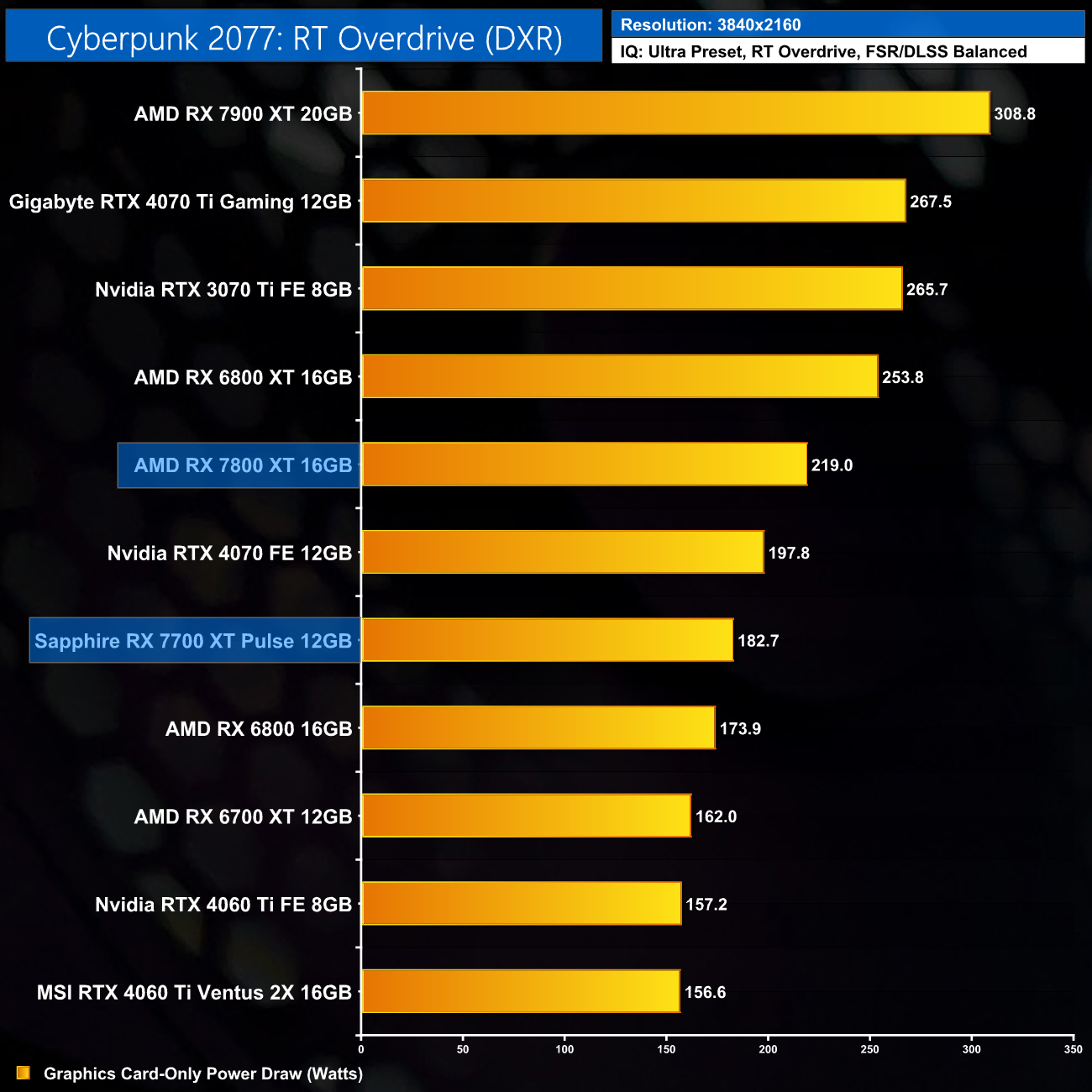

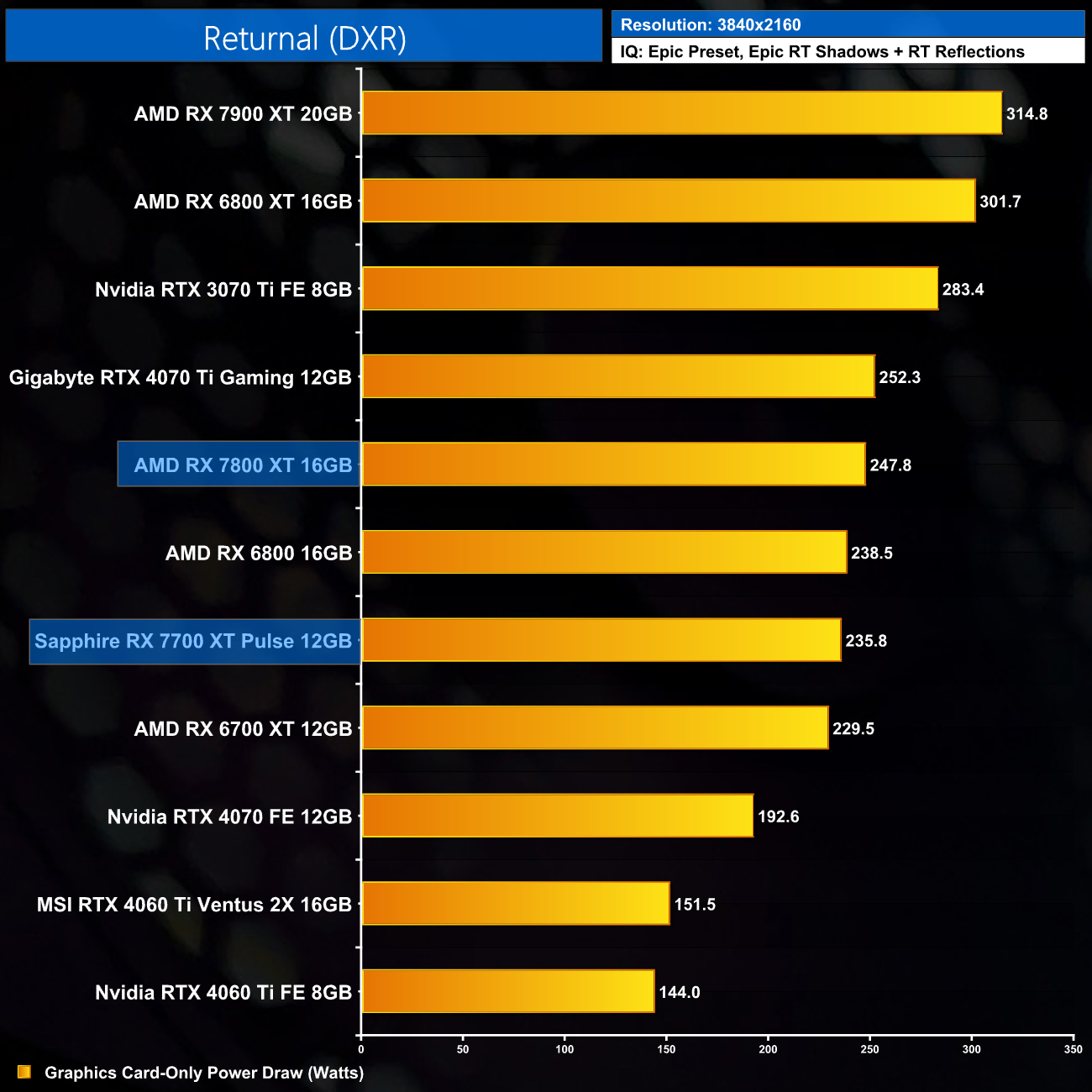

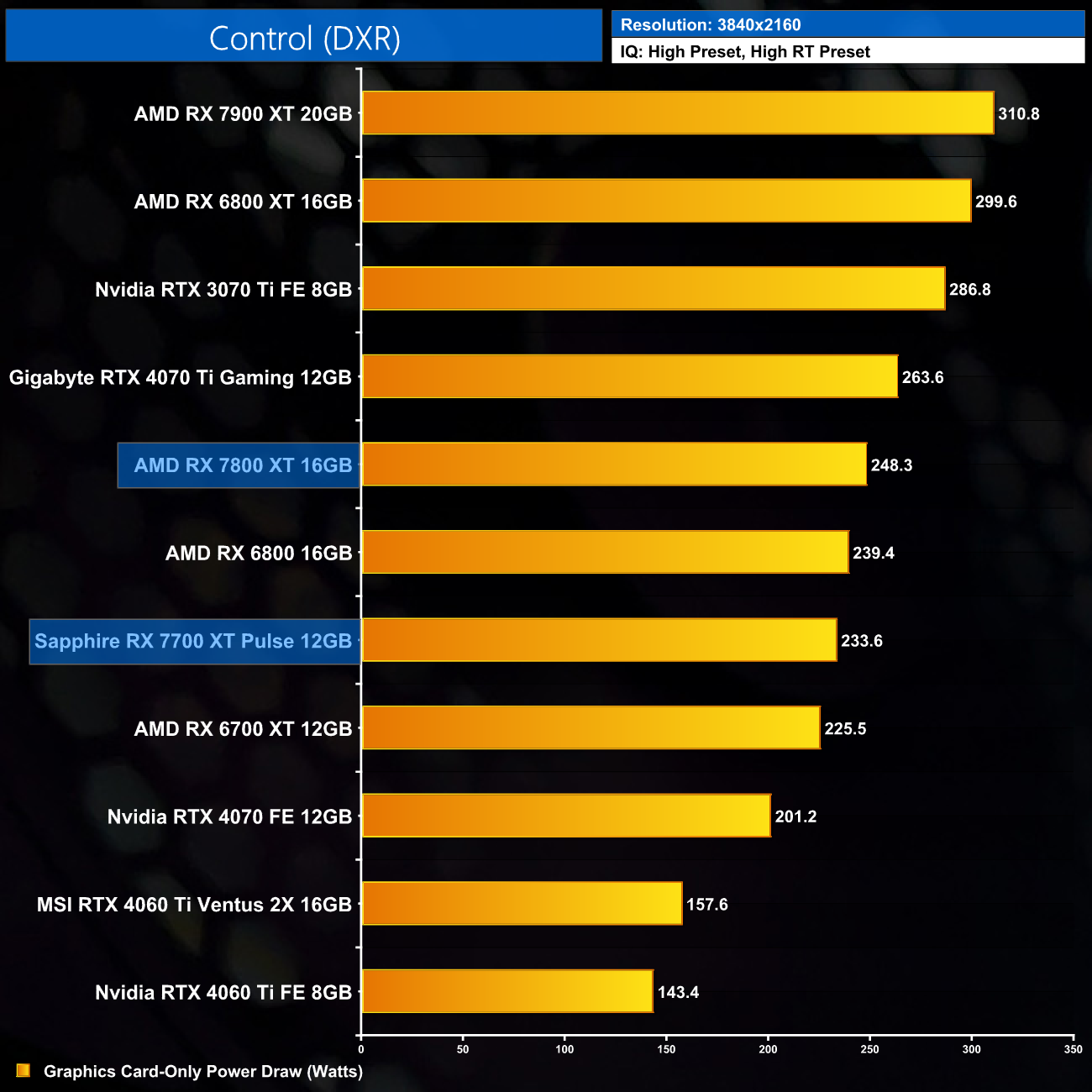

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

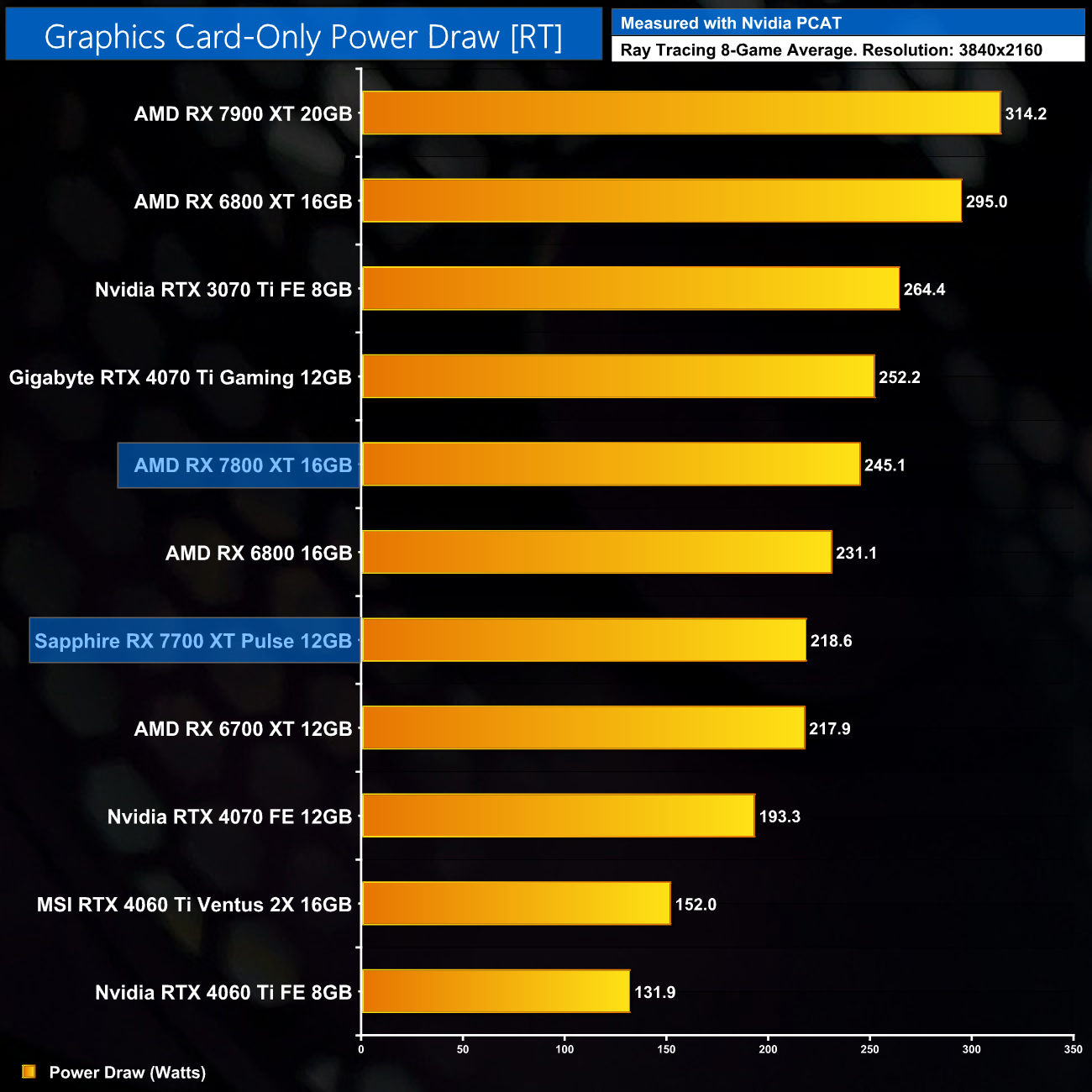

8-Game ray tracing average:

The same goes for ray tracing, with an average of 245.1W being recorded for the RX 7800 XT.
