Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

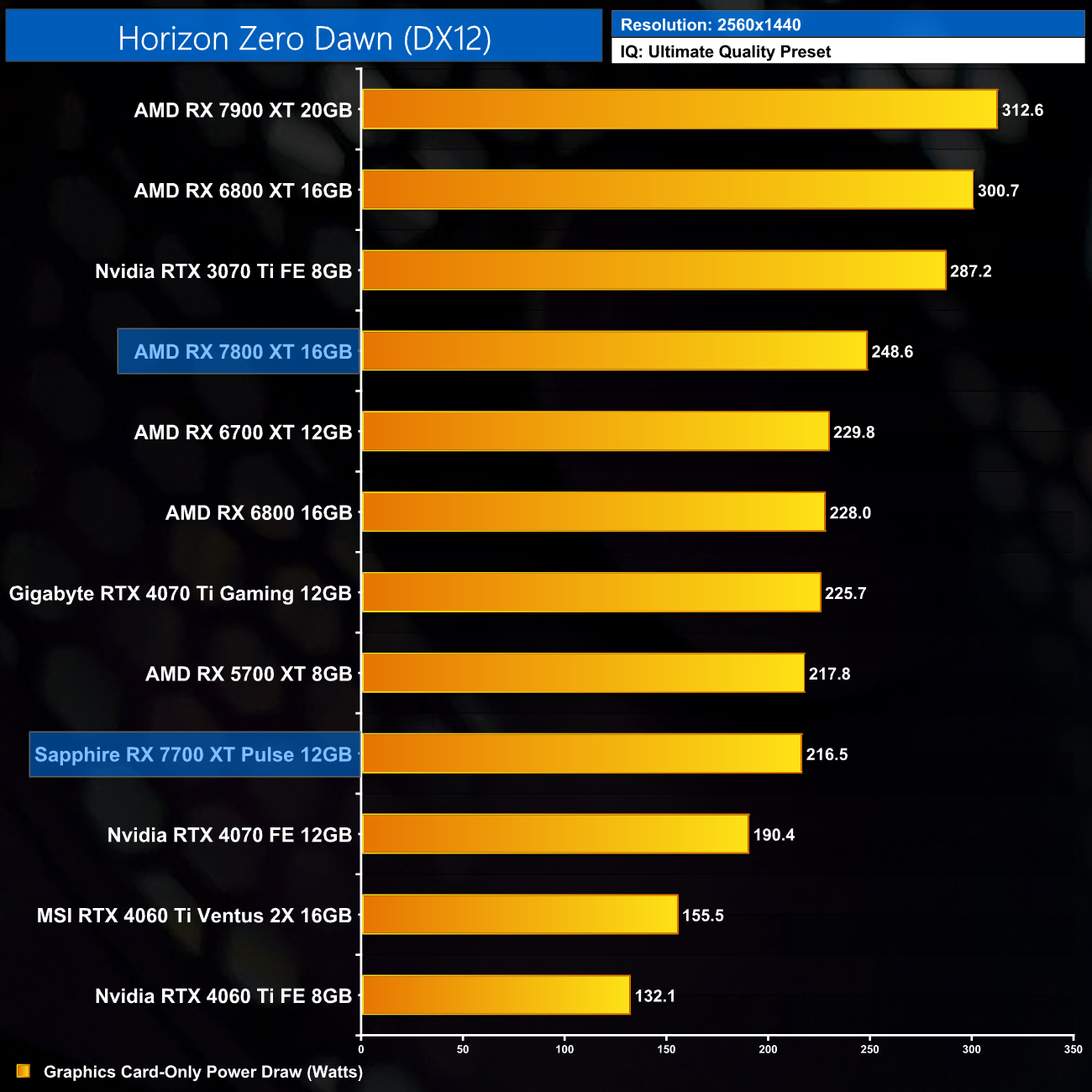

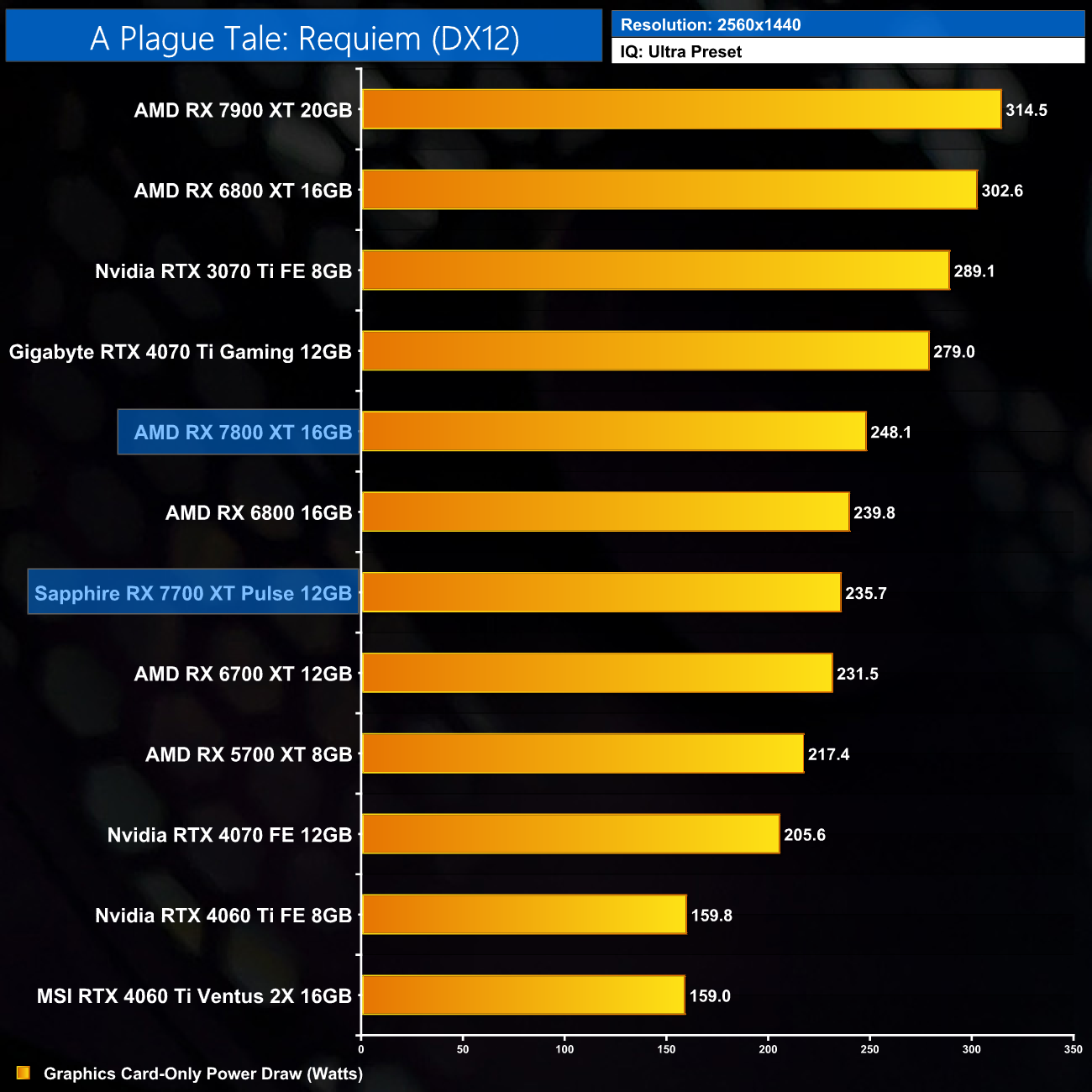

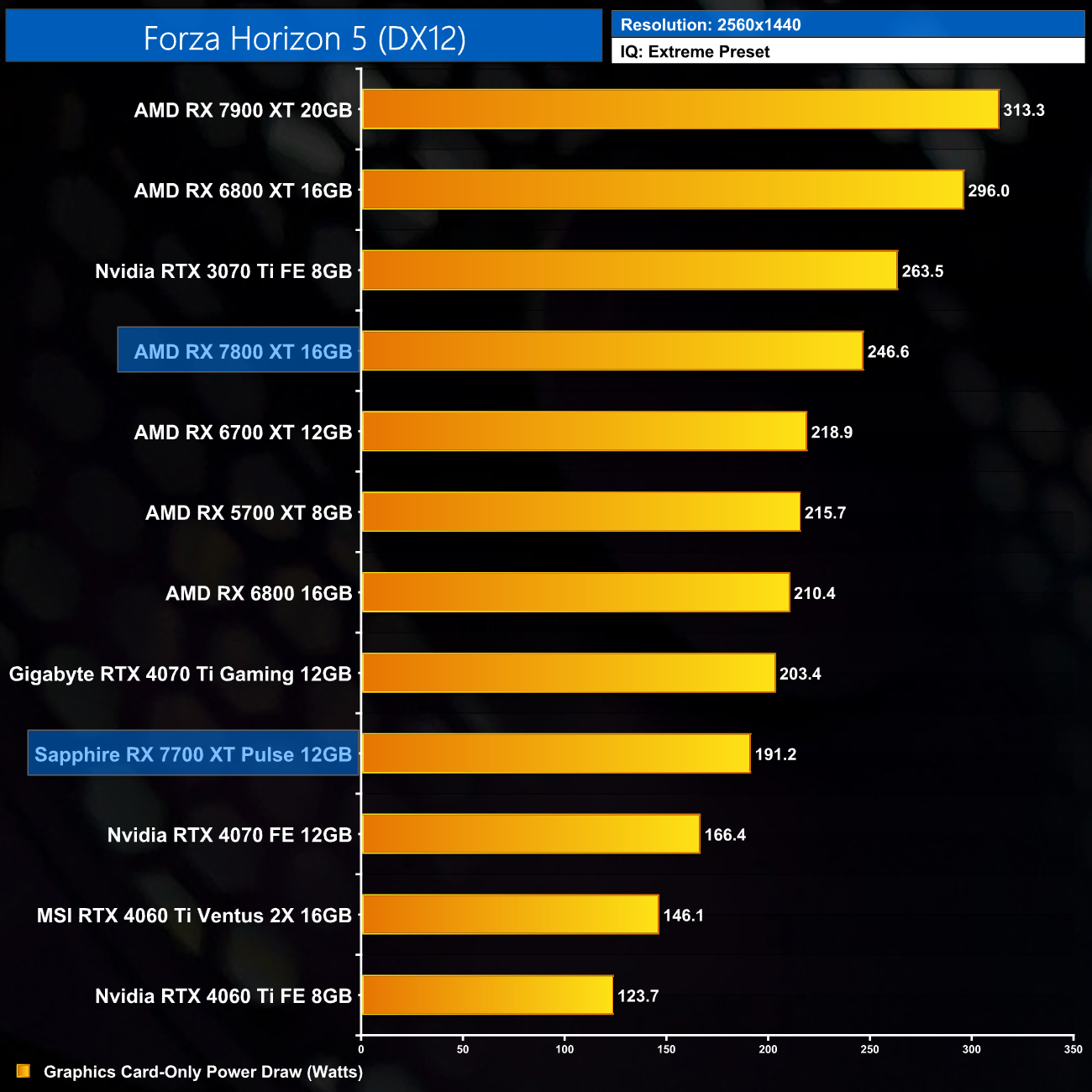

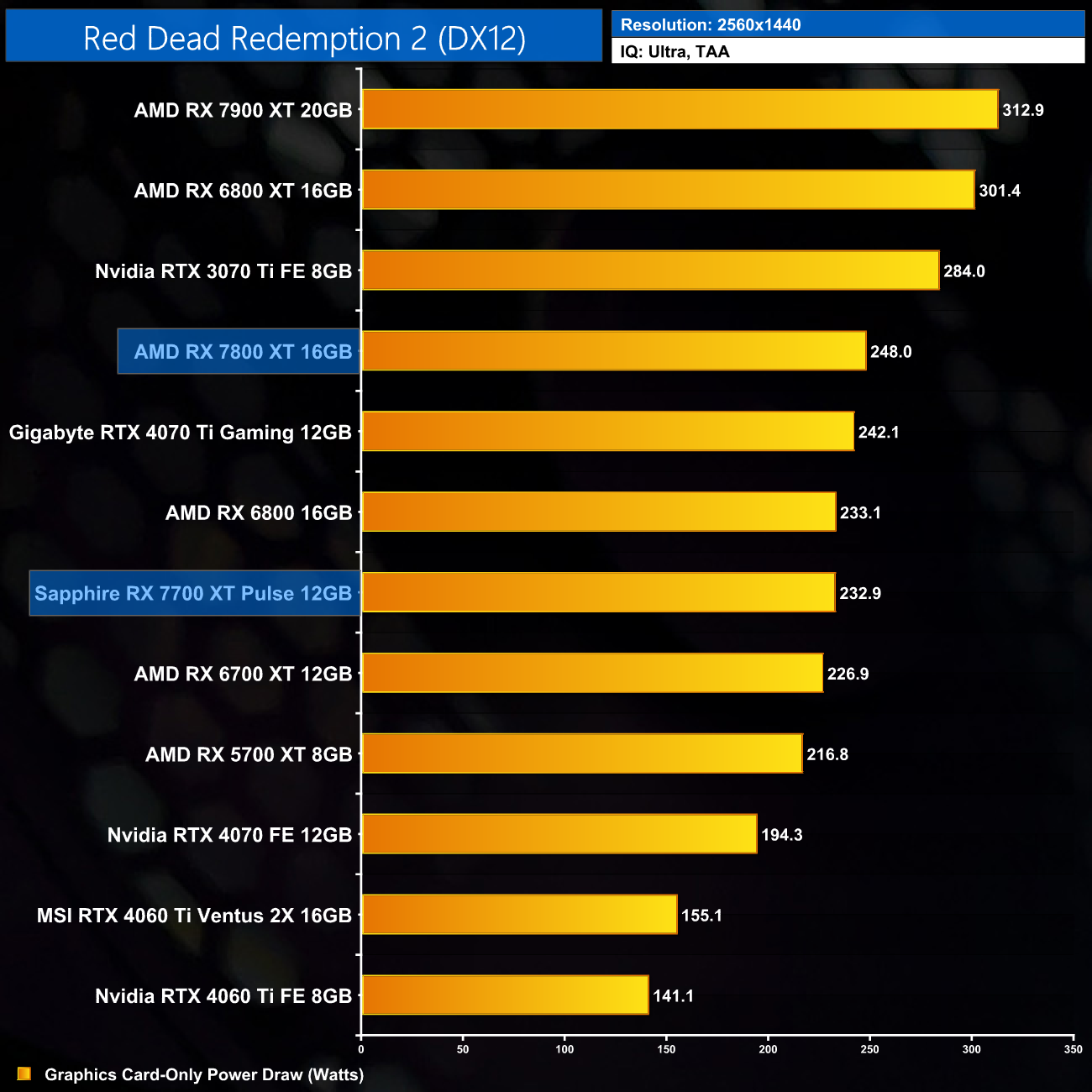

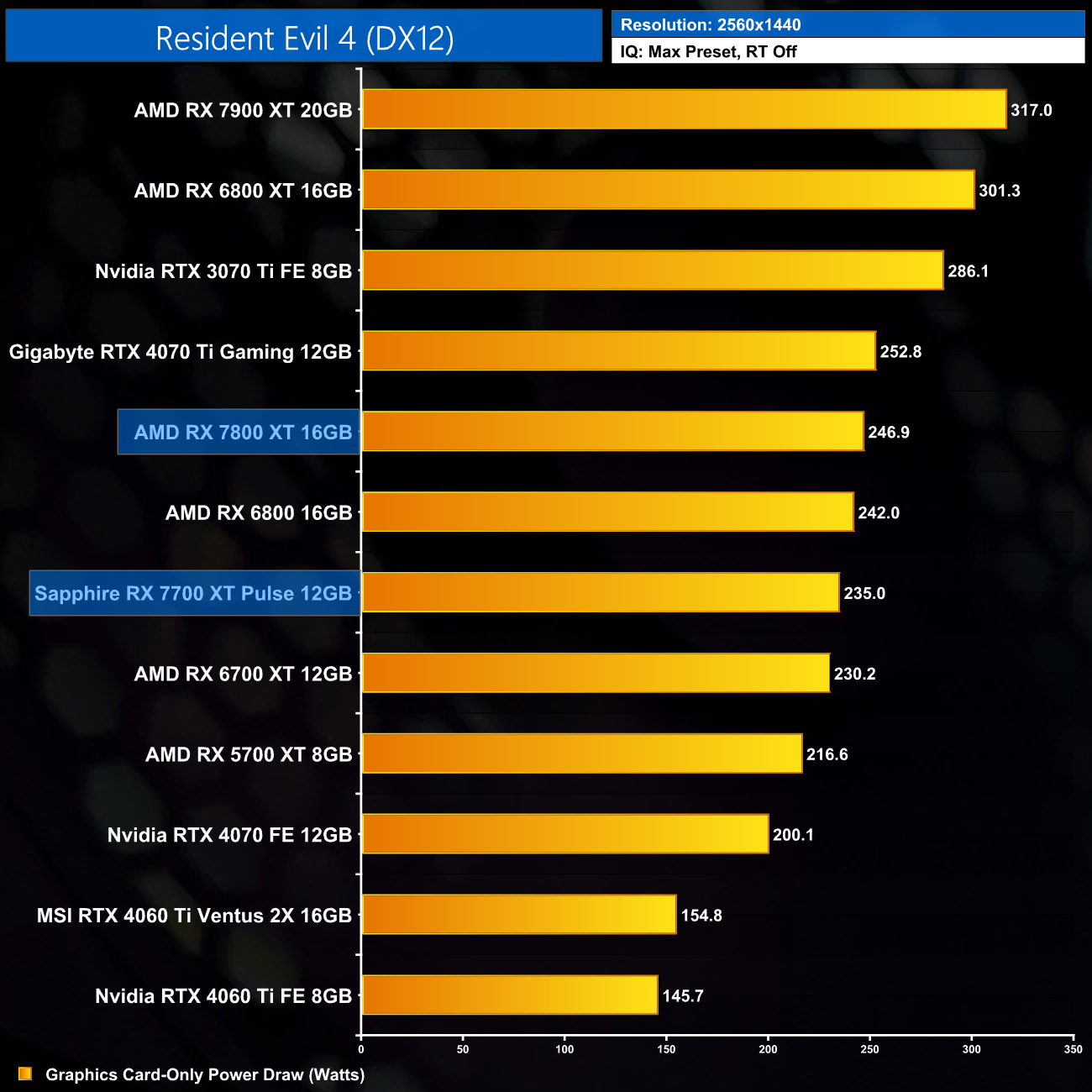

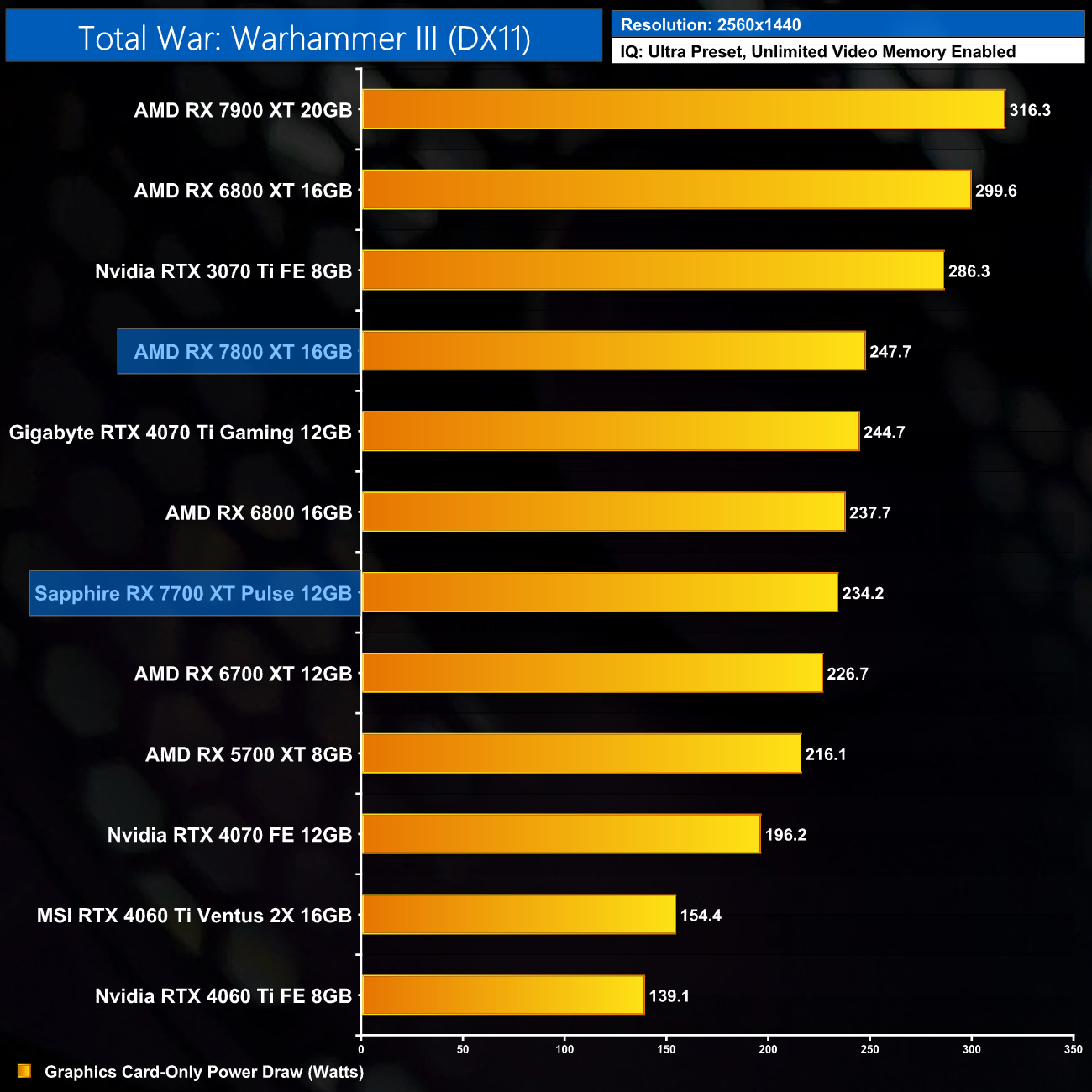

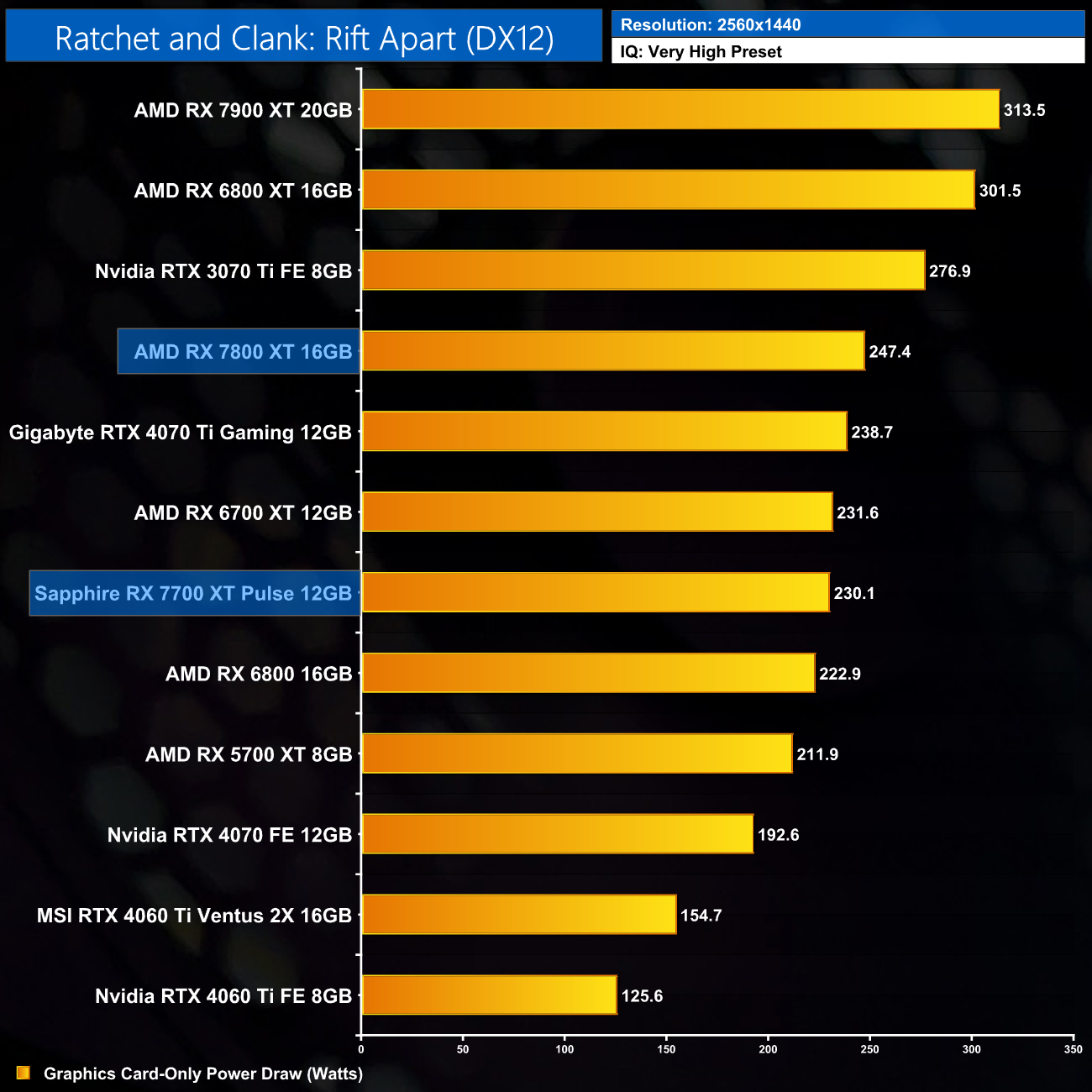

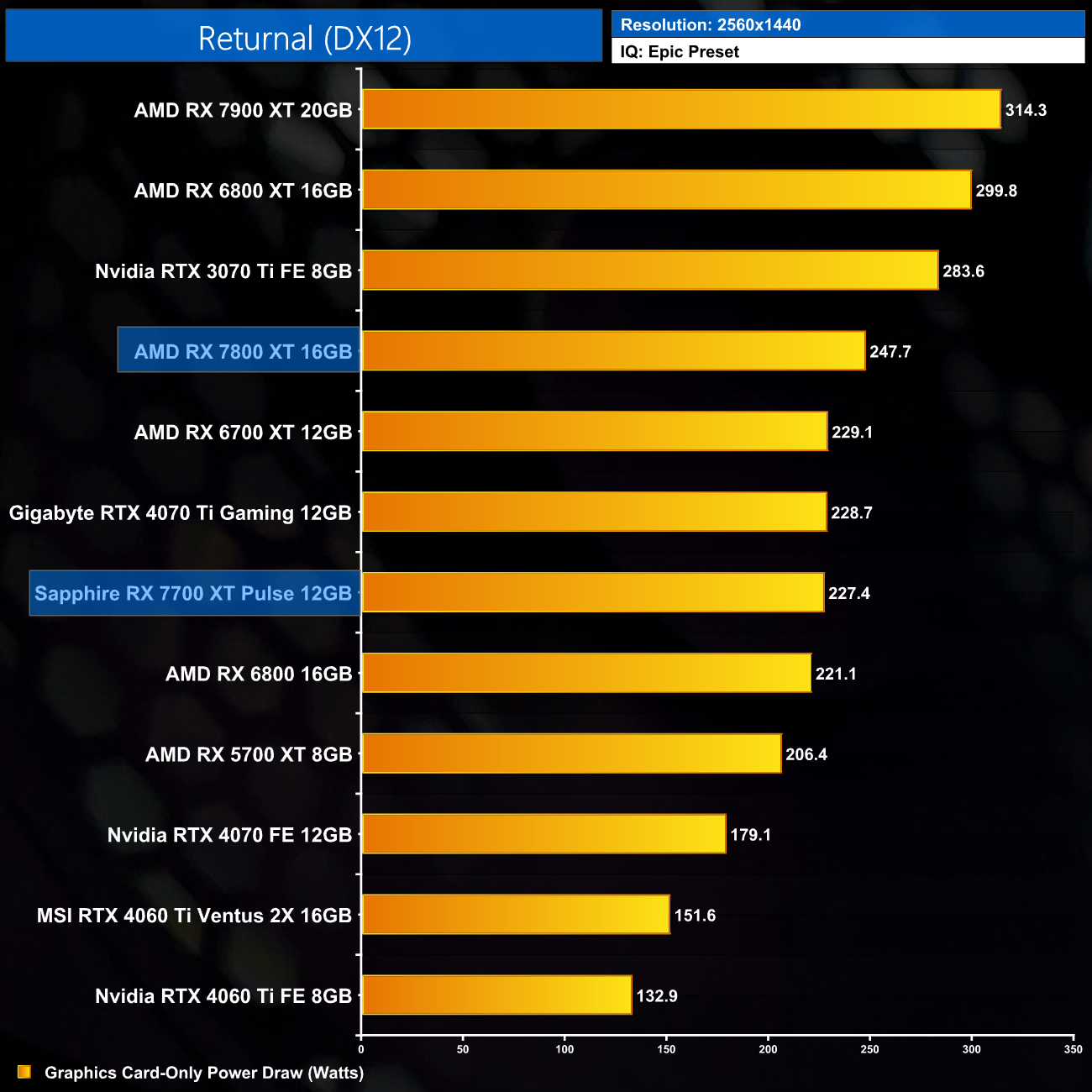

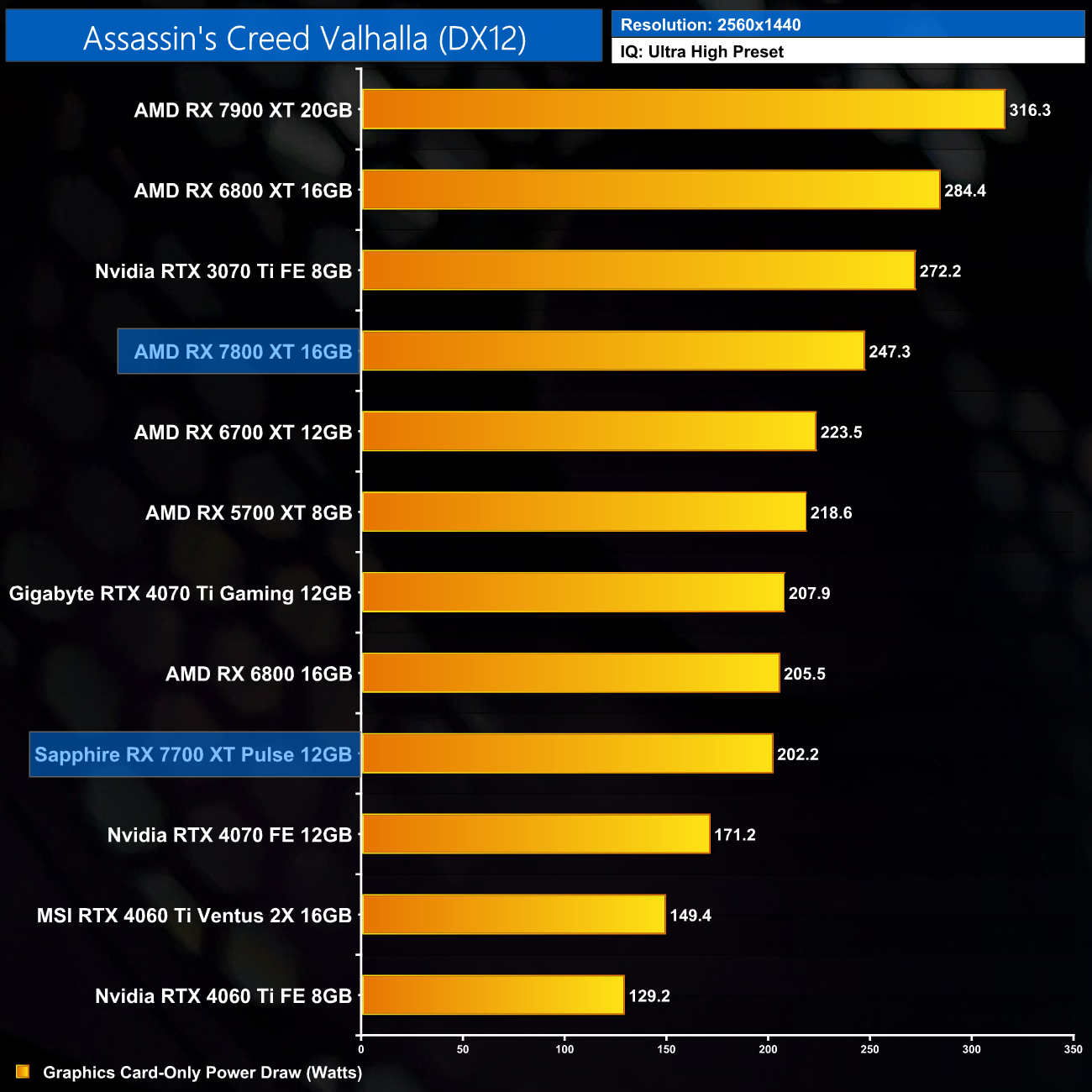

Per-Game Results at 1440p:

Click to enlarge.

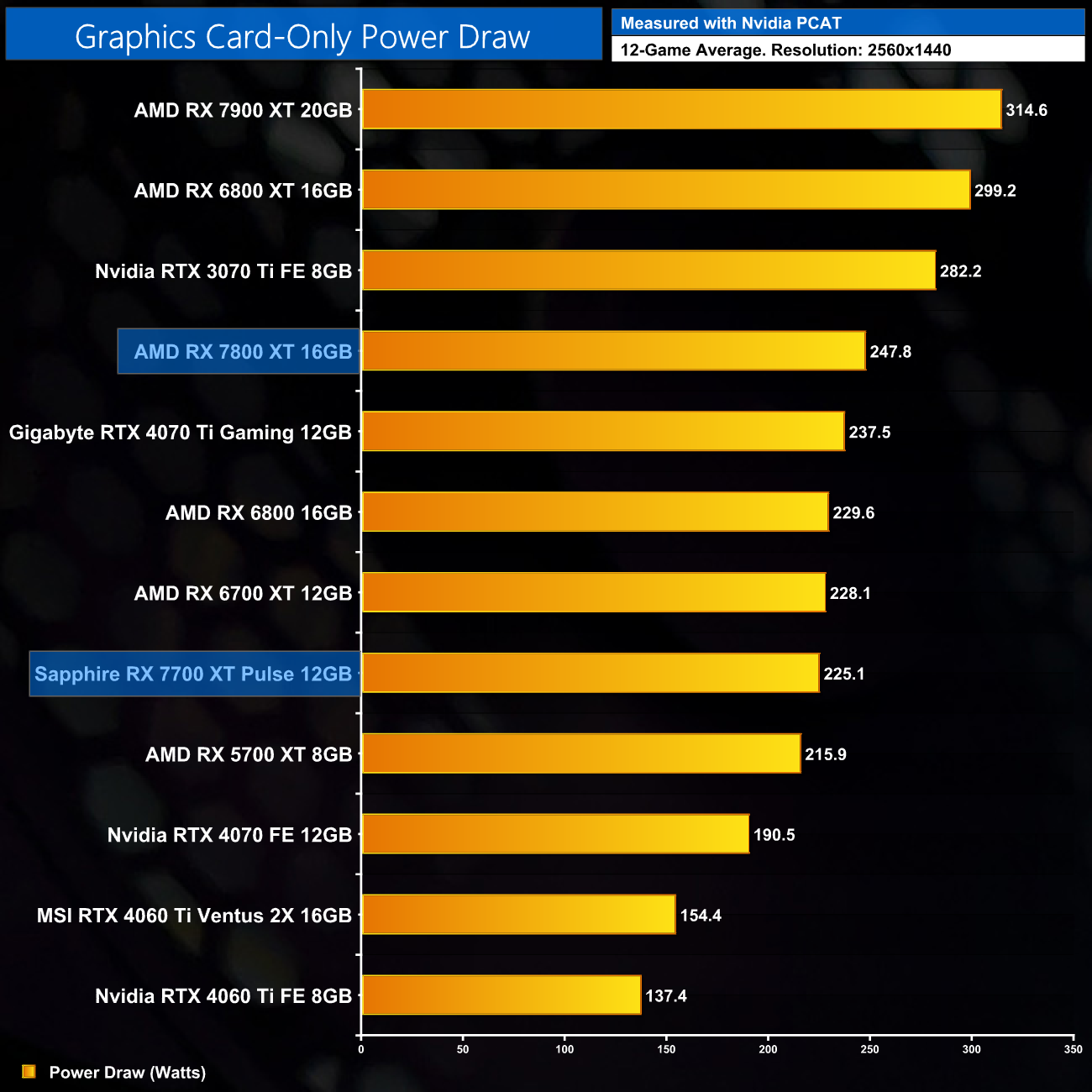

12-Game Average at 1440p:

Up at 1440p, we don't see much change in power draw – most games hover at or around the 250W mark, and we get an average reading of 247.8W.

Ray tracing results

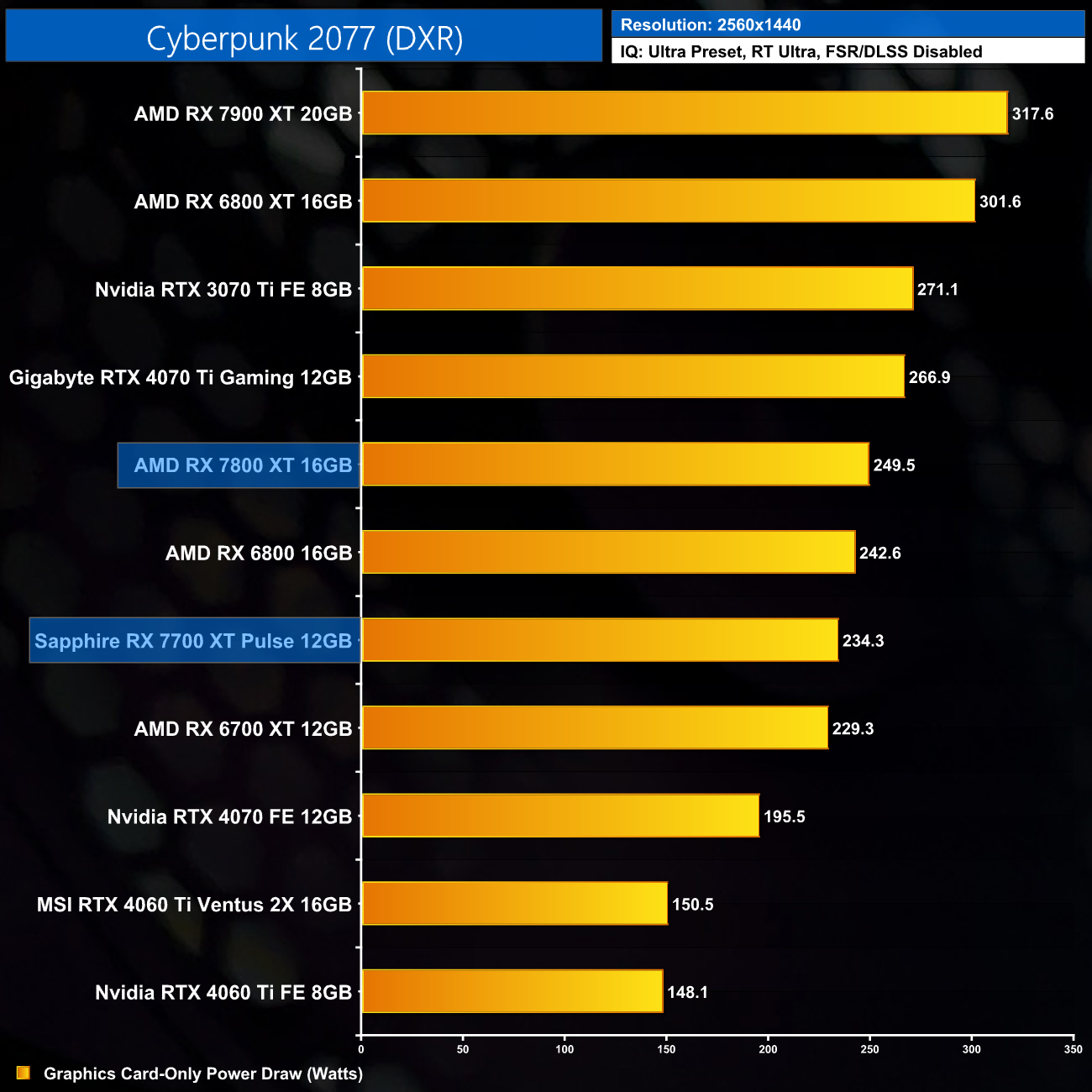

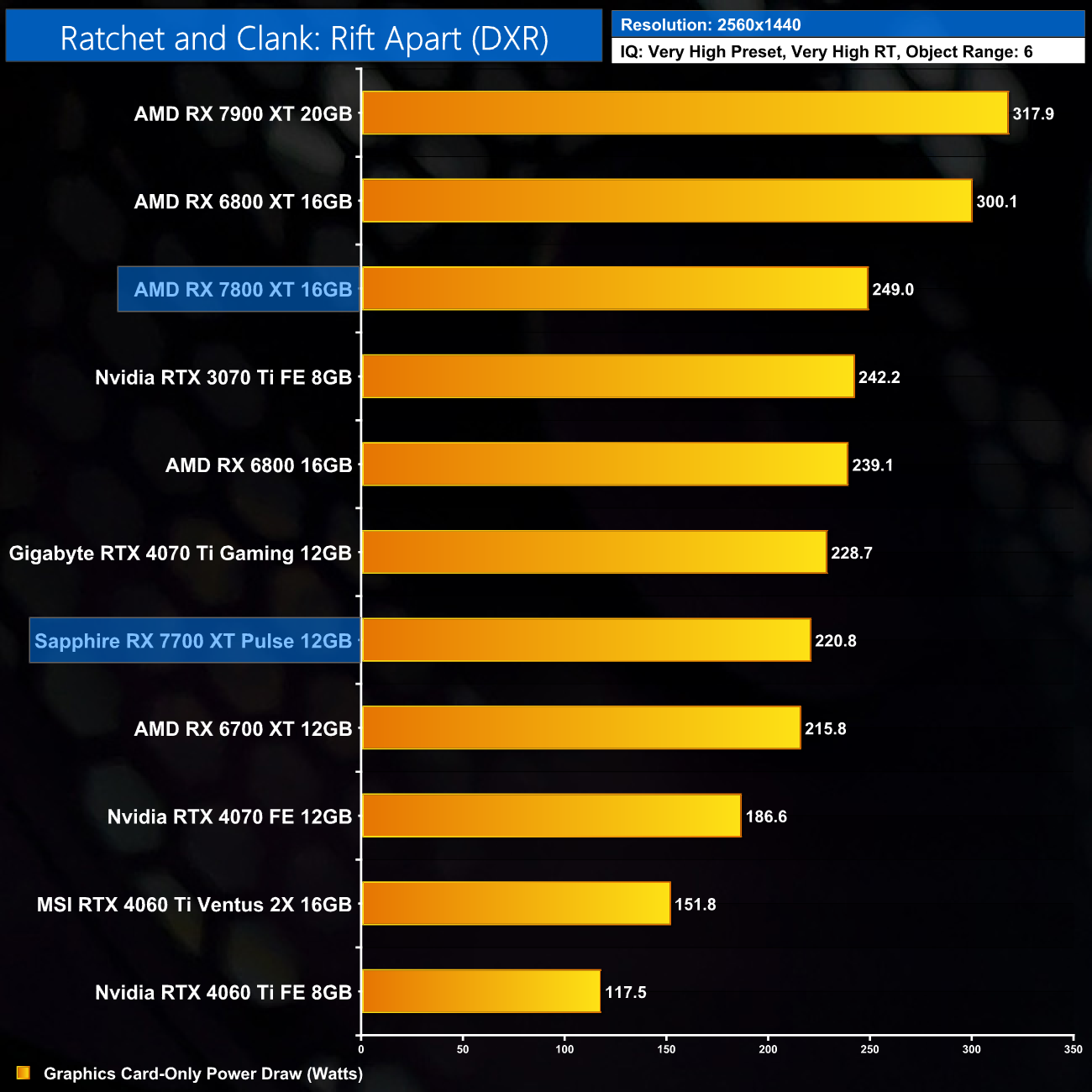

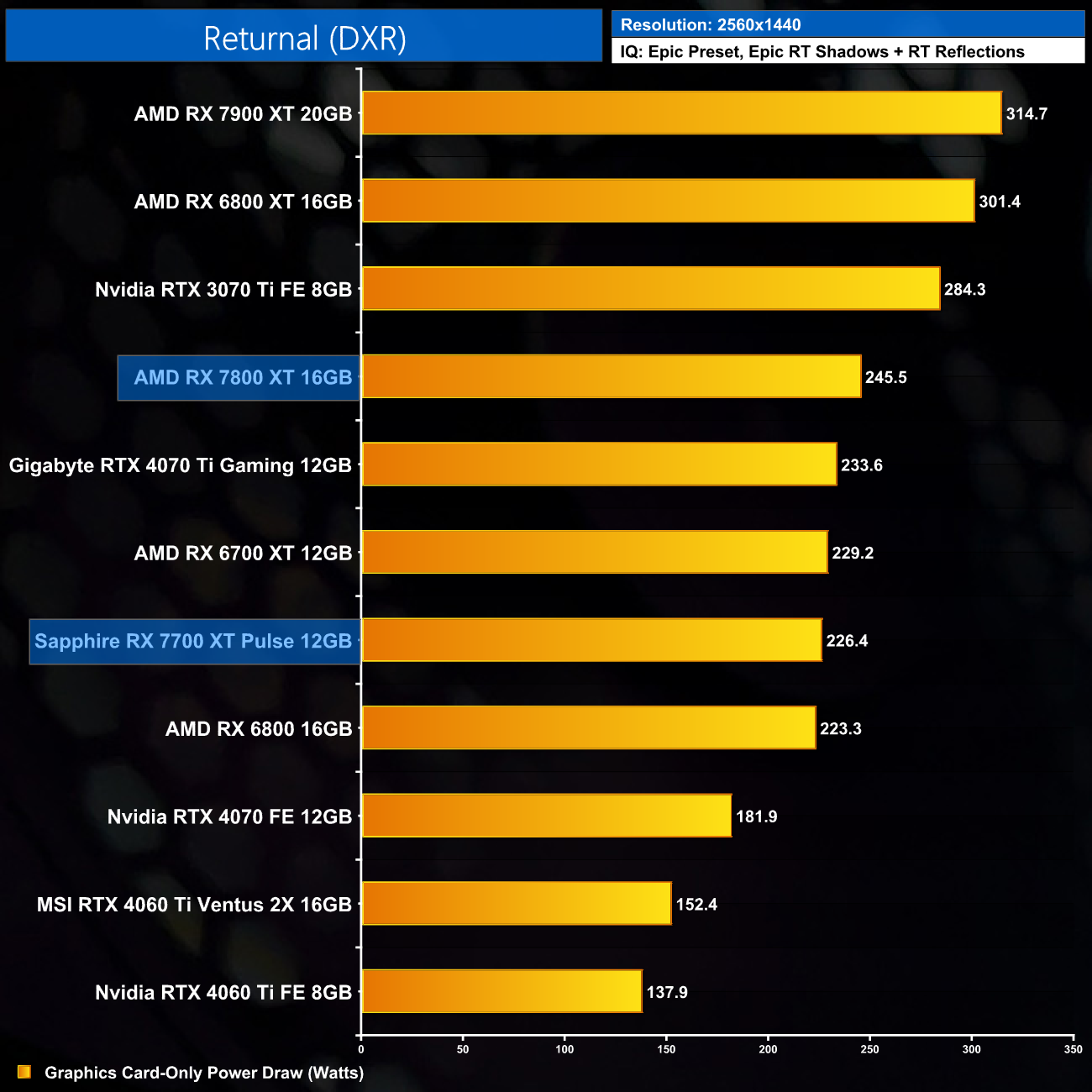

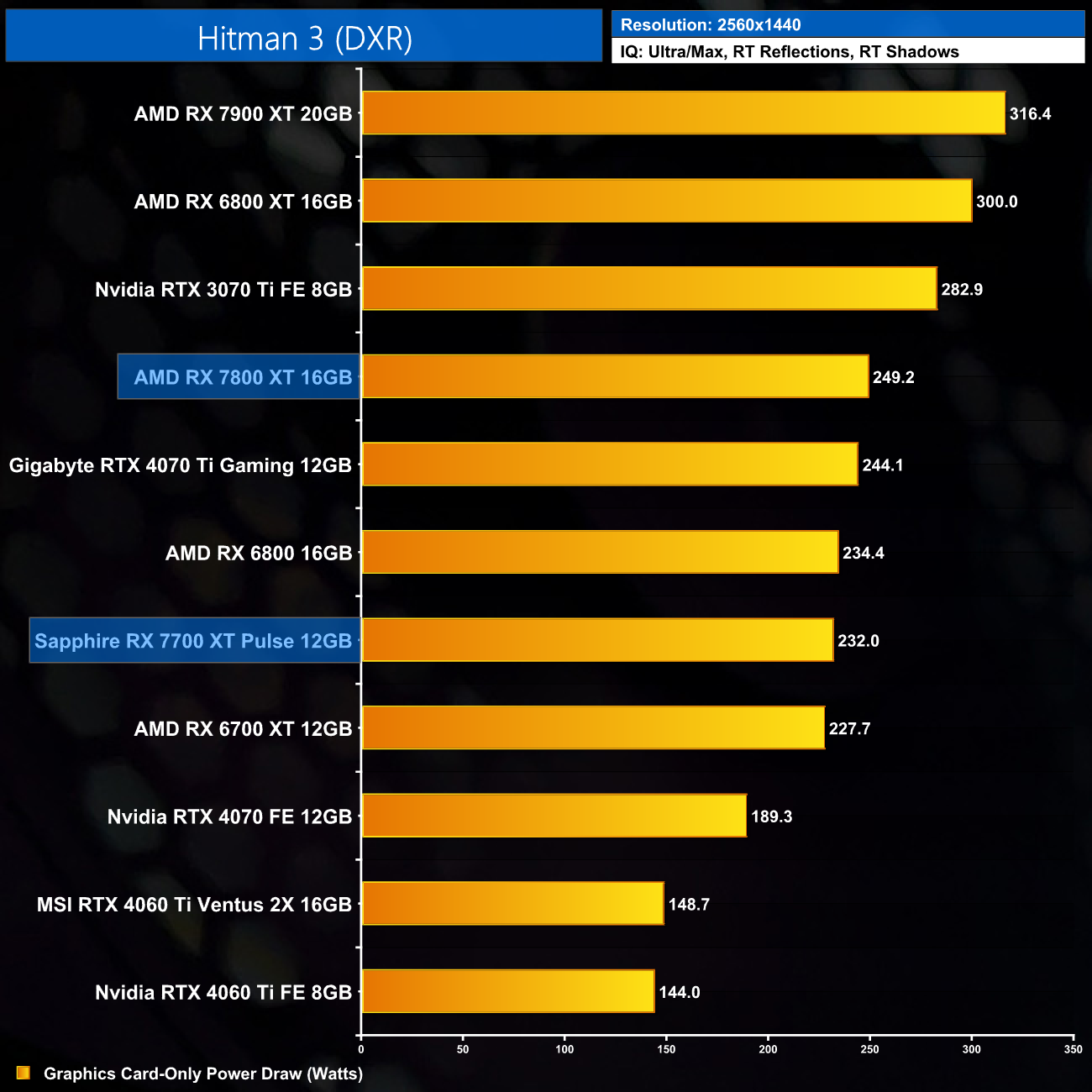

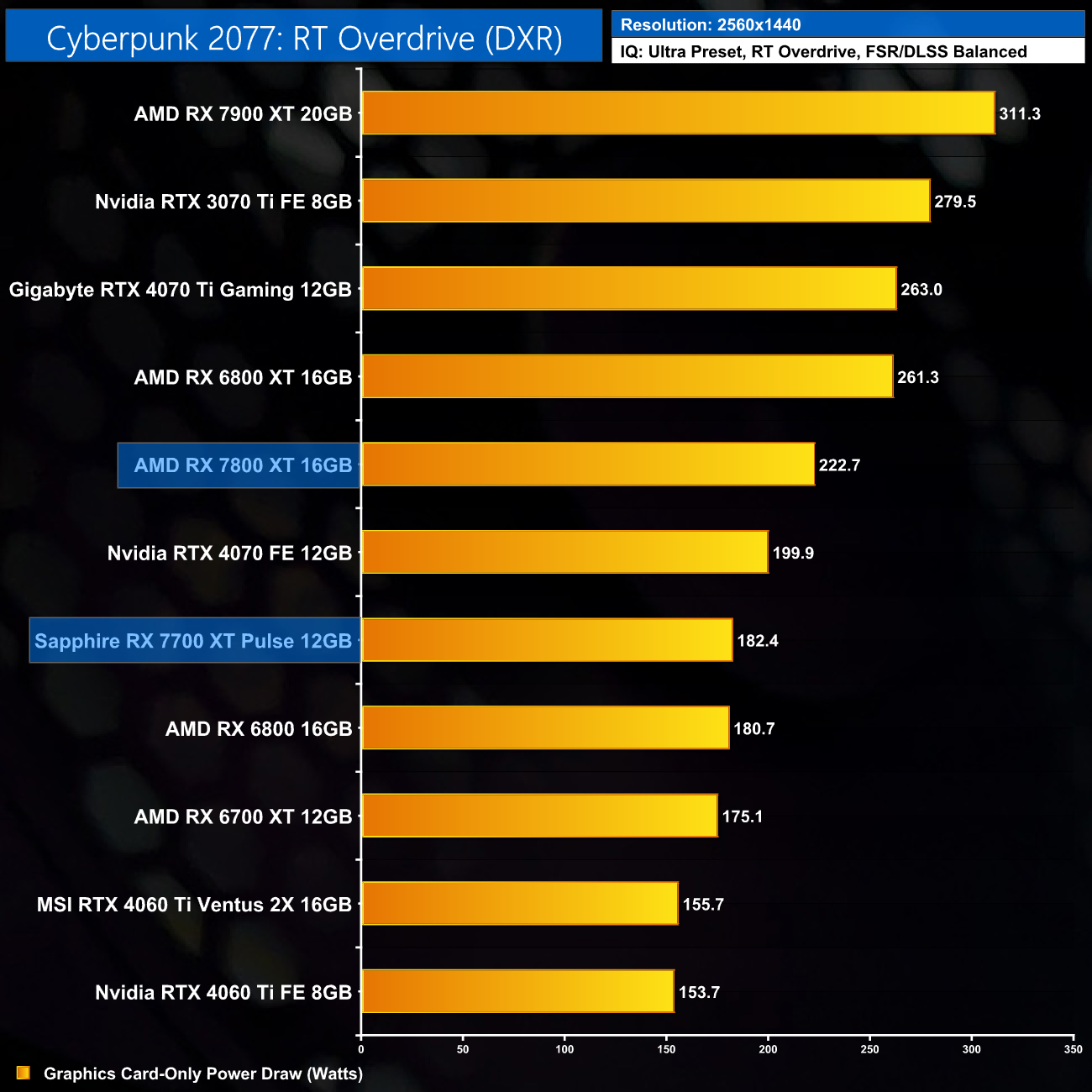

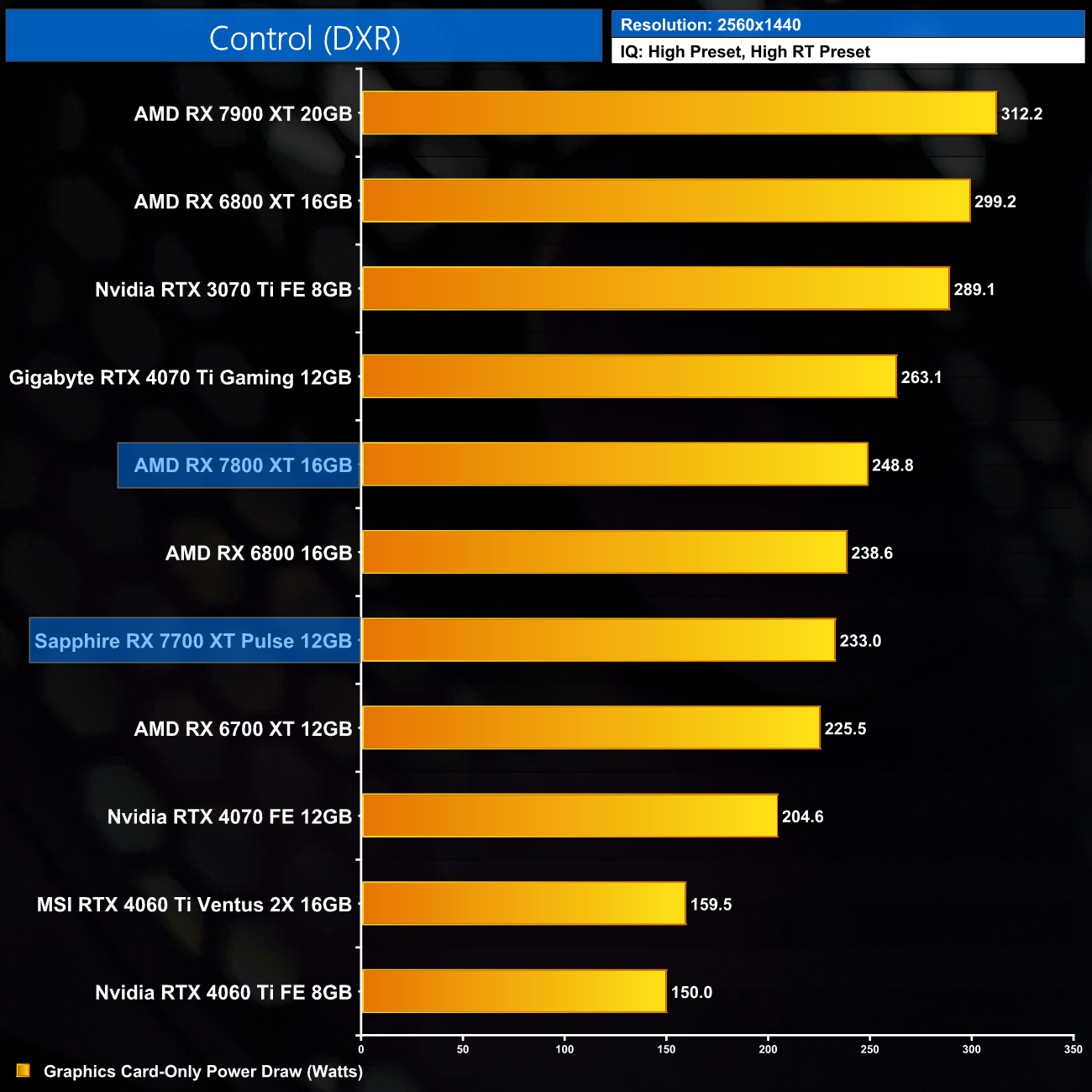

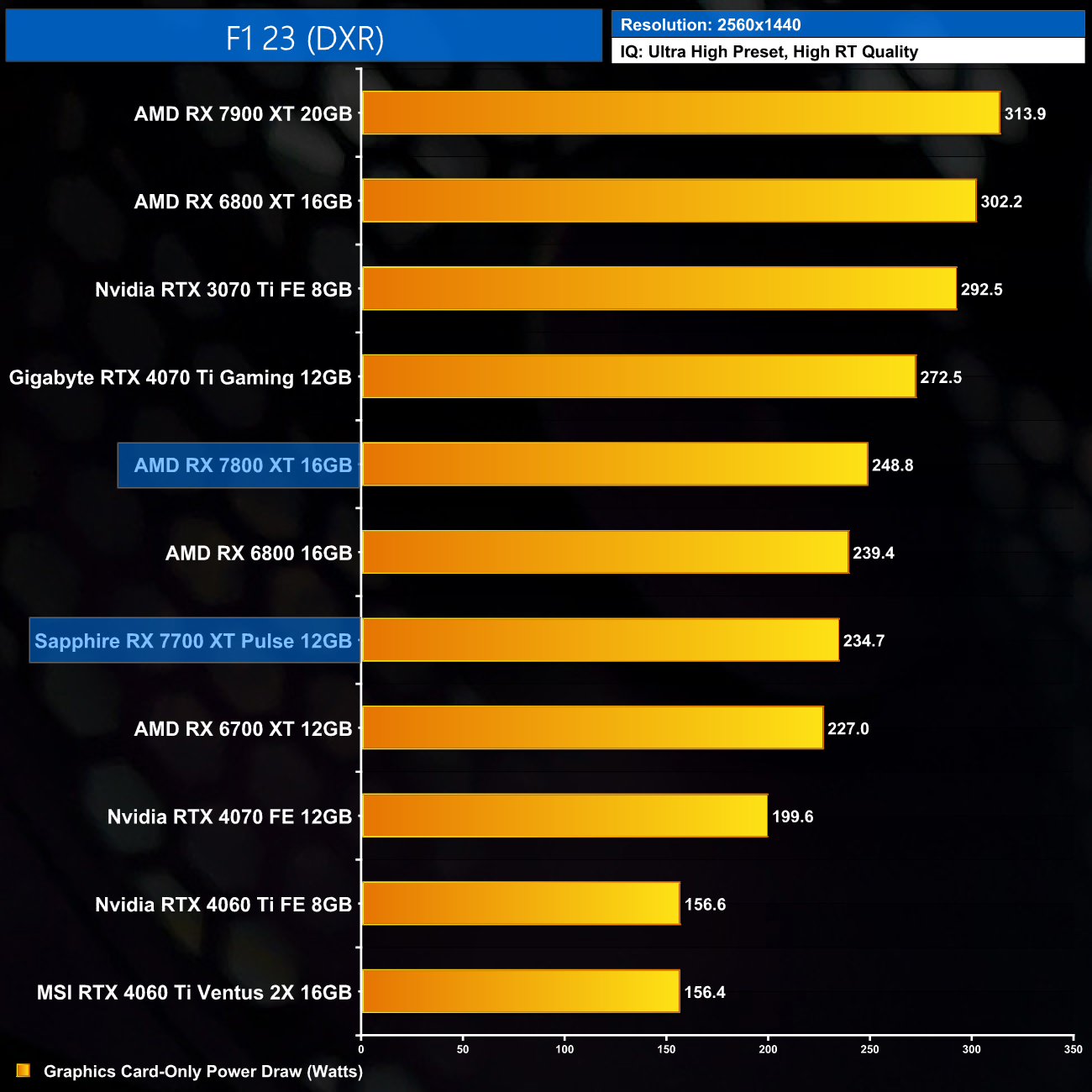

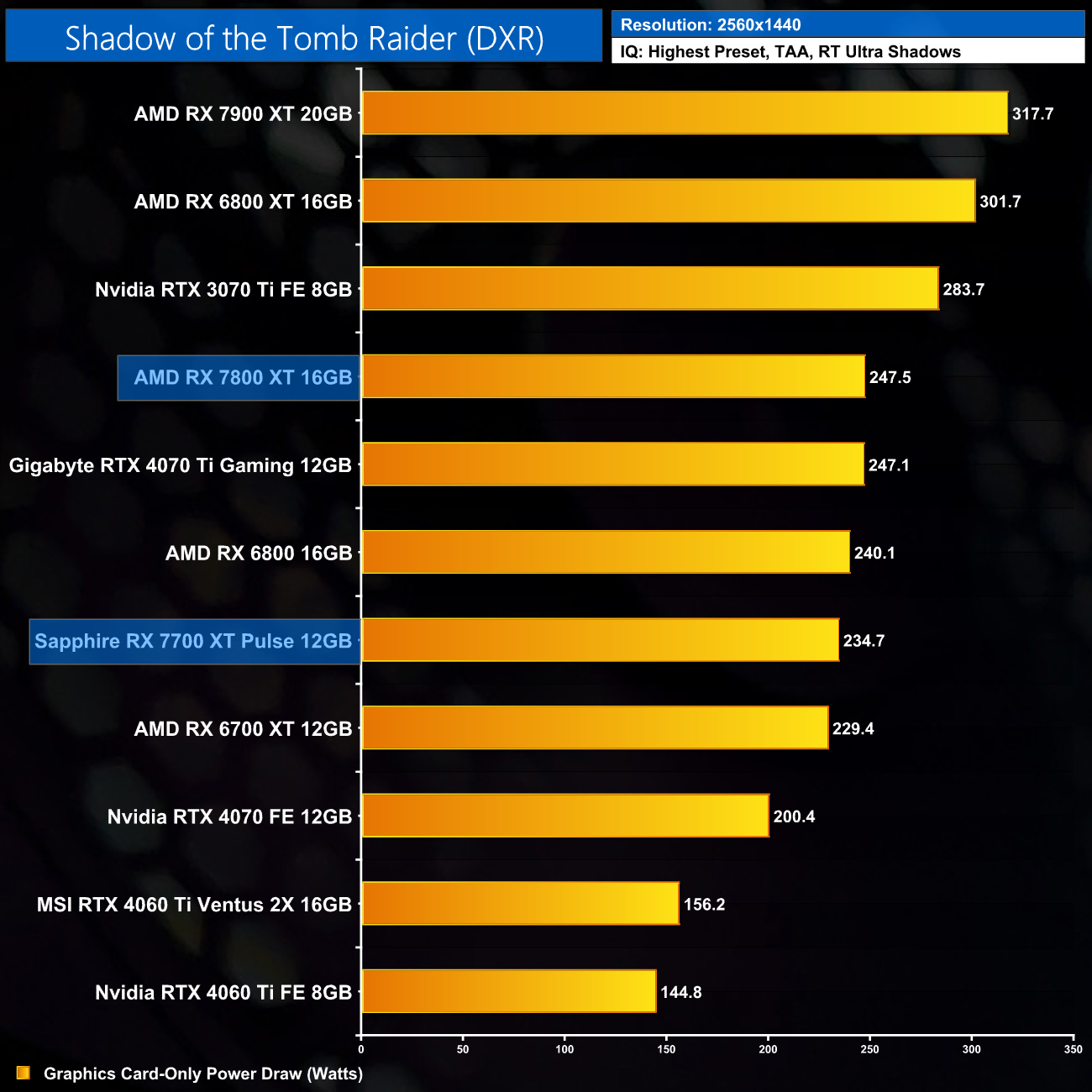

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

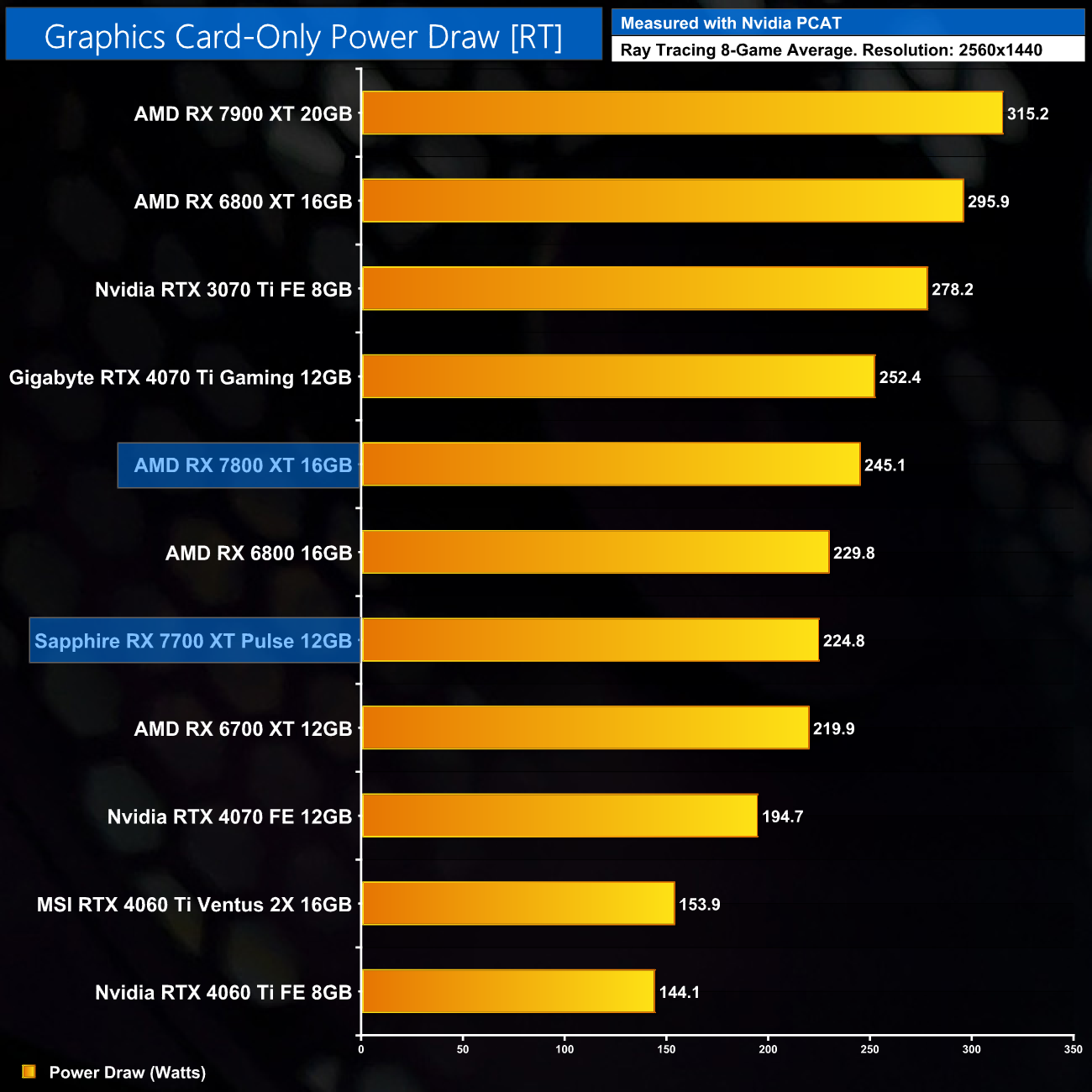

8-Game ray tracing average:

The same can be said for ray tracing, with an average power draw of 245.1W over the 8 games we test with RT enabled.
