There's a saying in London that you might wait ages for a bus, and then two come along at once. This week, that scenario has played out perfectly in the GPU space, with Nvidia releasing the RTX 4060 Ti 8GB yesterday, and that is followed today by AMD's RX 7600. Claimed to be 29% faster than the RX 6600, but with a lower MSRP at launch, we test gaming performance, ray tracing, power draw, efficiency and more in this review.

Things have been quiet at AMD's GPU division for several months now, with no new releases since the launch of the RX 7900 XTX and 7900 XT. That changes today however, as the RX 7600 has been officially announced, with retail availability from tomorrow, May 25th.

Initially targeting a £289.99/$299 MSRP, just yesterday AMD confirmed to us that the RX 7600 will in fact retail from £259.99/$269, making it £40 cheaper than the RX 6600 it replaces, at least based on the launch MSRP. RDNA 2 GPUs are now selling well below MSRP however, so there's only one thing left to do – let's benchmark this new GPU and find out how it compares…

If you want to read this review as a single page, click HERE.

	RX 6700 XT	RX 6650 XT	RX 6600 XT	RX 6600	RX 7600
Architecture	RDNA 2	RDNA 2	RDNA 2	RDNA 2	RDNA 3
Manufacturing Process	7nm	7nm	7nm	7nm	6nm
Transistor Count	17.2 billion	11.1 billion	11.1 billion	11.1 billion	13.3 billion
Die Size	336 mm²	237 mm²	237 mm²	237 mm²	204 mm²
Compute Units	40	32	32	28	32
Ray Accelerators	40	32	32	28	32
Stream Processors	2560	2048	2048	1792	2048
Game GPU Clock	Up to 2424MHz	Up to 2410MHz	Up to 2359MHz	Up to 2044 MHz	2250 MHz
Boost GPU Clock	Up to 2581MHz	Up to 2635MHz	Up to 2589MHz	Up to 2491MHz	Up to 2625MHz
ROPs	64	64	64	64	64
AMD Infinity Cache	96MB	32MB	32MB	32MB	32MB
Memory	12GB GDDR6 16Gbps	8GB GDDR6 17.5Gbps	8GB GDDR6 16Gbps	8GB GDDR6 14Gbps	8GB GDDR6 18Gbps
Memory Bandwidth	384 GB/s	280 GB/s	256 GB/s	224 GB/s	288 GB/s
Memory Interface	192-bit	128-bit	128-bit	128-bit	128-bit
Board Power	230W	180W	160W	132W	165W

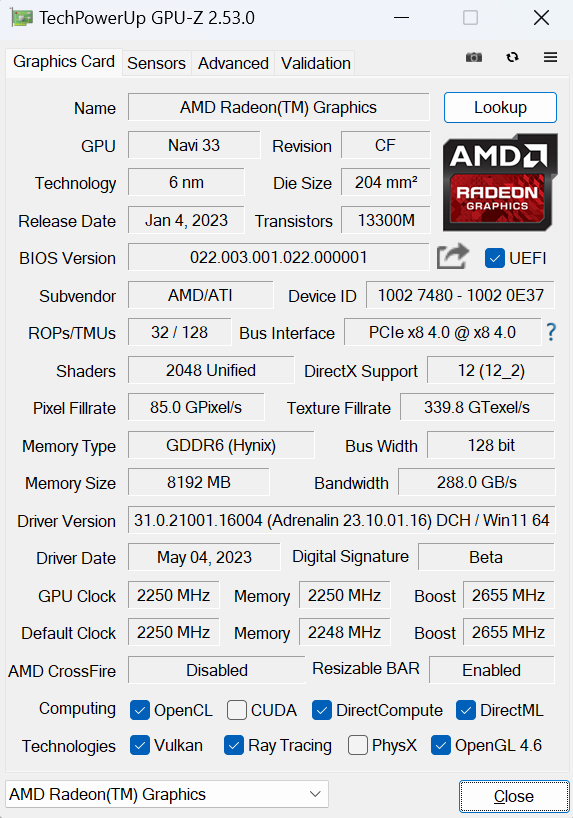

First, let's take a quick look at the specs. Still based on the RDNA 3 architecture, things are slightly different to what we saw with the RX 7900 XTX and 7900 XT. For one, the chiplet-based design has reverted to a monolithic die, and instead of using TSMC's 5nm process, Navi 33 makes use of 6nm, with a 204 mm² die size.

Internally though, the compute makeup hasn't been radically changed. Navi 33 packs in 32 Compute Units, each of which houses 64 Stream Processors, for a total of 2048 shaders. There's also 32 Ray Accelerators – one per CU – and 64 ROPs.

As for clock speed, this remains high with the RX 7600, with AMD touting a boost of up to 2625MHz, though a slightly lower game clock of 2250MHz.

Meanwhile, the memory configuration is almost identical to the previous generation RX 6600. We still find 8GB GDDR6 operating over a 128-bit interface, but this time the memory clocks in at 18Gbps, up from 14Gbps. This gives a memory bandwidth of 288 GB/s, though AMD claims an ‘effective' bandwidth of 476.9 GB/s due to the 32MB of 2nd Gen Infinity cache.

As with Navi 23, Navi 33 also features a cut-down PCIe interface, offering a Gen4 x8 connection.

Power draw for the RX 7600 is rated at 165W Total Board Power (TBP), an increase from the 132W figure for the RX 6600. We are using our updated GPU power testing methodology in this review, so read on for our most detailed power and efficiency testing yet.
