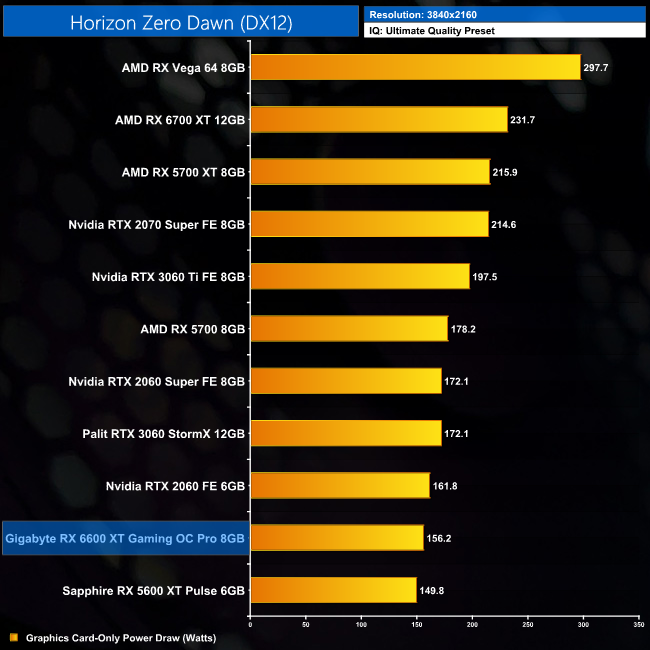

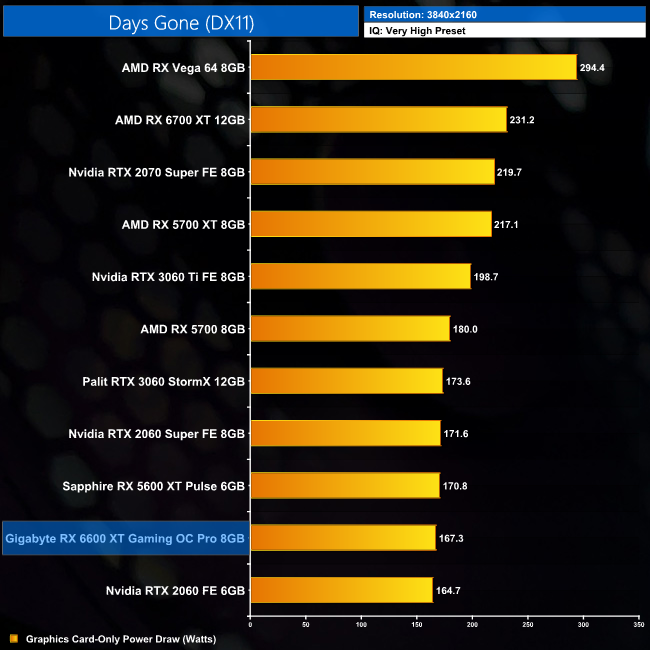

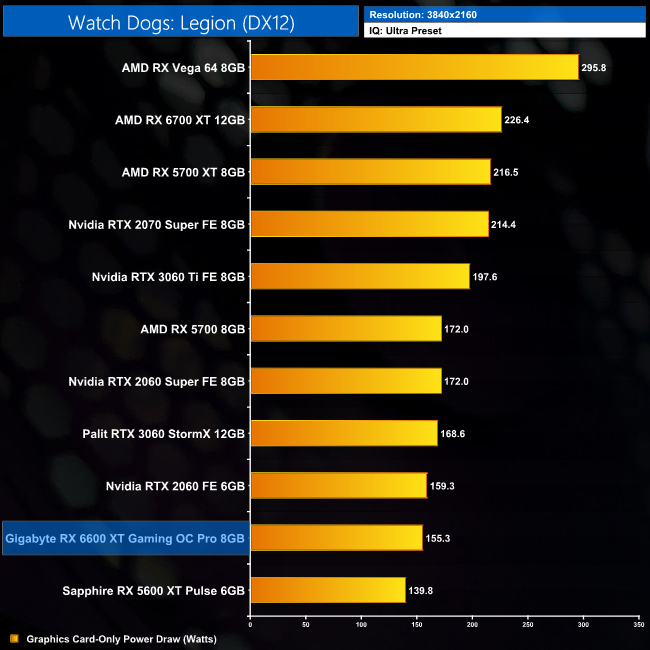

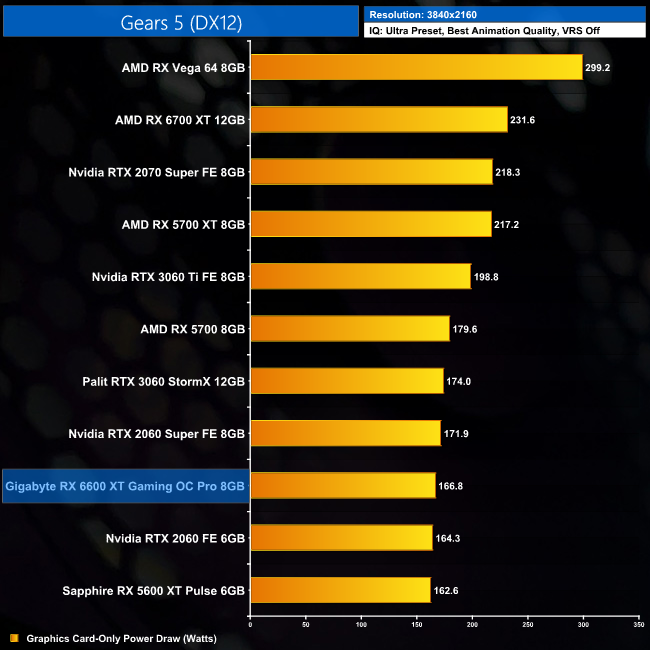

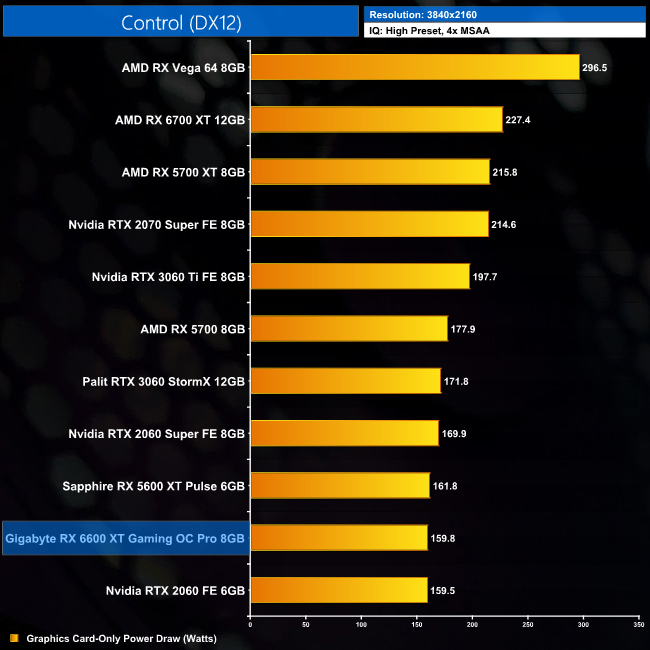

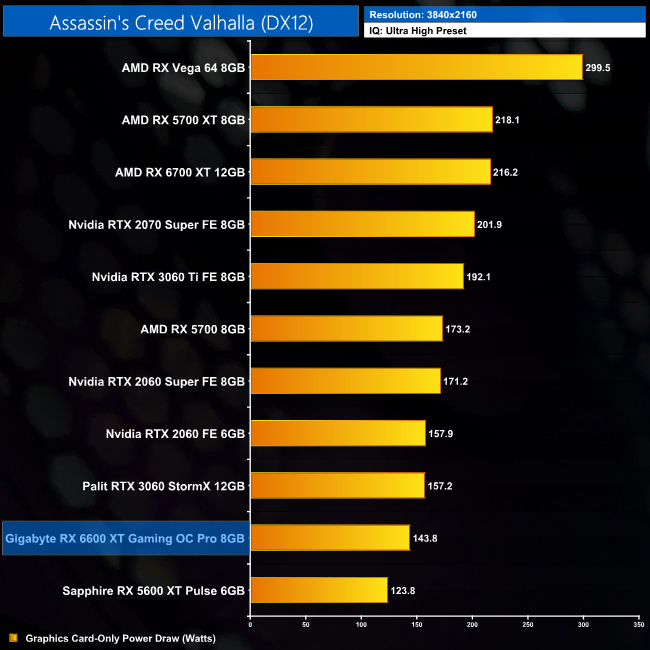

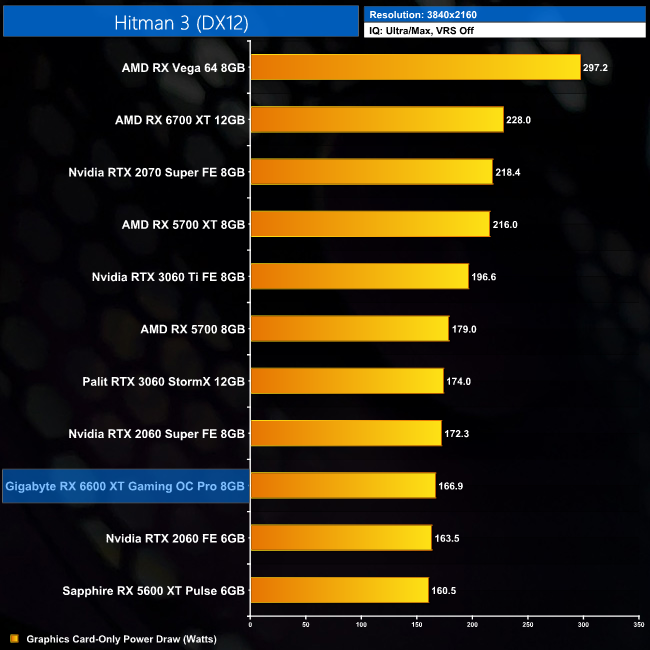

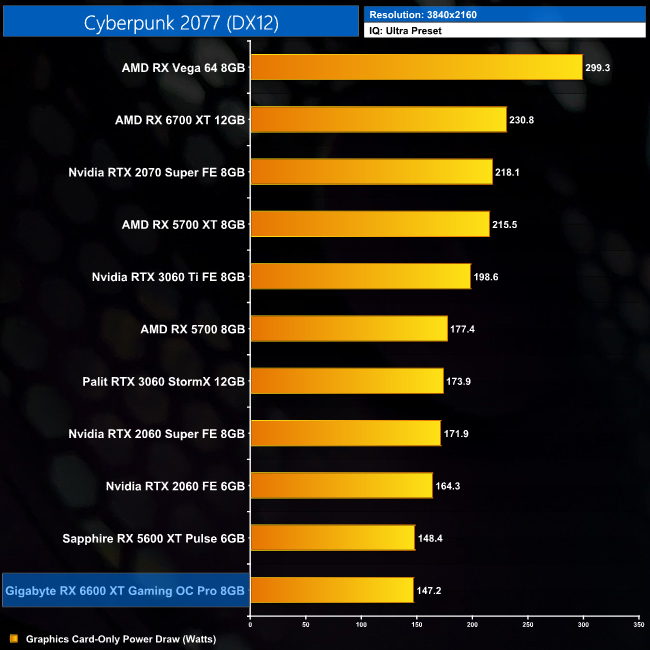

Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

Click to enlarge.

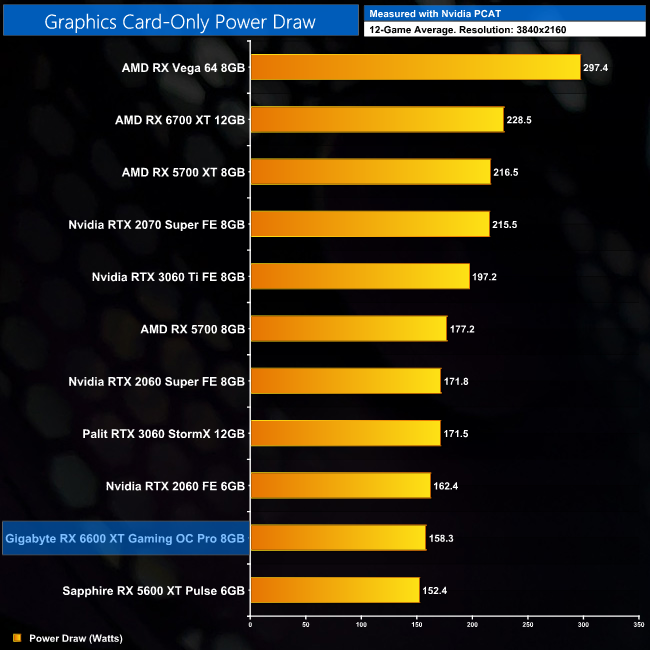

12-Game Average at 2160p (4K):

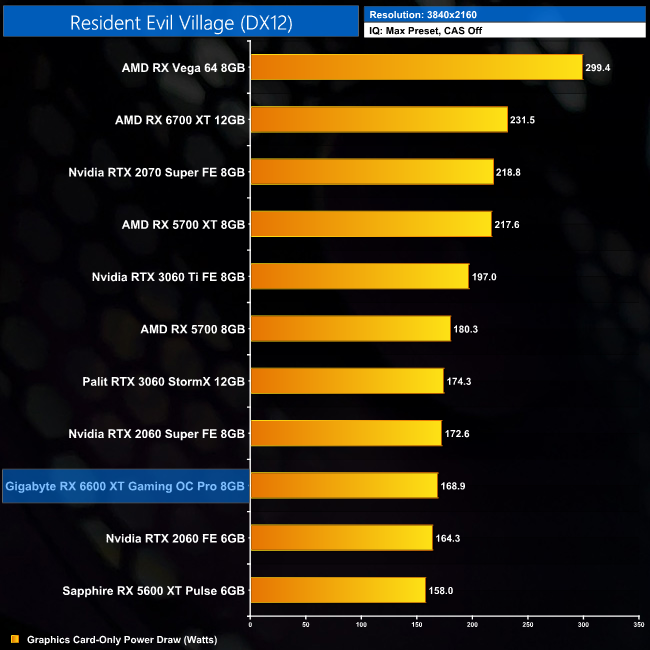

Even at 4K we're still not seeing average power draw exceed 160W. At most we saw 168.9W of power draw in Resident Evil Village (as shown at the top of the page.)
