AMD RX 6500 XT Review ft. Gigabyte Eagle

1. Introduction2. Gigabyte RX 6500 XT Eagle3. Testing Methodology4. 3DMark Fire Strike & Time Spy5. Assassin's Creed Valhalla6. Cyberpunk 20777. Death Stranding8. Far Cry 69. Forza Horizon 510. Hitman 311. Horizon Zero Dawn12. Marvel's Guardians of the Galaxy13. Red Dead Redemption 214. Resident Evil Village15. Total War Saga: Troy16. Watch Dogs: Legion17. PCIe 4.0 vs PCIe 3.0 Investigation18. Performance Summary (12-Game Average)19. Ray Tracing20. Cost Per Frame Analysis21. Clock Speed22. GPU Temperatures23. Acoustics24. Power Draw: 1080p25. Power Draw: 1440p26. Performance per Watt: 1080p27. Performance per Watt: 1440p28. Total System Power Draw29. Overclocking30. Closing Thoughts31. View All Pages

Forza Horizon 5 is a 2021 racing video game developed by Playground Games and published by Xbox Game Studios. The twelfth main instalment of the Forza series, the game is set in a fictionalised representation of Mexico. It was released on 9 November 2021 for Microsoft Windows, Xbox One, and Xbox Series X/S. (Wikipedia).

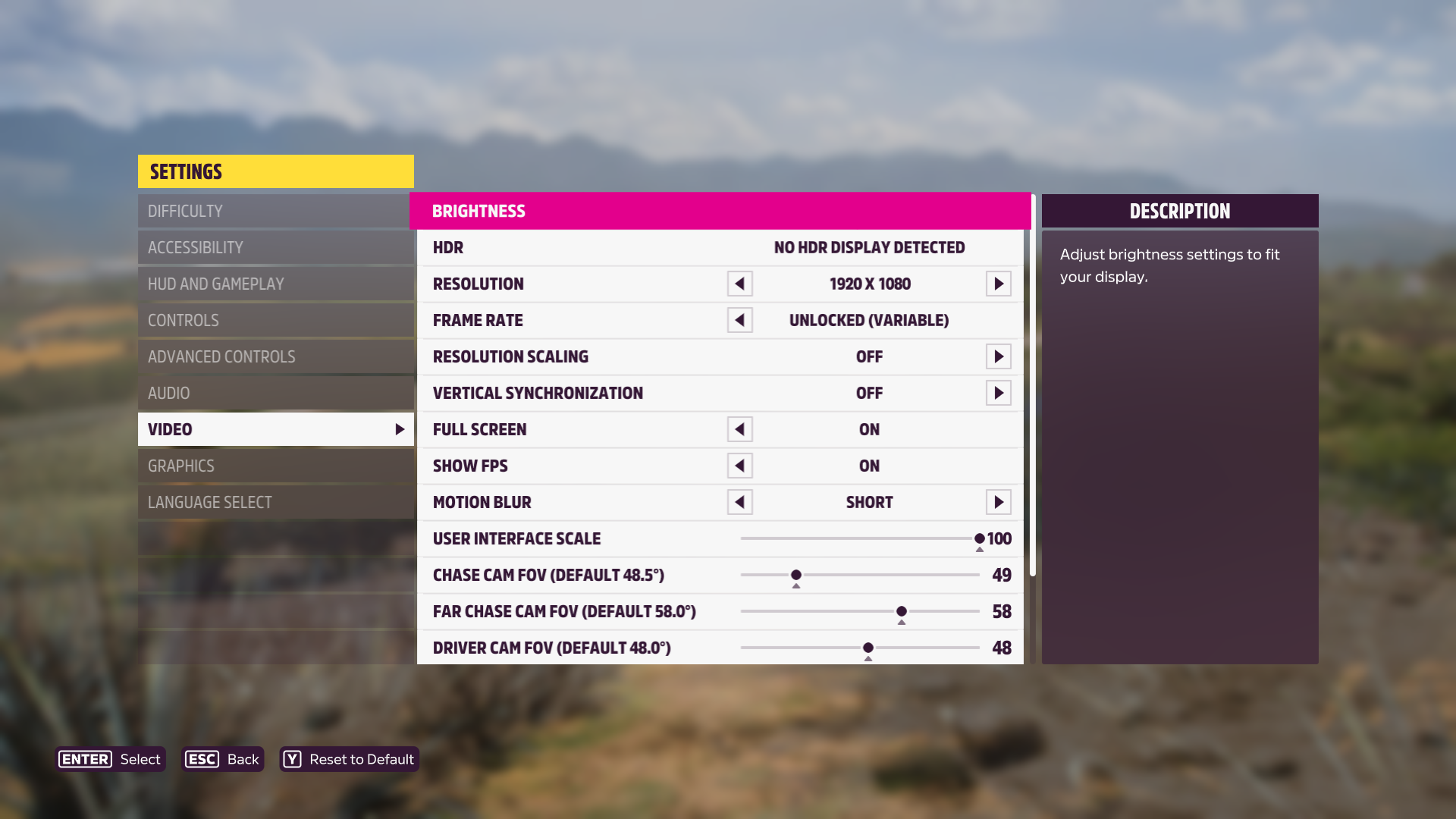

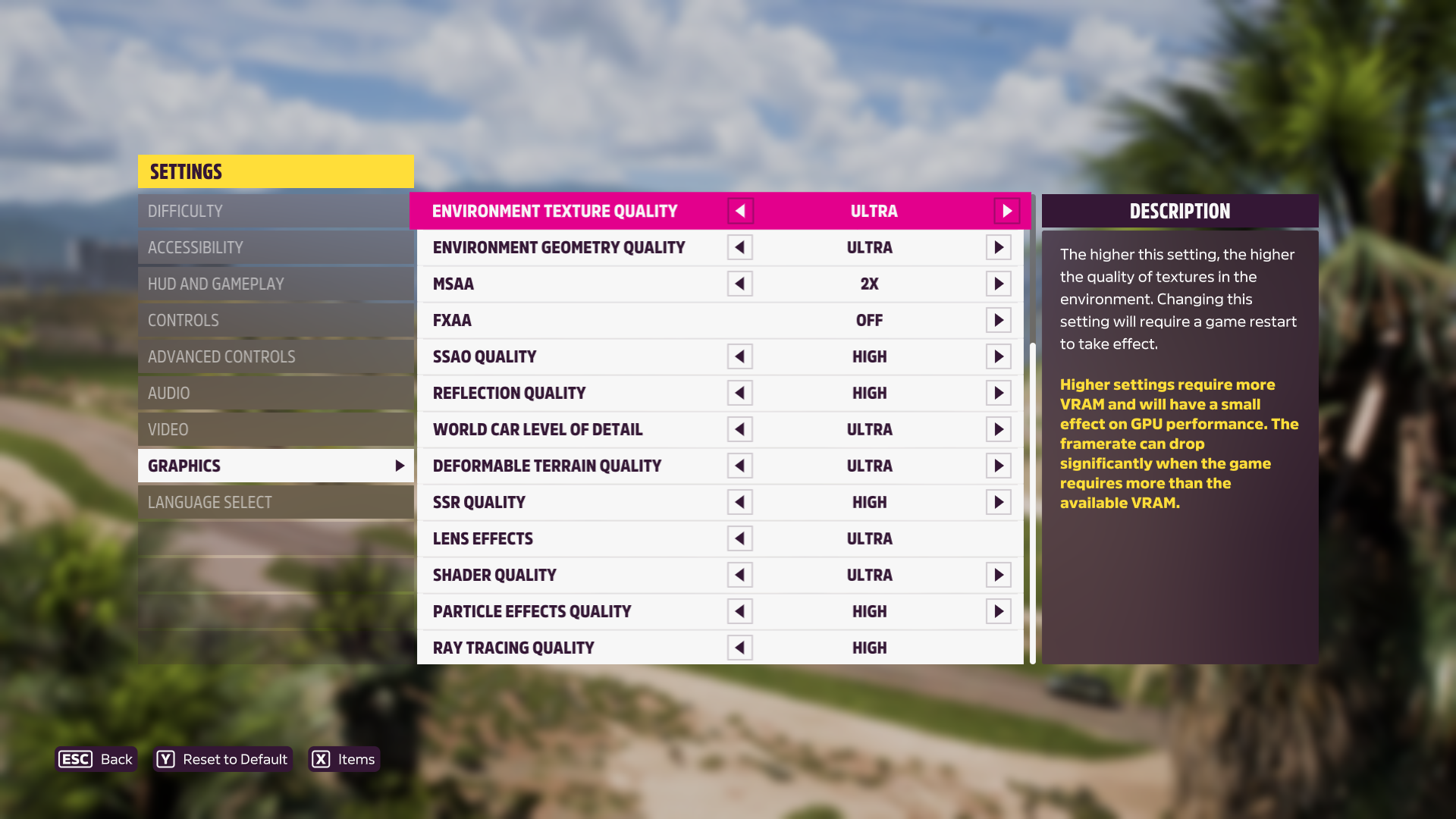

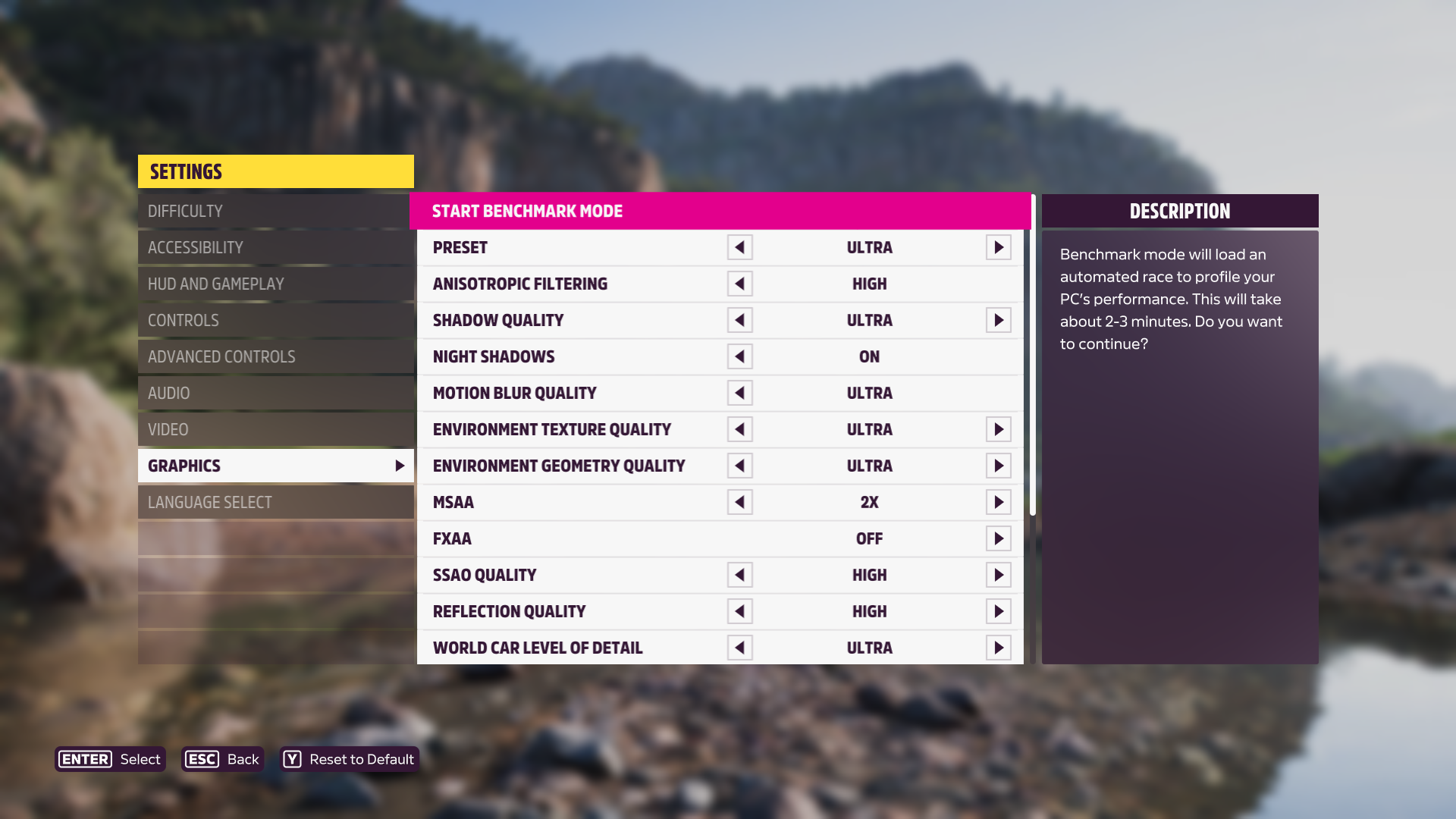

Engine: ForzaTech. We test using the Ultra preset, DX12 API.

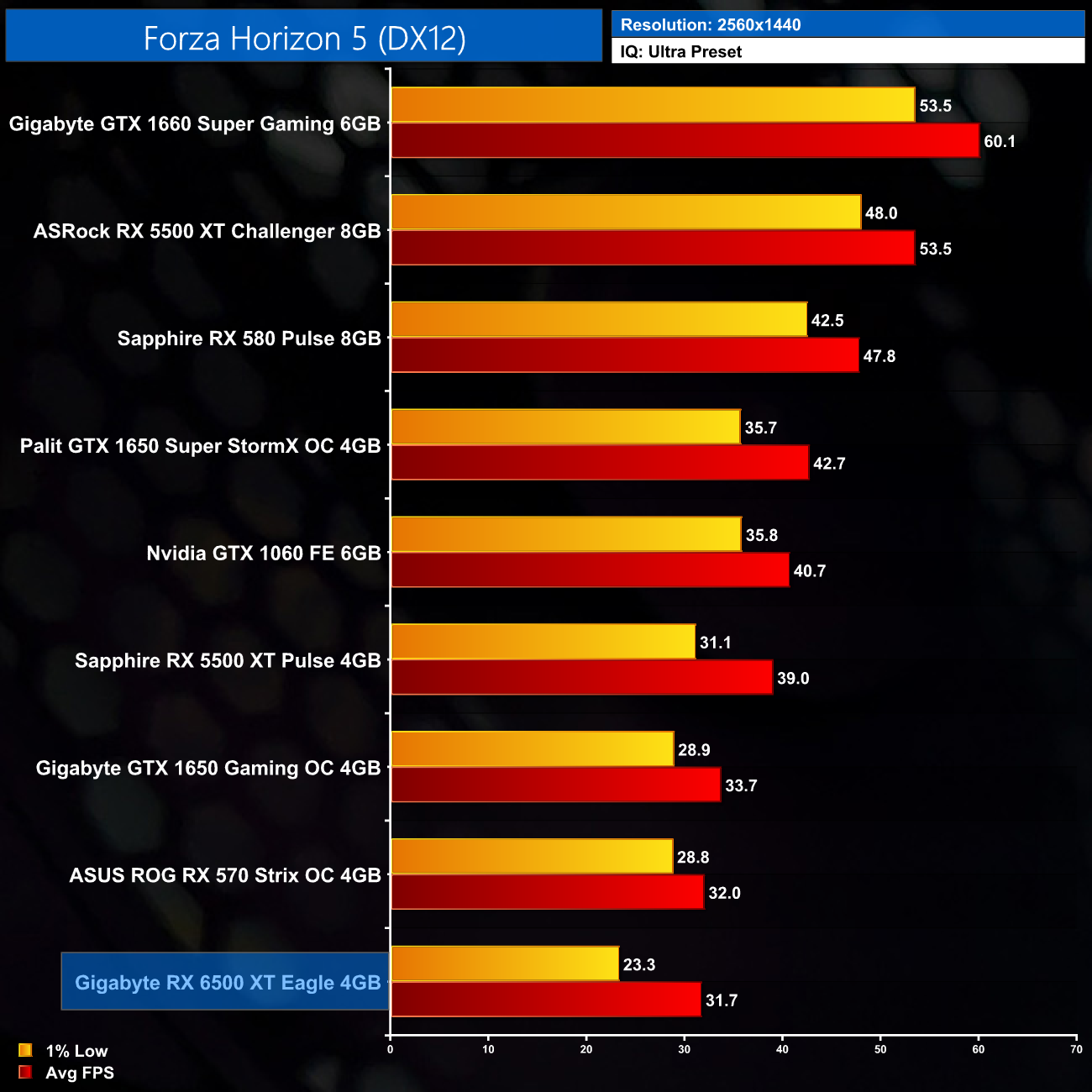

As for Forza Horizon 5, this game perfectly illustrates the fundamental flaws of the 6500 XT. We know it’s a very VRAM-hungry title, but if you look at the data above, the 4GB 5500 XT is still delivering solid performance at these settings. In what’s likely a combination of the four PCIe lanes and incredibly limited memory bandwidth however, the 6500 XT performance drops off a cliff, and then drops off another one when we test with PCIe 3.0.
