DeepCool Mystique 360 AIO CPU Cooler Review

Rating: 9.0.

Whenever we review a DeepCool AIO, we are always amazed by its solid thermal performance and excellent value for money. But what happens when DeepCool adds an LCD screen to its AIO coolers? Does value for money go out of the window? Does a DeepCool AIO with an LCD suddenly become an expensive premium product? Fear not, because the Mystique AIO from DeepCool has all the features of a premium brand, without the high price tag, but can it still produce that chart-topping thermal performance? Let's find out.

Timestamps:

00:00 Start
00:50 Details and Pricing

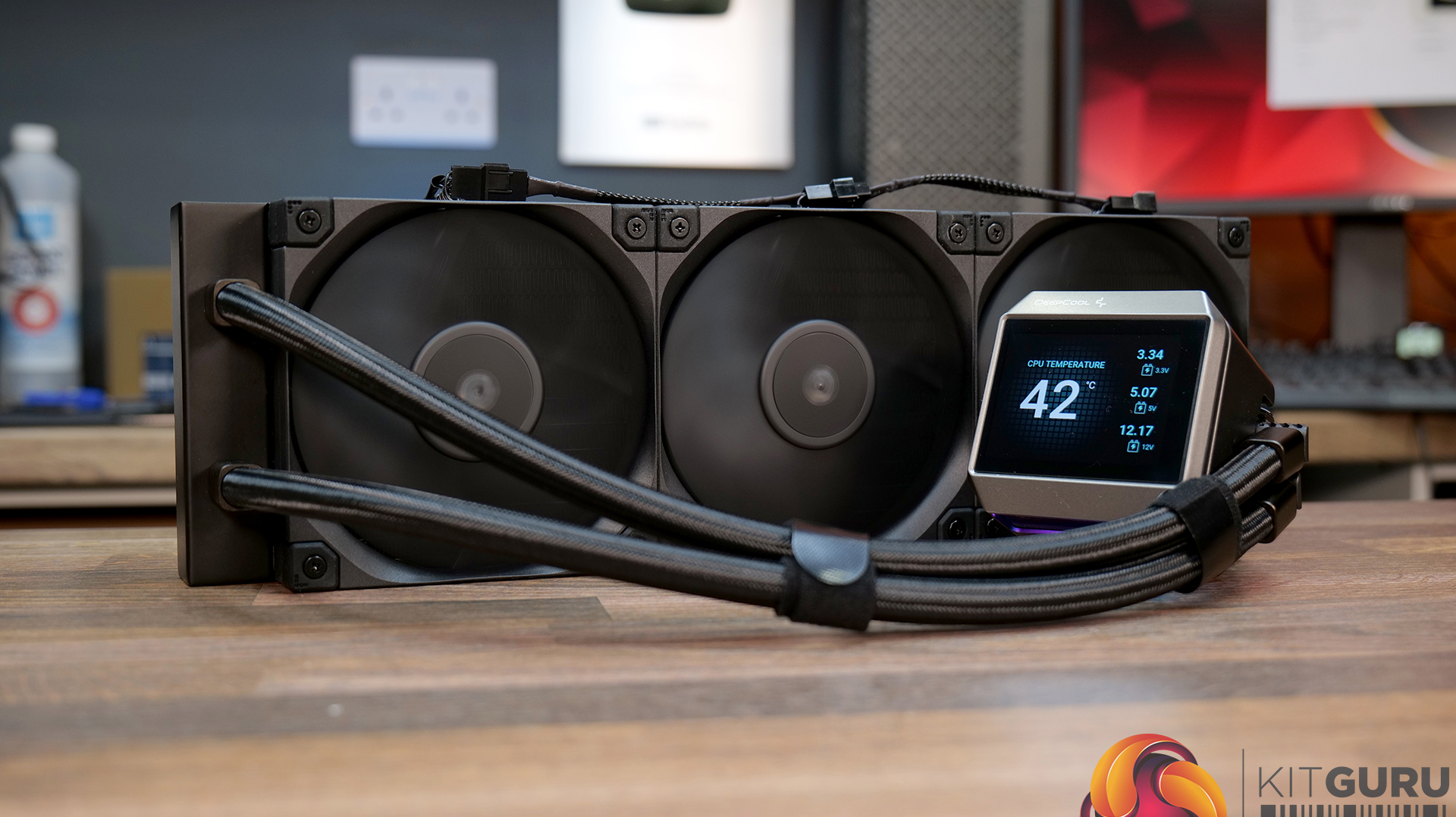

01:51 A closer look at the cooler
04:25 Connections and cables
05:38 2.8 inch IPS LCD Screen
06:13 Fans are not RGB

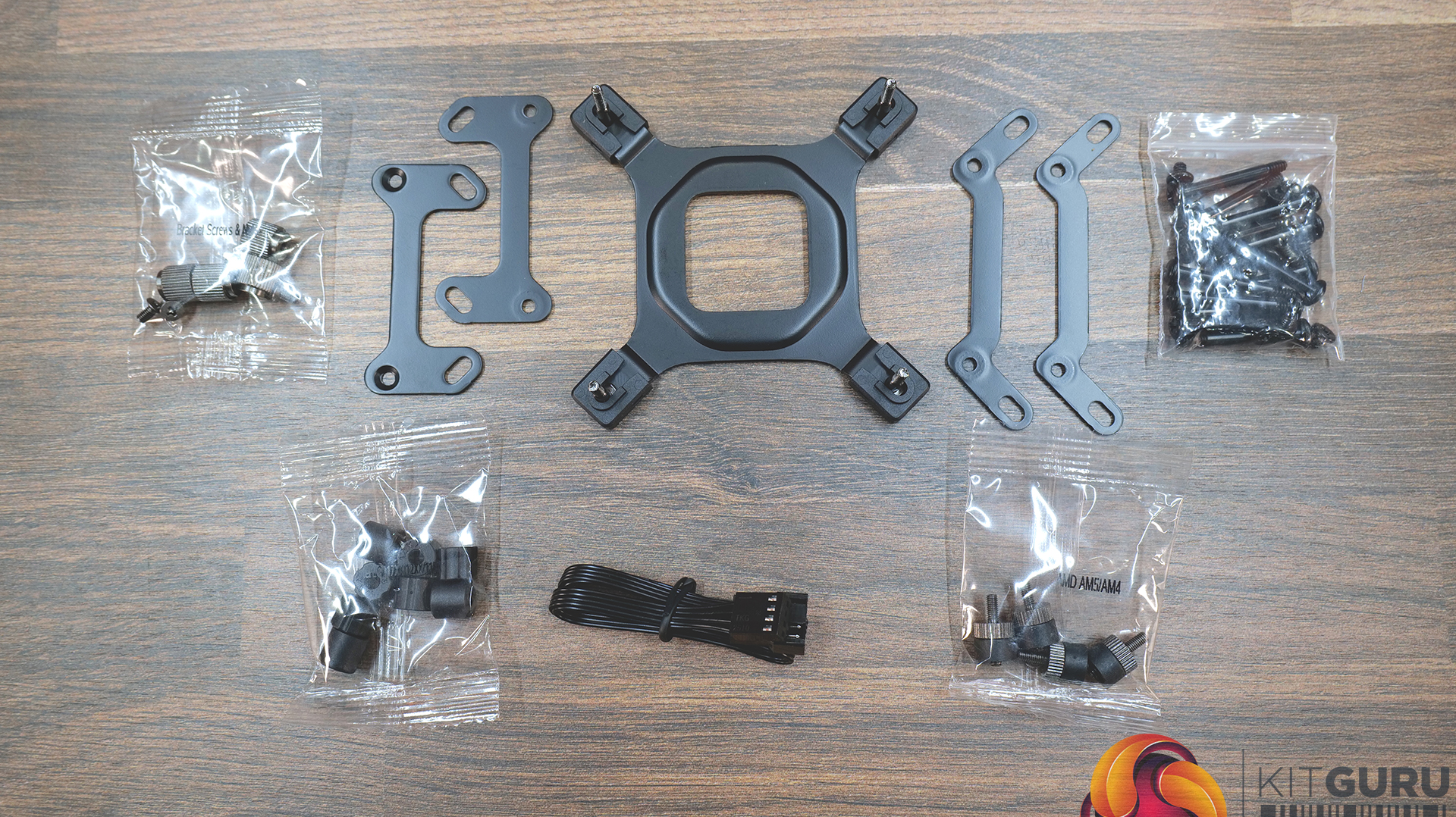

06:53 Installation Discussion
08:27 Software Install
09:11 Thermal and noise testing
11:47 James Thoughts

DeepCool Mystique 360 Features:

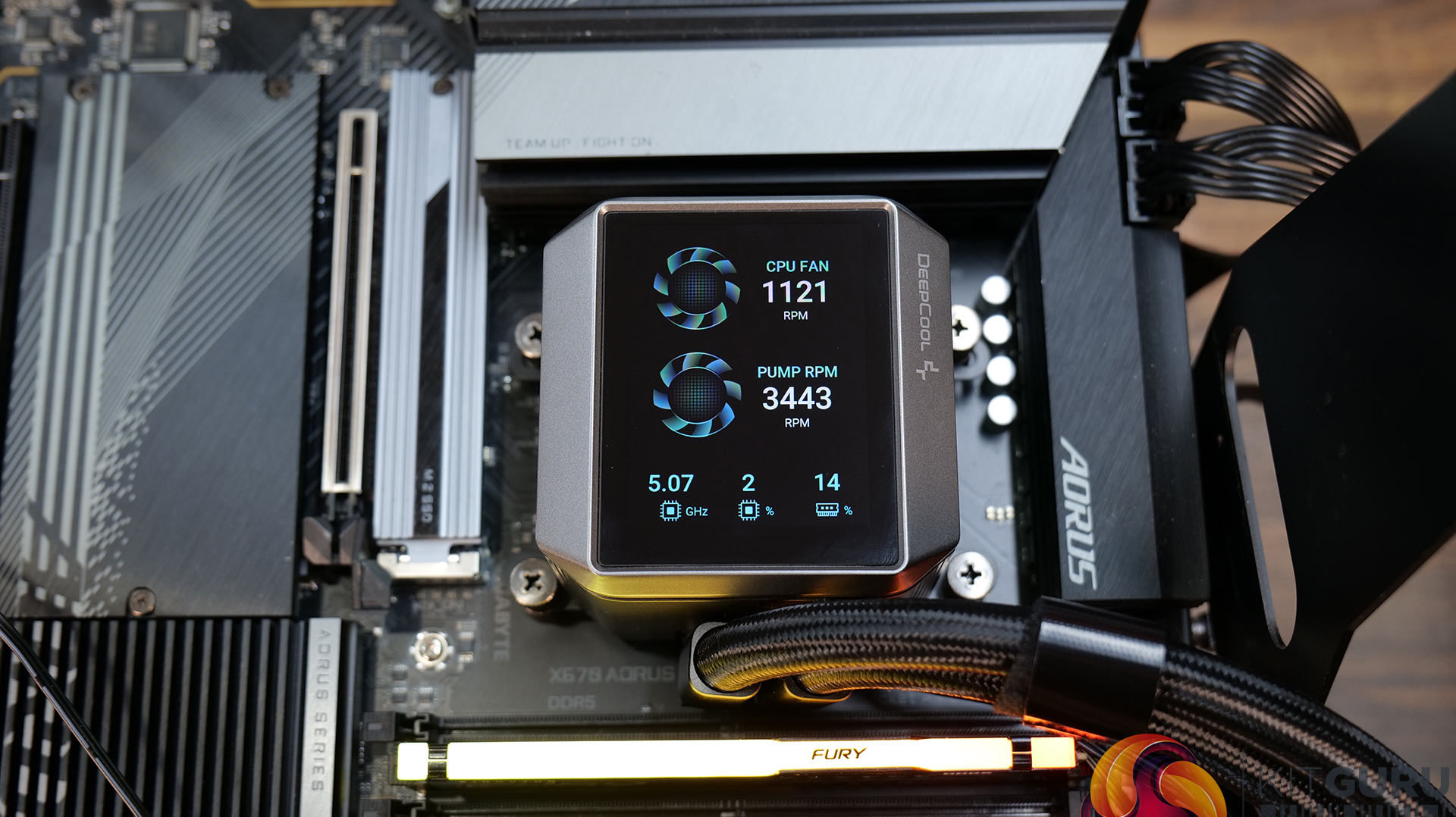

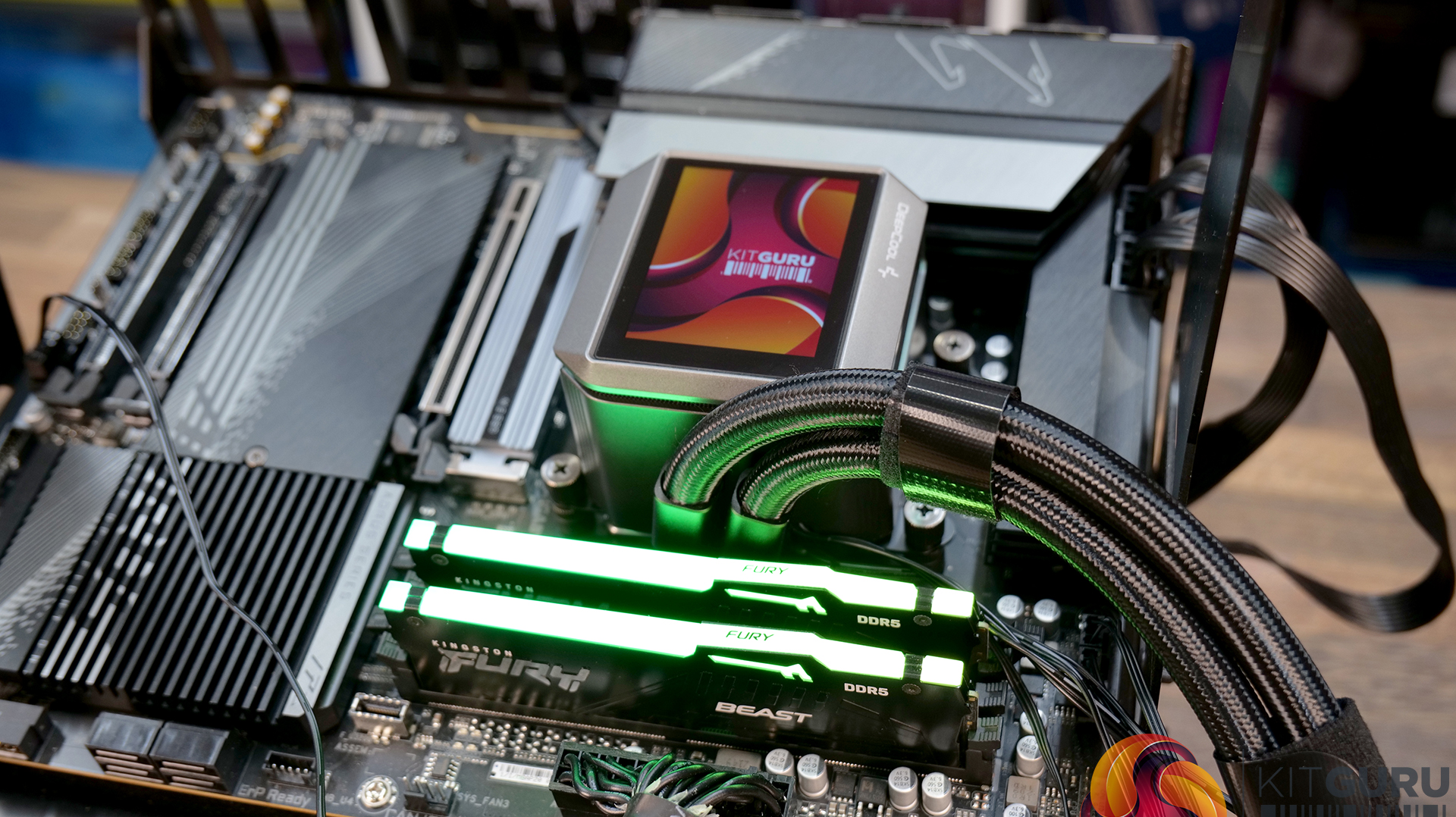

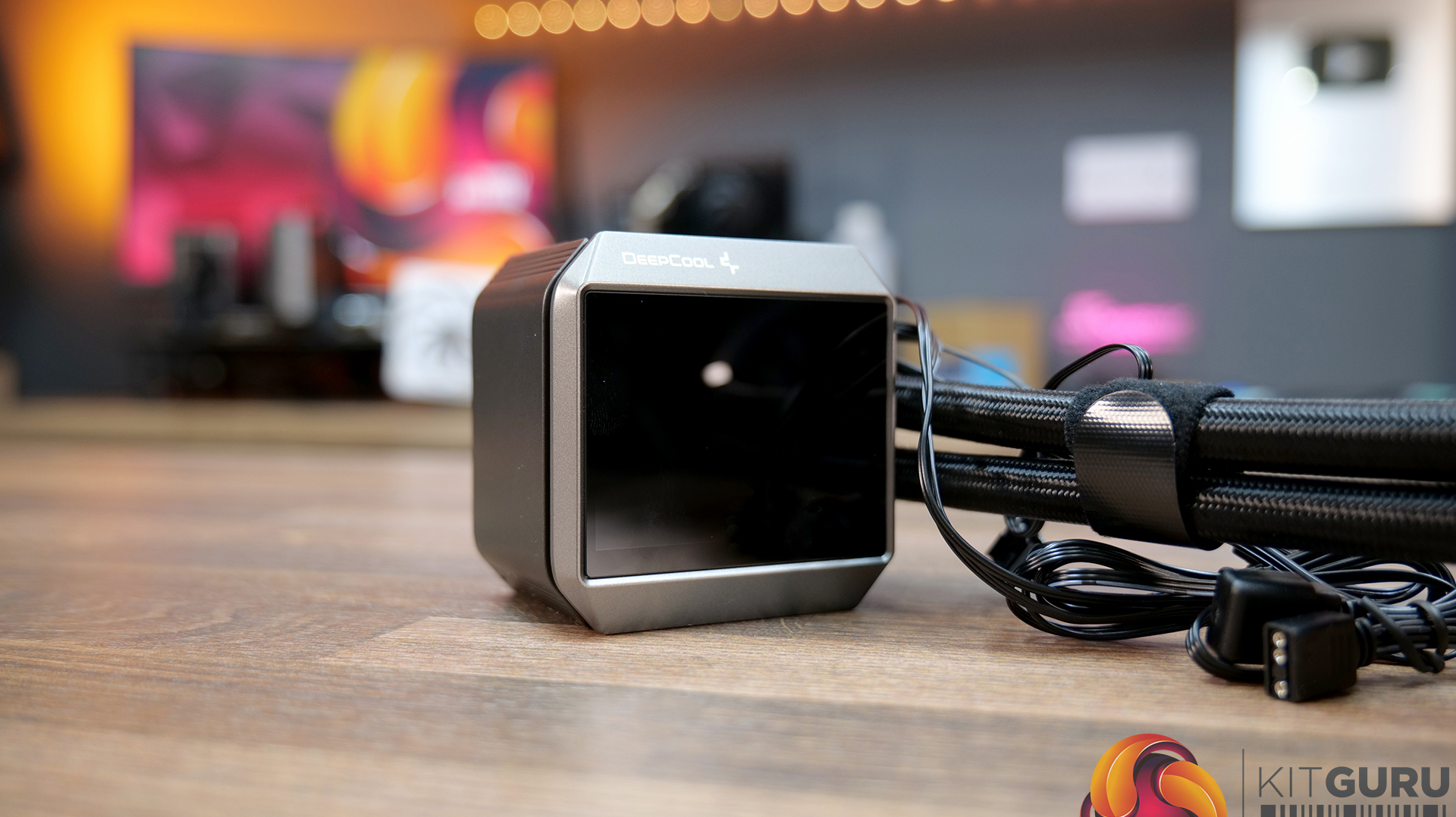

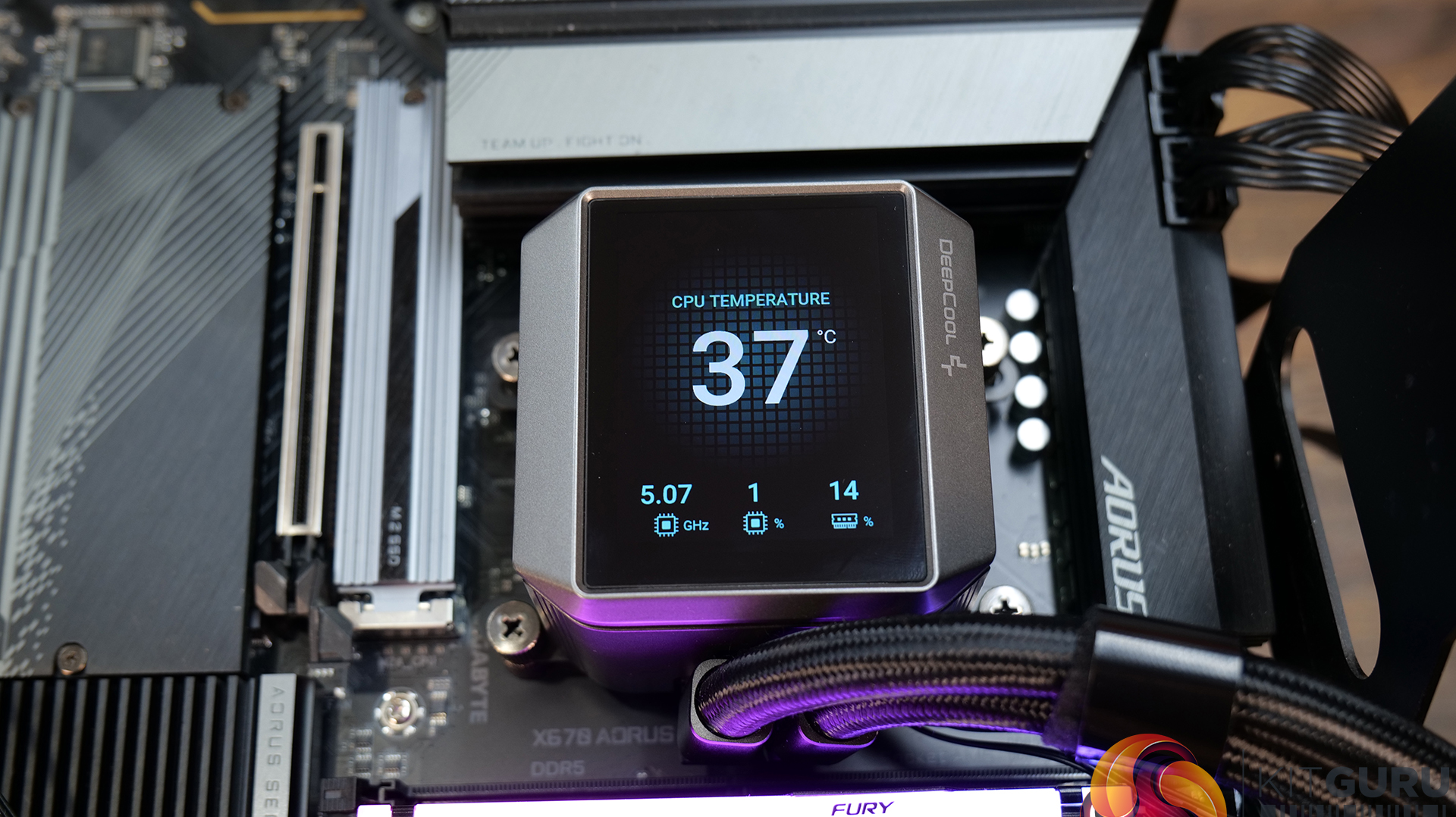

  • Equipped with a pump top mounted 2.8 inch IPS LCD screen with 640 x 480 resolution to display system info, custom images and gifs, controlled by DeepCool DeepCreative software which is a simple yet intuitive control centre.
  • The LCD can automatically change orientation based on data collected from built-in gyroscopic sensors to ensure what's displayed on the screen is always the correct way up.
  • Mystique AIOs are fitted with DeepCool’s own 5th-generation high-performance pump featuring an efficient 3-phase, 6-slot, 4-pole motor.

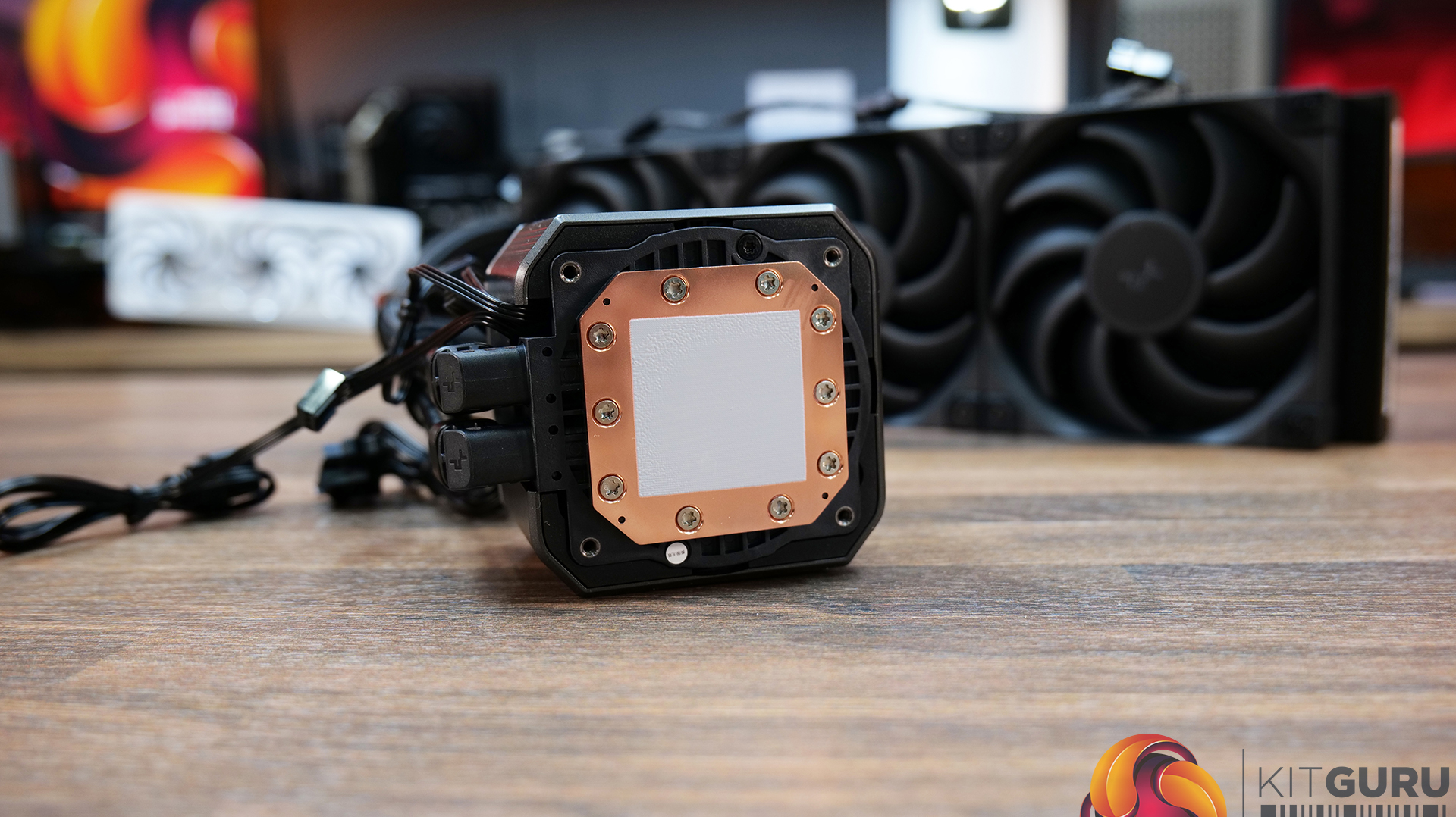

  • The cooler is equipped with a redesigned cold plate with 0.1mm flow channels placed directly over CPU hot spots for maximum cooling performance.

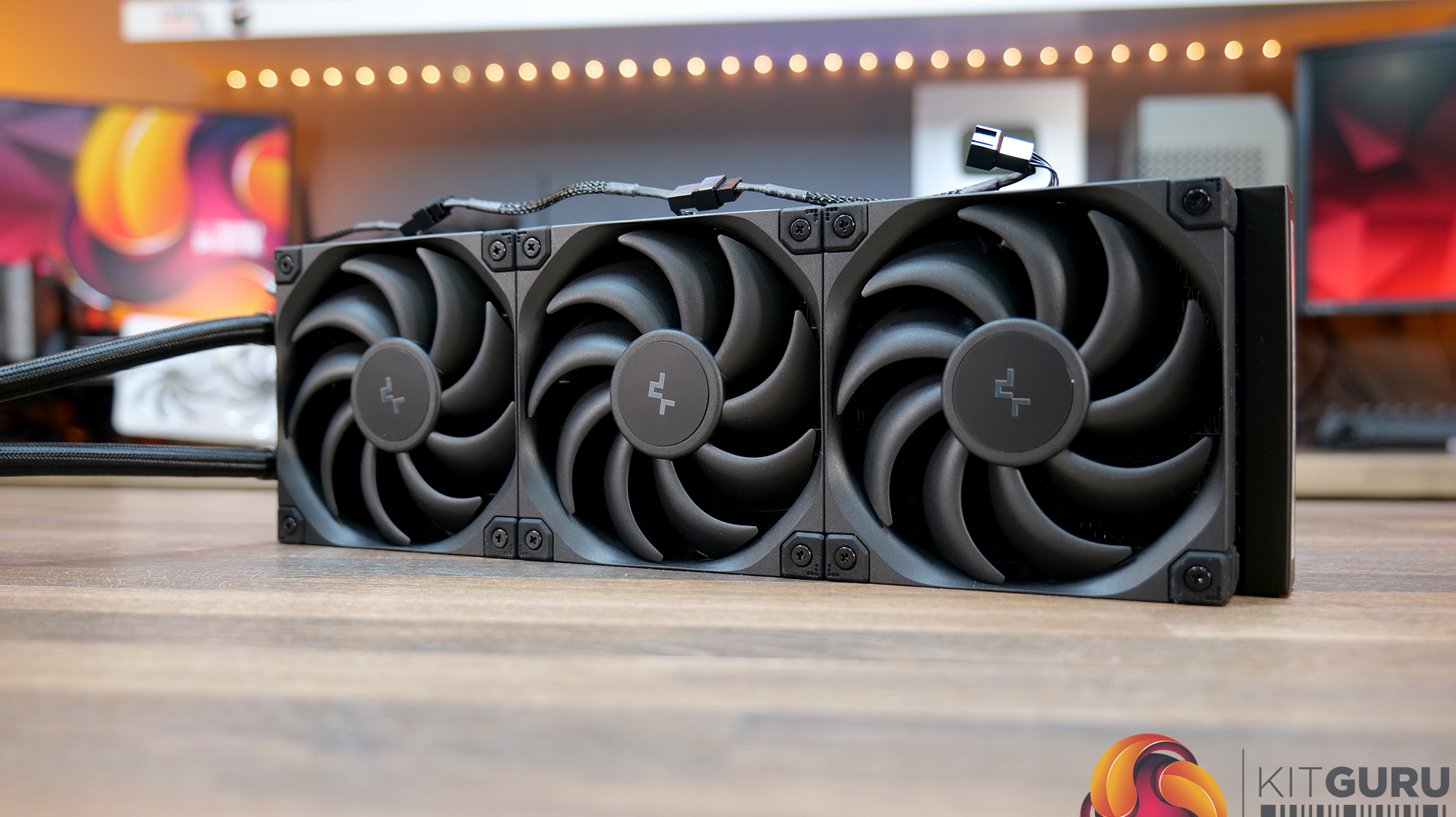

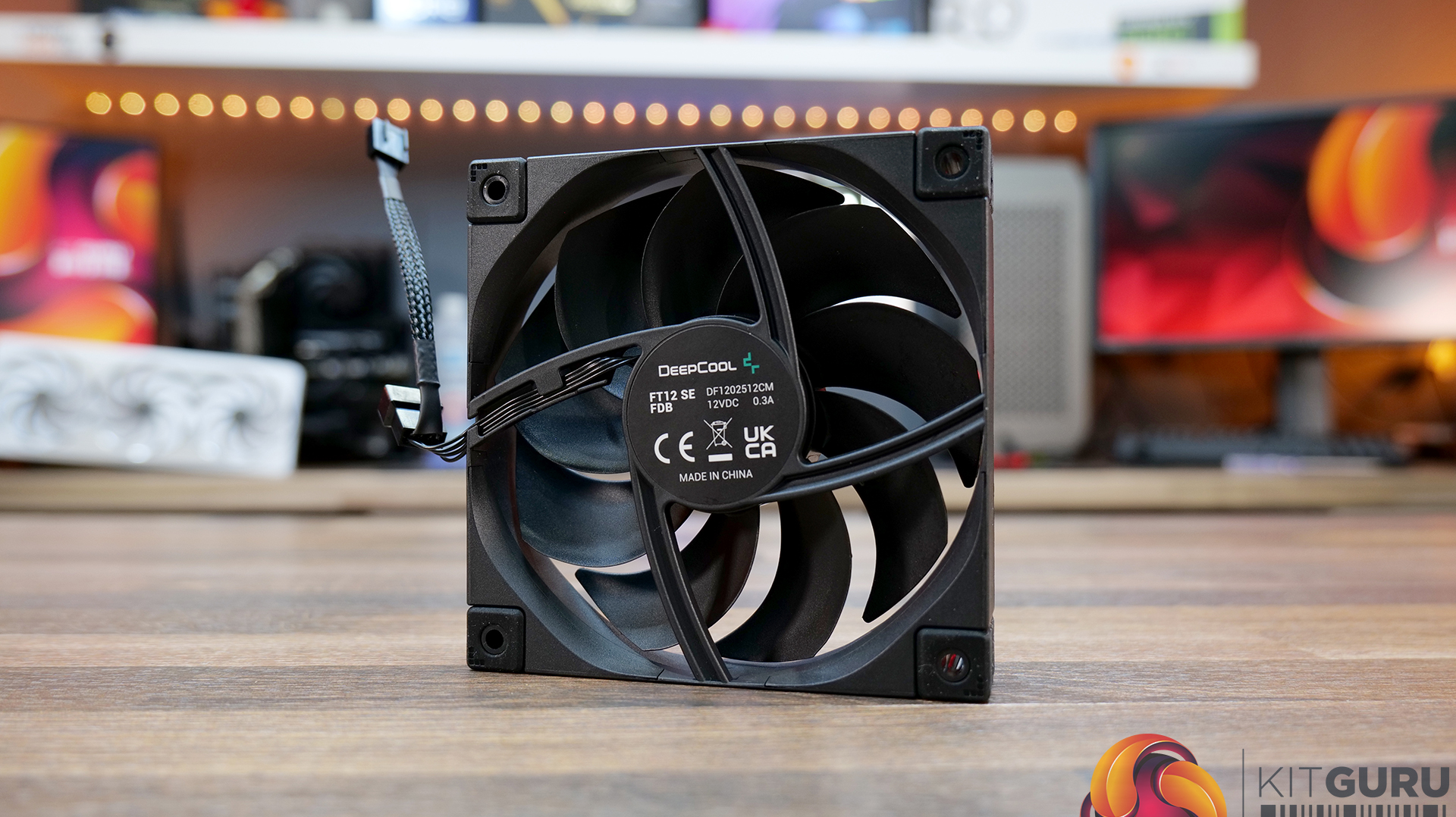

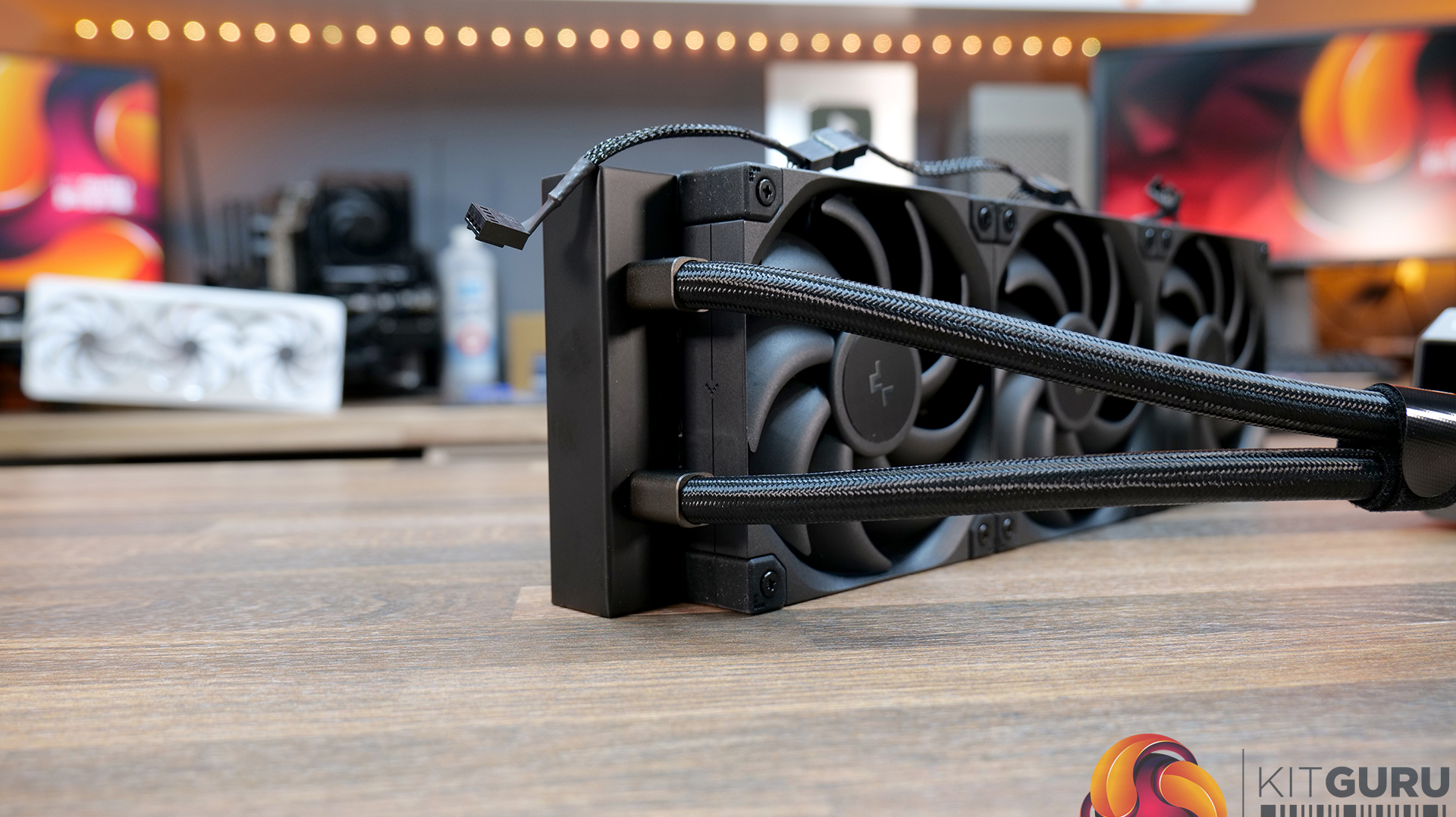

  • The Mystique series comes with DeepCool FT12 SE Fans made from a durable PBT material with fluid dynamic bearing, PWM control and high static pressure.

Specifications:

  • CPU Socket Compatibility: Intel LGA1700/1200/1151/1150/1155, AMD AM5/AM4

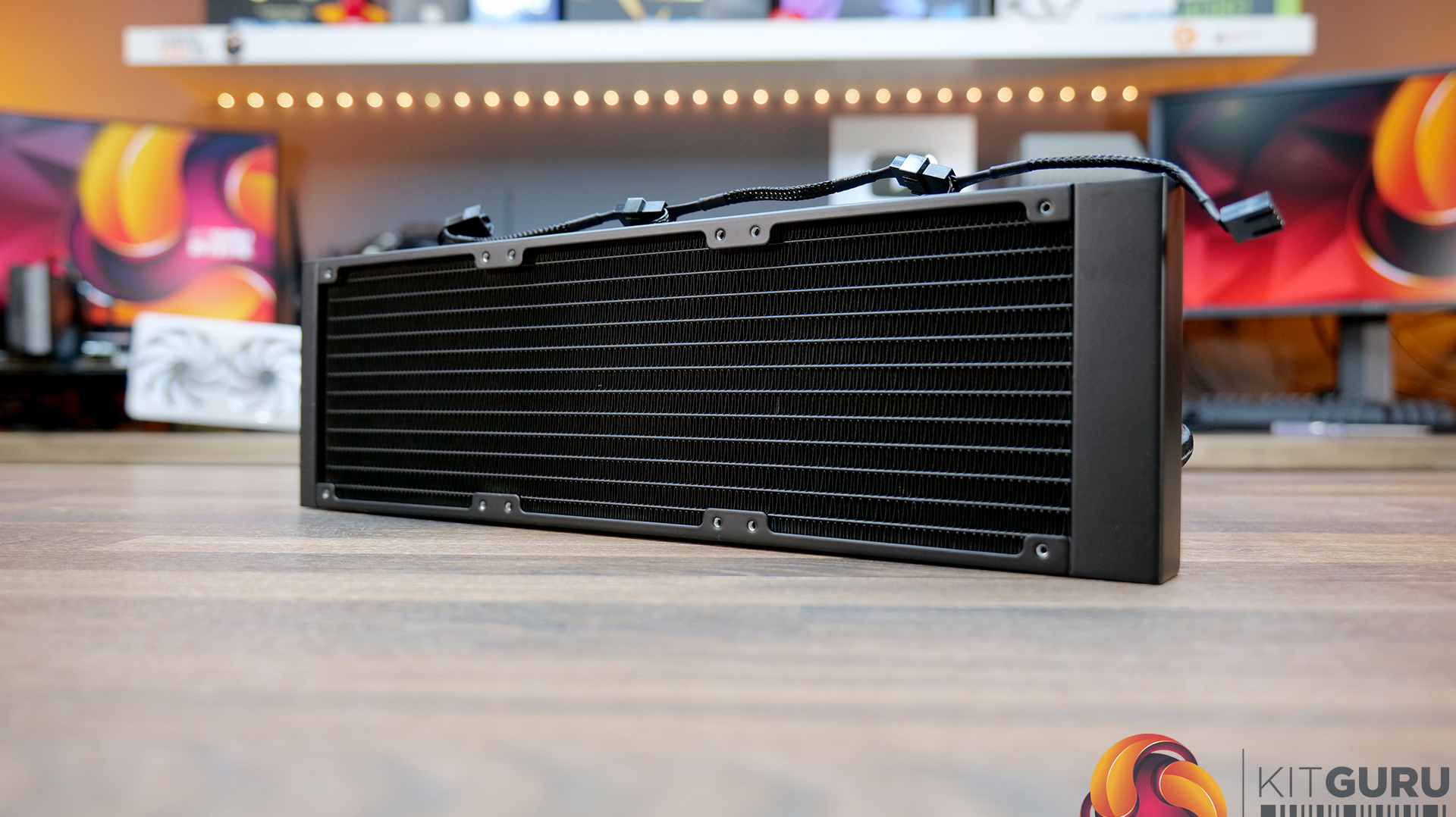

  • Radiator Material: Aluminium
  • Radiator Dimensions: 402 × 120 × 27 mm

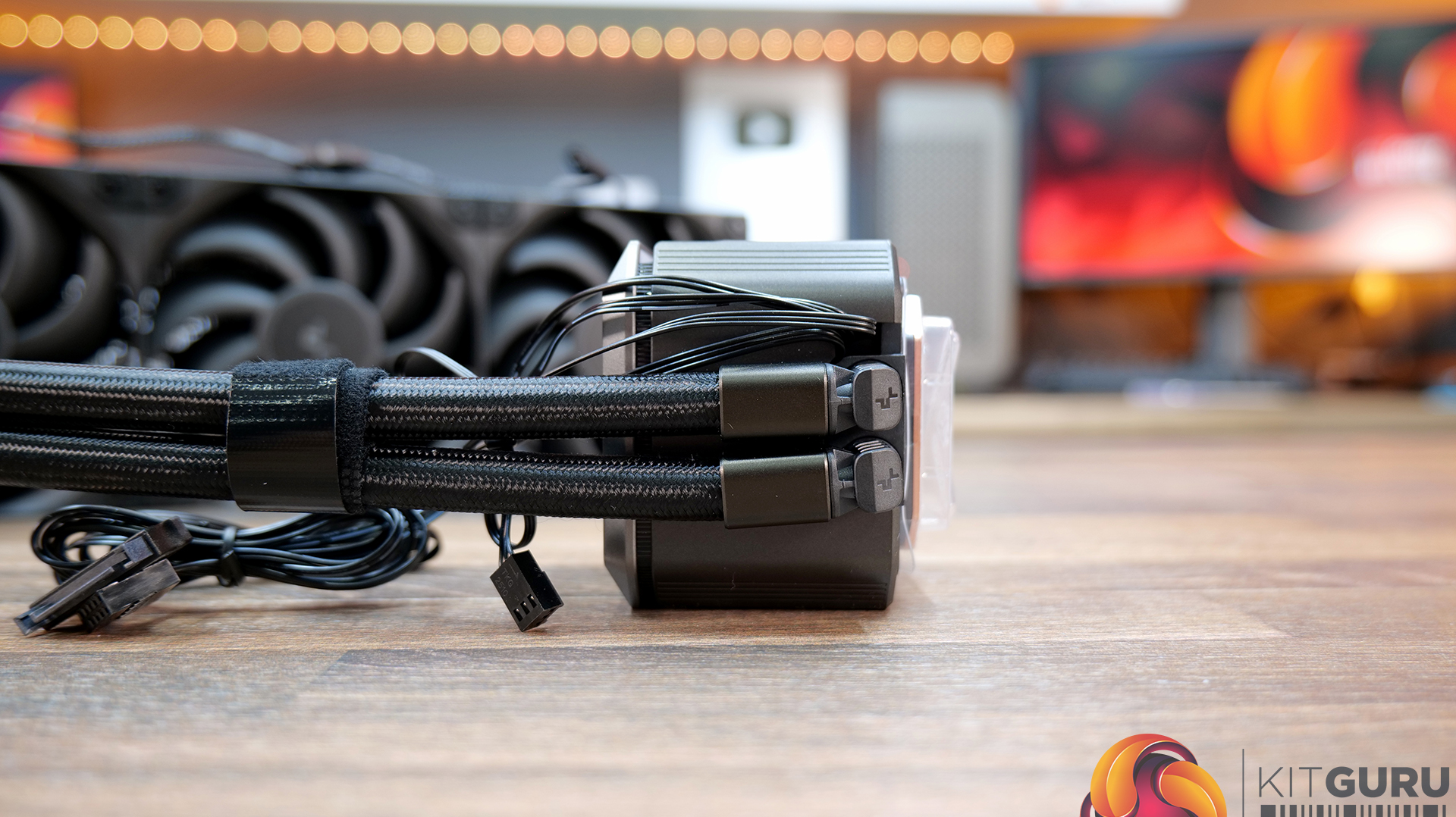

  • Radiator Tube Length: 410mm
  • Pump Speed: 3400 RPM ±10%
  • Pump Cold Plate: Micro Skived Copper
  • Pump Connector: 4-pin PWM
  • Pump Noise: 21dBA
  • Pump LED: 3-pin 5v ARGB LED
  • VRM Fan: N/A
  • Fan Dimensions: 120 × 120 × 25 mm
  • Fan LED: N/A
  • Fan Speed (PWM): 500-2150 RPM ±10%
  • Fan Max Airflow: 45 CFM
  • Fan Max Air Pressure: 32 mmAq
  • Fan Noise: ≤36.49dBA
  • Fan Bearing: Fluid Dynamic Bearing
  • Fan Connector: 4-pin PWM
  • Warranty: 5-Years
