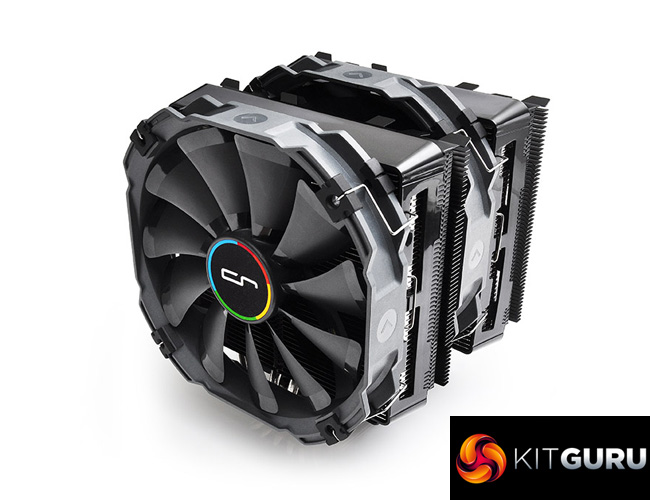

Hot on the heels of our Cryorig H7 review we are looking today at the R1 Ultimate. A monster of an air cooler, the R1 Ultimate features twin 140mm fans, along with 7 copper heatpipes, while it measures nearly 170mm tall. If you want the best performance without buying a liquid cooler, could this be the answer?
Thanks to the excellent performance of the Cryorig H7, we have high hopes for the R1 Ultimate. It is also worth mentioning that the R1 Ultimate is priced at £76.99 here in the UK, so we will have to see if that represents good value or not. Read on for the full review, including our analysis of the cooler's features, installation process and performance.
Specification
Heatsink Specification:
- Dimension ( with fan ): L142.4 mm x W140 mm x H168.3 mm
- Weight ( with fan ): 1282 g
- Weight ( without fan ): 970 g
- Heat pipes: 6mm heatpipe x 7 units
- Front Fin: T = 0.4 mm ; Gap = 2.4 mm
- Front Fin Pcs: 42 pcs
- Rear Fin: T = 0.4 mm ; Gap = 1.8 mm
- Rear Fin Pcs: 53 pcs
- Copper Base: C1100 Pure copper nickel plated
- Distance From Center: 40 mm
- RAM Height Limit: 30 ~ 35 mm ( Fan position adjustable )
- TDP: 250 W+
Fan Specification:
- Dimension: L140 mm x W140 mm x H25.4 mm
- Weight: 156 g
- Rated Speed: 700 ~ 1300 RPM ±10 %
- Noise Level: 19 ~ 23 dBA
- Air Flow: 76 CFM
- Air Pressure: 1.44 mmH2O
- Ampere: 0.16 A
