be quiet! TFX Power 2 300W Gold review

Allan 'Zardon' Campbell July 1, 2014 Featured Tech News, Power Supplies


DSCF0680

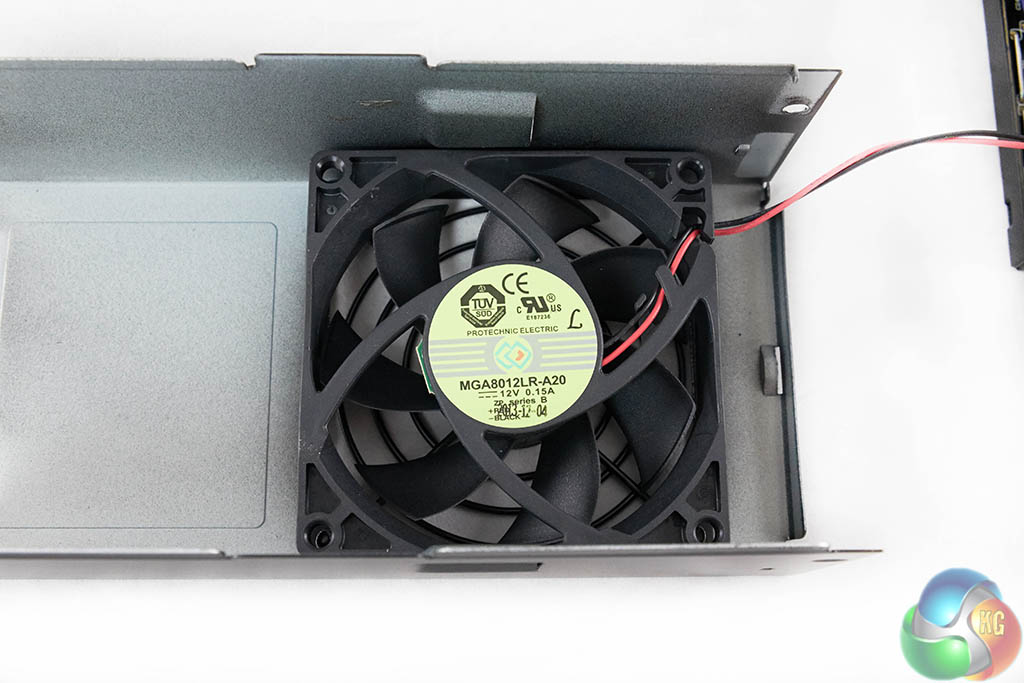

be quiet! are using an 80mm Protechnic Electric fan – model number MGA8012LR-A20 rated at 12V 0.15A. This fan measures 80mm x 80mm x 20mm and is classed as a server ‘square fan'. It is a sleeve bearing fan.
DSCF0682DSCF0686
DSCF0685DSCF0688
DSCF0709DSCF0696

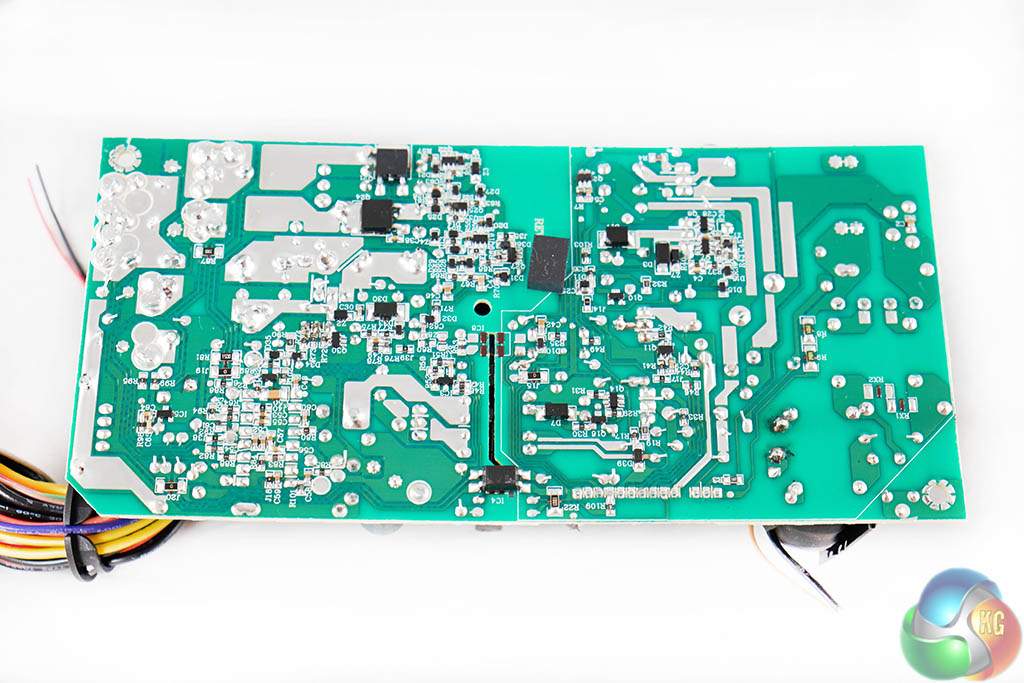

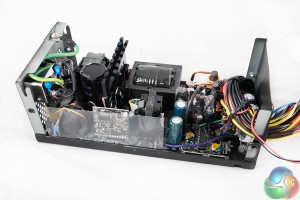

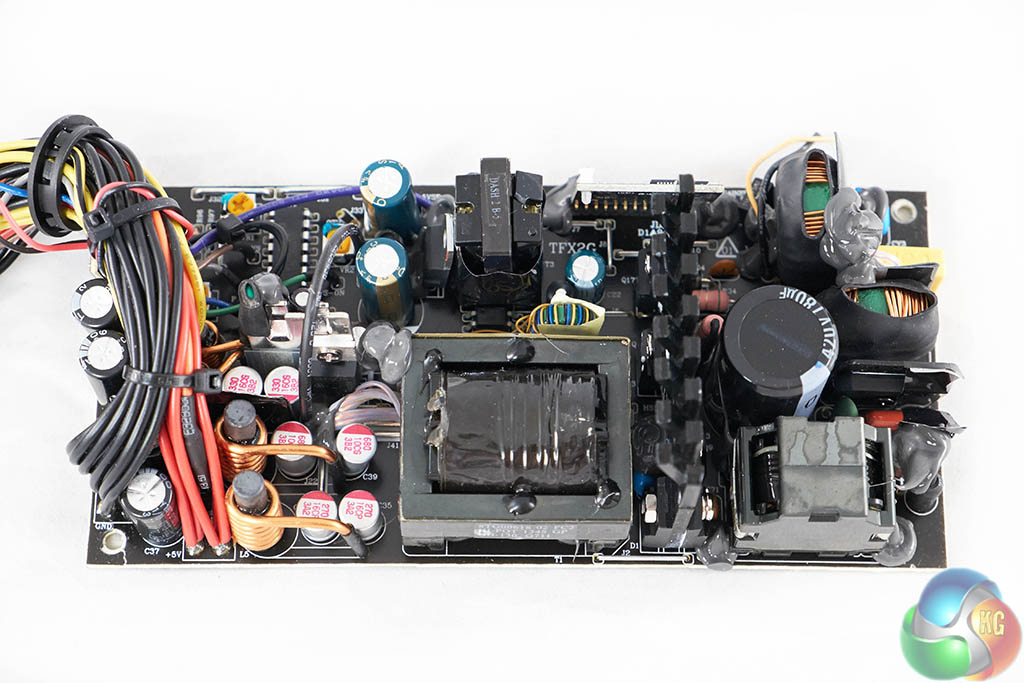

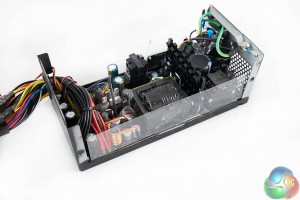

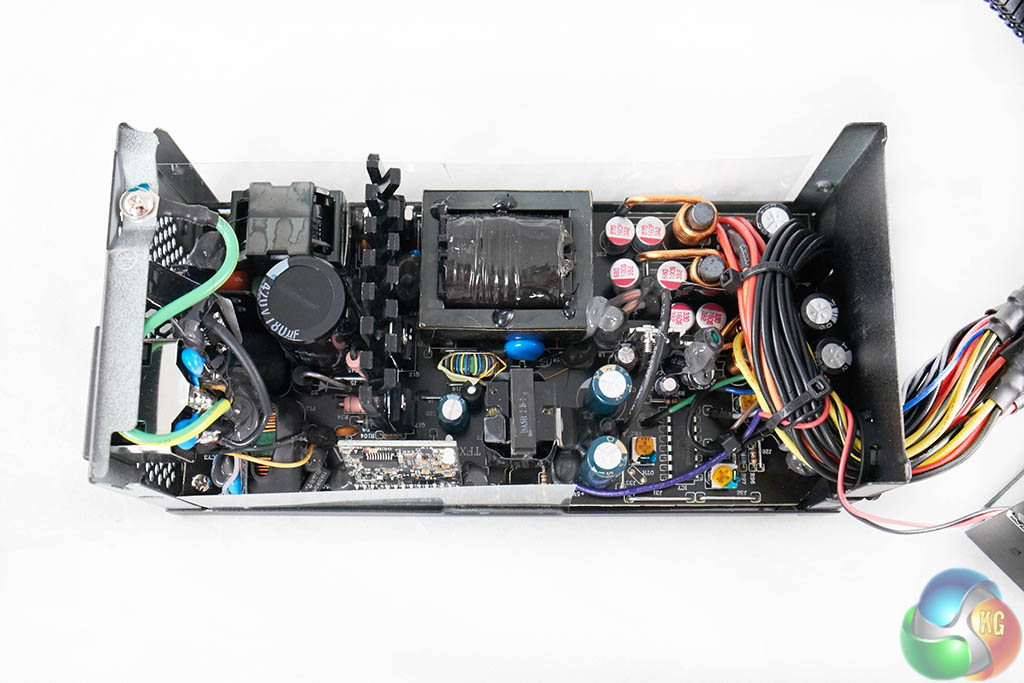

The design is clean inside and due to the efficiency be quiet! have only installed a single heatsink to help with cooling directly under the small fan. Soldering on the PCB seems fine.
DSCF0701DSCF0715
DSCF0704DSCF0707

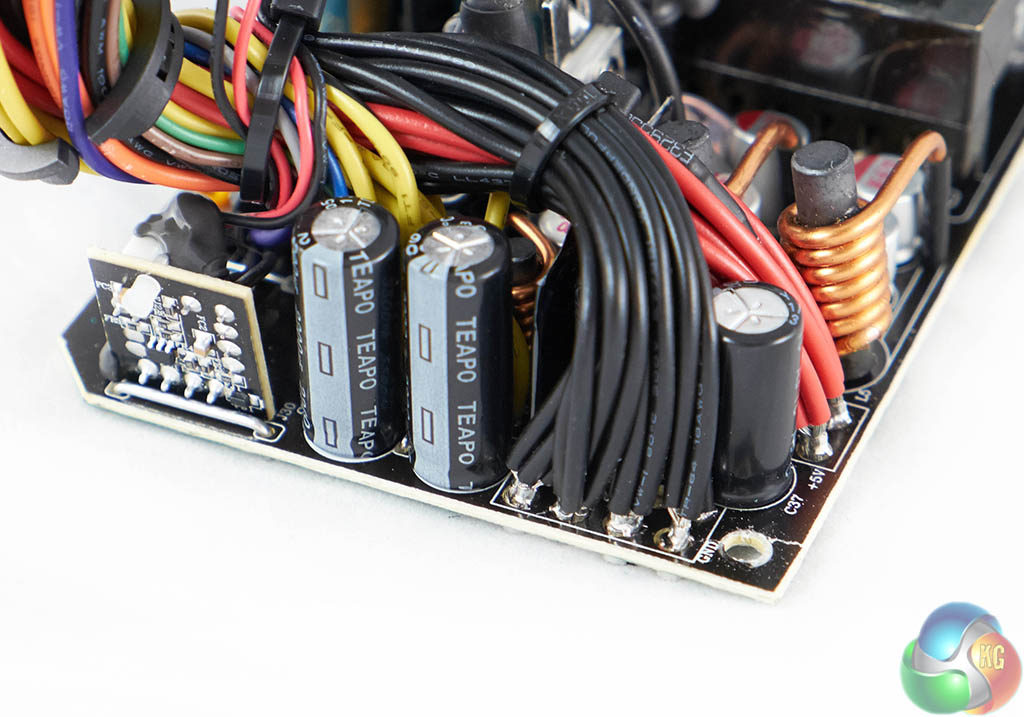

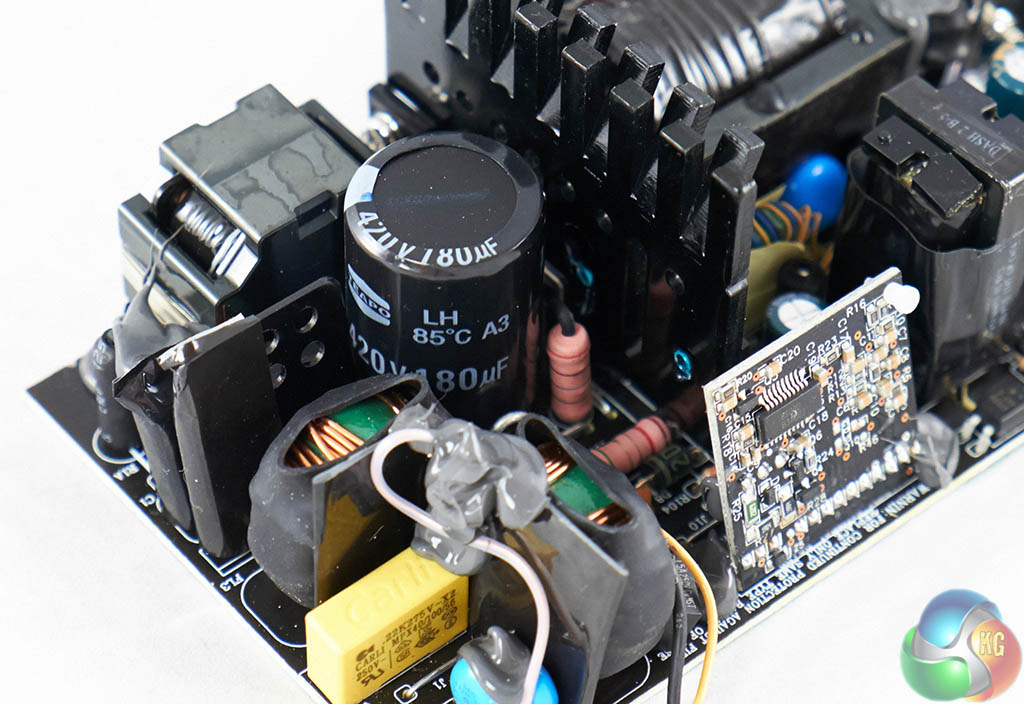

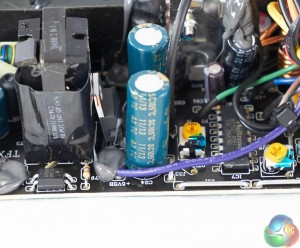

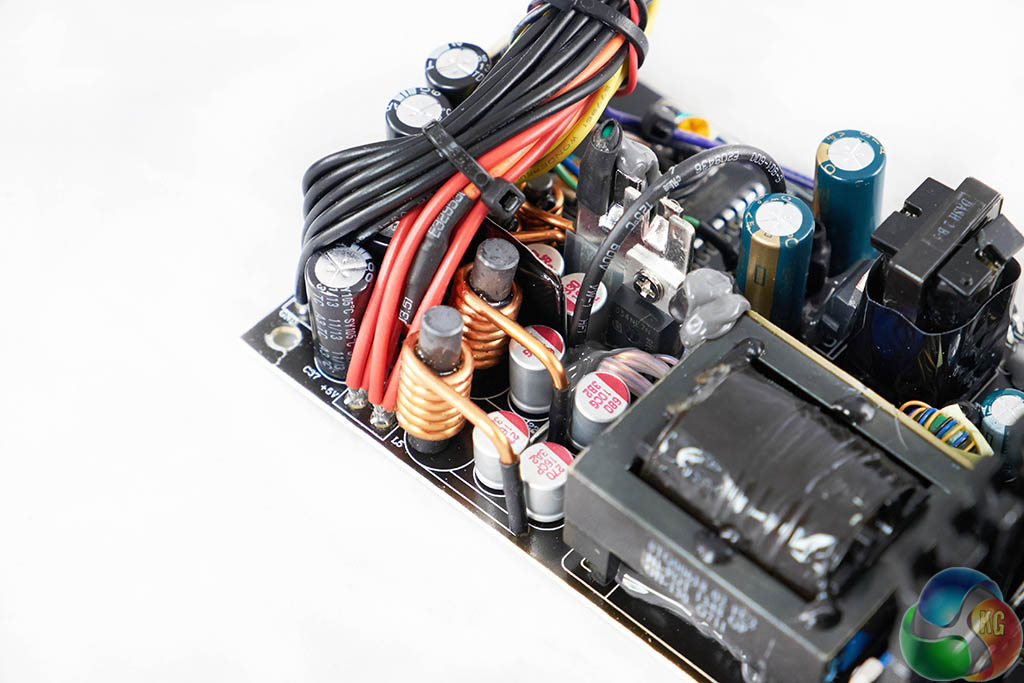

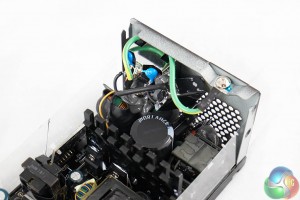

be quiet! are using a Chinese TEAPO 85c rated capacitor in the primary stage. This is rated 420V and 180uF. TEAPO wouldn't be our first choice, but it looks as if be quiet! are working to a very specific budget. Secondary stage capacitors are a mixture of Chinese brands … mainly TEAPO.
DSCF0692

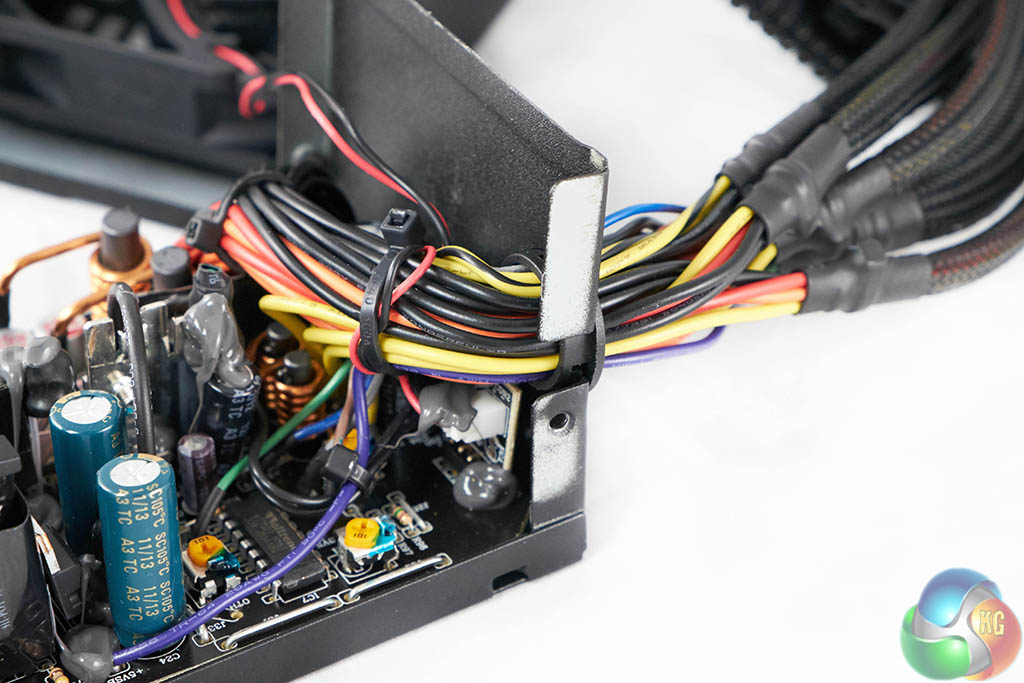

The cables are not sleeved into the chassis, but be quiet! are using a plastic ring around the bare cables to offer protection against the raw metal.
